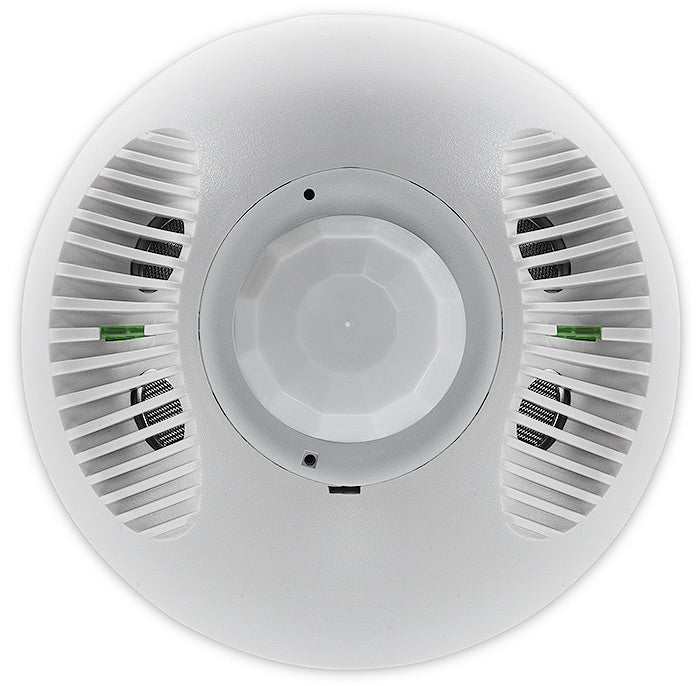

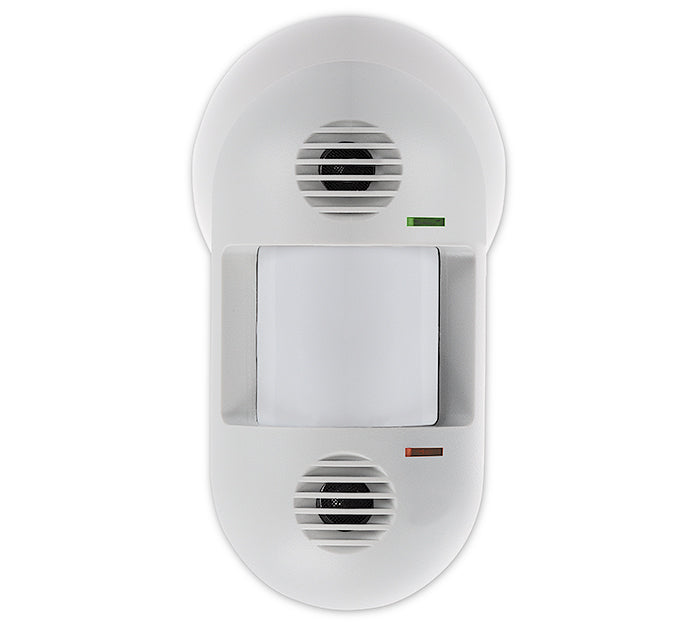

Extron OCS 100C (part number 60-1664-01) — a ceiling-mounted occupancy sensor that combines ultrasonic, infrared and photocell detection for Extron control systems.

Automating a meeting space starts with knowing whether anyone is in it. The OCS 100C answers that question using four 32 kHz ultrasonic sensors and a dual-element pyrometer behind a 12-element Fresnel lens. Out of the box both technologies must agree before an occupancy signal is reported, which is what keeps a passing shadow or an HVAC draught from waking a room. The sensor wires straight into digital I/O or FLEX input ports on Extron controllers, or reaches them over eBUS with optional interface accessories.

Key Capabilities

Covers 2000 square feet when installed 10 ft (3 m) above the floor.
Four ultrasonic sensors at 32 kHz paired with a segmented Fresnel-lens PIR element that filters sunlight energy.
Timer adjustable from 8 to 42 minutes, with an 8-second test mode for commissioning walkthroughs.
Two logic outputs: a blue occupancy wire and a gray occupancy-plus-photocell wire, 0-24 VDC active high.
Isolated single-pole double-throw relay rated 500 mA at 24 VDC for third-party HVAC or lighting loads.
Photocell override adjustable across 1 to 100 foot-candles (10 to 1000 Lux).
InteliDAPT learning refines timing and PIR thresholds over a four-week adaptation window.

Where It Is Used

Conference rooms, boardrooms, classrooms and huddle spaces are the usual homes for this sensor, along with lecture halls and clinical meeting areas where lights, displays and HVAC should follow real occupancy. Ceiling installation is supported both centred and in a corner, and an infrared mask is supplied for blocking hallway traffic.

Specifications at a Glance

Coverage: 2000 sq ft from a 10 ft mounting height
Power: 20-24 VDC, 33 mA nominal (PC 1224 12 V to 24 V converter included)
Outputs: 2 digital outputs plus one SPDT isolated relay, 500 mA at 24 VDC
Enclosure: off-white plastic, 4.50 in W x 1.40 in D (114 x 36 mm), 0.1 lb
Operating range: +32 to +104 °F (0 to +40 °C), 0% to 95% noncondensing, indoor use only

Also referenced as Extron OCS100C, OCS-100C, part number 60166401.

Specifications

Part Number: 60-1664-01

Manufacturer: Extron

Model: OCS 100C

Condition: New

Coverage Area: 2000 square feet (achieved when installed 10 ft / 3 m above the coverage area)

Ultrasonic Sensors: 4 sensors - 32 kHz output

Passive Infrared: Dual-element pyrometer and 12-element cylindrical segmented Fresnel lens; integral filter excludes excess PIR energy from sunlight

InteliDAPT Technology: Auto reset from test setting; self-adjusting timer; self-adjusting passive infrared thresholds; automatic false-on and false-off correction

LED Lamp: Red - infrared motion; Green - ultrasonic detection

Timer Timeout: Automatic mode: 8 to 42 minutes (self-adjusts based on occupancy); Manual mode: 8 to 42 minutes; Test mode: 8 seconds

Photocell: Adjustable natural-light override ranges from 1 to 100 foot-candles (10 to 1000 Lux)

Learning: 4 weeks for response error conditions, air current adaption and timer optimization

Post-Learning Occupancy Periods: 24-hour circadian occupancy periods learned

Adjustments in Post-Learning Period: Generally occupied periods; generally unoccupied periods

Digital Outputs: 2 digital outputs

Digital Output Connectors: Blue wire = Occupancy only; Gray wire = Occupancy + Photocell

Output Voltage Range: 0 - 24 VDC; active high logic control signal with short-circuit protection, open collector when unoccupied

Relay: 1 Normally Open and Closed contact, single pole, double throw, 500 mA rated at 24 VDC, three-wire isolated relay

Sensor Power Input Requirements: 20-24 VDC, 33 mA nominal

PC 1224 Converter Power Requirements: Input: 12 VDC, 1.5 A max; Output: 12 VDC, 1.25 A max and 24 VDC, 75 mA max

PC 1224 Converter Dimensions: 1.00 in W x 1.00 in L x 0.50 in D (25 mm W x 25 mm L x 13 mm D)

Wiring: Color coded, pre-stripped leads - 6 in total length

Temperature/Humidity: Operation: +32 to +104 °F (0 to +40 °C) / 0% to 95%, noncondensing; for indoor use only

Cooling: Convection, no vents

Mounting: Mounting base provided; recommended mounting height 8 feet, maximum mounting height 12 feet

Enclosure Type: Plastic

Enclosure Dimensions: 4.50 in W x 1.40 in D (114 mm W x 36 mm D)

Product Weight: 0.1 lb (<0.1 kg)

Color: Off-white

Regulatory Compliance: CE, c-UL, UL, FCC Class A, KC; complies with appropriate requirements of RoHS, WEEE, and California Title 24

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

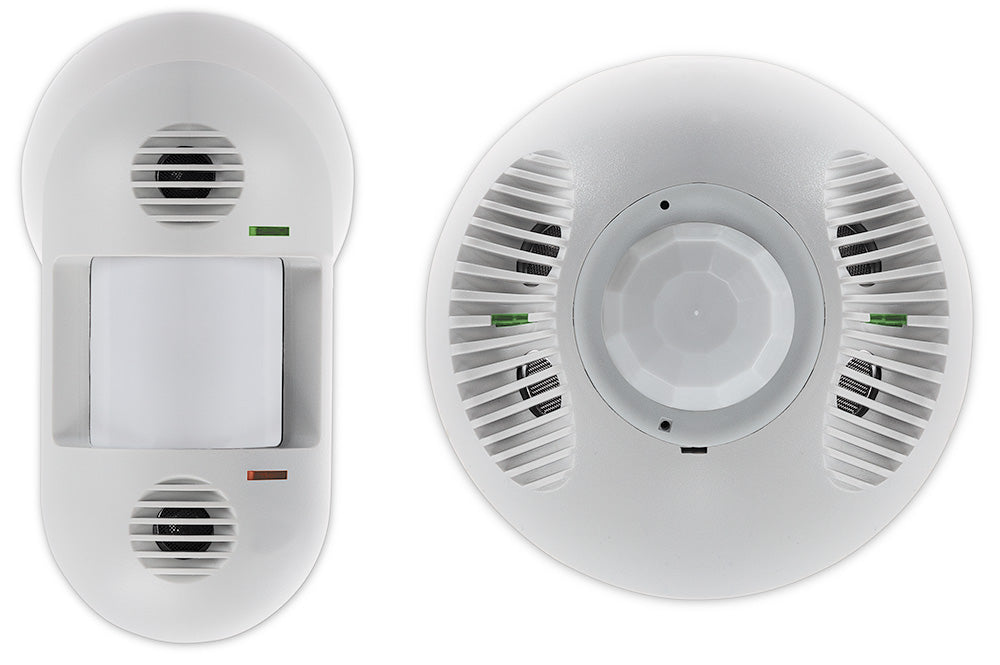

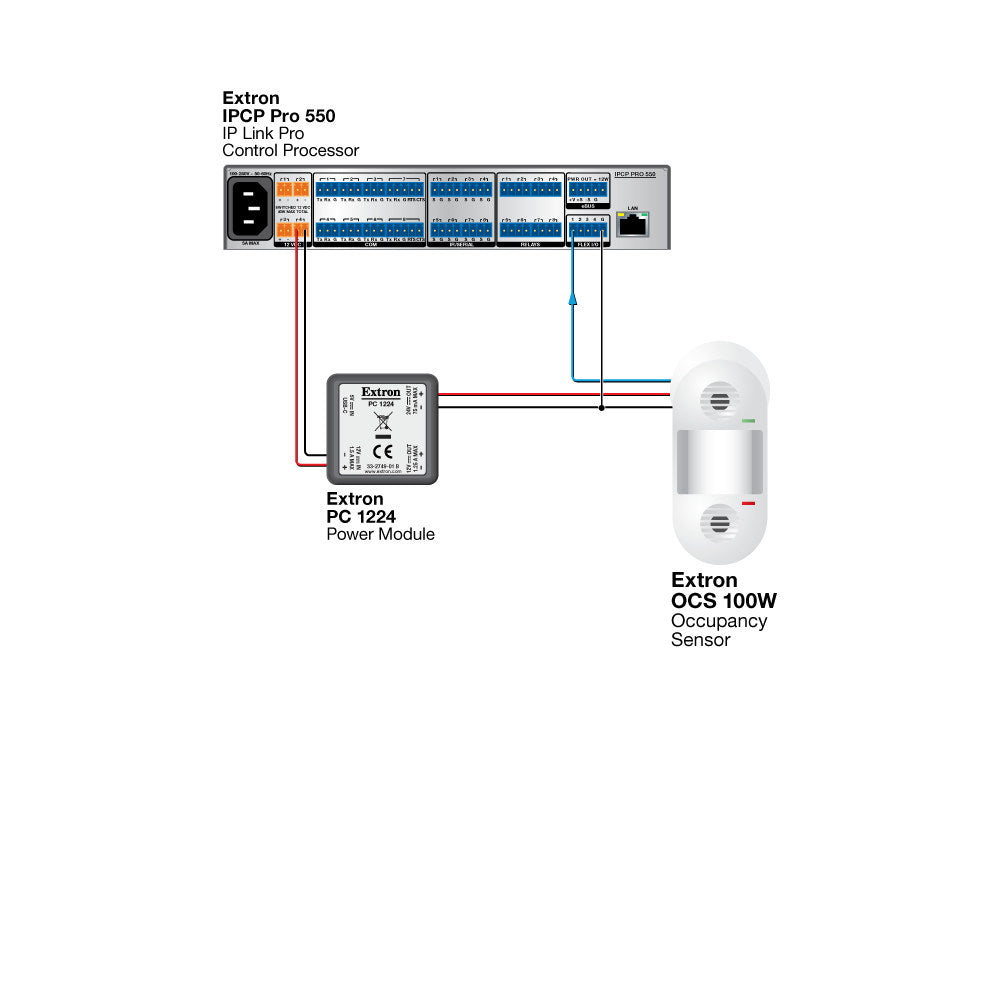

Diagram

Resources

Manual | OCS 100C 60-1664-01 | OCS 100C Setup Guide

Manual | OCS 100C 60-1664-01 | OCS 100W Setup Guide

Specifications | OCS 100C 60-1664-01 | OCS 100 Occupancy Sensors

Panel Drawing | OCS 100C 60-1664-01 | OCS 100
