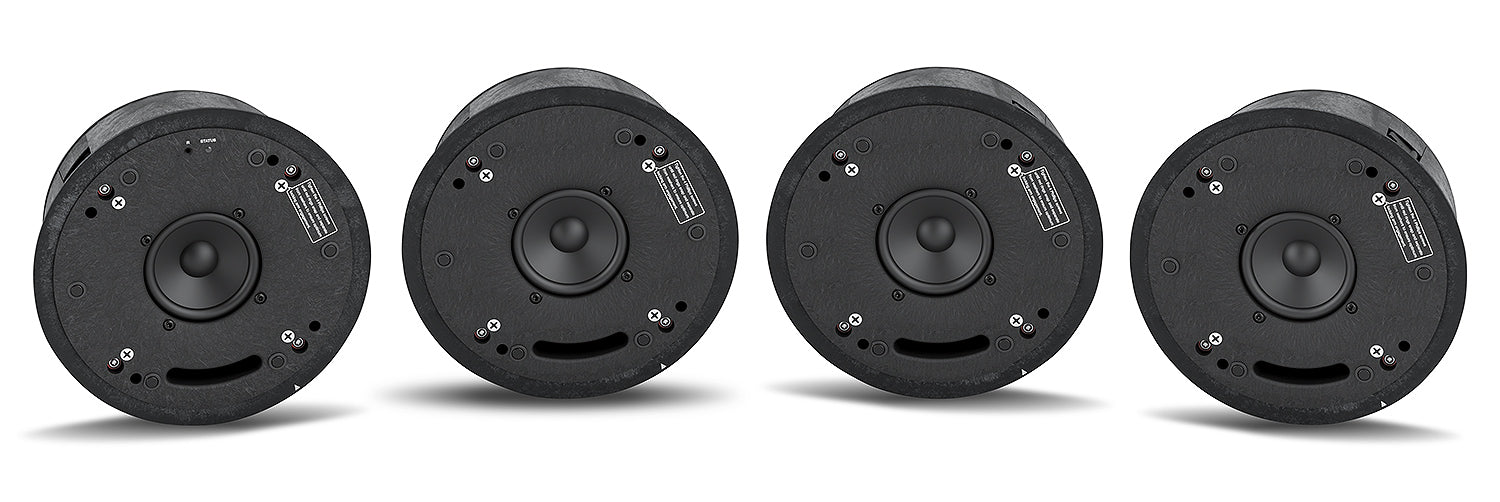

Extron NF 4C LP-4 Package (part number 42-337-43) — the fully loaded kit: one PoE-powered NF 4C P LP driving three passive NF 4C S LP speakers.

This is the largest configuration the powered speaker supports, and it uses every one of the amplifier's four channels. Audio and power still arrive on one RJ-45 connection. Loading all four positions costs some headroom, so the PoE class matters more here than in the smaller kits: 87 dB SPL at one metre on 802.3af, 89 dB on 802.3at and 93 dB on 802.3bt, using default DSP filters. Specifying a PoE++ switch port is the straightforward way to keep the full output available.

Key Capabilities

Four ceiling speakers powered and fed from a single network connection.
4x4 mix matrix lets any Dante input reach any of the four amplifier outputs.
Per-output DSP covers gain, filters, dynamics and delay for room tuning.
Amplifier is Class D, 20 Hz to 20 kHz ±1 dB into an 8 ohm minimum load.
4 in paper-cone drivers, 135° conical coverage, 106 Hz to 20 kHz range.
Remote status monitoring and control through an Extron IPCP Pro xi control processor.

Where It Is Used

Larger classrooms, lecture rooms, boardrooms and open areas that need four ceiling positions for even coverage. Voice-lift and program-audio duties are both handled, and the whole zone remains addressable from the network for monitoring.

Specifications at a Glance

Contents: one NF 4C P LP powered speaker, three NF 4C S LP passive speakers
Maximum SPL at 1 m: 87 dB (802.3af), 89 dB (802.3at), 93 dB (802.3bt)
Power consumption: up to 40.3 W measured at the PSE on PoE++
Enclosure: 4.72 in H x 10.64 in diameter, 9.3 in cutout
Warranty: 5 years parts and labor

Also referenced as Extron NF4CLP4, NF-4C-LP-4, part number 4233743.

Specifications

Part Number: 42-337-43

Manufacturer: Extron

Model: NF 4C LP-4 Package

Condition: New

Package: (1) NF 4C P LP powered speaker, (3) NF 4C S LP passive speakers

Speaker Type: Low profile ceiling speaker with composite back can

Driver: (1) 4" (101.6 mm) paper cone per speaker

Frequency Range (default DSP filters): 106 Hz to 20 kHz, -10 dB, half space (per IEC 60268-5)

Frequency Response (default DSP filters): 180 Hz to 7.5 kHz, +/-3 dB, half space

Nominal Coverage Angle: 135° conical coverage (1 kHz to 4 kHz)

Maximum SPL at 1 m, Powered Speaker Plus 3 Passive: 87 dB on 802.3af PoE, 89 dB on 802.3at PoE+, 93 dB on 802.3bt PoE++ (pink noise, IEC 60268, 12 dB crest factor, default DSP filters)

Amplifier Type: Class D, in the NF 4C P LP powered speaker

Amplifier Outputs: 20 Hz to 20 kHz, ±1 dB, 8 ohms

Speaker Outputs: 4 channels, 8 ohms

Speaker Output Connectors: (3) 5 mm captive screw connectors, 2-pole, for Channels 1 through 3; accepts 22 AWG to 12 AWG wire

Passive Speaker Input Connector: (1) 5 mm captive screw connector, 2 pole for 1 input

Load Impedance: 8 ohms minimum

THD + Noise: 0.1% at 1 kHz, 3 dB below clipping

Signal-to-Noise Ratio: 100 dB, 20 Hz to 20 kHz at maximum output (unweighted)

Volume Control: -100 dB to 0 dB (control 0 to 100 in 0.1 dB steps)

D/A Conversion: 24 bit, 48 kHz sample rate

Audio Transport: Dante/AES67, software selectable

Audio Transport Connectivity: 1 RJ-45 connector, 1-port 1 Gbps to Dante/AES67 interface

Audio Transport Inputs: 4 channels Rx

Audio Format: 24-bit uncompressed, selectable at 44.1, 48, 88.2 and 96 kHz sampling rate

Latency: Deterministic, based on user selection: 1.0 ms (default), 2.0 ms, 5.0 ms

USB Control Port: 1 female USB C

Ethernet Host Port: 1 RJ-45 female connector, 10/100 Base-T, LLDP

Program Control: Configuration program for Windows; Extron Simple Instruction Set (SIS)

Power Input Requirements: IEEE 802.3bt Power Class 5 (PoE++), 802.3at Power Class 4 (PoE+), 802.3af Power Class 3 (PoE)

Power Consumption: 40.3 W max on PoE++ Class 5; 27.1 W max on PoE+ Class 4; 14.7 W max on PoE Class 3 (measured at the PSE using 100 m of cable)

Cooling: Convection

Protection: Limiter, thermal, short circuit, DC output

Mounting: Ceiling mountable with included hardware: V-rails for 2' x 4' (600 mm x 1200 mm) ceiling tiles, and C-rings

Enclosure Type: Plenum rated, fire-resistant (UL94V-0) composite back can/baffle; magnetically attached powder-coated steel grille with plastic bezel

Enclosure Outer Dimensions: 4.72" H x 10.64" diameter (120 mm x 270 mm diameter); 4.20" H (107 mm) from front of ceiling tile to back of rear enclosure

Cutout Dimensions: 9.3" diameter (236 mm diameter)

Product Weight: NF 4C P LP: 5.5 lbs (2.5 kg); NF 4C S LP: 4.7 lbs (2.1 kg) each

Ambient Temperature/Humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Regulatory Compliance: CE, FCC Class B, EN55024, EN55035, EN55032, VCCI Class B, RoHS, UL 2043, IEC 62368-1, UL 62368-1, NFPA 90A, NFPA 70, WEEE

Warranty: 5 years parts and labor

Diagram

Resources

Brochure | NF 4C LP-4 Package 42-337-43 | NF 4C LP (nf_4c_lp_revA1.pdf)

Brochure | NF 4C LP-4 Package 42-337-43 | NF 4C LP (nf_4c_lp_revA1_SP.pdf)

Brochure | NF 4C LP-4 Package 42-337-43 | NF 4C LP (nf_4c_lp_revA1_FR.pdf)

Brochure | NF 4C LP-4 Package 42-337-43 | NF 4C LP (nf_4c_lp_revA1_IT.pdf)

Brochure | NF 4C LP-4 Package 42-337-43 | NF 4C LP (nf_4c_lp_revA1_GE.pdf)

Brochure | NF 4C LP-4 Package 42-337-43 | NF 4C LP (NF_4C_LP_REV_A_CN_Online.pdf)

Manual | NF 4C LP-4 Package 42-337-43 | Extron Dante FAQ

Manual | NF 4C LP-4 Package 42-337-43 | NF 4C LP Setup Guide

Manual | NF 4C LP-4 Package 42-337-43 | NF 4C LP User Guide

Specifications | NF 4C LP-4 Package 42-337-43 | NF 4C LP Speakers

Panel Drawing | NF 4C LP-4 Package 42-337-43 | NF 4C LP

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron NF 4C LP-4 Package PoE Dante Ceiling Speakers 42-337-43

Name: Extron NF 4C LP-4 Package PoE Dante Ceiling Speakers 42-337-43
Brand: Extron
SKU: EXTRON-NF4CLP4PACKAGE-4233743
Availability: InStock

Manufacturer: Extron

Type: Speakers

Extron NF 4C LP-4 Package PoE Ceiling Speaker Kit

• Kit of one PoE powered NF 4C P LP plus three passive NF 4C S LP speakers
• Four-speaker zone from one network drop, no external amplifier needed
• 87 to 93 dB max SPL at 1 m for a fully loaded four-speaker system
• PoE++ 802.3bt recommended to keep full output across four speakers
• Dante and AES67 transport with Dante Domain Manager support
• 4x4 mix matrix DSP routes any Dante input to any amplifier output
• 4 in paper-cone drivers with 135 degree conical coverage
• Plenum rated enclosures, V-rails and foldable C-rings included
