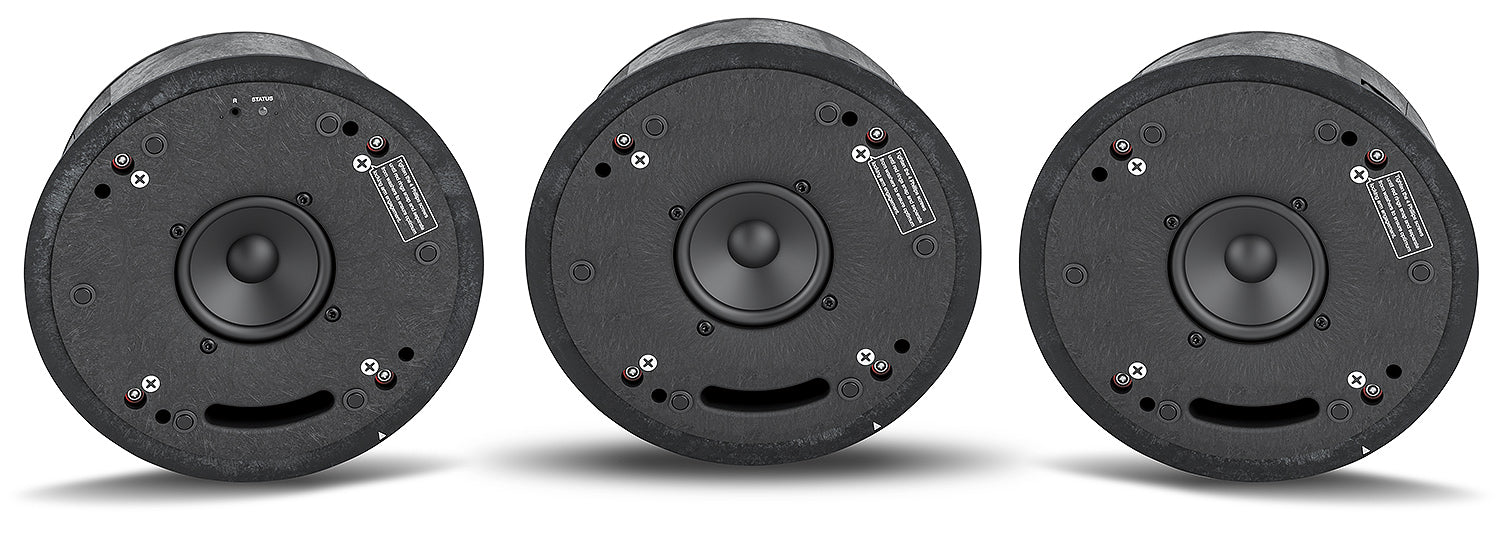

Extron NF 4C LP-3 Package (part number 42-337-33) — a three-speaker kit built around one PoE-powered NF 4C P LP plus two passive NF 4C S LP units.

Three ceiling positions, one network drop. The powered speaker receives Dante or AES67 audio and PoE on the same RJ-45 connection, then feeds the two passive units from its 8 ohm captive-screw outputs. Because the internal amplifier has four channels and a 4x4 mix matrix ahead of it, each of the three speakers can be given its own source, gain, filtering and delay. With PoE++ 802.3bt available the system holds 94 dB SPL at one metre; on plain 802.3af it settles at 88 dB.

Key Capabilities

Three-speaker ceiling zone with no amplifier rack and no additional network drops.
Independent DSP per output: gain, filters, dynamics and delay, fed by a 4x4 mix matrix.
Powered unit consumes at most 40.3 W on PoE++, 27.1 W on PoE+, 14.7 W on PoE.
Dante and AES67 transport, 24-bit uncompressed at 44.1, 48, 88.2 or 96 kHz.
4 in paper-cone drivers with 135° conical coverage across 1 kHz to 4 kHz.
Plenum-rated UL94V-0 enclosures, magnetic grilles, V-rails and C-rings included.

Where It Is Used

Mid-size meeting rooms, training rooms, classrooms and lobby areas where three ceiling positions give even coverage. The networked architecture suits campus and multi-building deployments managed centrally through Dante Domain Manager.

Specifications at a Glance

Contents: one NF 4C P LP powered speaker, two NF 4C S LP passive speakers
Maximum SPL at 1 m: 88 dB (802.3af), 91 dB (802.3at), 94 dB (802.3bt)
Amplifier: Class D, 4 channels, 20 Hz to 20 kHz ±1 dB, 8 ohms
Cutout: 9.3 in diameter per speaker
Warranty: 5 years parts and labor

Also referenced as Extron NF4CLP3, NF-4C-LP-3, part number 4233733.

Specifications

Part Number: 42-337-33

Manufacturer: Extron

Model: NF 4C LP-3 Package

Condition: New

Package: (1) NF 4C P LP powered speaker, (2) NF 4C S LP passive speakers

Speaker Type: Low profile ceiling speaker with composite back can

Driver: (1) 4" (101.6 mm) paper cone per speaker

Frequency Range (default DSP filters): 106 Hz to 20 kHz, -10 dB, half space (per IEC 60268-5)

Frequency Response (default DSP filters): 180 Hz to 7.5 kHz, +/-3 dB, half space

Nominal Coverage Angle: 135° conical coverage (1 kHz to 4 kHz)

Maximum SPL at 1 m, Powered Speaker Plus 2 Passive: 88 dB on 802.3af PoE, 91 dB on 802.3at PoE+, 94 dB on 802.3bt PoE++ (pink noise, IEC 60268, 12 dB crest factor, default DSP filters)

Amplifier Type: Class D, in the NF 4C P LP powered speaker

Amplifier Outputs: 20 Hz to 20 kHz, ±1 dB, 8 ohms

Speaker Outputs: 4 channels, 8 ohms

Speaker Output Connectors: (3) 5 mm captive screw connectors, 2-pole, for Channels 1 through 3; accepts 22 AWG to 12 AWG wire

Passive Speaker Input Connector: (1) 5 mm captive screw connector, 2 pole for 1 input

Load Impedance: 8 ohms minimum

THD + Noise: 0.1% at 1 kHz, 3 dB below clipping

Signal-to-Noise Ratio: 100 dB, 20 Hz to 20 kHz at maximum output (unweighted)

Volume Control: -100 dB to 0 dB (control 0 to 100 in 0.1 dB steps)

D/A Conversion: 24 bit, 48 kHz sample rate

Audio Transport: Dante/AES67, software selectable

Audio Transport Connectivity: 1 RJ-45 connector, 1-port 1 Gbps to Dante/AES67 interface

Audio Transport Inputs: 4 channels Rx

Audio Format: 24-bit uncompressed, selectable at 44.1, 48, 88.2 and 96 kHz sampling rate

Latency: Deterministic, based on user selection: 1.0 ms (default), 2.0 ms, 5.0 ms

USB Control Port: 1 female USB C

Ethernet Host Port: 1 RJ-45 female connector, 10/100 Base-T, LLDP

Program Control: Configuration program for Windows; Extron Simple Instruction Set (SIS)

Power Input Requirements: IEEE 802.3bt Power Class 5 (PoE++), 802.3at Power Class 4 (PoE+), 802.3af Power Class 3 (PoE)

Power Consumption: 40.3 W max on PoE++ Class 5; 27.1 W max on PoE+ Class 4; 14.7 W max on PoE Class 3 (measured at the PSE using 100 m of cable)

Cooling: Convection

Protection: Limiter, thermal, short circuit, DC output

Mounting: Ceiling mountable with included hardware: V-rails for 2' x 4' (600 mm x 1200 mm) ceiling tiles, and C-rings

Enclosure Type: Plenum rated, fire-resistant (UL94V-0) composite back can/baffle; magnetically attached powder-coated steel grille with plastic bezel

Enclosure Outer Dimensions: 4.72" H x 10.64" diameter (120 mm x 270 mm diameter); 4.20" H (107 mm) from front of ceiling tile to back of rear enclosure

Cutout Dimensions: 9.3" diameter (236 mm diameter)

Product Weight: NF 4C P LP: 5.5 lbs (2.5 kg); NF 4C S LP: 4.7 lbs (2.1 kg) each

Ambient Temperature/Humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Regulatory Compliance: CE, FCC Class B, EN55024, EN55035, EN55032, VCCI Class B, RoHS, UL 2043, IEC 62368-1, UL 62368-1, NFPA 90A, NFPA 70, WEEE

Warranty: 5 years parts and labor

Diagram

Resources

Brochure | NF 4C LP-3 Package 42-337-33 | NF 4C LP (nf_4c_lp_revA1.pdf)

Brochure | NF 4C LP-3 Package 42-337-33 | NF 4C LP (nf_4c_lp_revA1_SP.pdf)

Brochure | NF 4C LP-3 Package 42-337-33 | NF 4C LP (nf_4c_lp_revA1_FR.pdf)

Brochure | NF 4C LP-3 Package 42-337-33 | NF 4C LP (nf_4c_lp_revA1_IT.pdf)

Brochure | NF 4C LP-3 Package 42-337-33 | NF 4C LP (nf_4c_lp_revA1_GE.pdf)

Brochure | NF 4C LP-3 Package 42-337-33 | NF 4C LP (NF_4C_LP_REV_A_CN_Online.pdf)

Manual | NF 4C LP-3 Package 42-337-33 | Extron Dante FAQ

Manual | NF 4C LP-3 Package 42-337-33 | NF 4C LP Setup Guide

Manual | NF 4C LP-3 Package 42-337-33 | NF 4C LP User Guide

Specifications | NF 4C LP-3 Package 42-337-33 | NF 4C LP Speakers

Panel Drawing | NF 4C LP-3 Package 42-337-33 | NF 4C LP
