Details

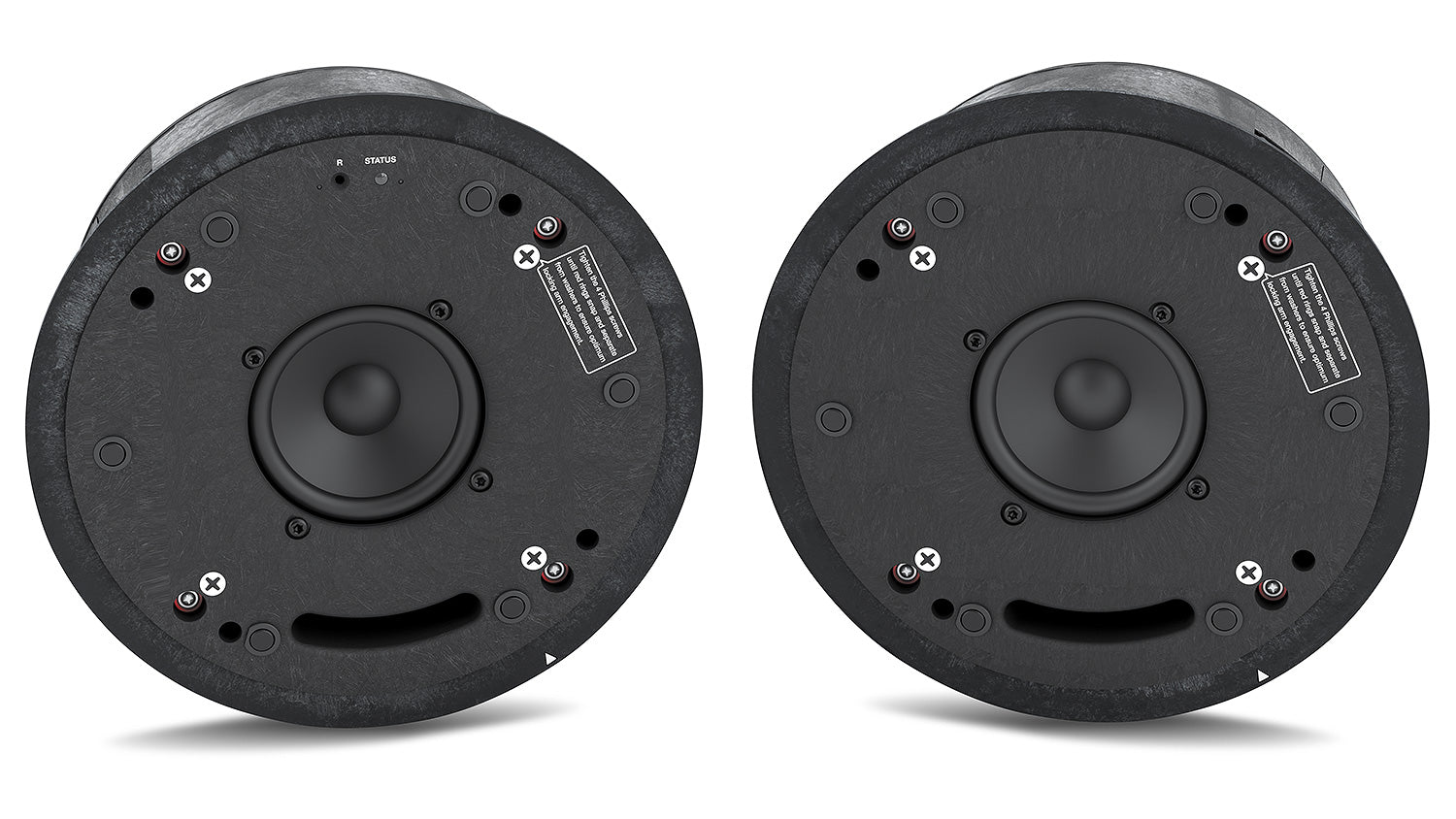

Extron NF 4C LP-2 Package (part number 60-2056-23) — a two-speaker kit combining one PoE-powered NF 4C P LP with one passive NF 4C S LP.

The powered member of the pair carries the whole system: Dante or AES67 audio arrives on its RJ-45 port, PoE feeds its four-channel Class D amplifier, and one of those amplifier channels is cabled out to the passive speaker. That removes both the amplifier rack and the second network drop from the design. Maximum output for this two-speaker configuration runs 89 dB at 1 m on plain 802.3af PoE, 92 dB on PoE+ and 94 dB on PoE++, measured with pink noise at a 12 dB crest factor.

Key Capabilities

Complete two-speaker zone fed from one Cat cable, with no external amplifier.
Powered unit detects the available PoE class and scales amplifier output to match.
4x4 mix matrix DSP with independent gain, filters, dynamics and delay per output.
Dante Domain Manager and AES67 compatibility for enterprise network audio.
Matched 4 in paper-cone drivers, 135° conical coverage, 106 Hz to 20 kHz range.
V-rails for 2 ft x 4 ft ceiling tiles and foldable C-rings supplied with both speakers.

Where It Is Used

Small conference rooms, huddle spaces, classrooms and breakout rooms that need two ceiling positions rather than one. It also suits phased rollouts, since the powered unit still has capacity for two more passive speakers if the room grows.

Specifications at a Glance

Contents: one NF 4C P LP powered speaker, one NF 4C S LP passive speaker
Maximum SPL at 1 m: 89 dB (802.3af), 92 dB (802.3at), 94 dB (802.3bt)
Weights: 5.5 lbs powered, 4.7 lbs passive
Cutout: 9.3 in diameter; enclosure 4.72 in H x 10.64 in diameter
Warranty: 5 years parts and labor

Also referenced as Extron NF4CLP2, NF-4C-LP-2, part number 60205623.

Specifications

Part Number: 60-2056-23

Manufacturer: Extron

Model: NF 4C LP-2 Package

Condition: New

Package: (1) NF 4C P LP powered speaker, (1) NF 4C S LP passive speaker

Speaker Type: Low profile ceiling speaker with composite back can

Driver: (1) 4" (101.6 mm) paper cone per speaker

Frequency Range (default DSP filters): 106 Hz to 20 kHz, -10 dB, half space (per IEC 60268-5)

Frequency Response (default DSP filters): 180 Hz to 7.5 kHz, +/-3 dB, half space

Nominal Coverage Angle: 135° conical coverage (1 kHz to 4 kHz)

Maximum SPL at 1 m, Powered Speaker Plus 1 Passive: 89 dB on 802.3af PoE, 92 dB on 802.3at PoE+, 94 dB on 802.3bt PoE++ (pink noise, IEC 60268, 12 dB crest factor, default DSP filters)

Amplifier Type: Class D, in the NF 4C P LP powered speaker

Amplifier Outputs: 20 Hz to 20 kHz, ±1 dB, 8 ohms

Speaker Outputs: 4 channels, 8 ohms

Speaker Output Connectors: (3) 5 mm captive screw connectors, 2-pole, for Channels 1 through 3; accepts 22 AWG to 12 AWG wire

Passive Speaker Input Connector: (1) 5 mm captive screw connector, 2 pole for 1 input

Load Impedance: 8 ohms minimum

THD + Noise: 0.1% at 1 kHz, 3 dB below clipping

Signal-to-Noise Ratio: 100 dB, 20 Hz to 20 kHz at maximum output (unweighted)

Volume Control: -100 dB to 0 dB (control 0 to 100 in 0.1 dB steps)

D/A Conversion: 24 bit, 48 kHz sample rate

Audio Transport: Dante/AES67, software selectable

Audio Transport Connectivity: 1 RJ-45 connector, 1-port 1 Gbps to Dante/AES67 interface

Audio Transport Inputs: 4 channels Rx

Audio Format: 24-bit uncompressed, selectable at 44.1, 48, 88.2 and 96 kHz sampling rate

Latency: Deterministic, based on user selection: 1.0 ms (default), 2.0 ms, 5.0 ms

USB Control Port: 1 female USB C

Ethernet Host Port: 1 RJ-45 female connector, 10/100 Base-T, LLDP

Program Control: Configuration program for Windows; Extron Simple Instruction Set (SIS)

Power Input Requirements: IEEE 802.3bt Power Class 5 (PoE++), 802.3at Power Class 4 (PoE+), 802.3af Power Class 3 (PoE)

Power Consumption: 40.3 W max on PoE++ Class 5; 27.1 W max on PoE+ Class 4; 14.7 W max on PoE Class 3 (measured at the PSE using 100 m of cable)

Cooling: Convection

Protection: Limiter, thermal, short circuit, DC output

Mounting: Ceiling mountable with included hardware: V-rails for 2' x 4' (600 mm x 1200 mm) ceiling tiles, and C-rings

Enclosure Type: Plenum rated, fire-resistant (UL94V-0) composite back can/baffle; magnetically attached powder-coated steel grille with plastic bezel

Enclosure Outer Dimensions: 4.72" H x 10.64" diameter (120 mm x 270 mm diameter); 4.20" H (107 mm) from front of ceiling tile to back of rear enclosure

Cutout Dimensions: 9.3" diameter (236 mm diameter)

Product Weight: NF 4C P LP: 5.5 lbs (2.5 kg); NF 4C S LP: 4.7 lbs (2.1 kg)

Ambient Temperature/Humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Regulatory Compliance: CE, FCC Class B, EN55024, EN55035, EN55032, VCCI Class B, RoHS, UL 2043, IEC 62368-1, UL 62368-1, NFPA 90A, NFPA 70, WEEE

Warranty: 5 years parts and labor

Diagram

Resources

Brochure | NF 4C LP-2 Package 60-2056-23 | NF 4C LP (nf_4c_lp_revA1.pdf)

Brochure | NF 4C LP-2 Package 60-2056-23 | NF 4C LP (nf_4c_lp_revA1_SP.pdf)

Brochure | NF 4C LP-2 Package 60-2056-23 | NF 4C LP (nf_4c_lp_revA1_FR.pdf)

Brochure | NF 4C LP-2 Package 60-2056-23 | NF 4C LP (nf_4c_lp_revA1_IT.pdf)

Brochure | NF 4C LP-2 Package 60-2056-23 | NF 4C LP (nf_4c_lp_revA1_GE.pdf)

Brochure | NF 4C LP-2 Package 60-2056-23 | NF 4C LP (NF_4C_LP_REV_A_CN_Online.pdf)

Manual | NF 4C LP-2 Package 60-2056-23 | Extron Dante FAQ

Manual | NF 4C LP-2 Package 60-2056-23 | NF 4C LP Setup Guide

Manual | NF 4C LP-2 Package 60-2056-23 | NF 4C LP User Guide

Specifications | NF 4C LP-2 Package 60-2056-23 | NF 4C LP Speakers

Panel Drawing | NF 4C LP-2 Package 60-2056-23 | NF 4C LP

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron NF 4C LP-2 Package PoE Dante Ceiling Speakers 60-2056-23

Name: Extron NF 4C LP-2 Package PoE Dante Ceiling Speakers 60-2056-23
Brand: Extron
SKU: EXTRON-NF4CLP2PACKAGE-60205623
Availability: InStock

Manufacturer: Extron

Type: Speakers

Extron NF 4C LP-2 Package PoE Ceiling Speaker Kit

• Kit of one PoE powered NF 4C P LP plus one passive NF 4C S LP speaker
• Two-speaker zone runs from a single network cable, no separate amplifier
• Powered unit detects PoE, PoE+ or PoE++ and scales amplifier output
• 89 to 94 dB max SPL at 1 m for a powered-plus-one-passive system
• Dante and AES67 transport with Dante Domain Manager support
• 4x4 mix matrix DSP processes each amplifier output independently
• 4 in paper-cone drivers with 135 degree conical coverage
• Plenum rated enclosures with V-rails and C-rings included
