Details

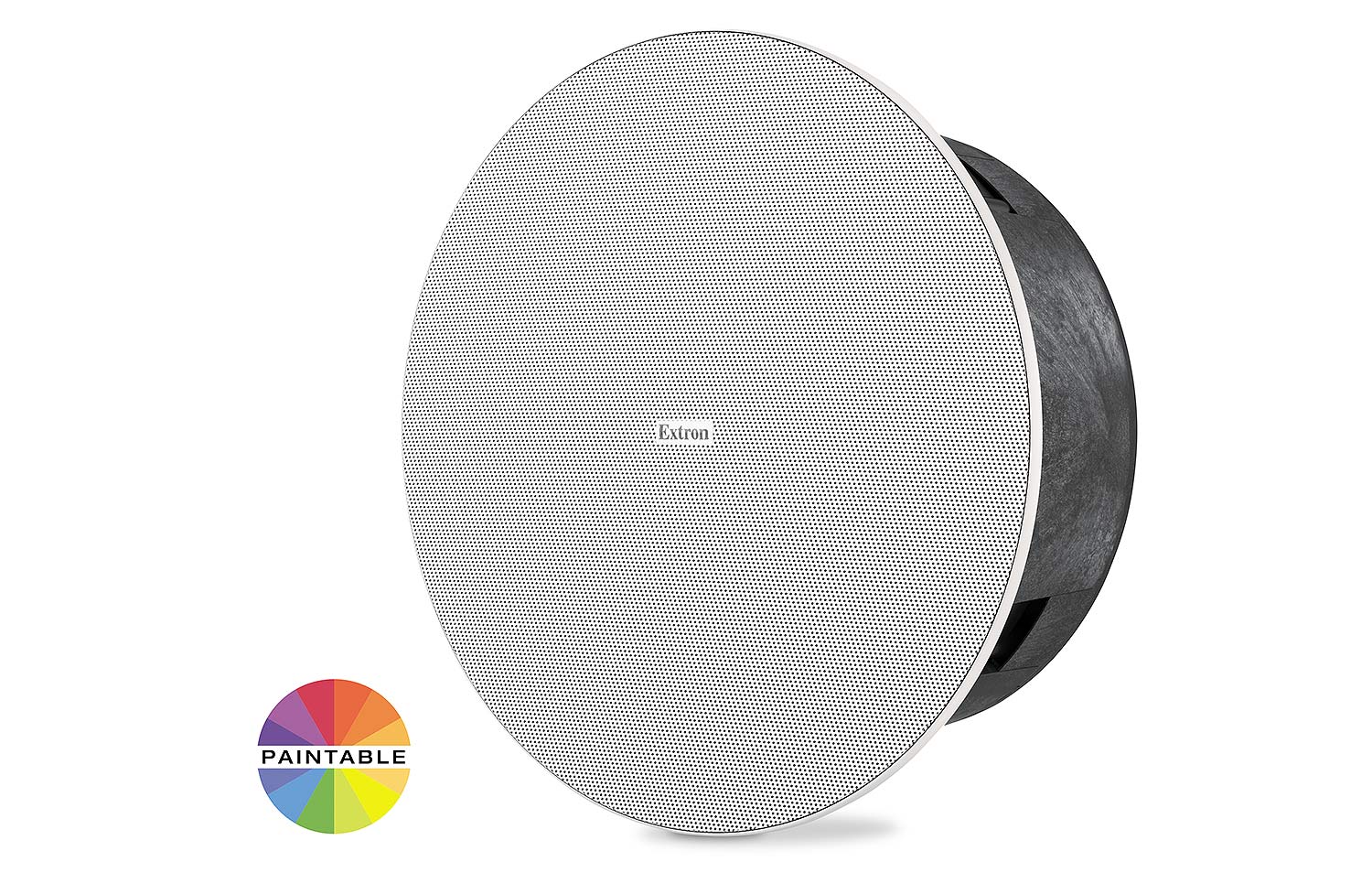

Extron NF 4C LP-1 (part number 60-2056-13) — a single PoE-powered 4 in ceiling speaker with a built-in four-channel amplifier, Dante/AES67 audio transport and onboard DSP.

One network cable does everything here: it carries the Dante stream and the power. Inside the back can sits a Class D amplifier with four output channels, so one NF 4C LP-1 can also drive up to three passive NF 4C S LP speakers wired from its captive-screw outputs. Output scales with the class of PoE presented — the unit recognises 802.3af, 802.3at or 802.3bt and sets its ceiling accordingly, from 92 dB up to 94 dB SPL at one metre when running on its own. The DSP block adds a 4x4 mix matrix plus gain, filtering, dynamics and delay on each output.

Key Capabilities

Dante and AES67 transport over a single 1 Gbps RJ-45 port, with Dante Domain Manager support.
Four-channel Class D amplifier, 20 Hz to 20 kHz ±1 dB into 8 ohms, protected against overload, heat, short circuit and DC at the output.
4x4 mix matrix DSP routes any Dante input to any amplifier output and processes each output independently.
PoE, PoE+ and PoE++ recognised automatically; maximum draw is 14.7 W, 27.1 W or 40.3 W respectively.
4 in (101.6 mm) paper-cone driver with 135° conical coverage between 1 kHz and 4 kHz.
Plenum-rated UL94V-0 back can with a magnetically attached steel grille and Opti-Torque locking arms.

Where It Is Used

Decentralised, network-first installations: conference rooms, classrooms, lecture halls and auditoriums where each zone gets its own speaker node instead of a rack full of amplifiers. Voice-lift systems benefit from the driver's intelligibility and from per-output delay in the DSP.

Specifications at a Glance

Frequency range: 106 Hz to 20 kHz, -10 dB, half space, using default DSP filters
Speaker outputs: 4 channels, 8 ohms, on three 5 mm 2-pole captive screw connectors
Enclosure: 4.72 in H x 10.64 in diameter; 9.3 in ceiling cutout
Powered speaker weight: 5.5 lbs (2.5 kg)
Warranty: 5 years parts and labor

Also referenced as Extron NF4CLP1, NF-4C-LP-1, part number 60205613.

Specifications

Part Number: 60-2056-13

Manufacturer: Extron

Model: NF 4C LP-1

Condition: New

Speaker Type: Low profile ceiling speaker with composite back can

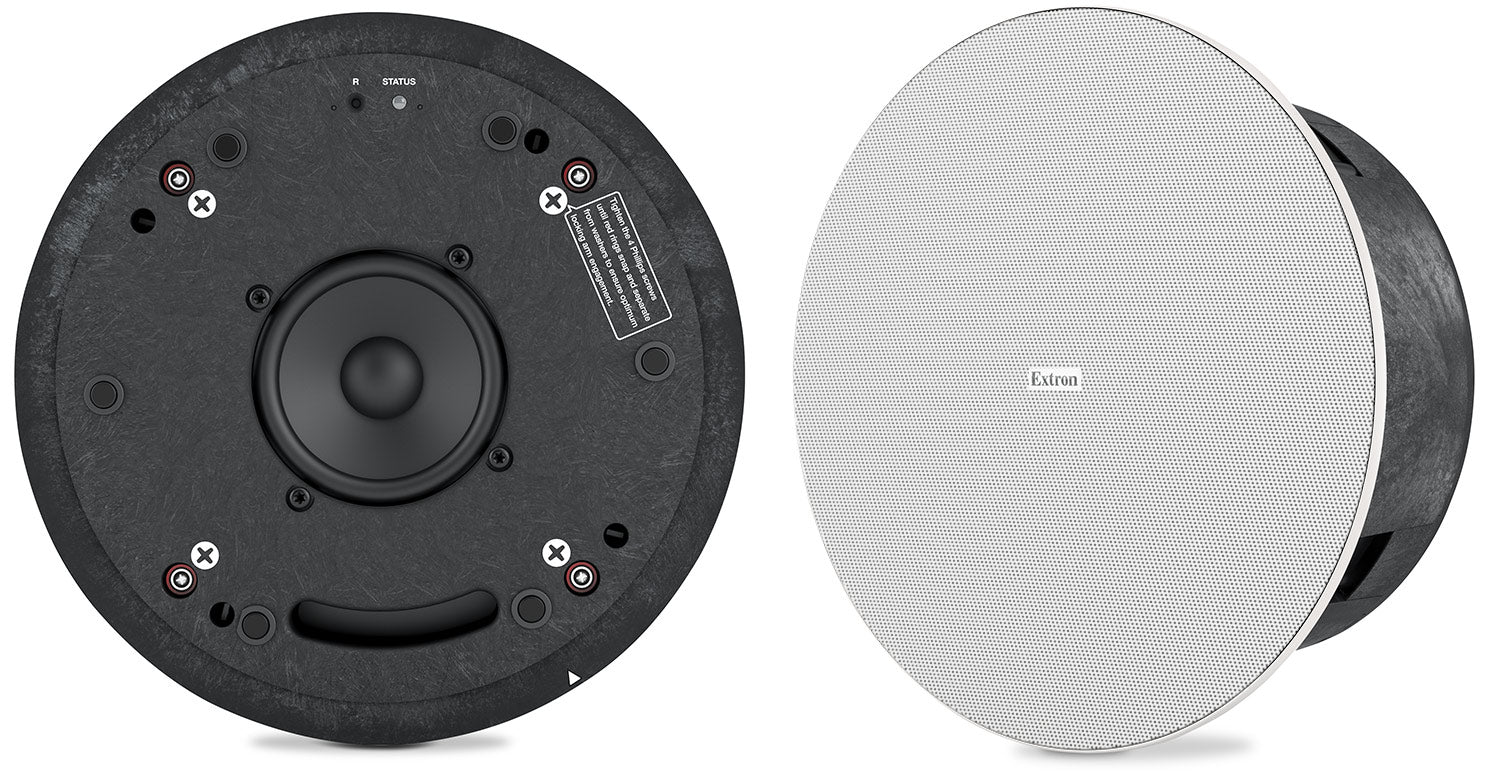

Driver: (1) 4" (101.6 mm) paper cone

Frequency Range (default DSP filters): 106 Hz to 20 kHz, -10 dB, half space (per IEC 60268-5)

Frequency Response (default DSP filters): 180 Hz to 7.5 kHz, +/-3 dB, half space

Nominal Coverage Angle: 135° conical coverage (1 kHz to 4 kHz)

Maximum SPL at 1 m, Powered Speaker Alone: 92 dB on 802.3af PoE, 93 dB on 802.3at PoE+, 94 dB on 802.3bt PoE++ (pink noise, IEC 60268, 12 dB crest factor, default DSP filters)

Maximum SPL at 1 m, Plus 1 Passive Speaker: 89 dB on 802.3af, 92 dB on 802.3at, 94 dB on 802.3bt

Maximum SPL at 1 m, Plus 2 Passive Speakers: 88 dB on 802.3af, 91 dB on 802.3at, 94 dB on 802.3bt

Maximum SPL at 1 m, Plus 3 Passive Speakers: 87 dB on 802.3af, 89 dB on 802.3at, 93 dB on 802.3bt

Amplifier Type: Class D

Amplifier Outputs: 20 Hz to 20 kHz, ±1 dB, 8 ohms

Speaker Outputs: 4 channels, 8 ohms

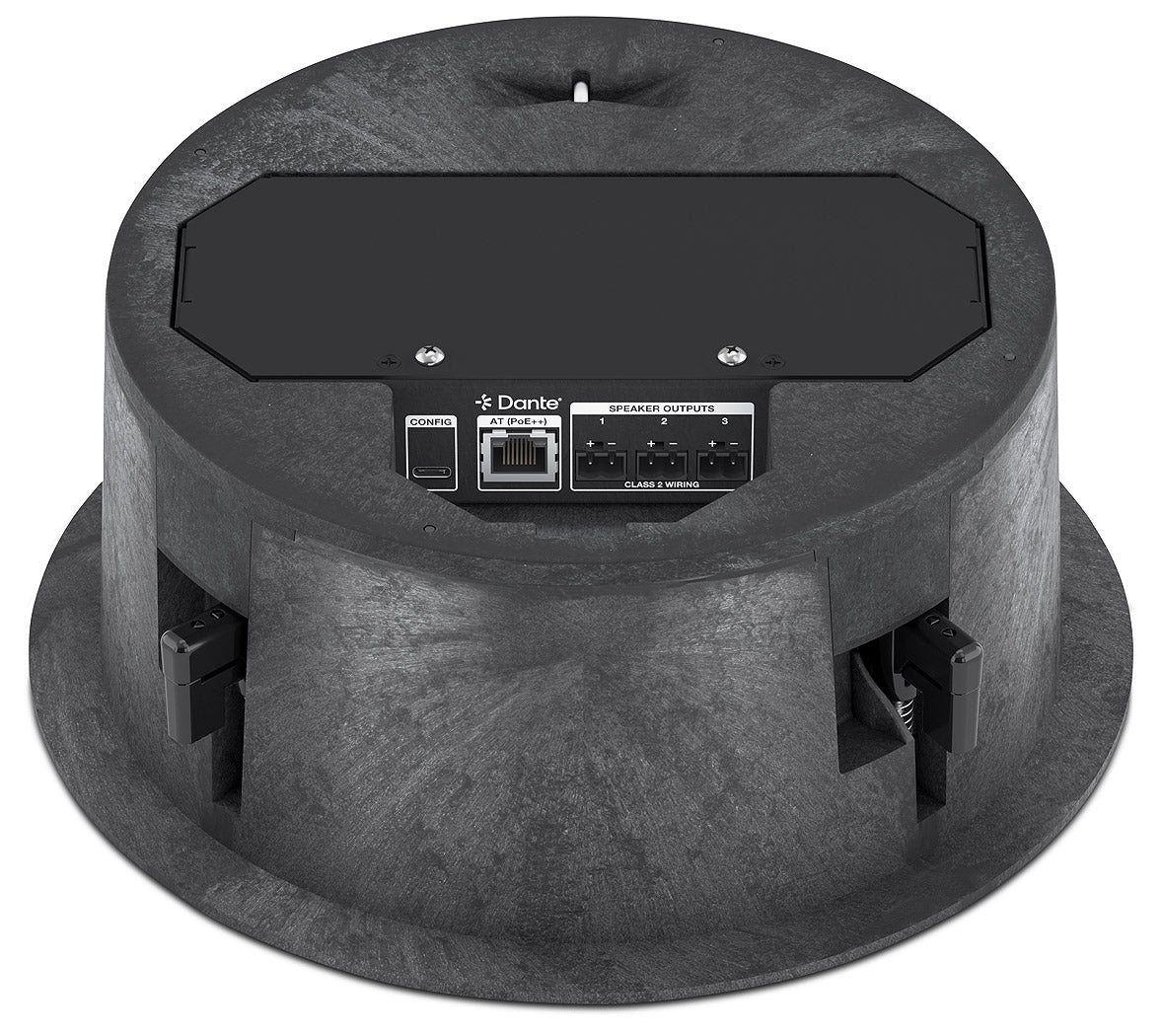

Speaker Output Connectors: (3) 5 mm captive screw connectors, 2-pole, for Channels 1 through 3; accepts 22 AWG to 12 AWG wire

Load Impedance: 8 ohms minimum

THD + Noise: 0.1% at 1 kHz, 3 dB below clipping

Signal-to-Noise Ratio: 100 dB, 20 Hz to 20 kHz at maximum output (unweighted)

Volume Control: -100 dB to 0 dB (control 0 to 100 in 0.1 dB steps)

D/A Conversion: 24 bit, 48 kHz sample rate

Audio Transport: Dante/AES67, software selectable

Audio Transport Connectivity: 1 RJ-45 connector, 1-port 1 Gbps to Dante/AES67 interface

Audio Transport Inputs: 4 channels Rx

Audio Format: 24-bit uncompressed, selectable at 44.1, 48, 88.2 and 96 kHz sampling rate

Latency: Deterministic, based on user selection: 1.0 ms (default), 2.0 ms, 5.0 ms

USB Control Port: 1 female USB C

Ethernet Host Port: 1 RJ-45 female connector, 10/100 Base-T, LLDP

Program Control: Configuration program for Windows; Extron Simple Instruction Set (SIS)

Package: (1) NF 4C P LP powered speaker

Power Input Requirements: IEEE 802.3bt Power Class 5 (PoE++), 802.3at Power Class 4 (PoE+), 802.3af Power Class 3 (PoE)

Power Consumption: 40.3 W max on PoE++ Class 5; 27.1 W max on PoE+ Class 4; 14.7 W max on PoE Class 3 (measured at the PSE using 100 m of cable)

Cooling: Convection

Protection: Limiter, thermal, short circuit, DC output

Mounting: Ceiling mountable with included hardware: V-rails for 2' x 4' (600 mm x 1200 mm) ceiling tiles, and C-rings

Enclosure Type: Plenum rated, fire-resistant (UL94V-0) composite back can/baffle; magnetically attached powder-coated steel grille with plastic bezel

Enclosure Outer Dimensions: 4.72" H x 10.64" diameter (120 mm x 270 mm diameter); 4.20" H (107 mm) from front of ceiling tile to back of rear enclosure

Cutout Dimensions: 9.3" diameter (236 mm diameter)

Product Weight: NF 4C P LP: 5.5 lbs (2.5 kg)

Ambient Temperature/Humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Regulatory Compliance: CE, FCC Class B, EN55024, EN55035, EN55032, VCCI Class B, RoHS, UL 2043, IEC 62368-1, UL 62368-1, NFPA 90A, NFPA 70, WEEE

Warranty: 5 years parts and labor

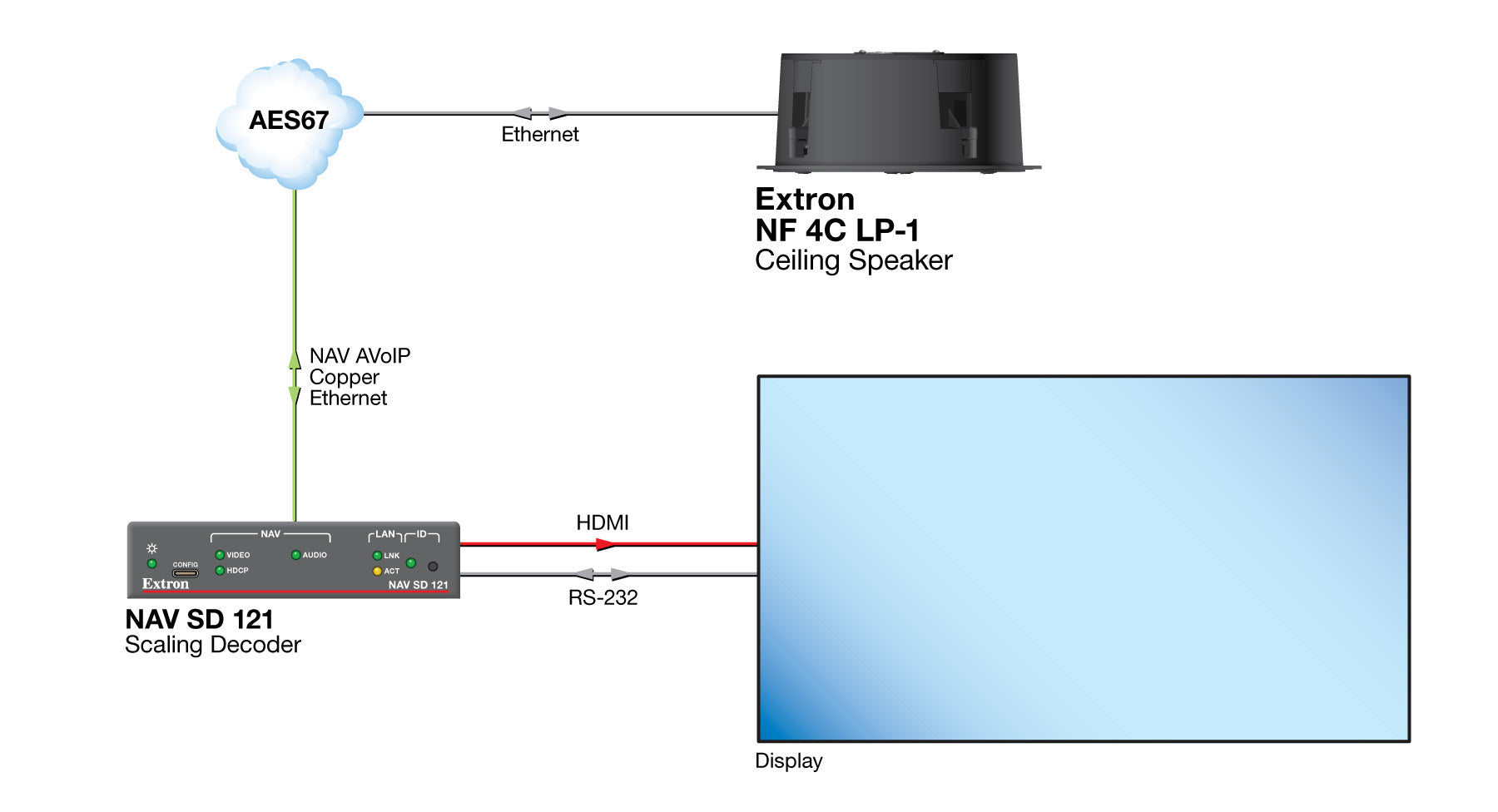

Diagram

Resources

Brochure | NF 4C LP-1 60-2056-13 | NF 4C LP (nf_4c_lp_revA1.pdf)

Brochure | NF 4C LP-1 60-2056-13 | NF 4C LP (nf_4c_lp_revA1_SP.pdf)

Brochure | NF 4C LP-1 60-2056-13 | NF 4C LP (nf_4c_lp_revA1_FR.pdf)

Brochure | NF 4C LP-1 60-2056-13 | NF 4C LP (nf_4c_lp_revA1_IT.pdf)

Brochure | NF 4C LP-1 60-2056-13 | NF 4C LP (nf_4c_lp_revA1_GE.pdf)

Brochure | NF 4C LP-1 60-2056-13 | NF 4C LP (NF_4C_LP_REV_A_CN_Online.pdf)

Manual | NF 4C LP-1 60-2056-13 | Extron Dante FAQ

Manual | NF 4C LP-1 60-2056-13 | NF 4C LP Setup Guide

Manual | NF 4C LP-1 60-2056-13 | NF 4C LP User Guide

Specifications | NF 4C LP-1 60-2056-13 | NF 4C LP Speakers

Panel Drawing | NF 4C LP-1 60-2056-13 | NF 4C LP

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron NF 4C LP-1 PoE Powered Dante Ceiling Speaker 60-2056-13

Name: Extron NF 4C LP-1 PoE Powered Dante Ceiling Speaker 60-2056-13
Brand: Extron
SKU: EXTRON-NF4CLP1-60205613
Availability: InStock

Manufacturer: Extron

Type: Speakers

Extron NF 4C LP-1 PoE Dante Ceiling Speaker

• PoE powered speaker takes Dante audio and power over one network cable
• Built-in 4-channel Class D amp also drives up to three passive NF 4C S LP
• Auto-detects 802.3af, 802.3at or 802.3bt and scales output to suit
• 92 to 94 dB max SPL at 1 m depending on the PoE class supplied
• 4x4 mix matrix DSP with per-output gain, filters, dynamics and delay
• 4 in paper-cone driver with 135 degree conical coverage
• Plenum rated UL94V-0 back can fits a 9.3 in ceiling cutout
• Dante Domain Manager and AES67 support for enterprise networks
