Details

Extron NetPA U 8001 SUB (part number 60-1866-01) - a mono, network-native Class D amplifier purpose-built for driving a single subwoofer.

Housed in the same half-rack, 1U plenum-rated chassis as the rest of the NetPA U family, this amplifier pulls low-frequency program audio from a Dante or AES-67 network and drives up to 800 watts into an 8 ohm subwoofer, scaling to 650 watts at 4 ohms or 325 watts at 2 ohms depending on the driver. Optional mounting hardware - included with the Extron SF 10C SUB - lets the amplifier attach directly to a compatible subwoofer enclosure for a self-contained low-frequency zone.

Key Capabilities

Up to 800 W into 8 ohms, 650 W into 4 ohms, or 325 W into 2 ohms, all at 100 Hz
Dante/AES-67 network audio input with 2 Rx / 2 Tx flows, unicast or multicast

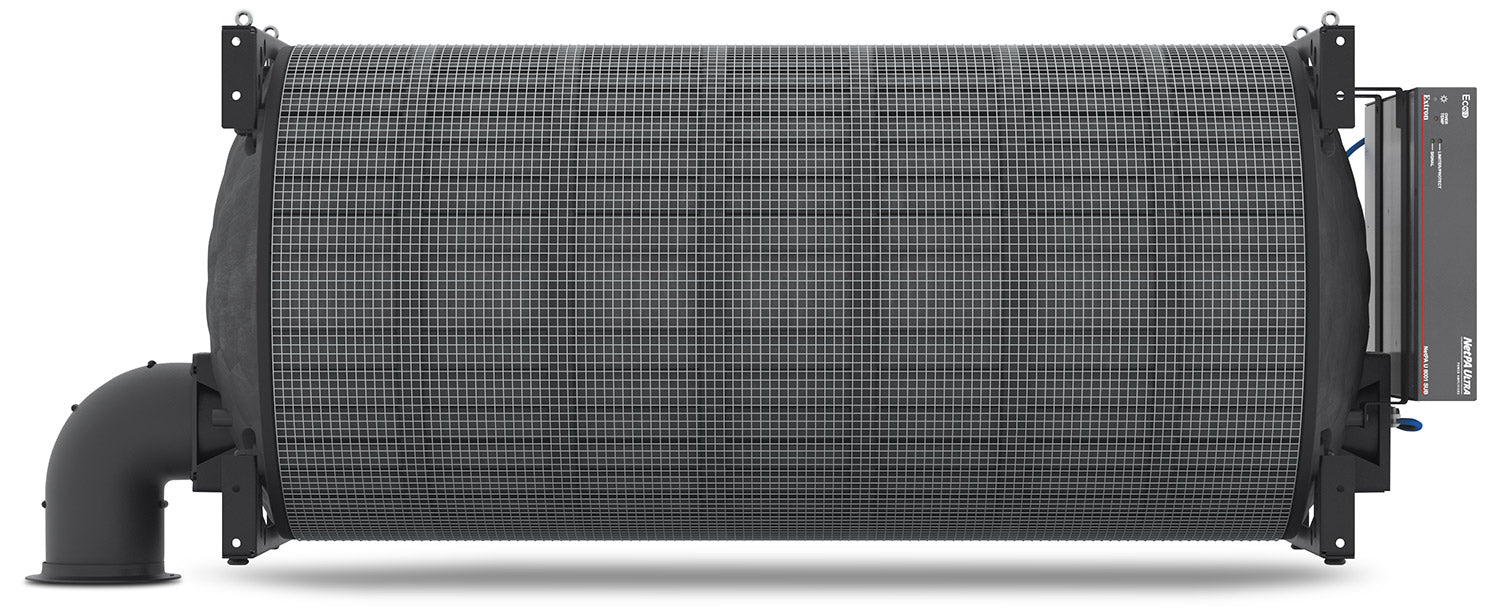

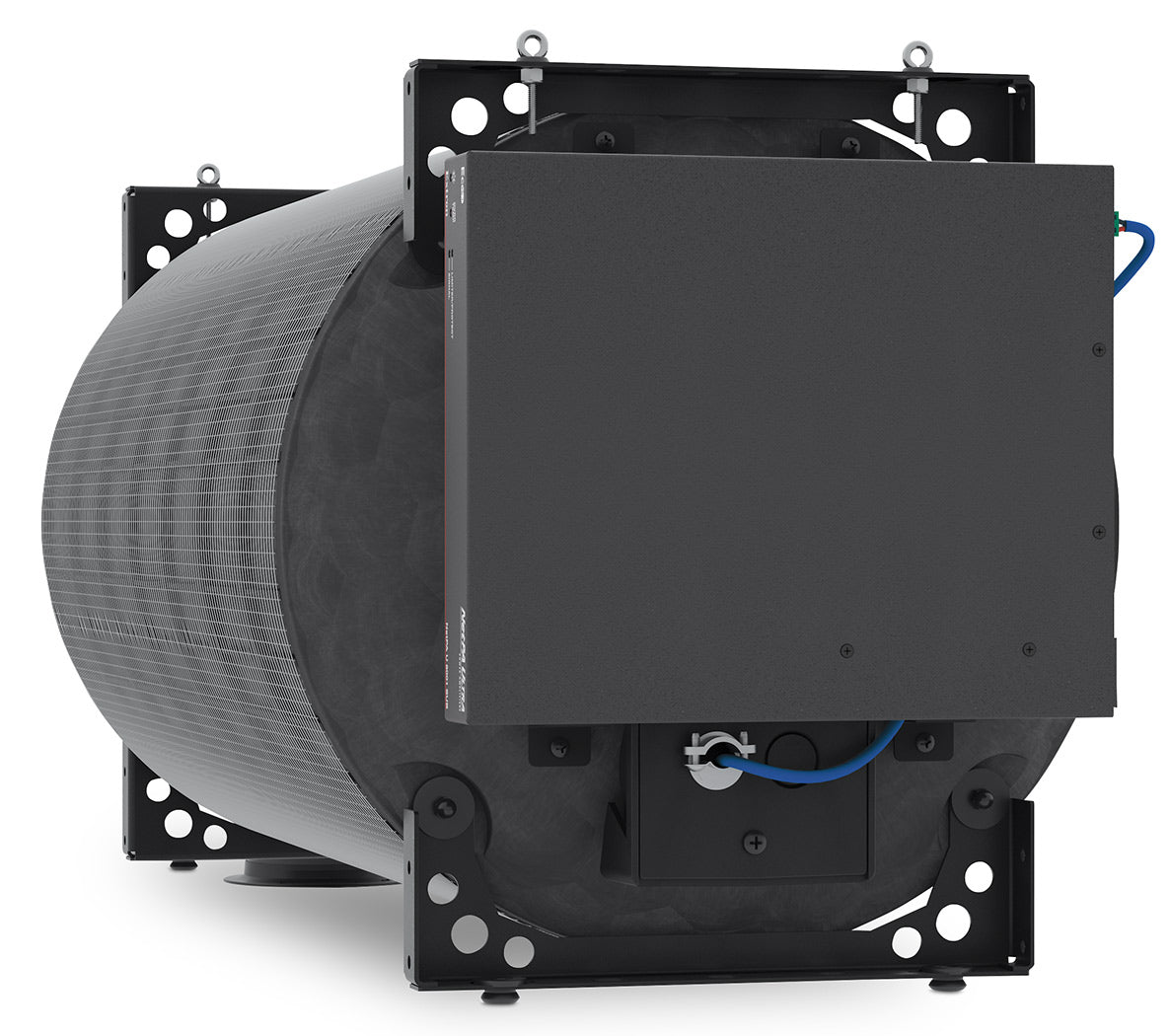

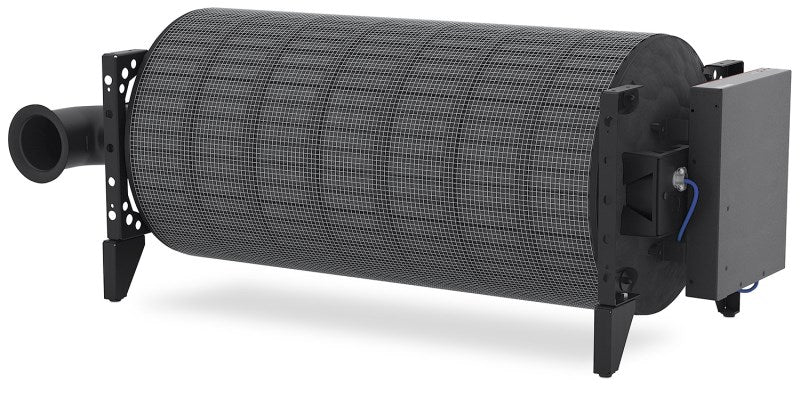

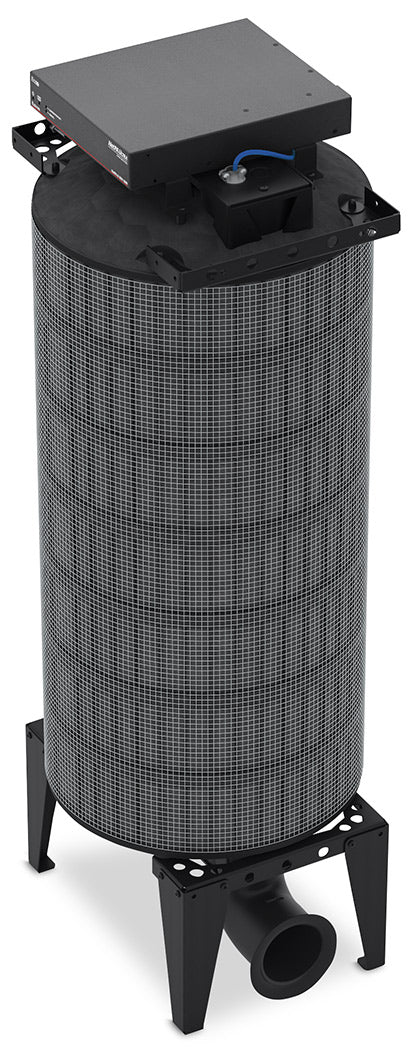

Optional hardware mounts the amplifier directly to a compatible subwoofer
24-bit audio up to 96 kHz sampling with selectable 1.0/2.0/5.0 ms latency
Half-rack, 1U, plenum-rated metal enclosure at 4.2 lbs
RS-232, USB, and 10/100 Ethernet control via Extron SIS

Where It Is Used

A single-channel, network-fed subwoofer amplifier fits distributed sound reinforcement in auditoriums, houses of worship, and multipurpose rooms where a low-frequency zone needs to sit on the same Dante backbone as the rest of the system without a dedicated analog subwoofer feed.

Specifications at a Glance

Output: 800 W @ 8 ohms / 650 W @ 4 ohms / 325 W @ 2 ohms, 100 Hz
Network audio: Dante/AES-67, 1-port 100 Mbps RJ-45
Enclosure: 1.7" H x 8.7" W x 10.5" D, half-rack 1U, metal, plenum rated
Warranty: 3 years parts and labor; Everlast power supply 7 years

Frequently asked questions about the Extron NetPA U 8001 SUB Mono Dante Subwoofer Amplifier

Does Ampronix sell the Extron NetPA U 8001 SUB Mono Dante Subwoofer Amplifier?

Yes. Ampronix is an authorized Extron distributor and sells the Extron NetPA U 8001 SUB Mono Dante Subwoofer Amplifier (60-1866-01). Call Ampronix for a quote.

Does Ampronix offer replacement and exchange for the Extron NetPA U 8001 SUB Mono Dante Subwoofer Amplifier?

Yes. Ampronix provides sales, replacement and exchange for the Extron NetPA U 8001 SUB Mono Dante Subwoofer Amplifier. Call Ampronix for a quote.

Is the Extron NetPA U 8001 SUB Mono Dante Subwoofer Amplifier listed under other names?

Yes. The Extron NetPA U 8001 SUB Mono Dante Subwoofer Amplifier is also referenced as Extron NetPAU8001SUB, NetPA-U-8001-SUB, part number 60186601.

What are the key features of the Extron NetPA U 8001 SUB Mono Dante Subwoofer Amplifier?

Key points: Up to 800 W into 8 ohms, 650 W into 4 ohms, or 325 W into 2 ohms, all at 100 Hz; Dante/AES-67 network audio input with 2 Rx / 2 Tx flows, unicast or multicast; Optional hardware mounts the amplifier directly to a compatible subwoofer; 24-bit audio up to 96 kHz sampling with selectable 1.0/2.0/5.0 ms latency. Call Ampronix to confirm details for your application.

Also referenced as Extron NetPAU8001SUB, NetPA-U-8001-SUB, part number 60186601.

Specifications

Part Number: 60-1866-01

Manufacturer: Extron

Model: NetPA U 8001 SUB

Condition: New

Amplifier Type: Class D

Output Power (8 ohms): 800 W, 100 Hz, <0.1% THD

Output Power (4 ohms): 650 W, 100 Hz, <0.1% THD

Output Power (2 ohms): 325 W, 100 Hz, <0.1% THD

Load Impedance: 2 ohms minimum

Speaker Output: 1 channel, 2, 4, or 8 ohms; (1) 5 mm captive screw connector, 2-pole (22-12 AWG)

Frequency Response (Line in to line out): 20 Hz to 20 kHz, ±0.5 dB

Frequency Response (Line in to digital out): 20 Hz to 20 kHz, ±0.5 dB

Frequency Response (Digital in to line out): 20 Hz to 20 kHz, ±0.5 dB

Frequency Response (Through amplifier): 20 Hz to 1 kHz, ±1 dB

THD+N (through DSP): <0.01% @ 1 kHz at maximum output

THD+N (through amplifier): 0.1% @ 1 kHz at 3 dB below clipping

S/N (Line in to line out): 90 dB, 20 Hz to 20 kHz at maximum output (unweighted)

S/N (Line in to speaker out): 100 dB, 20 Hz to 1 kHz at maximum output (unweighted)

S/N (Line in to digital out): 90 dB, 20 Hz to 20 kHz at maximum output (unweighted)

S/N (Digital in to line out): 100 dB, 20 Hz to 20 kHz at maximum output (unweighted)

S/N (Digital in to speaker out): 100 dB, 20 Hz to 1 kHz at maximum output (unweighted)

Crosstalk: <-90 dB @ 1 kHz, fully loaded

Volume Control Range: -100 dB to 0 dB in 0.1 dB steps

Audio Inputs: 2 mono line, balanced/unbalanced; (1) 3.5 mm captive screw connector, 5-pole

Input Impedance: >10k ohms unbalanced/balanced

Input Nominal Level: +4 dBu / -10 dBV, adjustable via input gain

Input Gain Adjustment: -18 dB to +24 dB in 0.1 dB steps, per input

Audio Line Output: 2 mono, balanced/unbalanced; (1) 3.5 mm captive screw connector, 5-pole

Output Impedance: 100 ohms balanced, 50 ohms unbalanced

Network Audio: Dante/AES-67, software selectable, 1 RJ-45 port at 100 Mbps

Network Audio Channels: 2 Rx / 2 Tx, unicast or multicast

Network Audio Format: 24-bit uncompressed, 44.1/48/88.2/96 kHz sampling

Network Audio Latency: 1.0 ms (default), 2.0 ms, or 5.0 ms

Control Port: (1) 3.5 mm captive screw connector, 5-pole; contact-closure standby

Serial Control: 1 RS-232 port, 38400 baud, 8 data bits, 1 stop bit, no parity

USB Control Port: 1 USB 2.0 Mini-B, high speed

Ethernet Control: 1 RJ-45, 10/100 Base-T, Extron SIS

Protection: Clip limiter, thermal, short circuit, DC output

Power Supply: Internal, 100-240 VAC, 50-60 Hz, 0.5 A

Power Consumption (Active, 8 ohms): 1.1 A / 121 W / 21 W / 72 BTU/hr at 115 VAC; 0.6 A / 118.7 W / 18.7 W / 64 BTU/hr at 230 VAC

Power Consumption (Active, 4 ohms): 1.0 A / 104.7 W / 23.5 W / 80 BTU/hr at 115 VAC; 0.6 A / 102.8 W / 21.6 W / 74 BTU/hr at 230 VAC

Power Consumption (Active, 2 ohms): 0.6 A / 61.1 W / 20.5 W / 70 BTU/hr at 115 VAC; 0.4 A / 60 W / 19.4 W / 66 BTU/hr at 230 VAC

Power Consumption (Quiescent): 0.2 A / 10.4 W / 10.4 W / 35 BTU/hr at 115 VAC and 230 VAC

Power Consumption (Standby): <0.1 A / <4 W / <4 W / <14 BTU/hr

Storage Temperature: -40° to +158°F (-40° to +70°C), 10% to 90% non-condensing

Operating Temperature: +32° to +122°F (0° to +50°C), 10% to 90% non-condensing

Cooling: Convection, no vents

Mounting: Rack mountable with included brackets or optional 1U rack shelf; optional subwoofer mounting hardware included with SF 10C SUB

Enclosure: Metal, half-rack 1U, 1.7" H x 8.7" W x 10.5" D (43 x 221 x 267 mm)

Weight: 4.2 lbs (1.9 kg)

Safety Compliance: CE, C-tick, c-UL, KC; UL rated for plenum airspaces, meets UL 2043

EMI/EMC Compliance: CE, C-tick, FCC Class B, ICES, VCCI Class B, CISPR 22 Class B

Environmental Compliance: Ecofficient Level 3, RoHS

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

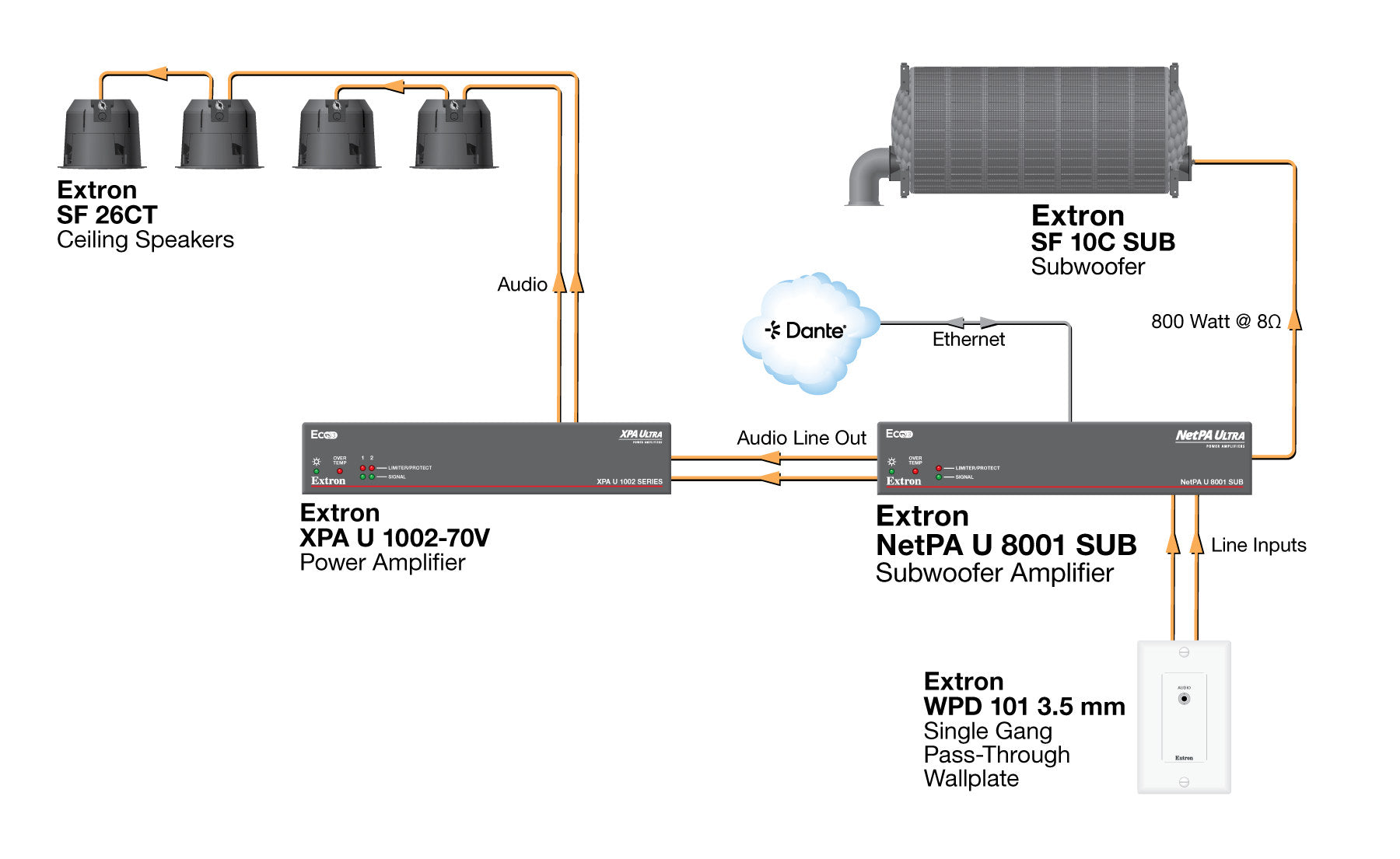

Diagram

Resources

Brochure | NetPA U 8001 SUB 60-1866-01 | Everlast Power Supplies

Brochure | NetPA U 8001 SUB 60-1866-01 | NetPA Ultra - Power Amplifiers (netPA-u-1002-1004-bro-revA1.pdf)

Brochure | NetPA U 8001 SUB 60-1866-01 | Alimentatori Everlast

Brochure | NetPA U 8001 SUB 60-1866-01 | Everlast 电源

Brochure | NetPA U 8001 SUB 60-1866-01 | Everlast-Netzteile

Brochure | NetPA U 8001 SUB 60-1866-01 | Fuentes de alimentación Everlast

Brochure | NetPA U 8001 SUB 60-1866-01 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_BR_A4_GE_RevA.pdf)

Brochure | NetPA U 8001 SUB 60-1866-01 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_BR_A4_SP_RevA.pdf)

Brochure | NetPA U 8001 SUB 60-1866-01 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_BR_A4_FR_RevA.pdf)

Brochure | NetPA U 8001 SUB 60-1866-01 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_BR_A4_RU_RevA.pdf)

Brochure | NetPA U 8001 SUB 60-1866-01 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_BR_A4_IT_RevA.pdf)

Brochure | NetPA U 8001 SUB 60-1866-01 | Sources d'alimentation Everlast

Manual | NetPA U 8001 SUB 60-1866-01 | Cleaning Instruction Card

Manual | NetPA U 8001 SUB 60-1866-01 | NetPA U 8001 SUB Setup Guide

Manual | NetPA U 8001 SUB 60-1866-01 | NetPA U 8001 SUB User Guide

Specifications | NetPA U 8001 SUB 60-1866-01 | NetPA U 8001 SUB

Panel Drawing | NetPA U 8001 SUB 60-1866-01 | NetPA U 8001 SUB

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron NetPA U 8001 SUB Mono Dante Subwoofer Amplifier 60-1866-01

Name: Extron NetPA U 8001 SUB Mono Dante Subwoofer Amplifier 60-1866-01
Brand: Extron
SKU: EXTRON-NETPAU8001SUB-60186601
Availability: InStock

Manufacturer: Extron

Type: Power Amplifiers

Extron NetPA U 8001 SUB Dante Subwoofer Amplifier

• Extron NetPA U 8001 SUB Dante subwoofer amplifier
• 800 W into 8 ohms, 650 W at 4 ohms, 325 W at 2 ohms
• Dante/AES-67 input with 2 Rx / 2 Tx flows
• Sales, replacement and exchange
• Part# 60-1866-01 / 60186601

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-NETPAU8001SUB-60186601

Details

Extron NetPA U 8001 SUB (part number 60-1866-01) - a mono, network-native Class D amplifier purpose-built for driving a single subwoofer.

Key Capabilities

Up to 800 W into 8 ohms, 650 W into 4 ohms, or 325 W into 2 ohms, all at 100 Hz
Dante/AES-67 network audio input with 2 Rx / 2 Tx flows, unicast or multicast
Optional hardware mounts the amplifier directly to a compatible subwoofer
24-bit audio up to 96 kHz sampling with selectable 1.0/2.0/5.0 ms latency
Half-rack, 1U, plenum-rated metal enclosure at 4.2 lbs
RS-232, USB, and 10/100 Ethernet control via Extron SIS

Where It Is Used

Specifications at a Glance

Output: 800 W @ 8 ohms / 650 W @ 4 ohms / 325 W @ 2 ohms, 100 Hz
Network audio: Dante/AES-67, 1-port 100 Mbps RJ-45
Enclosure: 1.7" H x 8.7" W x 10.5" D, half-rack 1U, metal, plenum rated
Warranty: 3 years parts and labor; Everlast power supply 7 years

Frequently asked questions about the Extron NetPA U 8001 SUB Mono Dante Subwoofer Amplifier

Does Ampronix sell the Extron NetPA U 8001 SUB Mono Dante Subwoofer Amplifier?

Yes. Ampronix is an authorized Extron distributor and sells the Extron NetPA U 8001 SUB Mono Dante Subwoofer Amplifier (60-1866-01). Call Ampronix for a quote.

Does Ampronix offer replacement and exchange for the Extron NetPA U 8001 SUB Mono Dante Subwoofer Amplifier?

Yes. Ampronix provides sales, replacement and exchange for the Extron NetPA U 8001 SUB Mono Dante Subwoofer Amplifier. Call Ampronix for a quote.

Is the Extron NetPA U 8001 SUB Mono Dante Subwoofer Amplifier listed under other names?

Yes. The Extron NetPA U 8001 SUB Mono Dante Subwoofer Amplifier is also referenced as Extron NetPAU8001SUB, NetPA-U-8001-SUB, part number 60186601.

What are the key features of the Extron NetPA U 8001 SUB Mono Dante Subwoofer Amplifier?

Also referenced as Extron NetPAU8001SUB, NetPA-U-8001-SUB, part number 60186601.

Specifications

Part Number: 60-1866-01

Manufacturer: Extron

Model: NetPA U 8001 SUB

Condition: New

Amplifier Type: Class D

Output Power (8 ohms): 800 W, 100 Hz, <0.1% THD

Output Power (4 ohms): 650 W, 100 Hz, <0.1% THD

Output Power (2 ohms): 325 W, 100 Hz, <0.1% THD

Load Impedance: 2 ohms minimum

Speaker Output: 1 channel, 2, 4, or 8 ohms; (1) 5 mm captive screw connector, 2-pole (22-12 AWG)

Frequency Response (Line in to line out): 20 Hz to 20 kHz, ±0.5 dB

Frequency Response (Line in to digital out): 20 Hz to 20 kHz, ±0.5 dB

Frequency Response (Digital in to line out): 20 Hz to 20 kHz, ±0.5 dB

Frequency Response (Through amplifier): 20 Hz to 1 kHz, ±1 dB

THD+N (through DSP): <0.01% @ 1 kHz at maximum output

THD+N (through amplifier): 0.1% @ 1 kHz at 3 dB below clipping

S/N (Line in to line out): 90 dB, 20 Hz to 20 kHz at maximum output (unweighted)

S/N (Line in to speaker out): 100 dB, 20 Hz to 1 kHz at maximum output (unweighted)

S/N (Line in to digital out): 90 dB, 20 Hz to 20 kHz at maximum output (unweighted)

S/N (Digital in to line out): 100 dB, 20 Hz to 20 kHz at maximum output (unweighted)

S/N (Digital in to speaker out): 100 dB, 20 Hz to 1 kHz at maximum output (unweighted)

Crosstalk: <-90 dB @ 1 kHz, fully loaded

Volume Control Range: -100 dB to 0 dB in 0.1 dB steps

Audio Inputs: 2 mono line, balanced/unbalanced; (1) 3.5 mm captive screw connector, 5-pole

Input Impedance: >10k ohms unbalanced/balanced

Input Nominal Level: +4 dBu / -10 dBV, adjustable via input gain

Input Gain Adjustment: -18 dB to +24 dB in 0.1 dB steps, per input

Audio Line Output: 2 mono, balanced/unbalanced; (1) 3.5 mm captive screw connector, 5-pole

Output Impedance: 100 ohms balanced, 50 ohms unbalanced

Network Audio: Dante/AES-67, software selectable, 1 RJ-45 port at 100 Mbps

Network Audio Channels: 2 Rx / 2 Tx, unicast or multicast

Network Audio Format: 24-bit uncompressed, 44.1/48/88.2/96 kHz sampling

Network Audio Latency: 1.0 ms (default), 2.0 ms, or 5.0 ms

Control Port: (1) 3.5 mm captive screw connector, 5-pole; contact-closure standby

Serial Control: 1 RS-232 port, 38400 baud, 8 data bits, 1 stop bit, no parity

USB Control Port: 1 USB 2.0 Mini-B, high speed

Ethernet Control: 1 RJ-45, 10/100 Base-T, Extron SIS

Protection: Clip limiter, thermal, short circuit, DC output

Power Supply: Internal, 100-240 VAC, 50-60 Hz, 0.5 A

Power Consumption (Active, 8 ohms): 1.1 A / 121 W / 21 W / 72 BTU/hr at 115 VAC; 0.6 A / 118.7 W / 18.7 W / 64 BTU/hr at 230 VAC

Power Consumption (Active, 4 ohms): 1.0 A / 104.7 W / 23.5 W / 80 BTU/hr at 115 VAC; 0.6 A / 102.8 W / 21.6 W / 74 BTU/hr at 230 VAC

Power Consumption (Active, 2 ohms): 0.6 A / 61.1 W / 20.5 W / 70 BTU/hr at 115 VAC; 0.4 A / 60 W / 19.4 W / 66 BTU/hr at 230 VAC

Power Consumption (Quiescent): 0.2 A / 10.4 W / 10.4 W / 35 BTU/hr at 115 VAC and 230 VAC

Power Consumption (Standby): <0.1 A / <4 W / <4 W / <14 BTU/hr

Storage Temperature: -40° to +158°F (-40° to +70°C), 10% to 90% non-condensing

Operating Temperature: +32° to +122°F (0° to +50°C), 10% to 90% non-condensing

Cooling: Convection, no vents

Mounting: Rack mountable with included brackets or optional 1U rack shelf; optional subwoofer mounting hardware included with SF 10C SUB

Enclosure: Metal, half-rack 1U, 1.7" H x 8.7" W x 10.5" D (43 x 221 x 267 mm)

Weight: 4.2 lbs (1.9 kg)

Safety Compliance: CE, C-tick, c-UL, KC; UL rated for plenum airspaces, meets UL 2043

EMI/EMC Compliance: CE, C-tick, FCC Class B, ICES, VCCI Class B, CISPR 22 Class B

Environmental Compliance: Ecofficient Level 3, RoHS

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

Diagram

Resources

Brochure | NetPA U 8001 SUB 60-1866-01 | Everlast Power Supplies

Brochure | NetPA U 8001 SUB 60-1866-01 | NetPA Ultra - Power Amplifiers (netPA-u-1002-1004-bro-revA1.pdf)

Brochure | NetPA U 8001 SUB 60-1866-01 | Alimentatori Everlast

Brochure | NetPA U 8001 SUB 60-1866-01 | Everlast 电源

Brochure | NetPA U 8001 SUB 60-1866-01 | Everlast-Netzteile

Brochure | NetPA U 8001 SUB 60-1866-01 | Fuentes de alimentación Everlast

Brochure | NetPA U 8001 SUB 60-1866-01 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_BR_A4_GE_RevA.pdf)

Brochure | NetPA U 8001 SUB 60-1866-01 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_BR_A4_SP_RevA.pdf)

Brochure | NetPA U 8001 SUB 60-1866-01 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_BR_A4_FR_RevA.pdf)

Brochure | NetPA U 8001 SUB 60-1866-01 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_BR_A4_RU_RevA.pdf)

Brochure | NetPA U 8001 SUB 60-1866-01 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_BR_A4_IT_RevA.pdf)

Brochure | NetPA U 8001 SUB 60-1866-01 | Sources d'alimentation Everlast

Manual | NetPA U 8001 SUB 60-1866-01 | Cleaning Instruction Card

Manual | NetPA U 8001 SUB 60-1866-01 | NetPA U 8001 SUB Setup Guide

Manual | NetPA U 8001 SUB 60-1866-01 | NetPA U 8001 SUB User Guide

Specifications | NetPA U 8001 SUB 60-1866-01 | NetPA U 8001 SUB

Panel Drawing | NetPA U 8001 SUB 60-1866-01 | NetPA U 8001 SUB

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Details

Key Capabilities

Where It Is Used

Specifications at a Glance

Frequently asked questions about the Extron NetPA U 8001 SUB Mono Dante Subwoofer Amplifier

Does Ampronix sell the Extron NetPA U 8001 SUB Mono Dante Subwoofer Amplifier?

Does Ampronix offer replacement and exchange for the Extron NetPA U 8001 SUB Mono Dante Subwoofer Amplifier?

Is the Extron NetPA U 8001 SUB Mono Dante Subwoofer Amplifier listed under other names?

What are the key features of the Extron NetPA U 8001 SUB Mono Dante Subwoofer Amplifier?

Specifications

Diagram

Resources

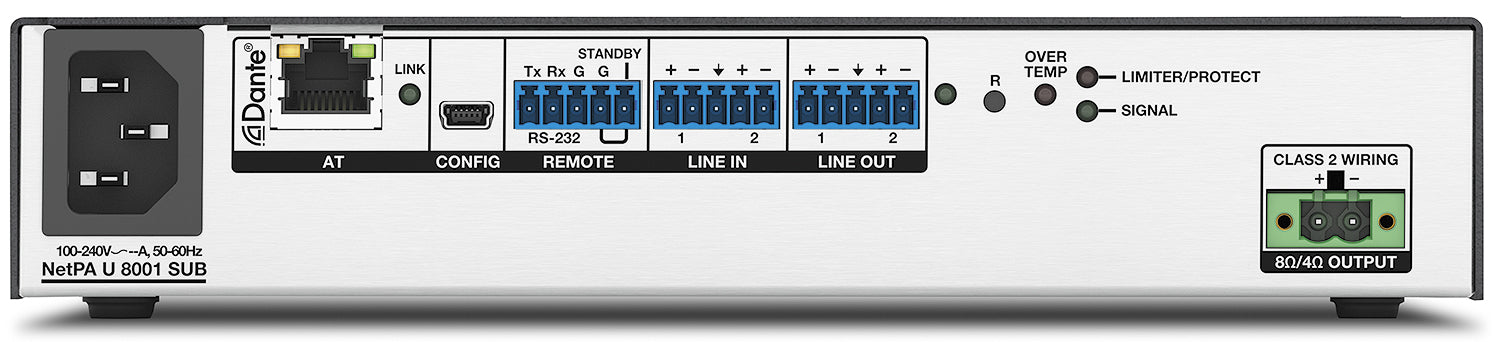

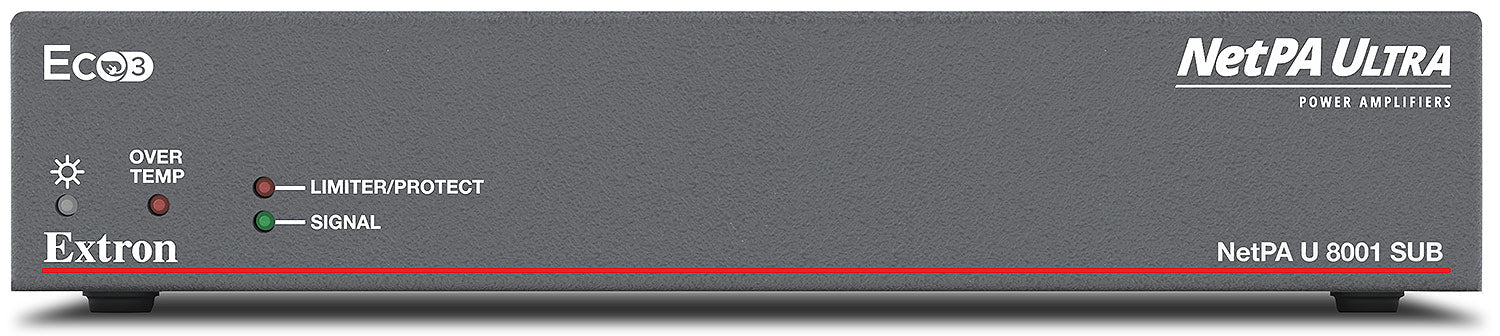

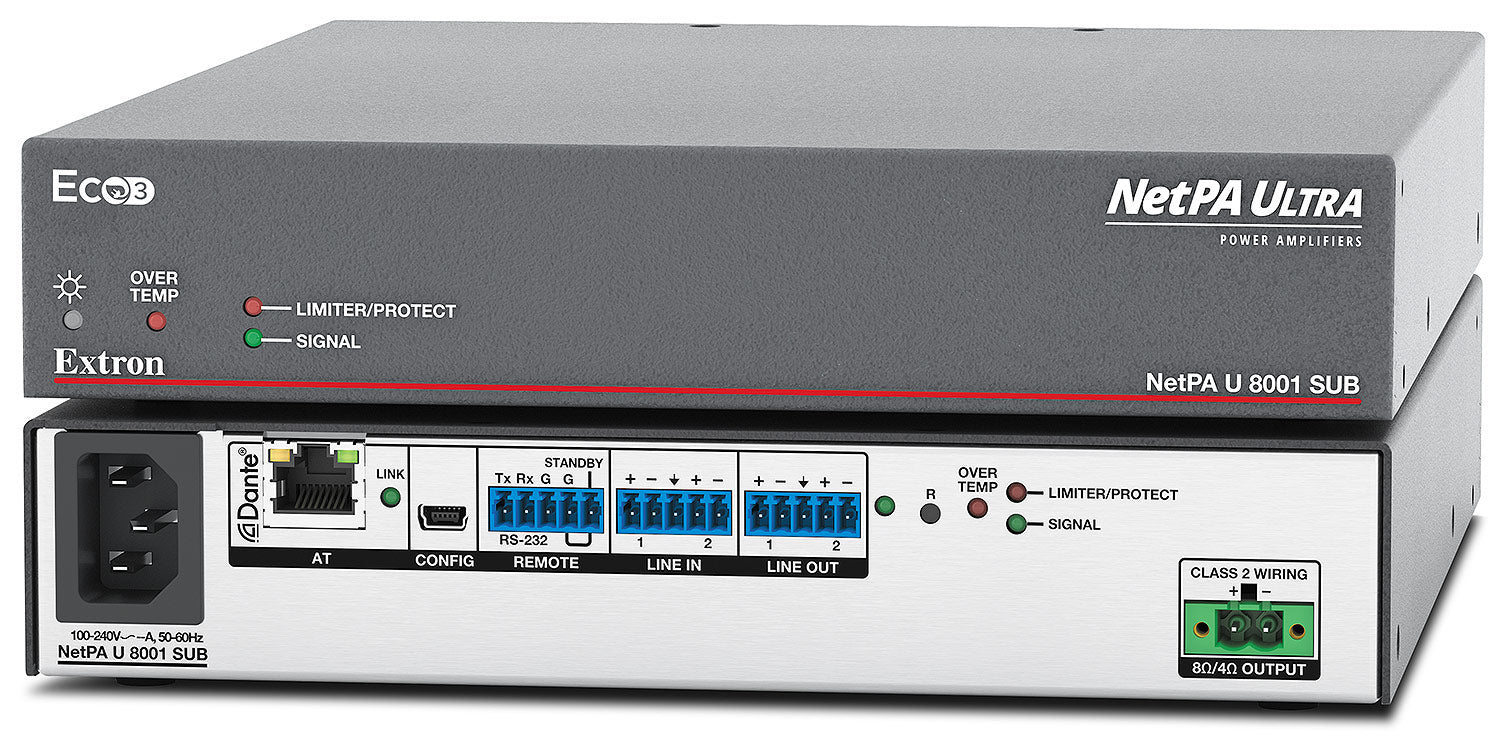

Extron NetPA U 8001 SUB Mono Dante Subwoofer Amplifier 60-1866-01
