Details

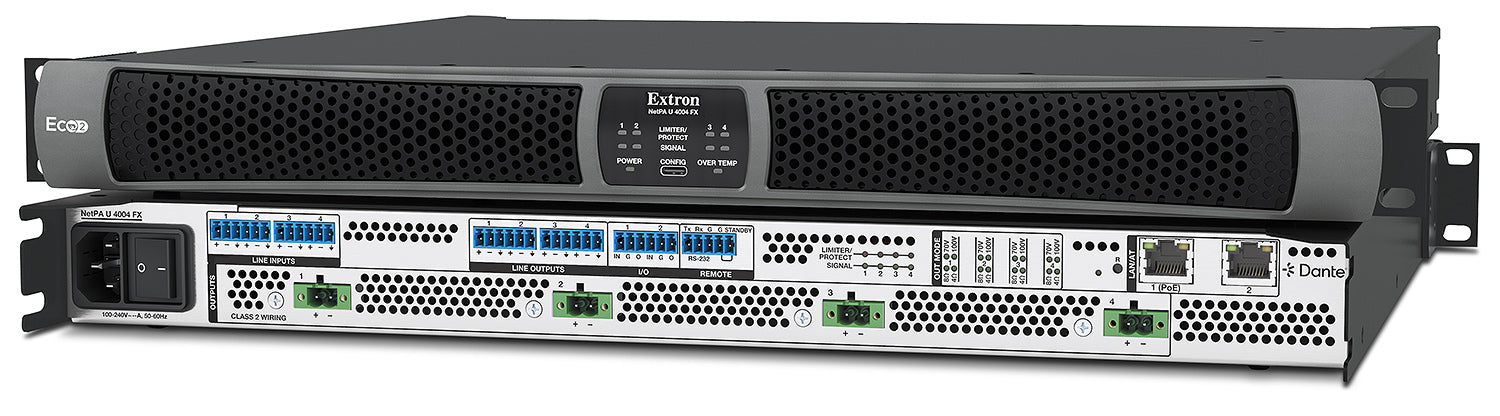

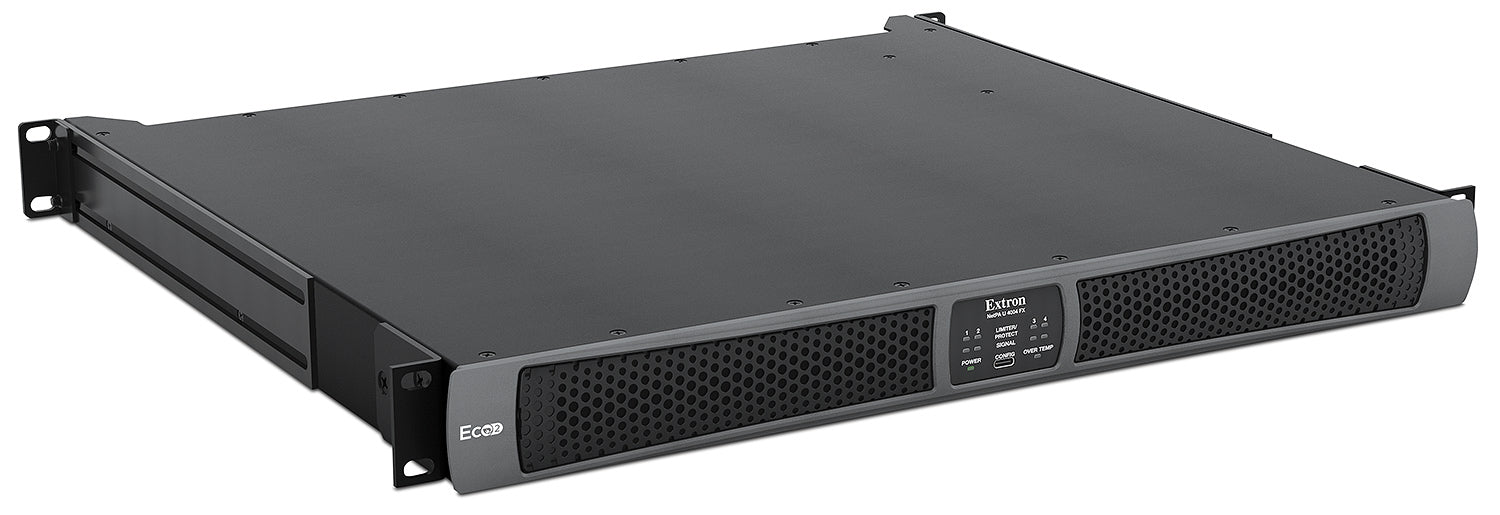

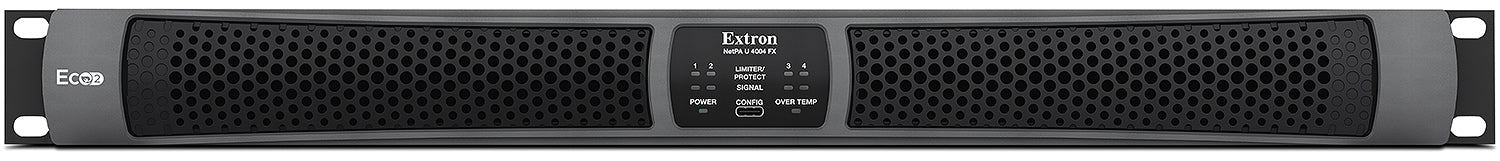

Extron NetPA U 4004 FX (part number 60-2035-01) — a four-channel, fan-cooled Dante power amplifier with software-configurable output modes.

Each of the four channels in this 1U, full-rack chassis can be set independently to 4 ohm, 8 ohm, 70V, or 100V operation, and adjacent channel pairs can share power to deliver up to 800 watts on one output when a zone needs more headroom than the standard 400 watts per channel. Dual Gigabit Dante/AES-67 ports bring in up to 8 channels of network audio, while variable-speed fan cooling lets the amplifier handle sustained high-power operation that a convection-only chassis could not.

Key Capabilities

400 W per channel across 4 channels, or 800 W when pairing channels for shared power
Independently configurable per-channel output: 4 ohm, 8 ohm, 70V, or 100V
Dual Gigabit Dante/AES-67 network ports carrying 8 Rx / 8 Tx audio channels
Variable-speed fan cooling rated for full-rack, high-power duty cycles
PoE-powered DSP/controller stays live even without AC present
Extron DSP Configurator Pro, SIS, and internal web page control options

Where It Is Used

The mixed-impedance, configurable-per-channel design fits venues that combine direct-drive stage or AV-zone speakers with 70V/100V paging on the same rack — houses of worship, auditoriums, ballrooms, and large conference centers where a single amplifier needs to flex between zone types.

Specifications at a Glance

Output: 400 W per channel, up to 800 W shared, at 4/8 ohms, 70V, or 100V
Network audio: Dual Gigabit Dante/AES-67, 8 Rx / 8 Tx channels
Enclosure: 1.74" H x 17.31" W x 16.5" D, full-rack 1U, fan-cooled
Warranty: 3 years parts and labor; Everlast power supply 7 years

Also referenced as Extron NetPAU4004FX, NetPA-U-4004-FX, part number 60203501.

Specifications

Part Number: 60-2035-01

Manufacturer: Extron

Model: NetPA U 4004 FX

Condition: New

Amplifier Type: Class D

Output Power: 400 W per channel (all channels driven) at 4/8 ohms, 70V, or 100V, 1 kHz, 0.2% THD; up to 800 W per channel (one channel driven per pair) under the same conditions

Load Impedance (8-ohm mode): 8 ohms minimum

Load Impedance (4-ohm mode): 4 ohms minimum

Load Impedance (70V mode): 6.25 ohms minimum for 800 W

Load Impedance (100V mode): 12.5 ohms minimum for 800 W

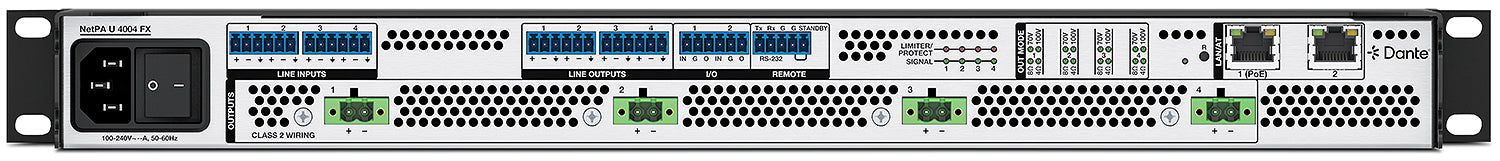

Speaker Output: 4 channels, 8 ohms, 4 ohms, 70 V, or 100 V; (4) 5 mm captive screw connectors, 2-pole (22-12 AWG)

High-Pass Filter (70V/100V modes): 80 Hz, 12 dB/octave rolloff, default, changeable

Frequency Response (through DSP): 20 Hz to 20 kHz, ±0.5 dB

Frequency Response (through amplifier): 20 Hz to 20 kHz, ±1 dB

THD+N (through DSP): <0.01% @ 1 kHz at maximum output

THD+N (through amplifier): 0.2% @ 1 kHz at 3 dB below clipping

Crosstalk: <-90 dB @ 1 kHz, fully loaded

Volume Control Range: -100 dB to 0 dB in 0.1 dB steps

Audio Inputs: 4 mono line, balanced/unbalanced; (4) 3.5 mm captive screw connectors, 3-pole

Input Impedance: >10k ohms unbalanced/balanced

Input Nominal Level: +4 dBu / -10 dBV, adjustable via input gain

Input Gain Adjustment: -18 dB to +24 dB in 0.1 dB steps, per input

Audio Line Output: 4 mono, balanced/unbalanced; (4) 3.5 mm captive screw connectors, 3-pole

Output Impedance: 50 ohms unbalanced, 100 ohms balanced

Network Audio: Dante/AES-67, software selectable, 2 RJ-45 ports, 2-port 1 Gbps switch

Network Audio Channels: 8 Rx / 8 Tx

Network Audio Format: 24-bit uncompressed, 48 kHz sampling

Network Audio Latency: Deterministic: 1.0 ms (default), 2.0 ms, or 5.0 ms

Control Port: (1) 3.5 mm captive screw, 5-pole; contact-closure standby

Serial Control: 1 RS-232 port, 38400 baud, 8 data bits, 1 stop bit, no parity

USB Control Port: 1 front panel USB-C, Ethernet over USB

Digital I/O: (2) 3.5 mm captive screw, 3-pole; software-programmable, 0-12V input, 0V/5V output

Ethernet Control: 2 RJ-45, 10/100/1000 Base-T; ARP, ICMP, IEEE 802.1X, IP, TCP, DHCP, HTTPS, Telnet, SSH, SFTP

Program Control: Extron DSP Configurator Pro, Extron SIS, internal web page

Auxiliary Power (DSP/controller): PoE IEEE 802.3af; 0.5 W with AC present, 8.4 W max without AC

Protection: Clip limiting, thermal, short circuit, DC output

Power Supply: Internal, 100-240 VAC, 50-60 Hz

Power Consumption (Active, 8 ohms): 2.4 A / 258.8 W / 58.8 W / 201 BTU/hr at 115 VAC; 1.5 A / 252.2 W / 52.2 W / 178 BTU/hr at 230 VAC

Power Consumption (Active, 4 ohms): 2.6 A / 274.0 W / 74.0 W / 253 BTU/hr at 115 VAC; 1.5 A / 266.7 W / 66.7 W / 228 BTU/hr at 230 VAC

Power Consumption (Active, 70V): 2.4 A / 262.4 W / 62.4 W / 213 BTU/hr at 115 VAC; 1.5 A / 255.3 W / 55.3 W / 189 BTU/hr at 230 VAC

Power Consumption (Active, 100V): 2.4 A / 253.3 W / 53.3 W / 182 BTU/hr at 115 VAC; 1.4 A / 246.6 W / 46.6 W / 159 BTU/hr at 230 VAC

Power Consumption (Quiescent): 0.5 A / 27.1 W / 27.1 W / 92 BTU/hr at 115 VAC; 0.5 A / 25.4 W / 25.4 W / 87 BTU/hr at 230 VAC

Power Consumption (Standby): 0.3 A / 9.3 W / 9.3 W / 32 BTU/hr at 115 VAC; 0.3 A / 8.8 W / 8.8 W / 30 BTU/hr at 230 VAC

Storage Temperature: -40° to +158°F (-40° to +70°C), 10% to 90% non-condensing

Operating Temperature: +32° to +122°F (0° to +50°C), 10% to 90% non-condensing

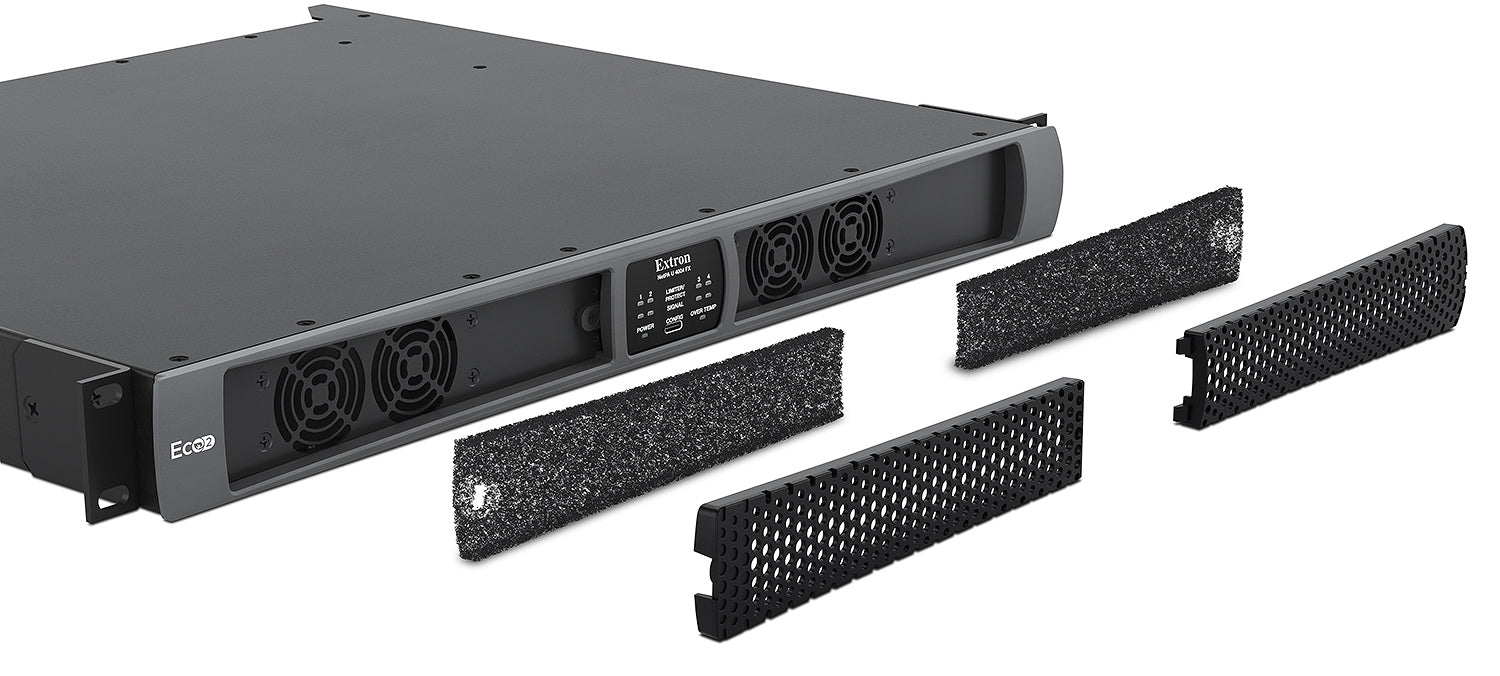

Cooling: Fan, front-to-rear, variable speed

Mounting: Rack mountable with included front/rear brackets; rear rack ear mounting depth 15.48" to 26.13"

Enclosure: Metal, full-rack 1U, 1.74" H x 17.31" W x 16.5" D (44 x 440 x 419 mm)

Weight: 13.0 lbs (5.9 kg)

Regulatory Compliance: CE, CISPR 32, C-Tick, c-UL, FCC, ICES, RoHS, UL, VCCI, Ecofficient Level 2

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

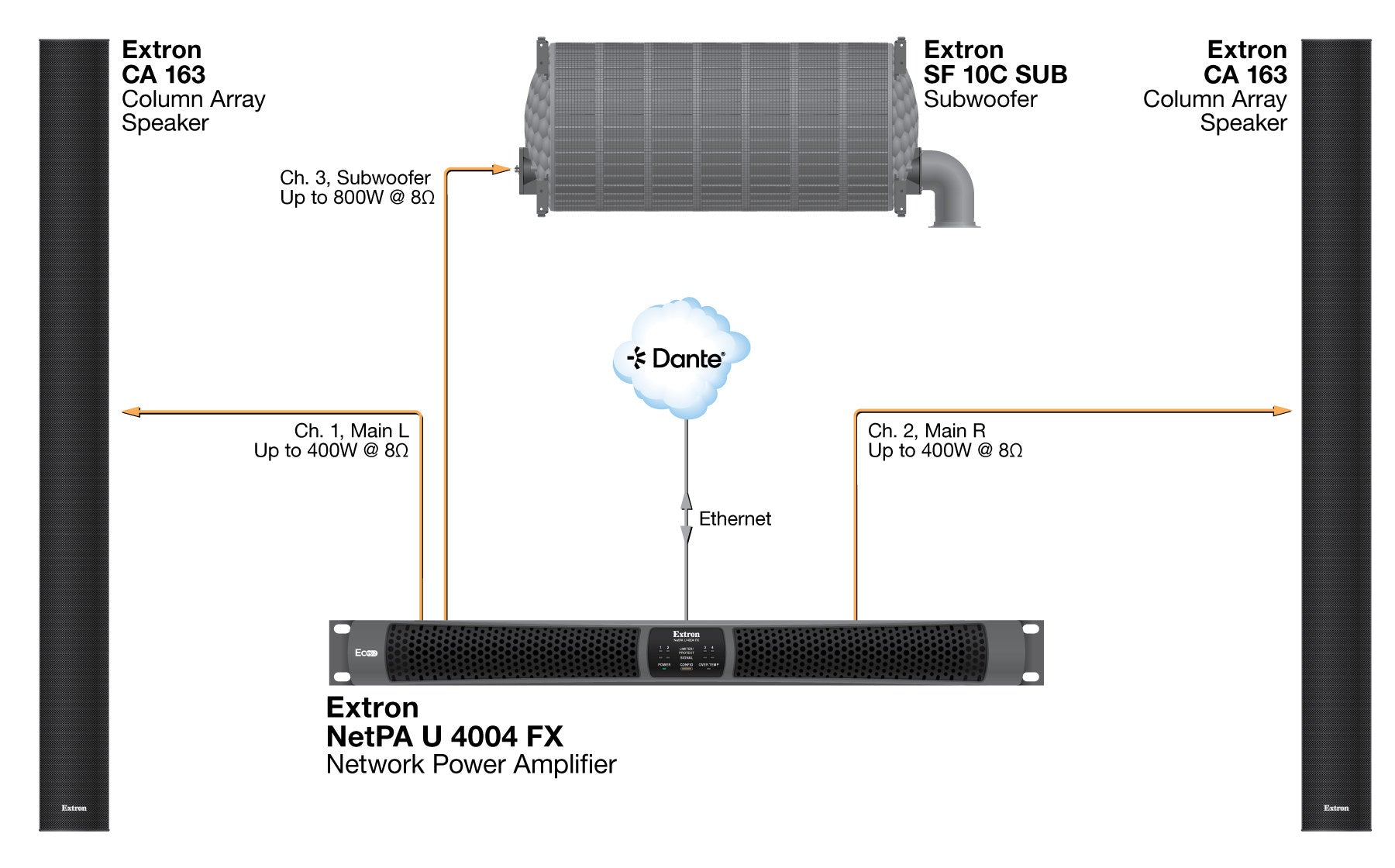

Diagram

Resources

Brochure | NetPA U 4004 FX 60-2035-01 | NetPA Ultra FX Series

Manual | NetPA U 4004 FX 60-2035-01 | Extron Dante FAQ

Specifications | NetPA U 4004 FX 60-2035-01 | NetPA U 4004 FX

Panel Drawing | NetPA U 4004 FX 60-2035-01 | NetPA U 4004 FX

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron NetPA U 4004 FX 4-Channel Configurable Dante Amplifier 60-2035-01

Name: Extron NetPA U 4004 FX 4-Channel Configurable Dante Amplifier 60-2035-01
Brand: Extron
SKU: EXTRON-NETPAU4004FX-60203501
Availability: InStock

Manufacturer: Extron

Type: Power Amplifiers

Extron NetPA U 4004 FX Configurable Dante Amplifier

• 400 W per channel, up to 800 W shared between paired channels
• Each channel independently configurable: 4 ohm, 8 ohm, 70V, or 100V
• Dual Gigabit Dante/AES-67 network ports with 8 Rx / 8 Tx channels
• Variable-speed fan cooling for sustained high-power operation
• Full-rack 1U metal chassis weighs 13.0 lbs (5.9 kg)
• PoE-powered DSP controller stays live without AC present
