Details

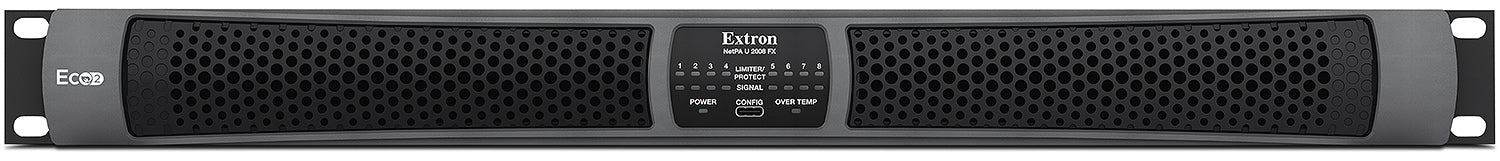

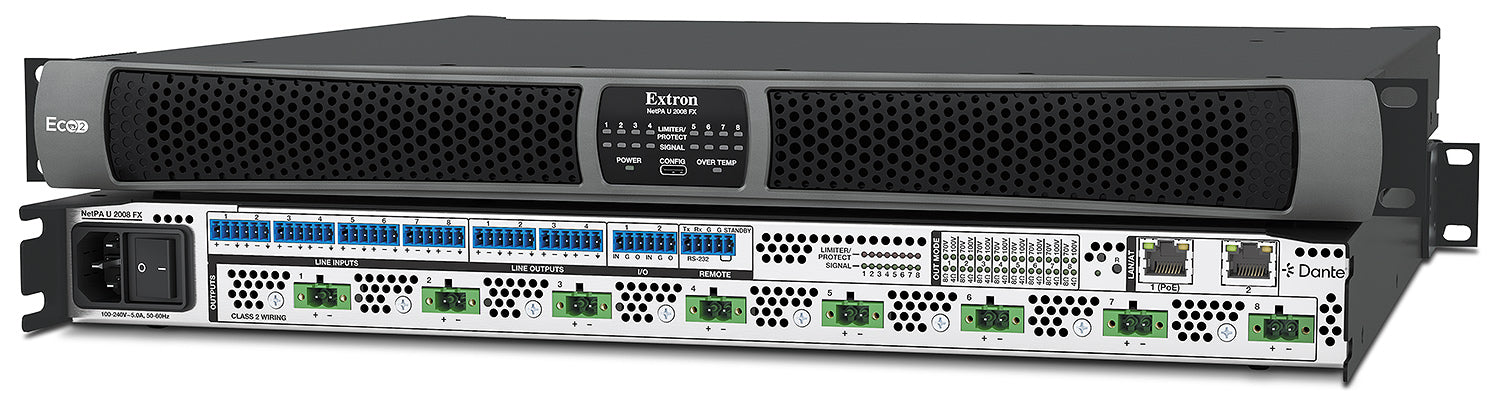

Extron NetPA U 2008 FX (part number 60-2027-01) — an eight-channel, 200 watt Class D amplifier with onboard DSP and Dante/AES67 networking, all in one rack unit.

Eight independently configurable outputs mean a single chassis can cover a building's worth of mixed zones: low-impedance 8 or 4 ohm speaker pairs alongside 70 V or 100 V distributed lines, each set from the rear panel. Adjacent channels share a power budget, so pairing them lets one output reach 400 watts while the rest stay at 200. Audio comes in on eight balanced analog line inputs or as Dante over the built-in two-port Gigabit switch, and every input has its own -18 to +24 dB gain trim in 0.1 dB steps.

Key Capabilities

Eight channels at 200 W each, all driven, into 4 ohm, 8 ohm, 70 V or 100 V at 0.2% THD
400 W from one channel of an adjacent pair when the other is unused
Eight balanced/unbalanced line inputs on 3.5 mm 3-pole captive screw connectors
Dante/AES67 transport, 8 channels Rx and 8 Tx, 24-bit uncompressed at 48 kHz
Switch-selectable 80 Hz high-pass filter at 12 dB per octave for 70 V and 100 V modes

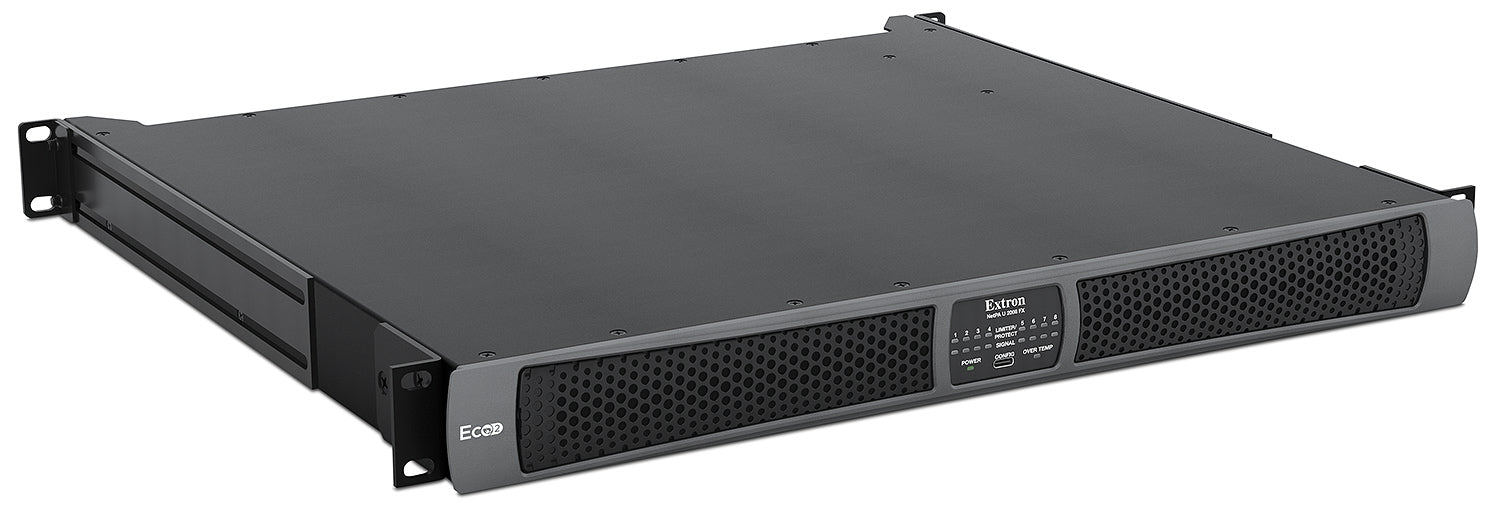

Full-rack 1U chassis at 14.5 lbs with front and rear rack mounting hardware included

Where It Is Used

High-zone-count installations where rack space is the binding constraint: convention centres, university buildings, large houses of worship, hospitals, airports and multi-court sports facilities. Eight configurable outputs in 1U also suits phased retrofits where the zone mix is still changing.

Specifications at a Glance

Frequency response 20 Hz to 20 kHz, plus/minus 1 dB through the amplifier
Crosstalk below -90 dB at 1 kHz fully loaded; input CMRR above 60 dB typical
Minimum loads: 8 ohm mode 8 ohms, 4 ohm mode 4 ohms, 70 V 12.5 ohms, 100 V 25 ohms
Idle draw 59.0 W at 115 VAC; standby just 10.9 W
Enclosure 1.74 in H x 17.31 in W x 16.5 in D, 14.5 lbs; Ecofficient Level 2

Also referenced as Extron NetPAU2008FX, NetPA-U-2008-FX, part number 60202701.

Specifications

Part Number: 60-2027-01

Manufacturer: Extron

Model: NetPA U 2008 FX

Condition: New

Audio - Frequency Response Through DSP: 20 Hz to 20 kHz, plus/minus 0.5 dB

Audio - Frequency Response Through Amplifier: 20 Hz to 20 kHz, plus/minus 1 dB

Audio - THD + Noise Through DSP: Less than 0.01% @ 1 kHz at maximum output level

Audio - THD + Noise Through Amplifier: 0.2% @ 1 kHz at 3 dB below clipping

Audio - Signal to Noise: Line in to line out 100 dB; line in to speaker out 100 dB; line in to digital out 105 dB; digital in to line out 100 dB; digital in to speaker out 100 dB. All 20 Hz to 20 kHz at maximum output (unweighted).

Audio - Crosstalk: Less than -90 dB @ 1 kHz, fully loaded

Audio - Volume Control: -100 dB to 0 dB (control 0 to 100 in 0.1 dB steps)

Audio Input - Number/Signal Type: 8 mono, balanced/unbalanced

Audio Input - Connectors: (8) 3.5 mm captive screw connectors, 3-pole, mono, balanced/unbalanced

Audio Input - Impedance: Greater than 10k ohms unbalanced/balanced

Audio Input - Nominal Level: +4 dBu, -10 dBV adjustable via input gain

Audio Input - Sensitivity: Line input +21 dBu; AT input 0 dBFS. All gains/attenuators in signal path set to 0 dB.

Audio Input - Maximum Level: +21 dBu at rated THD+N when input gain is set to 0 dB

Audio Input - CMRR: Greater than 60 dB typical

Audio Input - Gain Adjustment: -18 dB to +24 dB in 0.1 dB steps, adjustable per input

Audio Output - Line Number/Signal Type: 4 mono, balanced/unbalanced on (4) 3.5 mm captive screw connectors, 3-pole

Audio Output - Line Impedance: 50 ohms unbalanced, 100 ohms balanced

Audio Output - Line Gain Error: plus/minus 0.1 dB channel to channel

Audio Output - Line Maximum Level (Hi-Z): Greater than +21 dBu balanced; +15 dBu unbalanced

Audio Processing - D/A Conversion: 24-bit, 48 kHz

Audio Processing - Latency: 1 ms max, line input to line/amplified output

AT Ports - Transmission Type: Dante/AES-67, software selectable

AT Ports - Connectivity: 2 RJ-45, 2-port 1 Gbps switch to Dante interface

AT Ports - Inputs/Outputs: 8 channels Rx, 8 channels Tx

AT Ports - Audio Format: 24-bit uncompressed, 48 kHz sampling rate

AT Ports - Latency: Deterministic, based on user selection: 1.0 ms (default), 2.0 ms, 5.0 ms

Speaker Output - Number/Signal Type: 8 channels, 8 ohms, 4 ohms, 70 V, or 100 V

Speaker Output - Connectors: (8) 2-pole 5 mm screw lock captive screw connectors; accept 22 AWG to 12 AWG wire

Speaker Output - Load Impedance: 8-ohm mode 8 ohms minimum; 4-ohm mode 4 ohms minimum; 70 V mode 12.5 ohms minimum for 400 W; 100 V mode 25 ohms minimum for 400 W

Amplifier Type: Class D

Output Power: 200 W per channel (all channels driven) into 4 ohm / 8 ohm / 70 V / 100 V, 1 kHz, 0.2% THD; 400 W per channel (one channel driven per pair) into 4 ohm / 8 ohm / 70 V / 100 V, 1 kHz, 0.2% THD

High Pass Filter (70 V or 100 V modes): 80 Hz, 12 dB per octave rolloff, switch selectable

Control - Control Port: (1) 3.5 mm captive screw, 5-pole

Control - RS-232 Host Control: 1 bidirectional RS-232 at 38400 baud, 8 data bits, 1 stop bit, no parity; pin 1 = Tx, pin 2 = Rx, pin 3 = GND

Control - Standby: Standby power control by contact closure; pin 4 = GND, pin 5 = STANDBY

Control - USB Port: 1 front panel female USB C, Ethernet over USB

Control - Digital I/O: (2) 3.5 mm captive screw, 3 pole; pin 1 = In, 2 = G, 3 = Out; input 0 V to +12 V, output 0 V (low) / 5 V (high), software programmable

Control - Ethernet Host Port: 2 RJ-45 female connectors, 10/100/1000 Base-T

Control - Protocols: ARP, ICMP, IEEE 802.1X, IP, TCP, DHCP, HTTPS, Telnet, SSH, SFTP

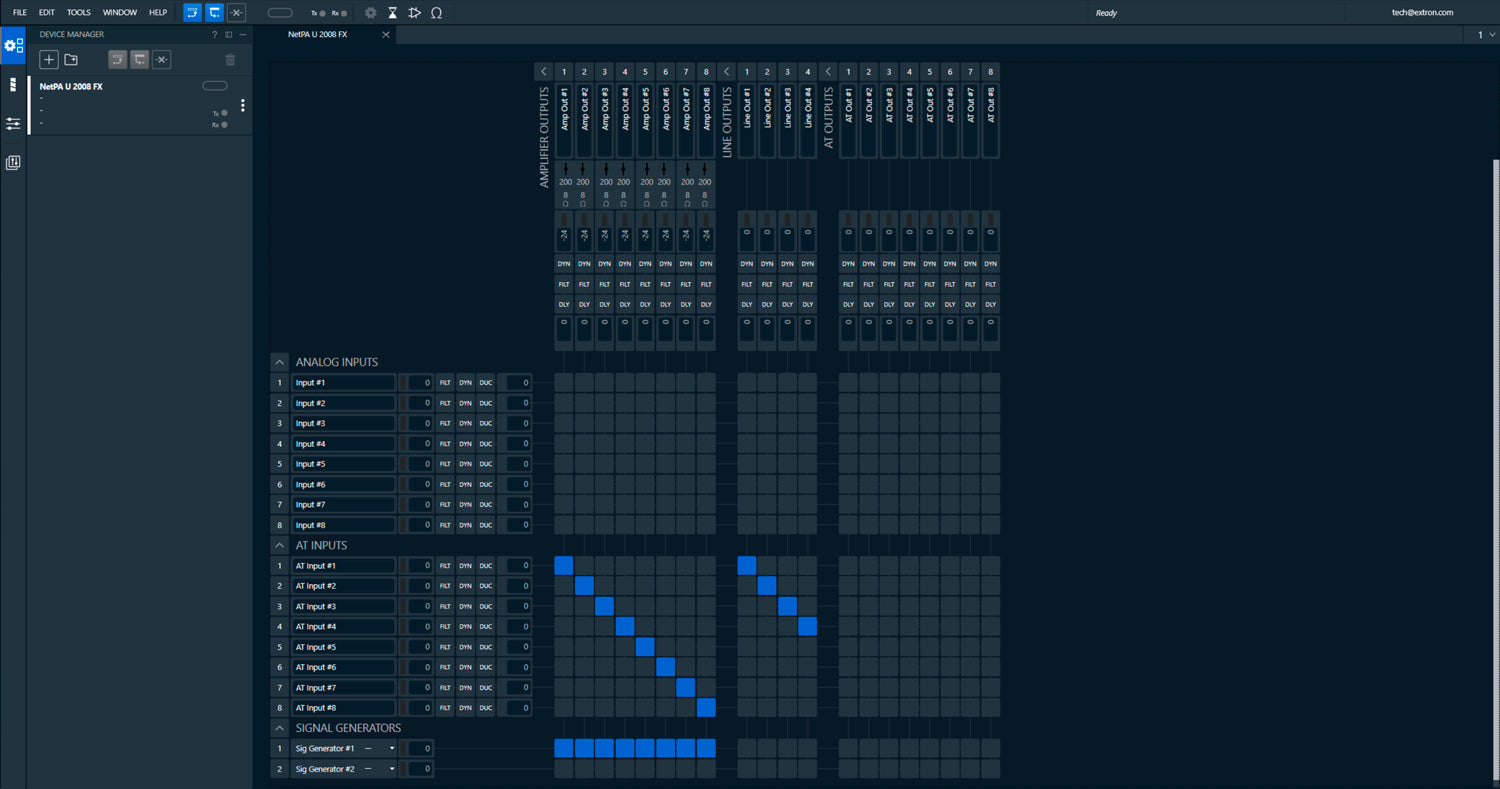

Control - Program Control: Extron DSP Configurator Pro control/configuration program for Windows; Extron Simple Instruction Set (SIS); internal web page

General - Power: 100 VAC to 240 VAC, 50-60 Hz, internal

General - Auxiliary Power Input (DSP and controller only): Power over Ethernet (PoE IEEE 802.3af). PoE consumption 0.5 W with AC power present; 10.0 W max with no AC power present.

General - Power Consumption and Thermal Dissipation at 115 VAC, 60 Hz: Active (1/8 power, all channels driven) 8 ohm: 2.9 A, 312.5 W consumed, 112.5 W dissipated, 384 BTU/hr. 4 ohm: 3.3 A, 351.3 W, 151.3 W, 516 BTU/hr. 70 V: 2.7 A, 291.8 W, 91.8 W, 313 BTU/hr. 100 V: 2.6 A, 281.5 W, 81.5 W, 278 BTU/hr. Quiescent (idle): 0.6 A, 59.0 W, 59.0 W, 201 BTU/hr. Standby: 0.3 A, 10.9 W, 10.9 W, 37 BTU/hr.

General - Power Consumption and Thermal Dissipation at 230 VAC, 50 Hz: Active (1/8 power, all channels driven) 8 ohm: 1.4 A, 301.0 W consumed, 101.0 W dissipated, 345 BTU/hr. 4 ohm: 1.6 A, 341.5 W, 141.5 W, 483 BTU/hr. 70 V: 1.4 A, 282.9 W, 82.9 W, 283 BTU/hr. 100 V: 1.4 A, 272.2 W, 72.2 W, 246 BTU/hr. Quiescent (idle): 0.6 A, 56.1 W, 56.4 W, 191 BTU/hr. Standby: 0.3 A, 10.4 W, 10.4 W, 36 BTU/hr.

General - Ambient Temperature/Humidity: Storage: -40 to +158 F (-40 to +70 C) / 10% to 90%, non-condensing. Operating: +32 to +122 F (0 to +50 C) / 10% to 90%, non-condensing

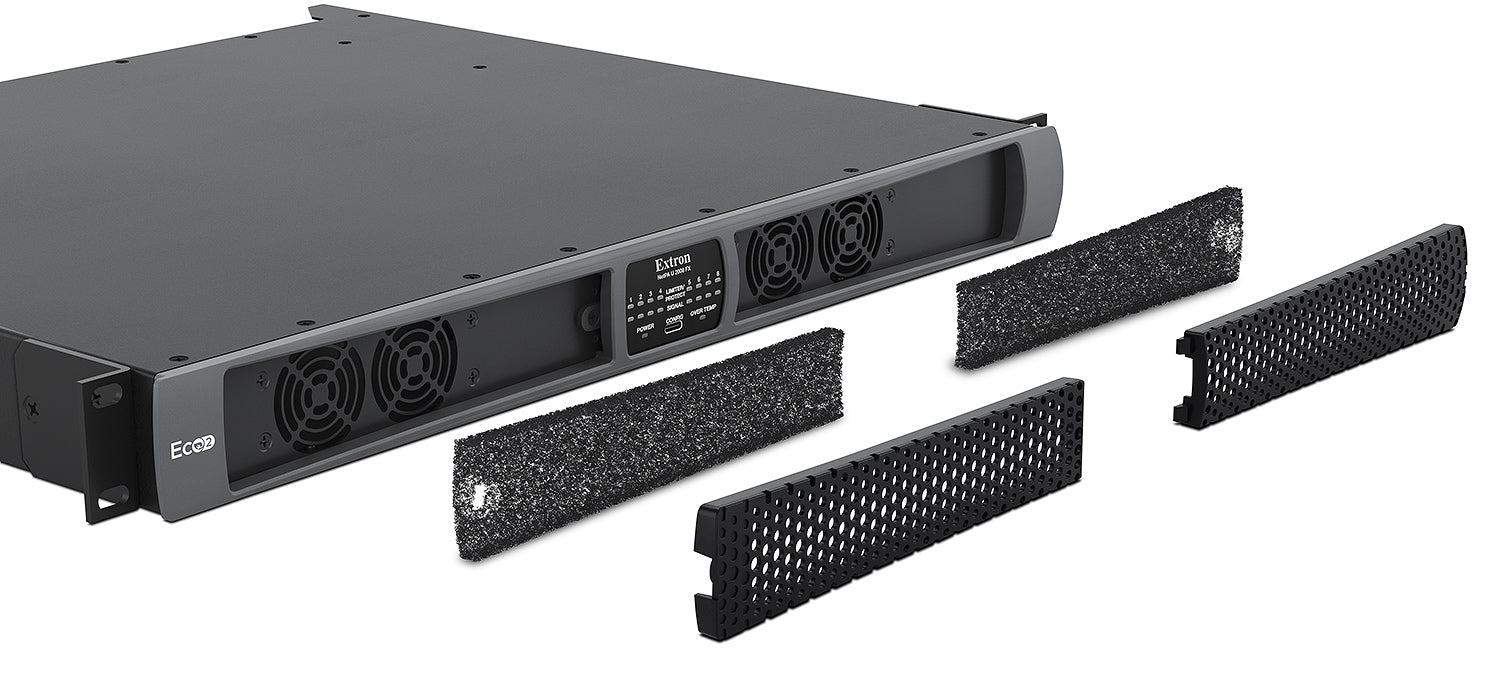

General - Cooling: Fan, front-to-rear, variable speed

General - Protection: Clip limiting, thermal, short circuit, DC output

General - Indication: Limiter/Protect LED indicates the onset of clip limiting, thermal cycling, a short circuit and/or digital clip. Over Temp LED indicates when the amplifier exceeds the recommended operating temperature. Power LED indicates DC output protection.

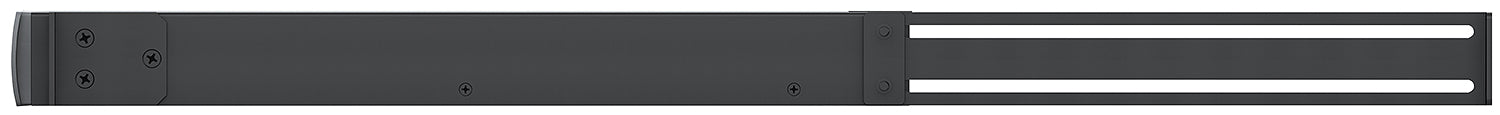

General - Mounting: Rack mount yes, with included mounting brackets. Rear rack ear mounting depth 15.48 in to 26.13 in (393 mm to 664 mm) front rack rails to rear rack rails.

General - Enclosure: Metal, 1.74 in H x 17.31 in W x 16.5 in D (1U high, full rack wide) (44 mm H x 440 mm W x 419 mm D). Width excludes faceplate and rack ears; depth excludes rear rack ears.

General - Product Weight: 14.5 lbs (6.6 kg)

Regulatory Compliance: CE, CISPR 32, C-Tick, c-UL, FCC, ICES, RoHS, UL, VCCI, Ecofficient Level 2

Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

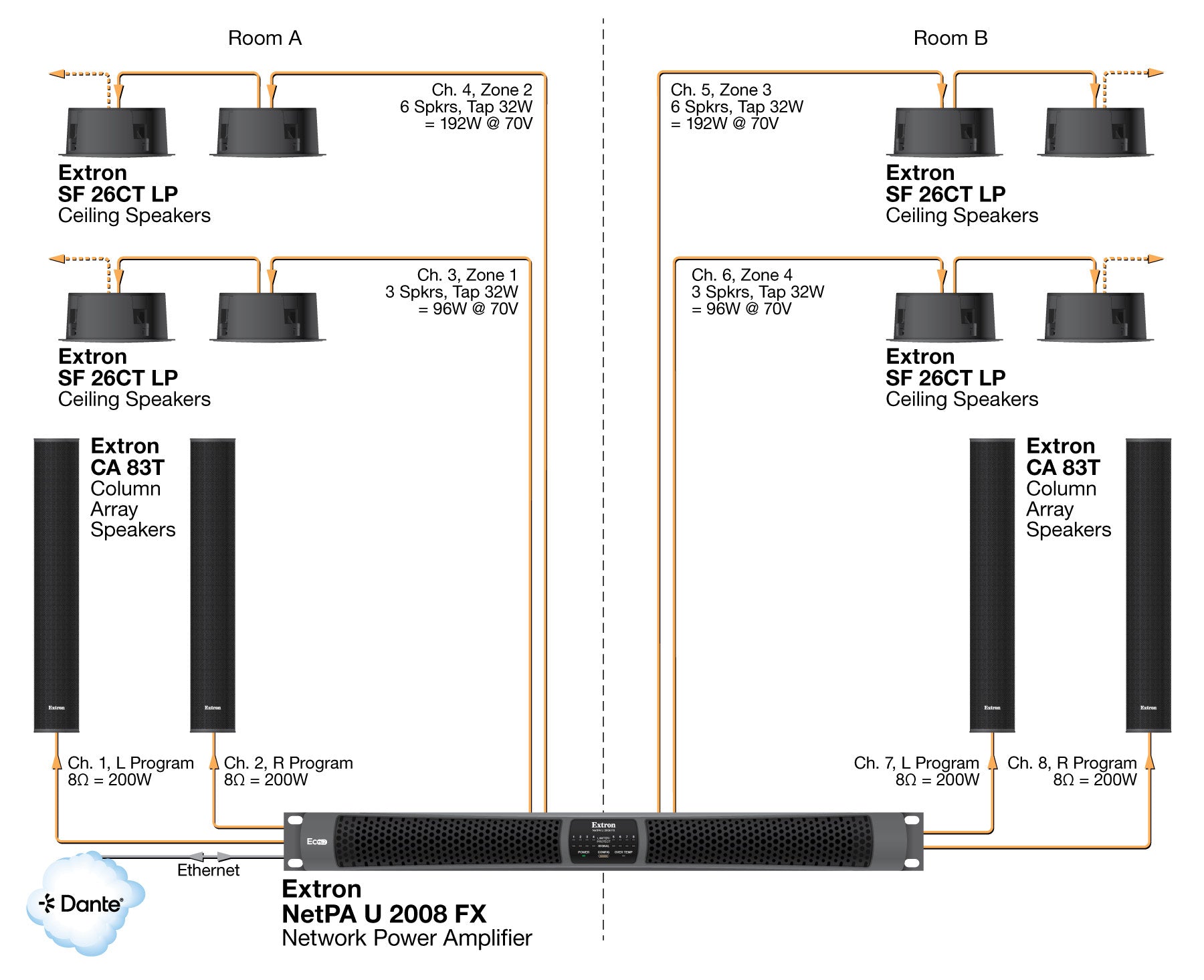

Diagram

Resources

Brochure | NetPA U 2008 FX 60-2027-01 | NetPA Ultra FX Series

Manual | NetPA U 2008 FX 60-2027-01 | Extron Dante FAQ

Manual | NetPA U 2008 FX 60-2027-01 | NetPA Ultra 2004 and 2008 FX Setup Guide

Manual | NetPA U 2008 FX 60-2027-01 | NetPA Ultra 2004 and 2008 FX User Guide

Specifications | NetPA U 2008 FX 60-2027-01 | NetPA U 2004 FX and NetPA U 2008 FX

Specifications | NetPA U 2008 FX 60-2027-01 | NetPA U 2008 FX

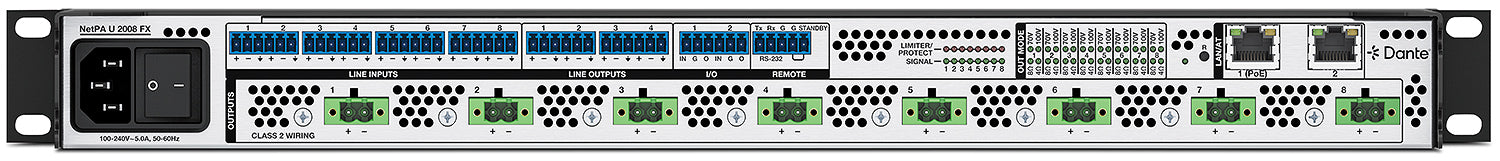

Panel Drawing | NetPA U 2008 FX 60-2027-01 | NetPA U 2008 FX
