Details

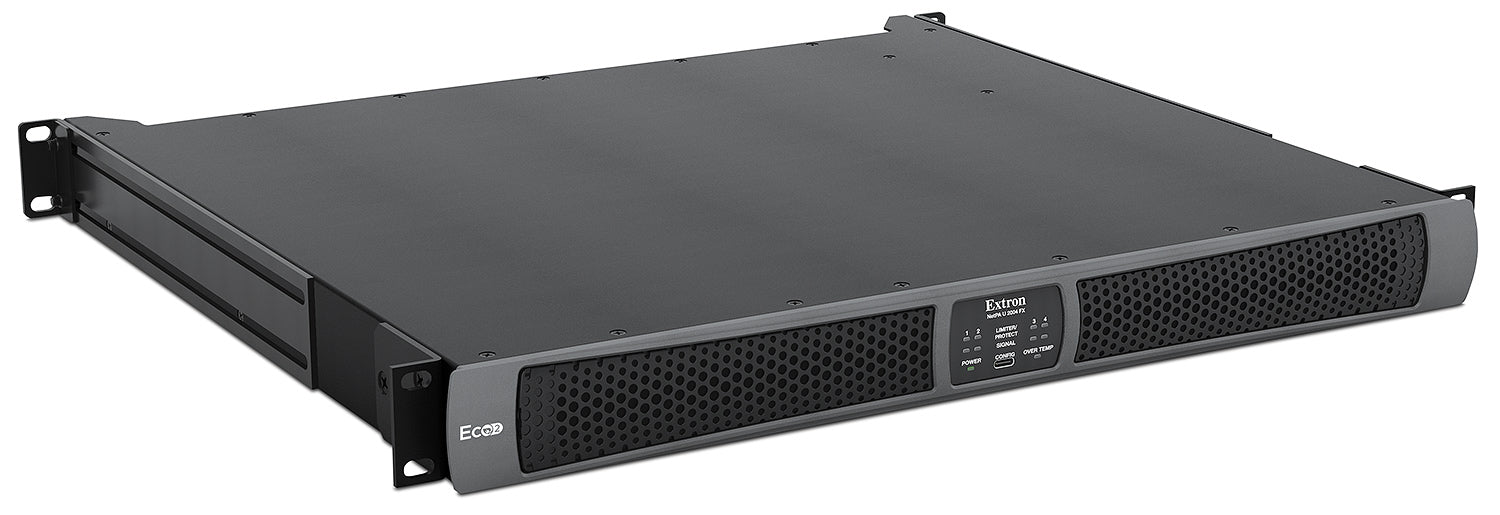

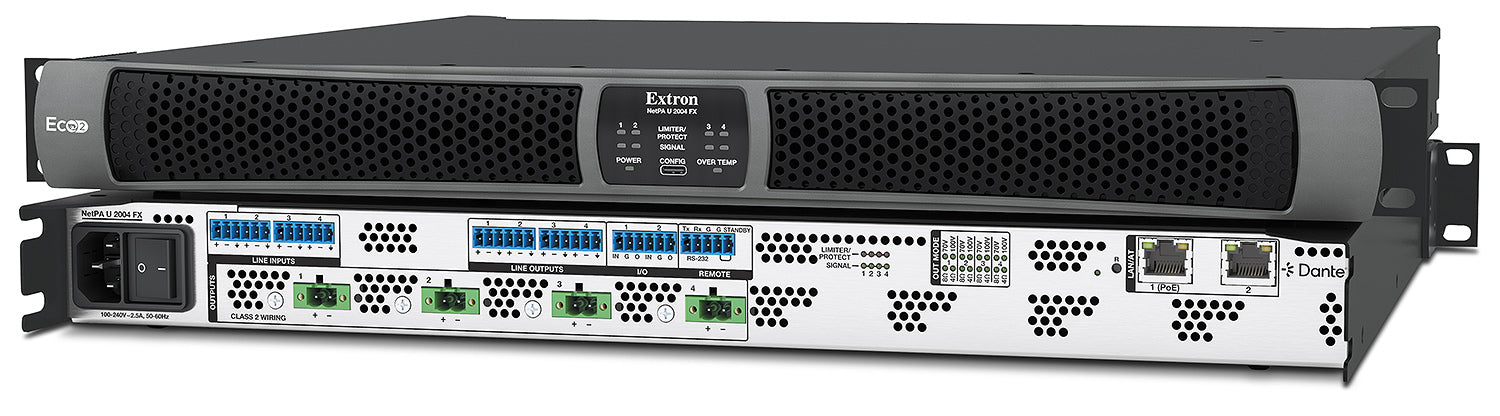

Extron NetPA U 2004 FX (part number 60-2028-01) — a four-channel, 200 watt Class D amplifier with onboard DSP and Dante/AES67 networking in a single rack unit.

Each of the four outputs is set independently for 8 ohm, 4 ohm, 70 V or 100 V operation, so one chassis can serve a low-impedance boardroom pair and a constant-voltage overflow zone at the same time. Power is shared across adjacent channel pairs: drive one channel of a pair on its own and it delivers 400 watts. Audio arrives either as eight channels of Dante over the two-port Gigabit switch or on four balanced analog line inputs, and passes through DSP with 0.1 dB gain steps and 1 ms of processing latency.

Key Capabilities

200 W per channel with all four driven, into 4 ohm, 8 ohm, 70 V or 100 V at 0.2% THD
400 W available when one channel of an adjacent pair is driven alone
Per-channel output mode selection covers low-impedance and constant-voltage zones
Dante/AES67 on a 2-port 1 Gbps switch: 8 channels Rx, 8 channels Tx, 24-bit at 48 kHz
Four balanced/unbalanced line inputs with -18 to +24 dB gain in 0.1 dB steps
Switch-selectable 80 Hz high-pass filter, 12 dB per octave, for 70 V and 100 V modes

Where It Is Used

Multi-zone commercial audio built on a Dante backbone: conference centres and divisible ballrooms, higher-education lecture blocks, houses of worship, transport terminals and stadium concourses. The variable-speed front-to-rear fan means the unit racks with no empty slot above or below, which matters in dense amplifier rooms.

Specifications at a Glance

Frequency response 20 Hz to 20 kHz, plus/minus 1 dB through the amplifier
Crosstalk below -90 dB at 1 kHz fully loaded; line in to line out S/N of 100 dB
Minimum loads: 8 ohm mode 8 ohms, 4 ohm mode 4 ohms, 70 V mode 12.5 ohms, 100 V mode 25 ohms
Enclosure 1.74 in H x 17.31 in W x 16.5 in D (1U, full rack), 15.0 lbs
3 years parts and labor, with a 7 year Everlast power supply warranty

Also referenced as Extron NetPAU2004FX, NetPA-U-2004-FX, part number 60202801.

Specifications

Part Number: 60-2028-01

Manufacturer: Extron

Model: NetPA U 2004 FX

Condition: New

Audio - Frequency Response Through DSP: 20 Hz to 20 kHz, plus/minus 0.5 dB

Audio - Frequency Response Through Amplifier: 20 Hz to 20 kHz, plus/minus 1 dB

Audio - THD + Noise Through DSP: Less than 0.01% @ 1 kHz at maximum output level

Audio - THD + Noise Through Amplifier: 0.2% @ 1 kHz at 3 dB below clipping

Audio - Signal to Noise: Line in to line out 100 dB; line in to speaker out 100 dB; line in to digital out 105 dB; digital in to line out 100 dB; digital in to speaker out 100 dB. All 20 Hz to 20 kHz at maximum output (unweighted).

Audio - Crosstalk: Less than -90 dB @ 1 kHz, fully loaded

Audio - Volume Control: -100 dB to 0 dB (control 0 to 100 in 0.1 dB steps)

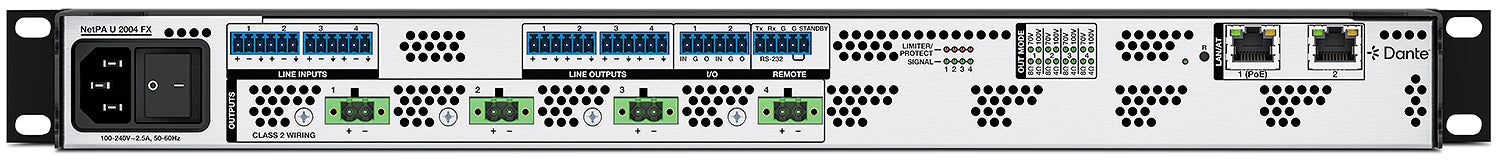

Audio Input - Number/Signal Type: 4 mono, balanced/unbalanced

Audio Input - Connectors: (4) 3.5 mm captive screw connectors, 3-pole, mono, balanced/unbalanced

Audio Input - Impedance: Greater than 10k ohms unbalanced/balanced

Audio Input - Nominal Level: +4 dBu, -10 dBV adjustable via input gain

Audio Input - Sensitivity: Line input +21 dBu; AT input 0 dBFS. All gains/attenuators in signal path set to 0 dB.

Audio Input - Maximum Level: +21 dBu at rated THD+N when input gain is set to 0 dB

Audio Input - CMRR: Greater than 60 dB typical

Audio Input - Gain Adjustment: -18 dB to +24 dB in 0.1 dB steps, adjustable per input

Audio Output - Line Number/Signal Type: 4 mono, balanced/unbalanced on (4) 3.5 mm captive screw connectors, 3-pole

Audio Output - Line Impedance: 50 ohms unbalanced, 100 ohms balanced

Audio Output - Line Gain Error: plus/minus 0.1 dB channel to channel

Audio Output - Line Maximum Level (Hi-Z): Greater than +21 dBu balanced; +15 dBu unbalanced

Audio Processing - D/A Conversion: 24-bit, 48 kHz

Audio Processing - Latency: 1 ms max, line input to line/amplified output

AT Ports - Transmission Type: Dante/AES-67, software selectable

AT Ports - Connectivity: 2 RJ-45, 2-port 1 Gbps switch to Dante interface

AT Ports - Inputs/Outputs: 8 channels Rx, 8 channels Tx

AT Ports - Audio Format: 24-bit uncompressed, 48 kHz sampling rate

AT Ports - Latency: Deterministic, based on user selection: 1.0 ms (default), 2.0 ms, 5.0 ms

Speaker Output - Number/Signal Type: 4 channels, 8 ohms, 4 ohms, 70 V, or 100 V

Speaker Output - Connectors: (4) 2-pole 5 mm screw lock captive screw connectors; accept 22 AWG to 12 AWG wire

Speaker Output - Load Impedance: 8-ohm mode 8 ohms minimum; 4-ohm mode 4 ohms minimum; 70 V mode 12.5 ohms minimum for 400 W; 100 V mode 25 ohms minimum for 400 W

Amplifier Type: Class D

Output Power: 200 W per channel (all channels driven) into 4 ohm / 8 ohm / 70 V / 100 V, 1 kHz, 0.2% THD; 400 W per channel (one channel driven per pair) into 4 ohm / 8 ohm / 70 V / 100 V, 1 kHz, 0.2% THD

High Pass Filter (70 V or 100 V modes): 80 Hz, 12 dB per octave rolloff, switch selectable

Control - Control Port: (1) 3.5 mm captive screw, 5-pole

Control - RS-232 Host Control: 1 bidirectional RS-232 at 38400 baud, 8 data bits, 1 stop bit, no parity; pin 1 = Tx, pin 2 = Rx, pin 3 = GND

Control - Standby: Standby power control by contact closure; pin 4 = GND, pin 5 = STANDBY

Control - USB Port: 1 front panel female USB C, Ethernet over USB

Control - Digital I/O: (2) 3.5 mm captive screw, 3 pole; pin 1 = In, 2 = G, 3 = Out; input 0 V to +12 V, output 0 V (low) / 5 V (high), software programmable

Control - Ethernet Host Port: 2 RJ-45 female connectors, 10/100/1000 Base-T

Control - Protocols: ARP, ICMP, IEEE 802.1X, IP, TCP, DHCP, HTTPS, Telnet, SSH, SFTP

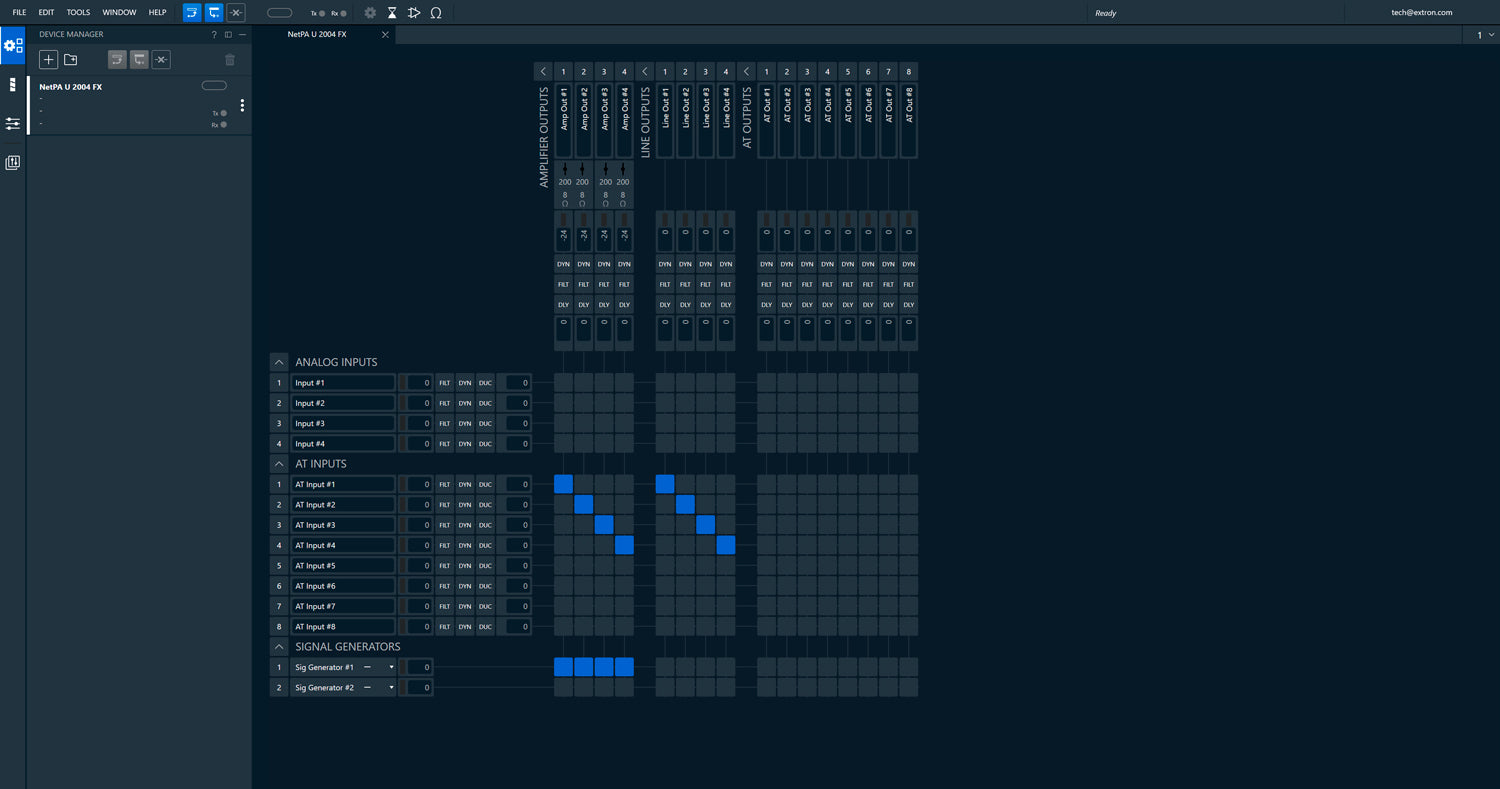

Control - Program Control: Extron DSP Configurator Pro control/configuration program for Windows; Extron Simple Instruction Set (SIS); internal web page

General - Power: 100 VAC to 240 VAC, 50-60 Hz, internal

General - Auxiliary Power Input (DSP and controller only): Power over Ethernet (PoE IEEE 802.3af). PoE consumption 0.5 W with AC power present; 8.8 W max with no AC power present.

General - Power Consumption and Thermal Dissipation at 115 VAC, 60 Hz: Active (1/8 power, all channels driven) 8 ohm: 1.5 A, 161.7 W consumed, 61.7 W dissipated, 211 BTU/hr. 4 ohm: 1.7 A, 182.0 W, 82.0 W, 280 BTU/hr. 70 V: 1.4 A, 153.0 W, 53.0 W, 181 BTU/hr. 100 V: 1.3 A, 147.1 W, 47.1 W, 161 BTU/hr. Quiescent (idle): 0.4 A, 36.5 W, 36.5 W, 125 BTU/hr. Standby: 0.2 A, 9.8 W, 9.8 W, 33 BTU/hr.

General - Power Consumption and Thermal Dissipation at 230 VAC, 50 Hz: Active (1/8 power, all channels driven) 8 ohm: 0.8 A, 157.3 W consumed, 57.3 W dissipated, 196 BTU/hr. 4 ohm: 0.9 A, 176.8 W, 76.8 W, 262 BTU/hr. 70 V: 0.8 A, 150.1 W, 50.1 W, 171 BTU/hr. 100 V: 0.7 A, 143.5 W, 43.5 W, 148 BTU/hr. Quiescent (idle): 0.4 A, 34.7 W, 34.7 W, 118 BTU/hr. Standby: 0.2 A, 9.0 W, 9.0 W, 31 BTU/hr.

General - Ambient Temperature/Humidity: Storage: -40 to +158 F (-40 to +70 C) / 10% to 90%, non-condensing. Operating: +32 to +122 F (0 to +50 C) / 10% to 90%, non-condensing

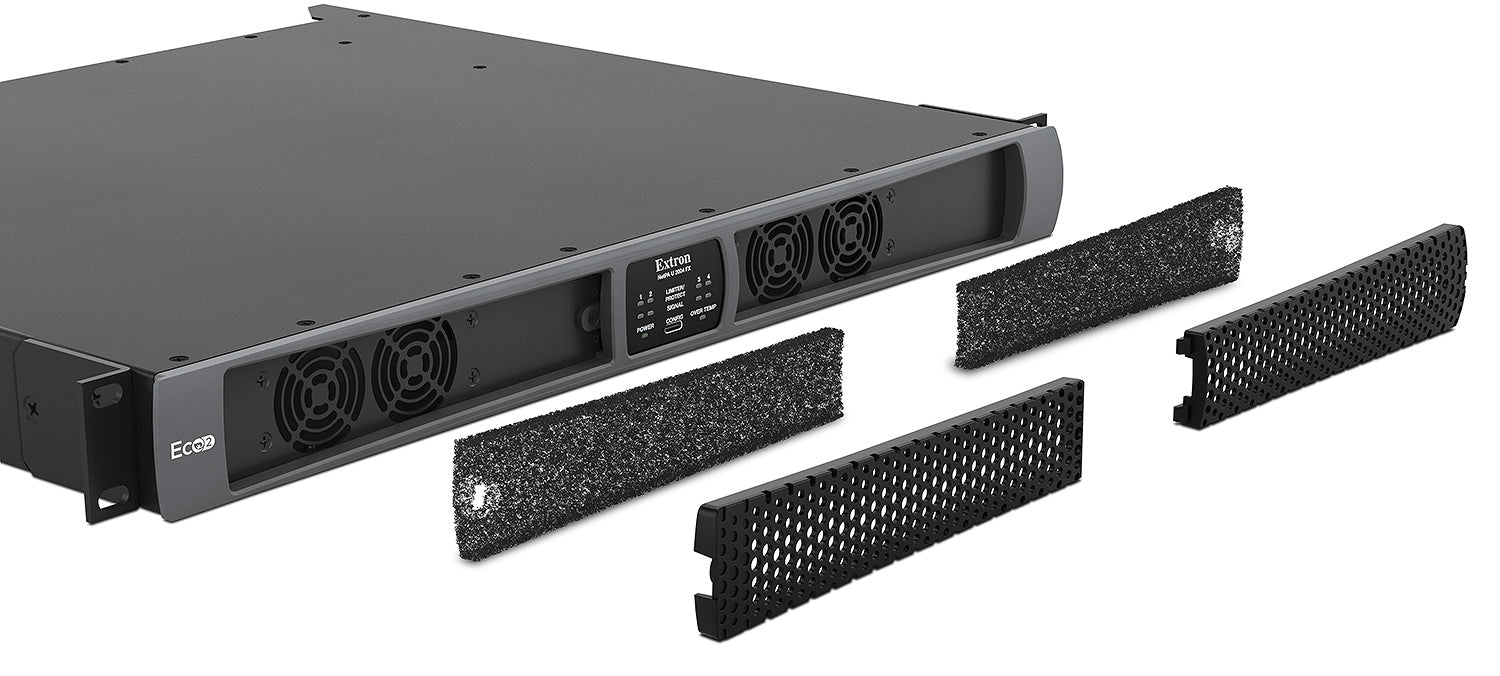

General - Cooling: Fan, front-to-rear, variable speed

General - Protection: Clip limiting, thermal, short circuit, DC output

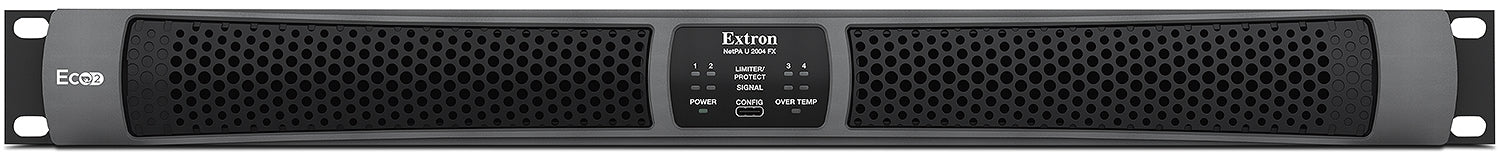

General - Indication: Limiter/Protect LED indicates the onset of clip limiting, thermal cycling, a short circuit and/or digital clip. Over Temp LED indicates when the amplifier exceeds the recommended operating temperature. Power LED indicates DC output protection.

General - Mounting: Rack mount yes, with included mounting brackets. Rear rack ear mounting depth 15.48 in to 26.13 in (393 mm to 664 mm) front rack rails to rear rack rails.

General - Enclosure: Metal, 1.74 in H x 17.31 in W x 16.5 in D (1U high, full rack wide) (44 mm H x 440 mm W x 419 mm D). Width excludes faceplate and rack ears; depth excludes rear rack ears.

General - Product Weight: 15.0 lbs (6.8 kg)

Regulatory Compliance: CE, CISPR 32, C-Tick, c-UL, FCC, ICES, RoHS, UL, VCCI, Ecofficient Level 2

Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

Diagram

Resources

Brochure | NetPA U 2004 FX 60-2028-01 | NetPA Ultra FX Series

Manual | NetPA U 2004 FX 60-2028-01 | Extron Dante FAQ

Manual | NetPA U 2004 FX 60-2028-01 | NetPA Ultra 2004 and 2008 FX Setup Guide

Manual | NetPA U 2004 FX 60-2028-01 | NetPA Ultra 2004 and 2008 FX User Guide

Specifications | NetPA U 2004 FX 60-2028-01 | NetPA U 2004 FX

Specifications | NetPA U 2004 FX 60-2028-01 | NetPA U 2004 FX and NetPA U 2008 FX

Panel Drawing | NetPA U 2004 FX 60-2028-01 | NetPA U 2004 FX
