Details

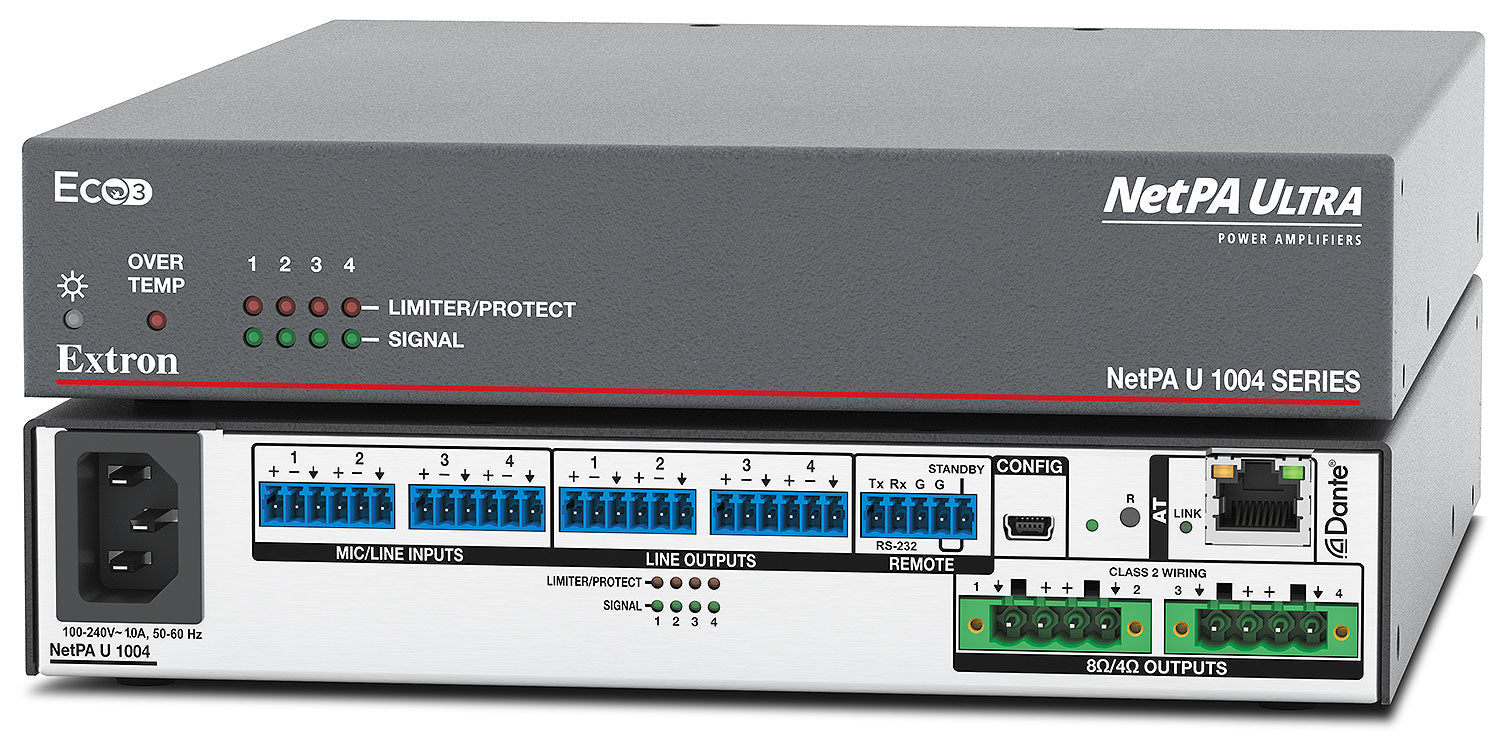

Extron NetPA U 1004 (part number 60-1766-01) - a four-channel, network-native power amplifier for 4 or 8 ohm loudspeaker loads.

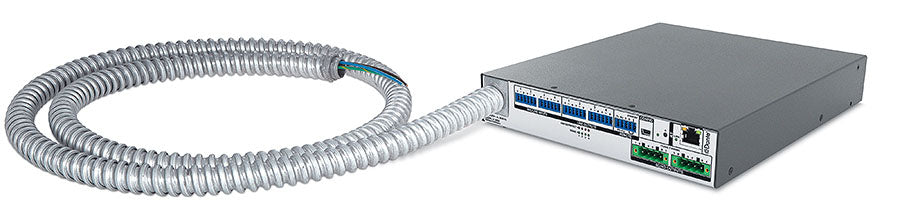

This half-rack, 1U plenum-rated chassis draws its program audio directly from a Dante or AES-67 network and delivers 100 watts per channel into 4 or 8 ohm speakers, letting integrators run four zones of direct-drive audio from a single compact enclosure without a separate matrix mixer. Per-channel gain trim, balanced line inputs and outputs, and Class D efficiency keep the unit cool with convection-only cooling and no vents.

Key Capabilities

100 W per channel into 4 or 8 ohm loudspeaker loads across 4 independent channels
Dante/AES-67 network audio input with 4 Rx / 4 Tx flows, unicast or multicast
24-bit audio up to 96 kHz sampling with selectable 1.0/2.0/5.0 ms latency
Half-rack, 1U, plenum-rated metal enclosure at 3.8 lbs
RS-232, USB, and 10/100 Ethernet control via Extron SIS
Clip-limiter, thermal, short-circuit, and DC-output protection built in

Where It Is Used

The direct 4/8 ohm output suits multi-zone program audio where speakers are wired directly rather than through 70V or 100V constant-voltage lines - classrooms, huddle rooms, and small auditoriums running four independent zones off one Dante-networked amplifier.

Specifications at a Glance

Output: 4 x 100 W @ 4 or 8 ohms, 1 kHz, less than 0.1% THD
Network audio: Dante/AES-67, 1-port 100 Mbps RJ-45
Enclosure: 1.7" H x 8.7" W x 10.5" D, half-rack 1U, metal, plenum rated
Warranty: 3 years parts and labor; Everlast power supply 7 years

Frequently asked questions about the Extron NetPA U 1004 4-Channel 100W Dante Amplifier

Does Ampronix sell the Extron NetPA U 1004 4-Channel 100W Dante Amplifier?

Yes. Ampronix is an authorized Extron distributor and sells the Extron NetPA U 1004 4-Channel 100W Dante Amplifier (60-1766-01). Call Ampronix for a quote.

Does Ampronix offer replacement and exchange for the Extron NetPA U 1004 4-Channel 100W Dante Amplifier?

Yes. Ampronix provides sales, replacement and exchange for the Extron NetPA U 1004 4-Channel 100W Dante Amplifier. Call Ampronix for a quote.

Is the Extron NetPA U 1004 4-Channel 100W Dante Amplifier listed under other names?

Yes. The Extron NetPA U 1004 4-Channel 100W Dante Amplifier is also referenced as Extron NetPAU1004, NetPA-U-1004, part number 60176601.

What are the key features of the Extron NetPA U 1004 4-Channel 100W Dante Amplifier?

Key points: 100 W per channel into 4 or 8 ohm loudspeaker loads across 4 independent channels; Dante/AES-67 network audio input with 4 Rx / 4 Tx flows, unicast or multicast; 24-bit audio up to 96 kHz sampling with selectable 1.0/2.0/5.0 ms latency; Half-rack, 1U, plenum-rated metal enclosure at 3.8 lbs. Call Ampronix to confirm details for your application.

Also referenced as Extron NetPAU1004, NetPA-U-1004, part number 60176601.

Specifications

Part Number: 60-1766-01

Manufacturer: Extron

Model: NetPA U 1004

Condition: New

Amplifier Type: Class D

Output Power: 100 W per channel at 4 or 8 ohms, 1 kHz, <0.1% THD

Load Impedance: 4 ohms minimum

Speaker Output: 4 channels, 4 or 8 ohms; (2) 5 mm captive screw connectors, 4-pole (22-12 AWG)

Frequency Response (through DSP): 20 Hz to 20 kHz, ±0.5 dB

Frequency Response (through amplifier): 20 Hz to 20 kHz, ±1 dB

THD+N (through DSP): <0.01% @ 1 kHz at maximum output

THD+N (through amplifier): 0.1% @ 1 kHz at 3 dB below clipping

Crosstalk: <-90 dB @ 1 kHz, fully loaded

Volume Control Range: -100 dB to 0 dB in 0.1 dB steps

Audio Inputs: 4 mono mic/line, balanced/unbalanced; (2) 3.5 mm captive screw connectors, 6-pole

Input Impedance: >10k ohms unbalanced/balanced

Input Nominal Level: -60 dBV / +4 dBu / -10 dBV, adjustable via input gain

Input Gain Adjustment: -18 dB to +60 dB in 0.1 dB steps, per input

Equivalent Input Noise: <-120 dBV (1 µVrms) at 45 dB input gain

Audio Line Output: 4 mono, balanced/unbalanced; (2) 3.5 mm captive screw connectors, 6-pole

Output Impedance: 100 ohms balanced, 50 ohms unbalanced

Network Audio: Dante/AES-67, software selectable, 1 RJ-45 port at 100 Mbps

Network Audio Channels: 4 Rx / 4 Tx, unicast or multicast

Network Audio Format: 24-bit uncompressed, 44.1/48/88.2/96 kHz sampling

Network Audio Latency: 1.0 ms (default), 2.0 ms, or 5.0 ms

Control Port: (1) 3.5 mm captive screw connector, 5-pole; contact-closure standby

Serial Control: 1 RS-232 port, 38400 baud, 8 data bits, 1 stop bit, no parity

USB Control Port: 1 USB 2.0 Mini-B, high speed

Ethernet Control: 1 RJ-45, 10/100 Base-T, Extron SIS

Protection: Clip limiter, thermal, short circuit, DC output

Power Supply: Internal, 100-240 VAC, 50-60 Hz, 1.0 A

Power Consumption (Active, 8 ohms): 0.6 A / 68.3 W / 18.3 W / 62 BTU/hr at 115 VAC; 0.4 A / 67.1 W / 17.1 W / 58 BTU/hr at 230 VAC

Power Consumption (Active, 4 ohms): 0.7 A / 71.6 W / 21.6 W / 74 BTU/hr at 115 VAC; 0.4 A / 70.3 W / 20.3 W / 69 BTU/hr at 230 VAC

Power Consumption (Quiescent): 0.1 A / 10.6 W / 10.6 W / 36 BTU/hr at 115 VAC; 0.1 A / 10.4 W / 10.4 W / 35 BTU/hr at 230 VAC

Power Consumption (Standby): <0.1 A / <4 W / <4 W / <14 BTU/hr

Storage Temperature: -40° to +158°F (-40° to +70°C), 10% to 90% non-condensing

Operating Temperature: +32° to +122°F (0° to +50°C), 10% to 90% non-condensing

Cooling: Convection, no vents

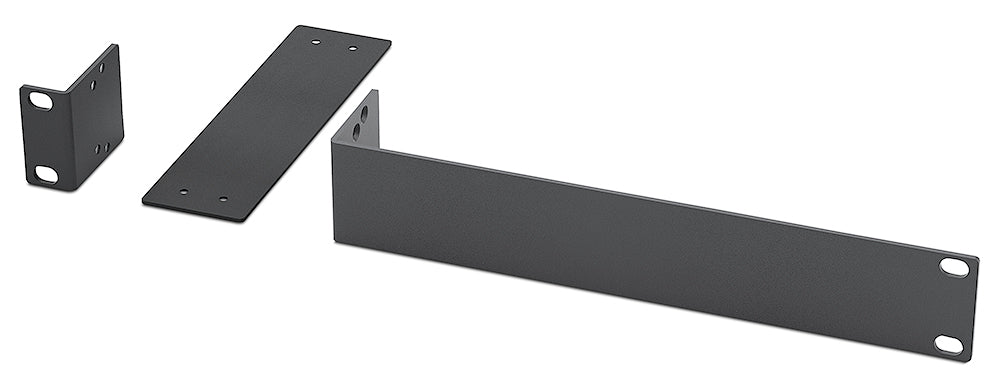

Mounting: Rack mountable with included brackets or optional 1U rack shelf

Enclosure: Metal, half-rack 1U, 1.7" H x 8.7" W x 10.5" D (43 x 221 x 267 mm)

Weight: 3.8 lbs (1.7 kg)

Regulatory Compliance: CCC, CE, C-tick, c-UL, EN55032, EN55035, FCC Class B, ICES, KC, UL, VCCI Class B; UL 62368-1 / IEC 62368-1 / BSEN 62368-1; Ecofficient Level 3, RoHS, WEEE; UL 2043 plenum rated

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

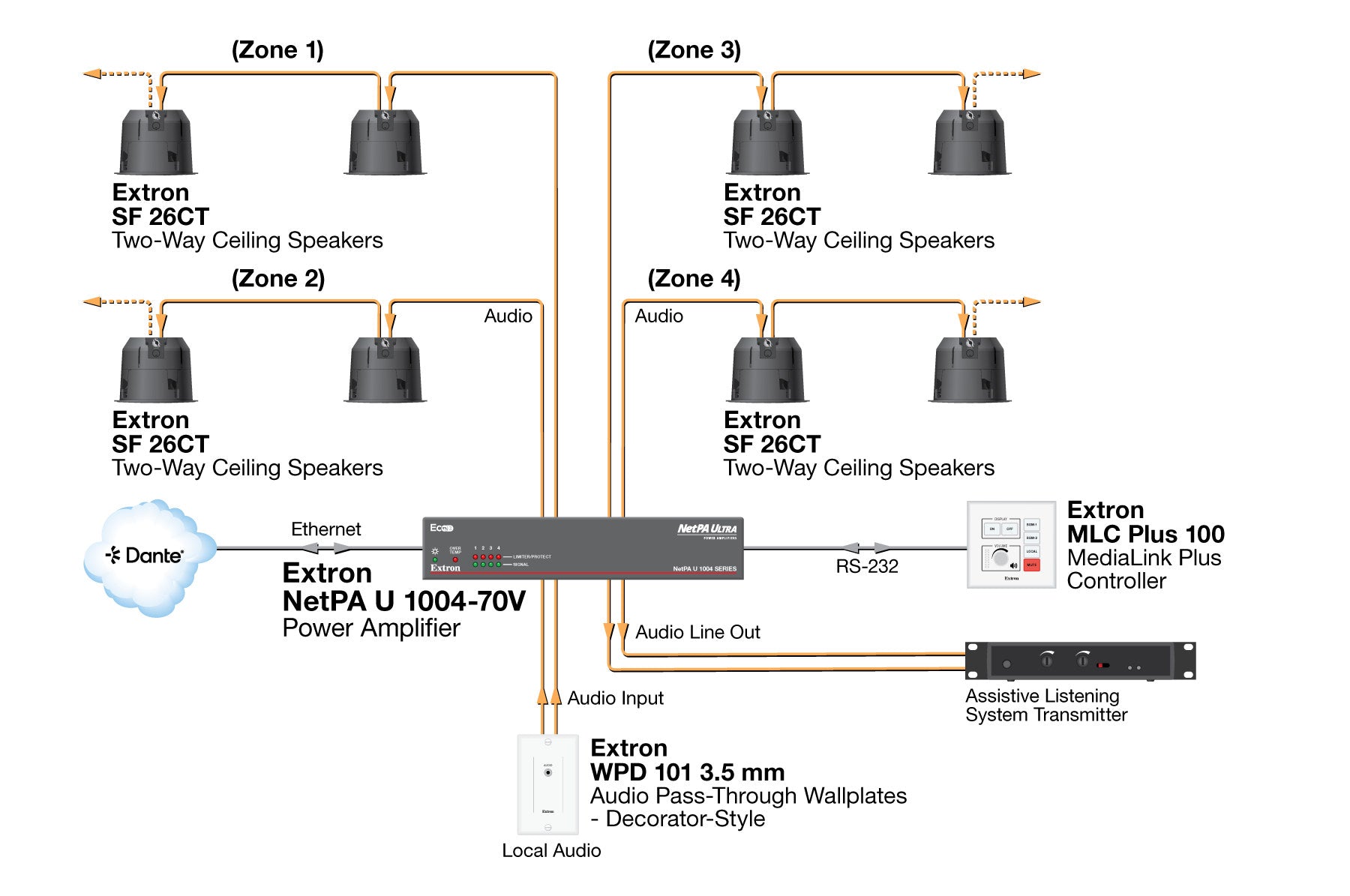

Diagram

Resources

Brochure | NetPA U 1004 60-1766-01 | Everlast Power Supplies

Brochure | NetPA U 1004 60-1766-01 | NetPA Ultra - Power Amplifiers (netPA-u-1002-1004-bro-revA1.pdf)

Brochure | NetPA U 1004 60-1766-01 | Alimentatori Everlast

Brochure | NetPA U 1004 60-1766-01 | Everlast 电源

Brochure | NetPA U 1004 60-1766-01 | Everlast-Netzteile

Brochure | NetPA U 1004 60-1766-01 | Fuentes de alimentación Everlast

Brochure | NetPA U 1004 60-1766-01 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_BR_A4_GE_RevA.pdf)

Brochure | NetPA U 1004 60-1766-01 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_BR_A4_SP_RevA.pdf)

Brochure | NetPA U 1004 60-1766-01 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_BR_A4_FR_RevA.pdf)

Brochure | NetPA U 1004 60-1766-01 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_BR_A4_RU_RevA.pdf)

Brochure | NetPA U 1004 60-1766-01 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_BR_A4_IT_RevA.pdf)

Brochure | NetPA U 1004 60-1766-01 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_Chinese.pdf)

Brochure | NetPA U 1004 60-1766-01 | Sources d'alimentation Everlast

Manual | NetPA U 1004 60-1766-01 | Cleaning Instruction Card

Manual | NetPA U 1004 60-1766-01 | NetPA U 1004, NetPA U 1002 Series User Guide

Manual | NetPA U 1004 60-1766-01 | NetPA U 1004_1002 Setup Guide

Manual | NetPA U 1004 60-1766-01 | NetPA Ultra

Specifications | NetPA U 1004 60-1766-01 | NetPA Ultra Series 1004, 1004-70V, 1004-100V

Panel Drawing | NetPA U 1004 60-1766-01 | NetPA U 1004

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron NetPA U 1004 4-Channel 100W Dante Amplifier 60-1766-01

Name: Extron NetPA U 1004 4-Channel 100W Dante Amplifier 60-1766-01
Brand: Extron
SKU: EXTRON-NETPAU1004-60176601
Availability: InStock

Manufacturer: Extron

Type: Power Amplifiers

Extron NetPA U 1004 Dante Power Amplifier

• Extron NetPA U 1004 4-channel Dante amplifier
• 100 W per channel into 4 or 8 ohms, 4 zones
• Dante/AES-67 with 4 Rx / 4 Tx flows
• Sales, replacement and exchange
• Part# 60-1766-01 / 60176601

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-NETPAU1004-60176601

Details

Extron NetPA U 1004 (part number 60-1766-01) - a four-channel, network-native power amplifier for 4 or 8 ohm loudspeaker loads.

Key Capabilities

100 W per channel into 4 or 8 ohm loudspeaker loads across 4 independent channels
Dante/AES-67 network audio input with 4 Rx / 4 Tx flows, unicast or multicast
24-bit audio up to 96 kHz sampling with selectable 1.0/2.0/5.0 ms latency
Half-rack, 1U, plenum-rated metal enclosure at 3.8 lbs
RS-232, USB, and 10/100 Ethernet control via Extron SIS
Clip-limiter, thermal, short-circuit, and DC-output protection built in

Where It Is Used

Specifications at a Glance

Output: 4 x 100 W @ 4 or 8 ohms, 1 kHz, less than 0.1% THD
Network audio: Dante/AES-67, 1-port 100 Mbps RJ-45
Enclosure: 1.7" H x 8.7" W x 10.5" D, half-rack 1U, metal, plenum rated
Warranty: 3 years parts and labor; Everlast power supply 7 years

Frequently asked questions about the Extron NetPA U 1004 4-Channel 100W Dante Amplifier

Does Ampronix sell the Extron NetPA U 1004 4-Channel 100W Dante Amplifier?

Yes. Ampronix is an authorized Extron distributor and sells the Extron NetPA U 1004 4-Channel 100W Dante Amplifier (60-1766-01). Call Ampronix for a quote.

Does Ampronix offer replacement and exchange for the Extron NetPA U 1004 4-Channel 100W Dante Amplifier?

Yes. Ampronix provides sales, replacement and exchange for the Extron NetPA U 1004 4-Channel 100W Dante Amplifier. Call Ampronix for a quote.

Is the Extron NetPA U 1004 4-Channel 100W Dante Amplifier listed under other names?

Yes. The Extron NetPA U 1004 4-Channel 100W Dante Amplifier is also referenced as Extron NetPAU1004, NetPA-U-1004, part number 60176601.

What are the key features of the Extron NetPA U 1004 4-Channel 100W Dante Amplifier?

Also referenced as Extron NetPAU1004, NetPA-U-1004, part number 60176601.

Specifications

Part Number: 60-1766-01

Manufacturer: Extron

Model: NetPA U 1004

Condition: New

Amplifier Type: Class D

Output Power: 100 W per channel at 4 or 8 ohms, 1 kHz, <0.1% THD

Load Impedance: 4 ohms minimum

Speaker Output: 4 channels, 4 or 8 ohms; (2) 5 mm captive screw connectors, 4-pole (22-12 AWG)

Frequency Response (through DSP): 20 Hz to 20 kHz, ±0.5 dB

Frequency Response (through amplifier): 20 Hz to 20 kHz, ±1 dB

THD+N (through DSP): <0.01% @ 1 kHz at maximum output

THD+N (through amplifier): 0.1% @ 1 kHz at 3 dB below clipping

Crosstalk: <-90 dB @ 1 kHz, fully loaded

Volume Control Range: -100 dB to 0 dB in 0.1 dB steps

Audio Inputs: 4 mono mic/line, balanced/unbalanced; (2) 3.5 mm captive screw connectors, 6-pole

Input Impedance: >10k ohms unbalanced/balanced

Input Nominal Level: -60 dBV / +4 dBu / -10 dBV, adjustable via input gain

Input Gain Adjustment: -18 dB to +60 dB in 0.1 dB steps, per input

Equivalent Input Noise: <-120 dBV (1 µVrms) at 45 dB input gain

Audio Line Output: 4 mono, balanced/unbalanced; (2) 3.5 mm captive screw connectors, 6-pole

Output Impedance: 100 ohms balanced, 50 ohms unbalanced

Network Audio: Dante/AES-67, software selectable, 1 RJ-45 port at 100 Mbps

Network Audio Channels: 4 Rx / 4 Tx, unicast or multicast

Network Audio Format: 24-bit uncompressed, 44.1/48/88.2/96 kHz sampling

Network Audio Latency: 1.0 ms (default), 2.0 ms, or 5.0 ms

Control Port: (1) 3.5 mm captive screw connector, 5-pole; contact-closure standby

Serial Control: 1 RS-232 port, 38400 baud, 8 data bits, 1 stop bit, no parity

USB Control Port: 1 USB 2.0 Mini-B, high speed

Ethernet Control: 1 RJ-45, 10/100 Base-T, Extron SIS

Protection: Clip limiter, thermal, short circuit, DC output

Power Supply: Internal, 100-240 VAC, 50-60 Hz, 1.0 A

Power Consumption (Active, 8 ohms): 0.6 A / 68.3 W / 18.3 W / 62 BTU/hr at 115 VAC; 0.4 A / 67.1 W / 17.1 W / 58 BTU/hr at 230 VAC

Power Consumption (Active, 4 ohms): 0.7 A / 71.6 W / 21.6 W / 74 BTU/hr at 115 VAC; 0.4 A / 70.3 W / 20.3 W / 69 BTU/hr at 230 VAC

Power Consumption (Quiescent): 0.1 A / 10.6 W / 10.6 W / 36 BTU/hr at 115 VAC; 0.1 A / 10.4 W / 10.4 W / 35 BTU/hr at 230 VAC

Power Consumption (Standby): <0.1 A / <4 W / <4 W / <14 BTU/hr

Storage Temperature: -40° to +158°F (-40° to +70°C), 10% to 90% non-condensing

Operating Temperature: +32° to +122°F (0° to +50°C), 10% to 90% non-condensing

Cooling: Convection, no vents

Mounting: Rack mountable with included brackets or optional 1U rack shelf

Enclosure: Metal, half-rack 1U, 1.7" H x 8.7" W x 10.5" D (43 x 221 x 267 mm)

Weight: 3.8 lbs (1.7 kg)

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

Diagram

Resources

Brochure | NetPA U 1004 60-1766-01 | Everlast Power Supplies

Brochure | NetPA U 1004 60-1766-01 | NetPA Ultra - Power Amplifiers (netPA-u-1002-1004-bro-revA1.pdf)

Brochure | NetPA U 1004 60-1766-01 | Alimentatori Everlast

Brochure | NetPA U 1004 60-1766-01 | Everlast 电源

Brochure | NetPA U 1004 60-1766-01 | Everlast-Netzteile

Brochure | NetPA U 1004 60-1766-01 | Fuentes de alimentación Everlast

Brochure | NetPA U 1004 60-1766-01 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_BR_A4_GE_RevA.pdf)

Brochure | NetPA U 1004 60-1766-01 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_BR_A4_SP_RevA.pdf)

Brochure | NetPA U 1004 60-1766-01 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_BR_A4_FR_RevA.pdf)

Brochure | NetPA U 1004 60-1766-01 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_BR_A4_RU_RevA.pdf)

Brochure | NetPA U 1004 60-1766-01 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_BR_A4_IT_RevA.pdf)

Brochure | NetPA U 1004 60-1766-01 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_Chinese.pdf)

Brochure | NetPA U 1004 60-1766-01 | Sources d'alimentation Everlast

Manual | NetPA U 1004 60-1766-01 | Cleaning Instruction Card

Manual | NetPA U 1004 60-1766-01 | NetPA U 1004, NetPA U 1002 Series User Guide

Manual | NetPA U 1004 60-1766-01 | NetPA U 1004_1002 Setup Guide

Manual | NetPA U 1004 60-1766-01 | NetPA Ultra

Specifications | NetPA U 1004 60-1766-01 | NetPA Ultra Series 1004, 1004-70V, 1004-100V

Panel Drawing | NetPA U 1004 60-1766-01 | NetPA U 1004

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Details

Key Capabilities

Where It Is Used

Specifications at a Glance

Frequently asked questions about the Extron NetPA U 1004 4-Channel 100W Dante Amplifier

Does Ampronix sell the Extron NetPA U 1004 4-Channel 100W Dante Amplifier?

Does Ampronix offer replacement and exchange for the Extron NetPA U 1004 4-Channel 100W Dante Amplifier?

Is the Extron NetPA U 1004 4-Channel 100W Dante Amplifier listed under other names?

What are the key features of the Extron NetPA U 1004 4-Channel 100W Dante Amplifier?

Specifications

Diagram

Resources

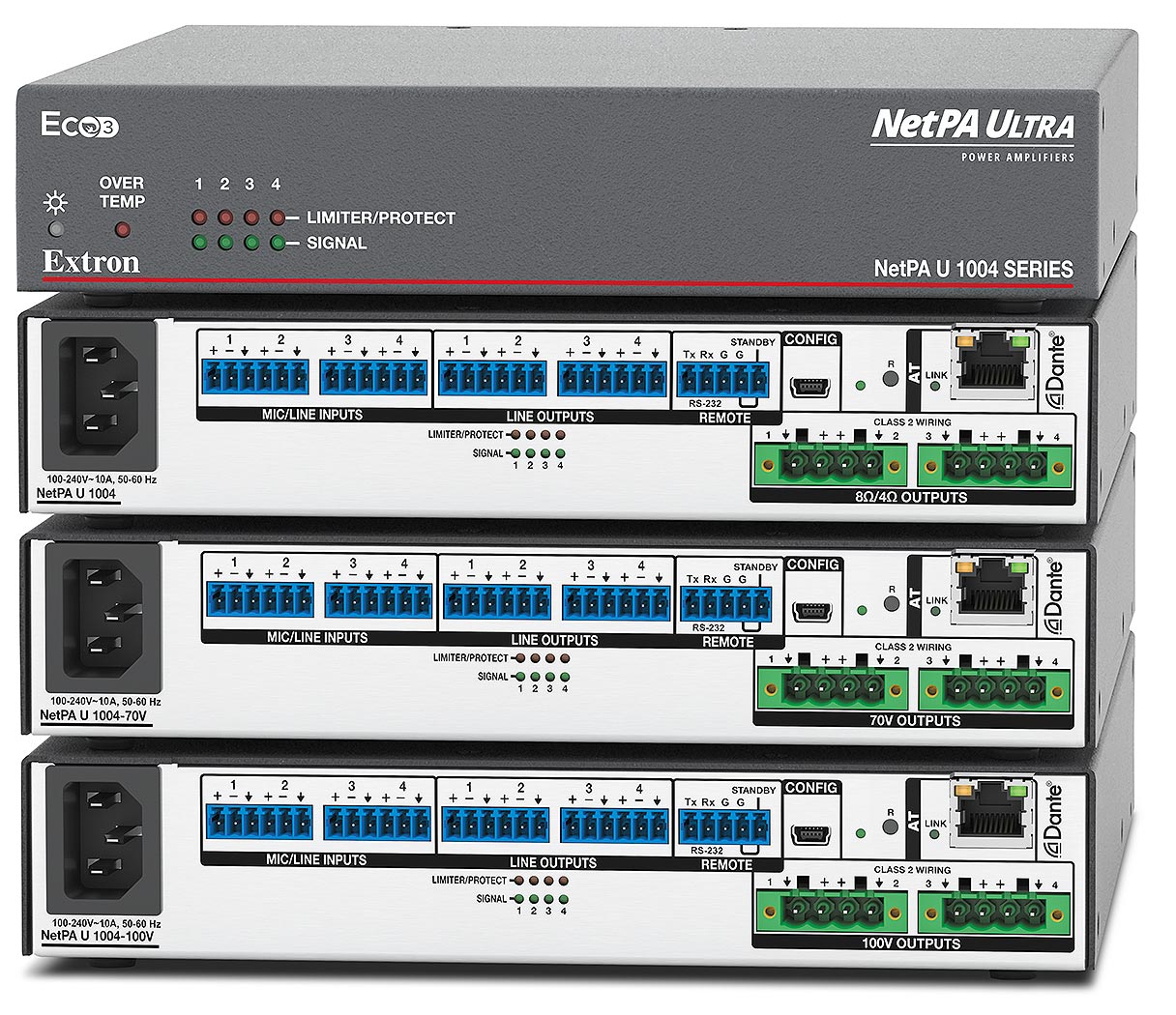

Extron NetPA U 1004 4-Channel 100W Dante Amplifier 60-1766-01
