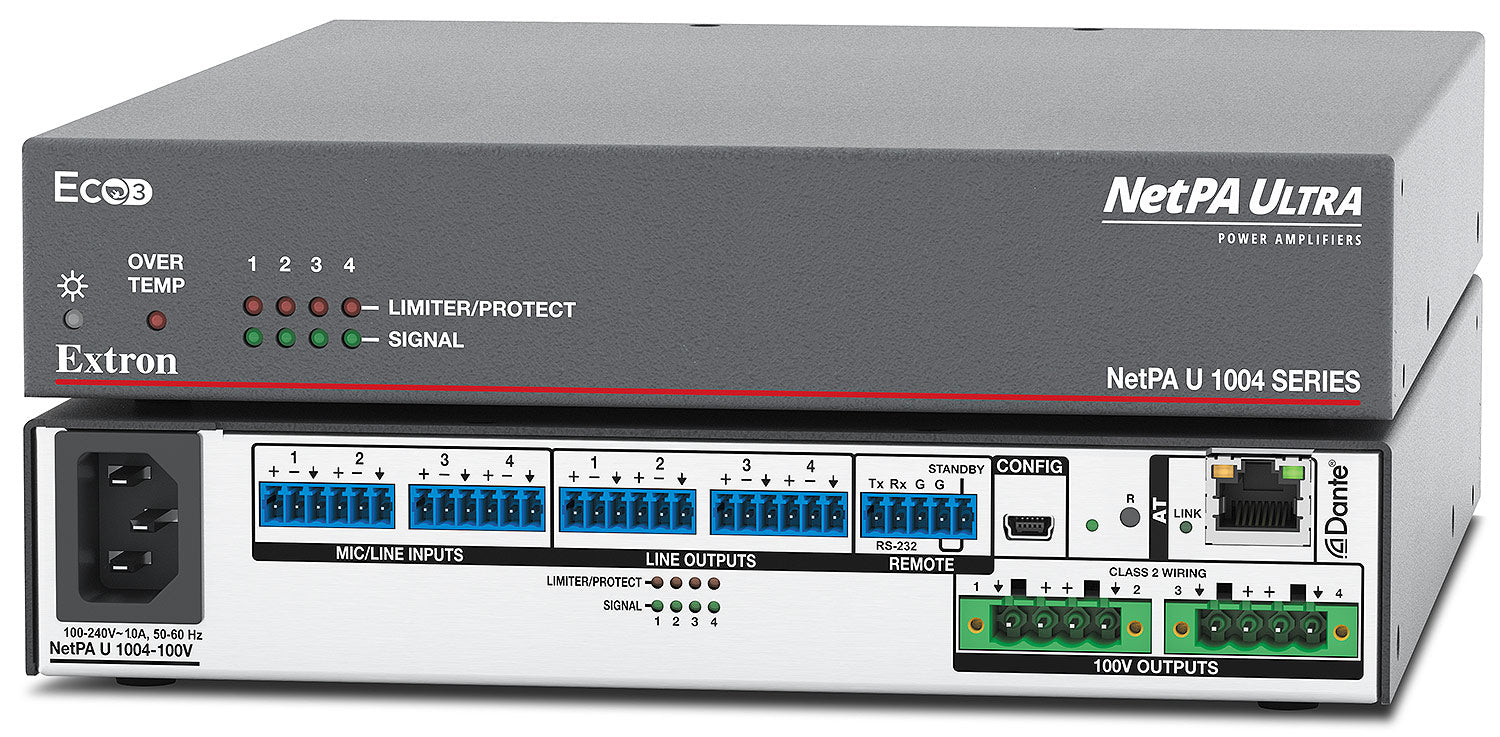

Extron NetPA U 1004-100V (part number 60-1766-12) — a four-channel, network-native power amplifier built for 100V constant-voltage speaker lines.

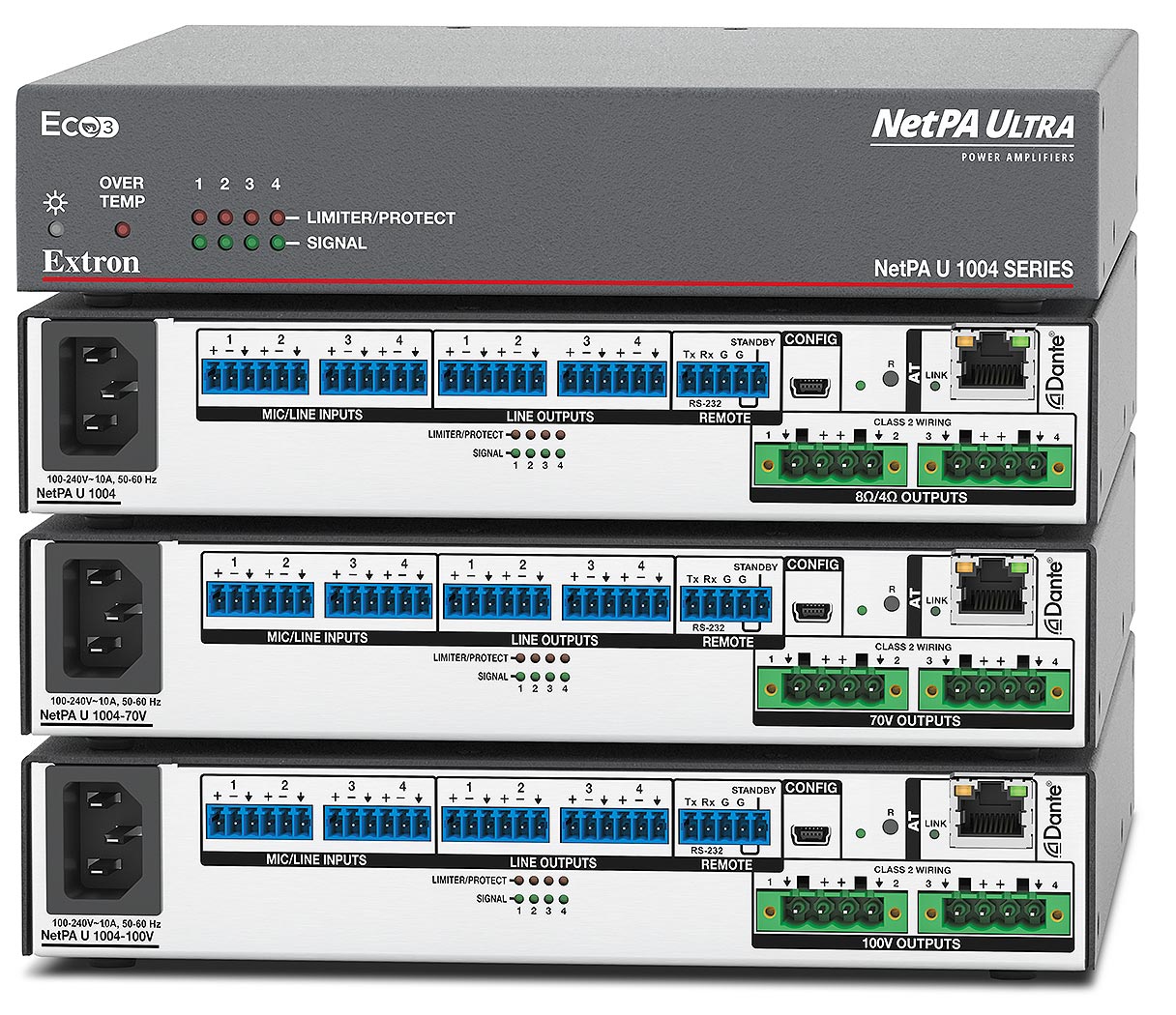

Housed in the same half-rack, 1U plenum-rated chassis as the rest of the NetPA U 1004 family, this model pulls Dante or AES-67 network audio and steps it up to 100 watts per channel at 100 volts, giving integrators long-run, low-loss speaker distribution across four independent zones from one compact amplifier. A software-defeatable 80 Hz high-pass filter protects ceiling and pendant speakers from unnecessary low-frequency energy, and Class D output keeps the unit convection-cooled with no vents.

Key Capabilities

100 W per channel at 100 V across 4 independent zones, less than 0.2% THD
Dante/AES-67 network audio input with 4 Rx / 4 Tx flows, unicast or multicast
Software-defeatable 80 Hz high-pass filter tuned for 100V distributed lines
24-bit audio up to 96 kHz sampling with selectable 1.0/2.0/5.0 ms latency
Half-rack, 1U, plenum-rated metal enclosure at 3.8 lbs
RS-232, USB, and 10/100 Ethernet control via Extron SIS

Where It Is Used

100V distribution is common outside North America and in large domestic facilities running long ceiling-speaker cable runs — auditoriums, transit concourses, retail floors, and multi-zone paging systems where minimizing cable loss over distance matters more than raw wattage per speaker.

Specifications at a Glance

Output: 4 x 100 W @ 100 V, 1 kHz, less than 0.2% THD
Network audio: Dante/AES-67, 1-port 100 Mbps RJ-45
Enclosure: 1.7" H x 8.7" W x 10.5" D, half-rack 1U, metal, plenum rated
Warranty: 3 years parts and labor; Everlast power supply 7 years

Also referenced as Extron NetPAU1004100V, NetPA-U-1004-100V, part number 60176612.

Specifications

Part Number: 60-1766-12

Manufacturer: Extron

Model: NetPA U 1004-100V

Condition: New

Amplifier Type: Class D

Output Power: 100 W per channel at 100 V, 1 kHz, <0.2% THD

Load Impedance: 100 ohms minimum

Speaker Output: 4 channels, 100 V; (2) 5 mm captive screw connectors, 4-pole (22-12 AWG)

High-Pass Filter: 80 Hz, 12 dB/octave rolloff, on by default, software defeatable

Frequency Response (through DSP): 20 Hz to 20 kHz, ±0.5 dB

Frequency Response (through amplifier): 20 Hz to 20 kHz, ±1 dB

THD+N (through DSP): <0.01% @ 1 kHz at maximum output

THD+N (through amplifier): 0.1% @ 1 kHz at 3 dB below clipping

Crosstalk: <-90 dB @ 1 kHz, fully loaded

Volume Control Range: -100 dB to 0 dB in 0.1 dB steps

Audio Inputs: 4 mono mic/line, balanced/unbalanced; (2) 3.5 mm captive screw connectors, 6-pole

Input Impedance: >10k ohms unbalanced/balanced

Input Nominal Level: -60 dBV / +4 dBu / -10 dBV, adjustable via input gain

Input Gain Adjustment: -18 dB to +60 dB in 0.1 dB steps, per input

Equivalent Input Noise: <-120 dBV (1 µVrms) at 45 dB input gain

Audio Line Output: 4 mono, balanced/unbalanced; (2) 3.5 mm captive screw connectors, 6-pole

Output Impedance: 100 ohms balanced, 50 ohms unbalanced

Network Audio: Dante/AES-67, software selectable, 1 RJ-45 port at 100 Mbps

Network Audio Channels: 4 Rx / 4 Tx, unicast or multicast

Network Audio Format: 24-bit uncompressed, 44.1/48/88.2/96 kHz sampling

Network Audio Latency: 1.0 ms (default), 2.0 ms, or 5.0 ms

Control Port: (1) 3.5 mm captive screw connector, 5-pole; contact-closure standby

Serial Control: 1 RS-232 port, 38400 baud, 8 data bits, 1 stop bit, no parity

USB Control Port: 1 USB 2.0 Mini-B, high speed

Ethernet Control: 1 RJ-45, 10/100 Base-T, Extron SIS

Protection: Clip limiter, thermal, short circuit, DC output

Power Supply: Internal, 100-240 VAC, 50-60 Hz, 1.0 A

Power Consumption (Active, 100 V load): 0.7 A / 72.5 W / 22.5 W / 77 BTU/hr at 115 VAC; 0.4 A / 71.1 W / 21.1 W / 72 BTU/hr at 230 VAC

Power Consumption (Quiescent): 0.1 A / 11.6 W / 11.6 W / 40 BTU/hr at 115 VAC; 0.1 A / 11.4 W / 11.4 W / 39 BTU/hr at 230 VAC

Power Consumption (Standby): <0.1 A / <4 W / <4 W / <14 BTU/hr

Storage Temperature: -40° to +158°F (-40° to +70°C), 10% to 90% non-condensing

Operating Temperature: +32° to +122°F (0° to +50°C), 10% to 90% non-condensing

Cooling: Convection, no vents

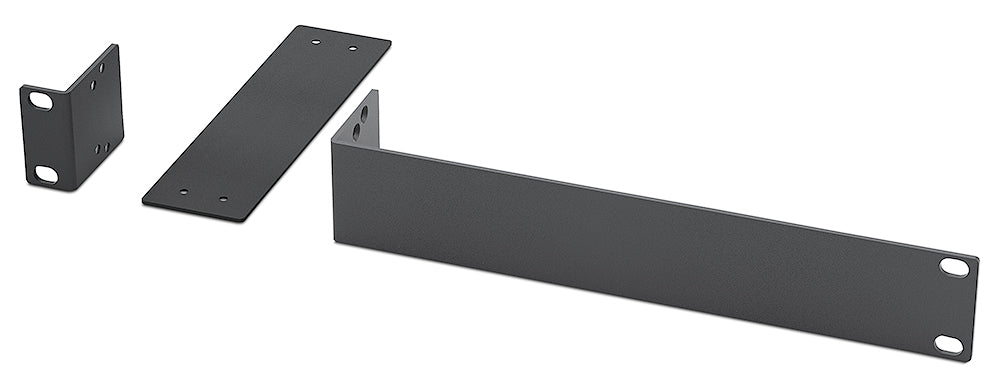

Mounting: Rack mountable with included brackets or optional 1U rack shelf

Enclosure: Metal, half-rack 1U, 1.7" H x 8.7" W x 10.5" D (43 x 221 x 267 mm)

Weight: 3.8 lbs (1.7 kg)

Regulatory Compliance: CCC, CE, C-tick, c-UL, EN55032, EN55035, FCC Class B, ICES, KC, UL, VCCI Class B; UL 62368-1 / IEC 62368-1 / BSEN 62368-1; Ecofficient Level 3, RoHS, WEEE; UL 2043 plenum rated

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

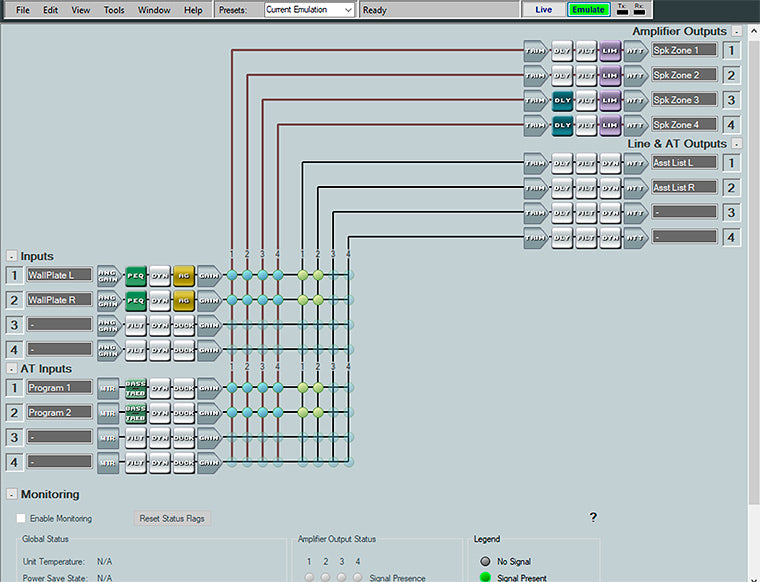

Diagram

Resources

Brochure | NetPA U 1004-100V 60-1766-12 | Everlast Power Supplies

Brochure | NetPA U 1004-100V 60-1766-12 | NetPA Ultra - Power Amplifiers (netPA-u-1002-1004-bro-revA1.pdf)

Brochure | NetPA U 1004-100V 60-1766-12 | Alimentatori Everlast

Brochure | NetPA U 1004-100V 60-1766-12 | Everlast 电源

Brochure | NetPA U 1004-100V 60-1766-12 | Everlast-Netzteile

Brochure | NetPA U 1004-100V 60-1766-12 | Fuentes de alimentación Everlast

Brochure | NetPA U 1004-100V 60-1766-12 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_BR_A4_GE_RevA.pdf)

Brochure | NetPA U 1004-100V 60-1766-12 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_BR_A4_SP_RevA.pdf)

Brochure | NetPA U 1004-100V 60-1766-12 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_BR_A4_FR_RevA.pdf)

Brochure | NetPA U 1004-100V 60-1766-12 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_BR_A4_RU_RevA.pdf)

Brochure | NetPA U 1004-100V 60-1766-12 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_BR_A4_IT_RevA.pdf)

Brochure | NetPA U 1004-100V 60-1766-12 | NetPA Ultra - Power Amplifiers (NetPA-Ultra-PA_Chinese.pdf)

Brochure | NetPA U 1004-100V 60-1766-12 | Sources d'alimentation Everlast

Manual | NetPA U 1004-100V 60-1766-12 | Cleaning Instruction Card

Manual | NetPA U 1004-100V 60-1766-12 | NetPA U 1004, NetPA U 1002 Series User Guide

Manual | NetPA U 1004-100V 60-1766-12 | NetPA U 1004_1002 Setup Guide

Manual | NetPA U 1004-100V 60-1766-12 | NetPA Ultra

Specifications | NetPA U 1004-100V 60-1766-12 | NetPA Ultra Series 1004, 1004-70V, 1004-100V

Panel Drawing | NetPA U 1004-100V 60-1766-12 | NetPA U 1004

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron NetPA U 1004-100V 4-Channel 100V Dante Amplifier 60-1766-12

Name: Extron NetPA U 1004-100V 4-Channel 100V Dante Amplifier 60-1766-12
Brand: Extron
SKU: EXTRON-NETPAU1004100V-60176612
Availability: InStock

Manufacturer: Extron

Type: Power Amplifiers

Extron NetPA U 1004-100V Dante Power Amplifier

• 100 W per channel at 100V across 4 zones, less than 0.2% THD
• Software-defeatable 80 Hz high-pass filter for 100V speaker lines
• Native Dante/AES-67 network audio with 4 Rx / 4 Tx flows
• 24-bit audio up to 96 kHz with latency as low as 1.0 ms
• Plenum-rated metal half-rack 1U enclosure weighs 3.8 lbs (1.7 kg)
• RS-232, USB, and 10/100 Ethernet control via Extron SIS

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-NETPAU1004100V-60176612

Details

Extron NetPA U 1004-100V (part number 60-1766-12) — a four-channel, network-native power amplifier built for 100V constant-voltage speaker lines.

Key Capabilities

100 W per channel at 100 V across 4 independent zones, less than 0.2% THD
Dante/AES-67 network audio input with 4 Rx / 4 Tx flows, unicast or multicast
Software-defeatable 80 Hz high-pass filter tuned for 100V distributed lines
24-bit audio up to 96 kHz sampling with selectable 1.0/2.0/5.0 ms latency
Half-rack, 1U, plenum-rated metal enclosure at 3.8 lbs
RS-232, USB, and 10/100 Ethernet control via Extron SIS

Where It Is Used

Specifications at a Glance

Output: 4 x 100 W @ 100 V, 1 kHz, less than 0.2% THD
Network audio: Dante/AES-67, 1-port 100 Mbps RJ-45
Enclosure: 1.7" H x 8.7" W x 10.5" D, half-rack 1U, metal, plenum rated
Warranty: 3 years parts and labor; Everlast power supply 7 years

Also referenced as Extron NetPAU1004100V, NetPA-U-1004-100V, part number 60176612.

Specifications

Part Number: 60-1766-12

Manufacturer: Extron

Model: NetPA U 1004-100V

Condition: New

Amplifier Type: Class D

Output Power: 100 W per channel at 100 V, 1 kHz, <0.2% THD

Load Impedance: 100 ohms minimum

Speaker Output: 4 channels, 100 V; (2) 5 mm captive screw connectors, 4-pole (22-12 AWG)

High-Pass Filter: 80 Hz, 12 dB/octave rolloff, on by default, software defeatable

Frequency Response (through DSP): 20 Hz to 20 kHz, ±0.5 dB

Frequency Response (through amplifier): 20 Hz to 20 kHz, ±1 dB

THD+N (through DSP): <0.01% @ 1 kHz at maximum output

THD+N (through amplifier): 0.1% @ 1 kHz at 3 dB below clipping

Crosstalk: <-90 dB @ 1 kHz, fully loaded

Volume Control Range: -100 dB to 0 dB in 0.1 dB steps

Audio Inputs: 4 mono mic/line, balanced/unbalanced; (2) 3.5 mm captive screw connectors, 6-pole

Input Impedance: >10k ohms unbalanced/balanced

Input Nominal Level: -60 dBV / +4 dBu / -10 dBV, adjustable via input gain

Input Gain Adjustment: -18 dB to +60 dB in 0.1 dB steps, per input

Equivalent Input Noise: <-120 dBV (1 µVrms) at 45 dB input gain

Audio Line Output: 4 mono, balanced/unbalanced; (2) 3.5 mm captive screw connectors, 6-pole

Output Impedance: 100 ohms balanced, 50 ohms unbalanced

Network Audio: Dante/AES-67, software selectable, 1 RJ-45 port at 100 Mbps

Network Audio Channels: 4 Rx / 4 Tx, unicast or multicast

Network Audio Format: 24-bit uncompressed, 44.1/48/88.2/96 kHz sampling

Network Audio Latency: 1.0 ms (default), 2.0 ms, or 5.0 ms

Control Port: (1) 3.5 mm captive screw connector, 5-pole; contact-closure standby

Serial Control: 1 RS-232 port, 38400 baud, 8 data bits, 1 stop bit, no parity

USB Control Port: 1 USB 2.0 Mini-B, high speed

Ethernet Control: 1 RJ-45, 10/100 Base-T, Extron SIS

Protection: Clip limiter, thermal, short circuit, DC output

Power Supply: Internal, 100-240 VAC, 50-60 Hz, 1.0 A

Power Consumption (Active, 100 V load): 0.7 A / 72.5 W / 22.5 W / 77 BTU/hr at 115 VAC; 0.4 A / 71.1 W / 21.1 W / 72 BTU/hr at 230 VAC

Power Consumption (Quiescent): 0.1 A / 11.6 W / 11.6 W / 40 BTU/hr at 115 VAC; 0.1 A / 11.4 W / 11.4 W / 39 BTU/hr at 230 VAC

Power Consumption (Standby): <0.1 A / <4 W / <4 W / <14 BTU/hr

Storage Temperature: -40° to +158°F (-40° to +70°C), 10% to 90% non-condensing

Operating Temperature: +32° to +122°F (0° to +50°C), 10% to 90% non-condensing

Cooling: Convection, no vents

Mounting: Rack mountable with included brackets or optional 1U rack shelf

Enclosure: Metal, half-rack 1U, 1.7" H x 8.7" W x 10.5" D (43 x 221 x 267 mm)

Weight: 3.8 lbs (1.7 kg)

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor
