Details

Extron NetPA 204 POE (part number 60-2047-01) - a four-channel Class D amplifier that takes Dante or AES67 audio and its own operating power from one network cable.

The NetPA 204 POE removes the mains circuit from the equation. A single RJ-45 carries four channels of 24-bit Dante audio in and powers the amplifier, so it can sit above the tile next to the loudspeakers instead of in a distant rack. Output scales with what the switch can deliver: 20 watts per channel on 802.3bt PoE++ Class 5, 18 watts on 802.3at PoE+ Class 4, and 10 watts on 802.3af PoE Class 3, into 4 or 8 ohm loads. The housing is fire-resistant UL94V-0 metal and UL 2043 rated, and there are no vents - cooling is convection only.

Key Capabilities

Four Class D channels into 4 or 8 ohms, 20 W each on PoE++ Class 5
Dante or AES67 audio transport, software selectable, four channels Rx on one RJ-45
24-bit uncompressed audio, selectable at 44.1, 48, 88.2 and 96 kHz
Selectable network latency of 1.0 ms (default), 2.0 ms or 5.0 ms
Plenum-rated UL94V-0 metal housing, UL 2043 listed, convection cooled with no vents
Half-rack 1U chassis at just 0.9 lbs; furniture, pole, rack shelf or ATB 100 speaker mounting

Where It Is Used

Distributed audio where pulling a mains circuit to every amplifier location is impractical: classroom and lecture-hall ceilings, open-plan office paging, retail and hospitality background music, healthcare corridors and waiting areas, and campus zones fed from a Dante backbone. The plenum rating makes above-ceiling placement straightforward in return-air designs.

Specifications at a Glance

Output: 20 W/ch (PoE++), 18 W/ch (PoE+), 10 W/ch (PoE) into 4 or 8 ohms
Power draw: 38.7 W max on PoE++, 25.5 W on PoE+, 13.9 W on PoE
Crosstalk below -90 dB at 1 kHz fully loaded; volume -100 dB to 0 dB in 0.1 dB steps
Enclosure 1.7 in H x 8.7 in W x 3.0 in D, half-rack 1U, 0.9 lbs
Warranty 3 years parts and labor

Frequently asked questions about the Extron NetPA 204 POE 4-Channel PoE Dante Amplifier

Does Ampronix sell the Extron NetPA 204 POE 4-Channel PoE Dante Amplifier?

Yes. Ampronix is an authorized Extron distributor and sells the Extron NetPA 204 POE 4-Channel PoE Dante Amplifier (60-2047-01). Call Ampronix for a quote.

Does Ampronix offer replacement and exchange for the Extron NetPA 204 POE 4-Channel PoE Dante Amplifier?

Yes. Ampronix provides sales, replacement and exchange for the Extron NetPA 204 POE 4-Channel PoE Dante Amplifier. Call Ampronix for a quote.

Is the Extron NetPA 204 POE 4-Channel PoE Dante Amplifier listed under other names?

Yes. The Extron NetPA 204 POE 4-Channel PoE Dante Amplifier is also referenced as Extron NetPA204POE, NetPA-204-POE, part number 60204701.

What are the key features of the Extron NetPA 204 POE 4-Channel PoE Dante Amplifier?

Key points: Four Class D channels into 4 or 8 ohms, 20 W each on PoE++ Class 5; Dante or AES67 audio transport, software selectable, four channels Rx on one RJ-45; 24-bit uncompressed audio, selectable at 44.1, 48, 88.2 and 96 kHz; Selectable network latency of 1.0 ms (default), 2.0 ms or 5.0 ms. Call Ampronix to confirm details for your application.

Also referenced as Extron NetPA204POE, NetPA-204-POE, part number 60204701.

Specifications

Part Number: 60-2047-01

Manufacturer: Extron

Model: NetPA 204 POE

Condition: New

Audio - Frequency Response Through DSP: 20 Hz to 20 kHz, plus/minus 0.5 dB

Audio - Frequency Response Through Amplifier: 20 Hz to 20 kHz, plus/minus 1 dB

Audio - THD + Noise Through DSP: Less than 0.01% @ 1 kHz at maximum output level

Audio - THD + Noise Through Amplifier: 0.1% @ 1 kHz at 3 dB below clipping, 8 ohms

Audio - Signal to Noise (digital in to speaker out): 100 dB, 20 Hz to 20 kHz at maximum output (unweighted)

Audio - Crosstalk: Less than -90 dB @ 1 kHz, fully loaded

Audio - Volume Control: -100 dB to 0 dB (control 0 to 100 in 0.1 dB steps)

Audio Processing - D/A Conversion: 24 bit, 48 kHz

AT Ports - Transmission Type: Dante/AES-67, software selectable

AT Ports - Connectivity: 1 RJ-45 connector (2 flows, unicast or multicast)

AT Ports - Inputs: 4 channels Rx

AT Ports - Outputs: None

AT Ports - Audio Format: 24-bit uncompressed, selectable at 44.1, 48, 88.2 and 96 kHz sampling rate

AT Ports - Latency: Deterministic, based on user selection: 1.0 ms (default), 2.0 ms, 5.0 ms

Speaker Output - Number/Signal Type: 4 channels, 4 or 8 ohms

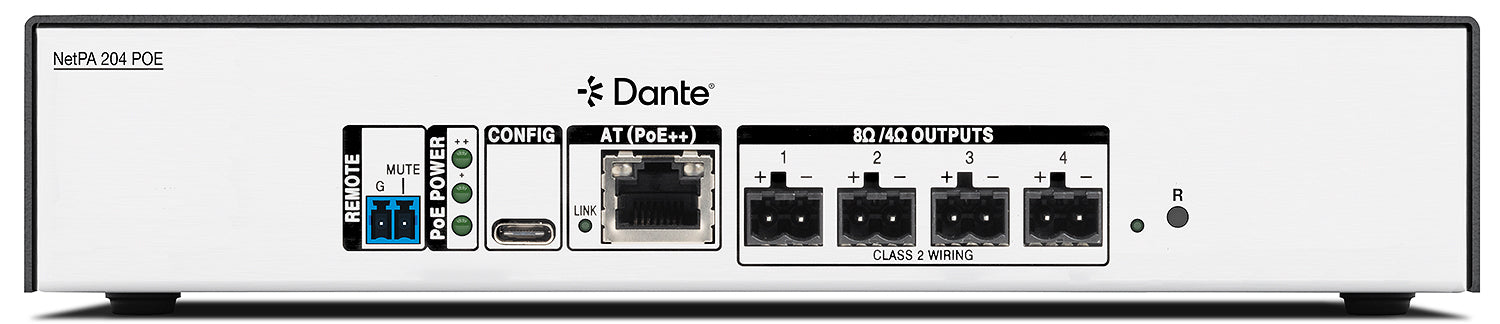

Speaker Output - Connectors: (4) 5 mm captive screw connectors, 2-pole; accept 22 AWG to 12 AWG wire

Speaker Output - Load Impedance: 4 ohms minimum

Amplifier Type: Class D

Output Power - PoE++ Power Class 5 (802.3at): 20 watts per channel, all channels driven (8 ohms at 1 kHz below 0.1% THD; 4 ohms at 1 kHz below 0.2% THD)

Output Power - PoE+ Power Class 4 (802.3at): 18 watts per channel, all channels driven

Output Power - PoE Power Class 3 (802.3af): 10 watts per channel, all channels driven

Control - Mute: Contact closure on (1) 3.5 mm captive screw connector, 2 pole; pin 1 = Gnd, pin 2 = mute

Control - USB Port: 1 rear panel USB Type-C, USB 2.0 high speed

Control - Ethernet Host Port: 1 RJ-45 female connector, 10/100 Base-T

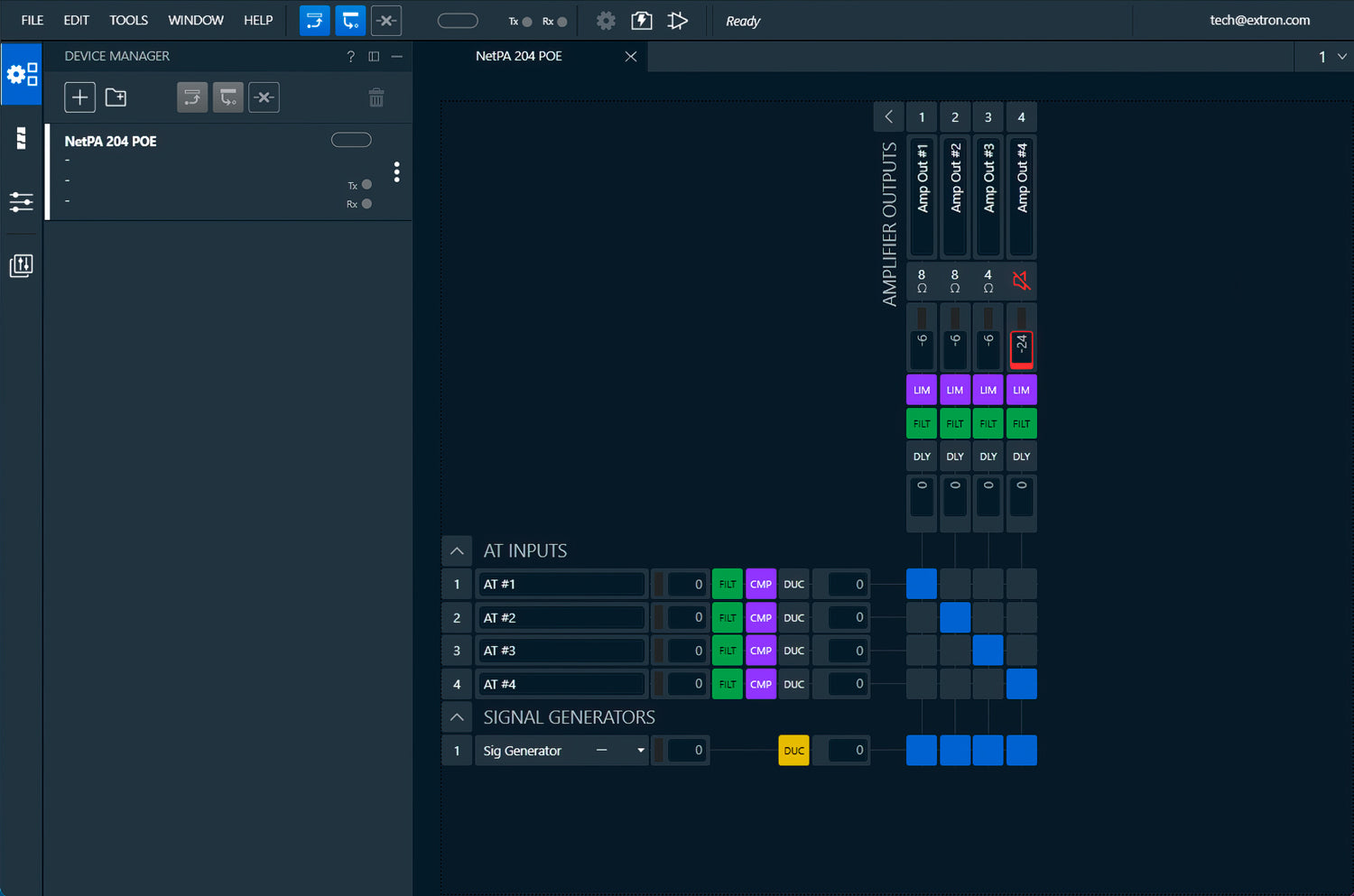

Control - Program Control: Extron DSP Configurator Pro control/configuration program for Windows; Extron Simple Instruction Set (SIS)

General - Power Input Requirements: IEEE 802.3bt Power Class 5 (PoE++), 802.3at Power Class 4 (PoE+), 802.3af Power Class 3 (PoE)

General - Power Consumption: 38.7 W max on PoE++ Class 5 (802.3bt); 25.5 W max on PoE+ Class 4 (802.3at); 13.9 W max on PoE Class 3 (802.3af)

General - Ambient Temperature/Humidity: Storage: -40 to +158 F (-40 to +70 C) / 10% to 90%, non-condensing. Operating: +32 to +122 F (0 to +50 C) / 10% to 90%, non-condensing

General - Cooling: Convection, no vents

General - Protection: Clip limiter, thermal, short circuit, DC output

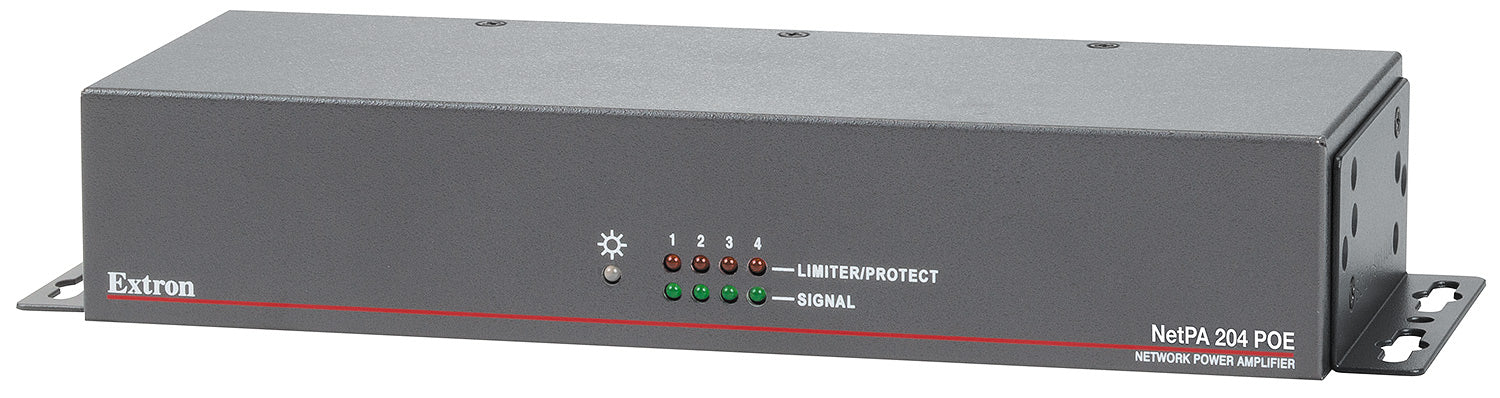

General - Mounting: Rack mount yes, with optional 1U rack shelf; furniture mount yes, with included mounting hardware; pole mount yes, with optional pole mounting kit; speaker mount yes, with optional ATB 100, V-rail mounted speakers only

General - Enclosure Type: Plenum rated, fire-resistant (UL94V-0) metal housing

General - Enclosure Dimensions: 1.7 in H x 8.7 in W x 3.0 in D (1U high, half-rack wide) (43 mm H x 221 mm W x 76 mm D)

General - Product Weight: 0.9 lbs (0.4 kg)

Regulatory Compliance: CE, c-UL, UL, C-tick, EN55032, EN55035, FCC Class B, ICES, VCCI Class B, RoHS, WEEE. Meets UL 62368-1 and BSEN 62368-1. UL rated for use in plenum airspaces: meets UL 2043 for heat and smoke release.

Product Warranty: 3 years parts and labor

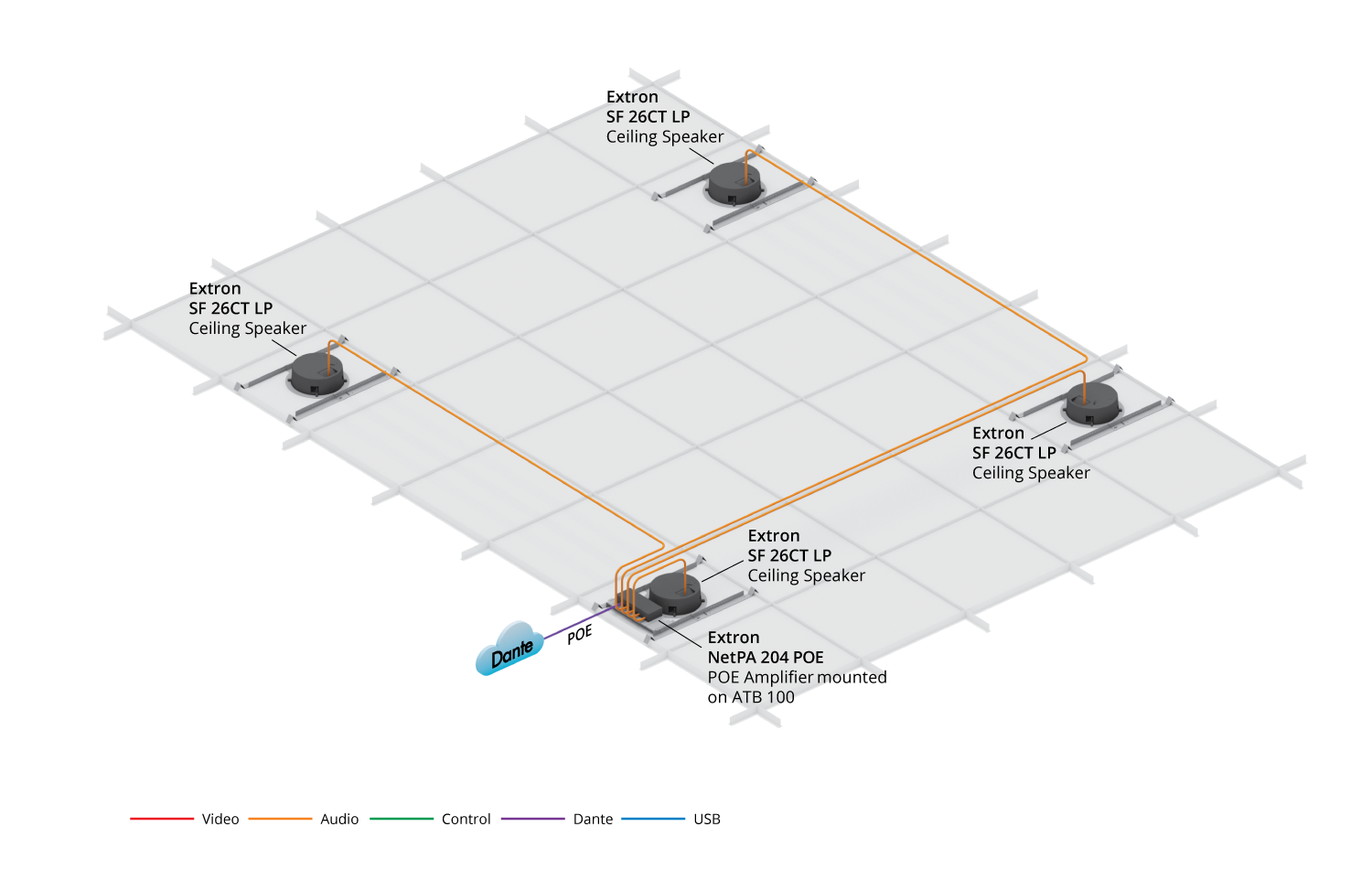

Diagram

Resources

Brochure | NetPA 204 POE 60-2047-01 | NetPA 204 POE (netpa_204_poe_revA1.pdf)

Brochure | NetPA 204 POE 60-2047-01 | NetPA 204 POE (netpa_204_poe_revA1_FR.pdf)

Brochure | NetPA 204 POE 60-2047-01 | NetPA 204 POE (netpa_204_poe_revA1_IT.pdf)

Brochure | NetPA 204 POE 60-2047-01 | NetPA 204 POE (netpa_204_poe_revA1_SP.pdf)

Brochure | NetPA 204 POE 60-2047-01 | NetPA 204 POE (netpa_204_poe_revA1_GE.pdf)

Manual | NetPA 204 POE 60-2047-01 | Extron Dante FAQ

Manual | NetPA 204 POE 60-2047-01 | NetPA 204 POE Setup Guide

Manual | NetPA 204 POE 60-2047-01 | NetPA 204 POE User Guide

Specifications | NetPA 204 POE 60-2047-01 | NetPA 204 POE

Panel Drawing | NetPA 204 POE 60-2047-01 | NetPA 204 POE
