Extron NBP VC2 EU Network Button Panel
- • Four backlit soft-touch buttons, relabelled via Extron Custom Button Builder
- • Program volume plus mic adjust and mute, all with LED level indication
- • Built-in speaker confirms button presses and connection status audibly
- • PoE 802.3af class 3 - 2.0 W at the device, 2.8 W with a PI 115 injector
- • Mounts in a 1-gang EU box or Flex55 frames; 3.17 in square faceplate

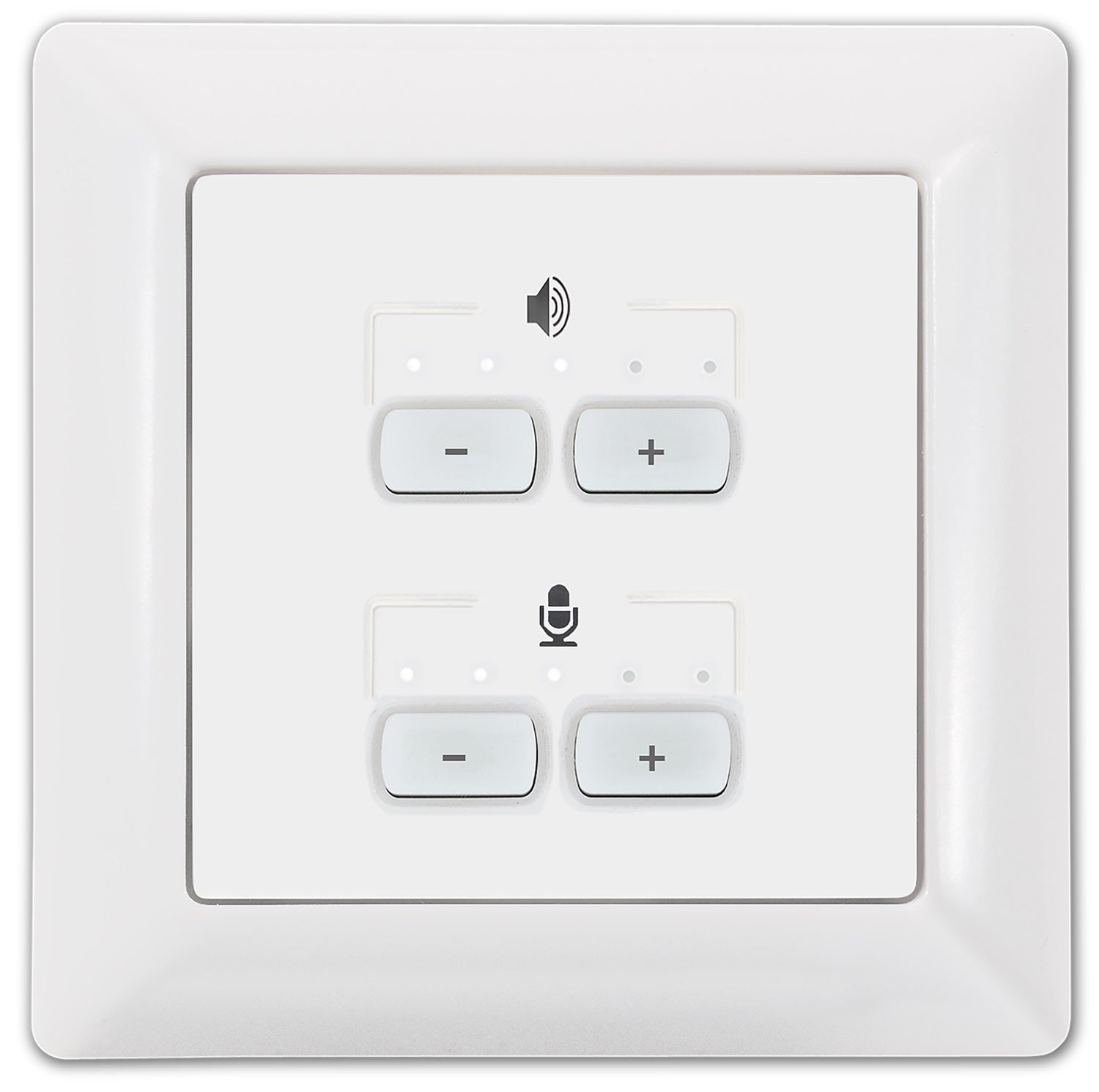

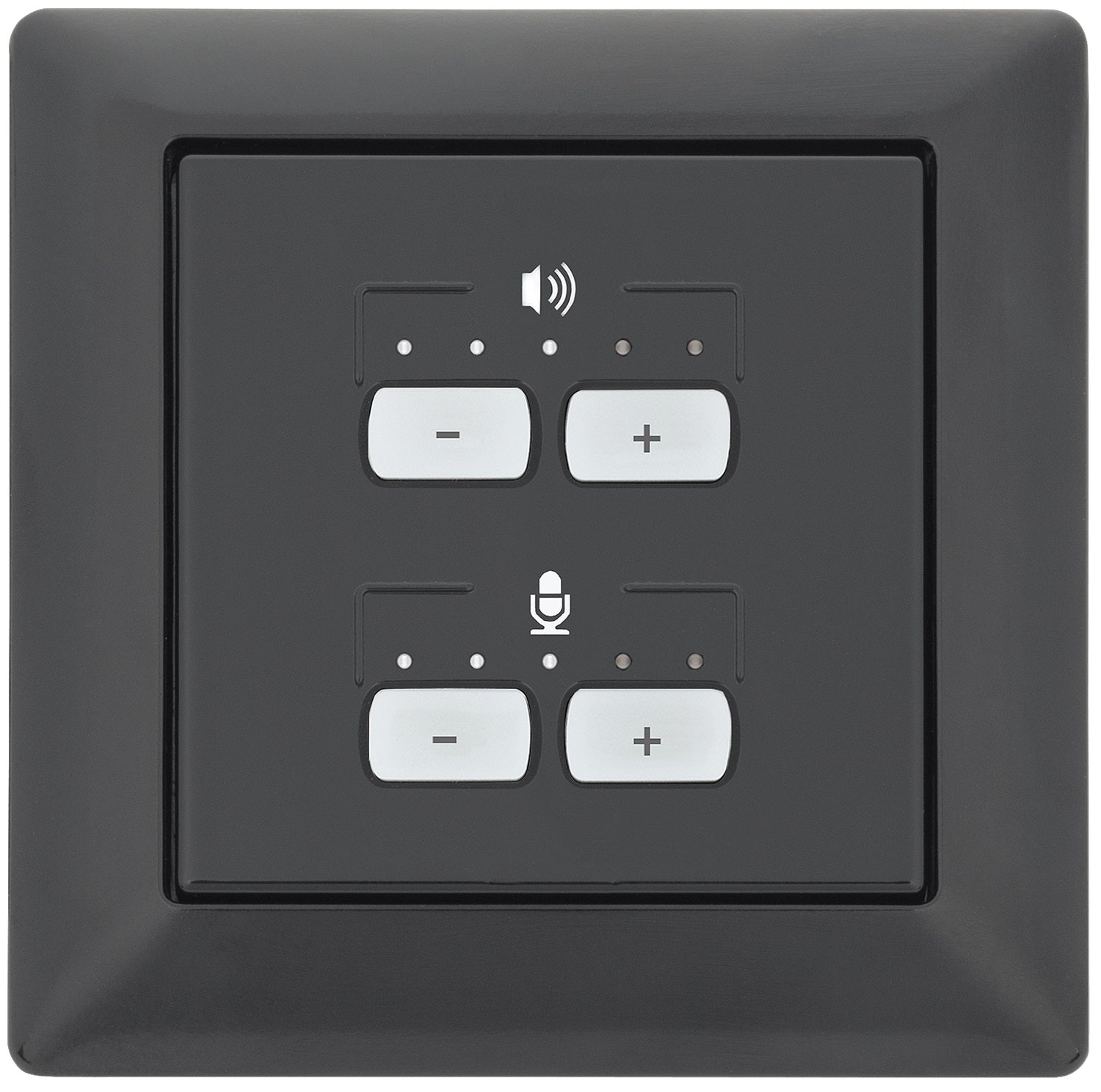

- • Black and white Flex55 wall plates and mounting bracket included
- • 512 MB SDRAM and Flash; 3-year Extron parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron NBP VC2 EU (part number 60-2053-01) — Flex55 and EU wall-frame network button panel with dual volume control for Extron control systems.
Built for installations outside the US gang standard, the NBP VC2 EU mounts in a 1-gang EU junction box or into Flex55 frames, mounting kits and enclosures. Four backlit soft-touch buttons handle program volume with LED level indication alongside microphone adjust and mute, also LED-indicated. A built-in speaker gives audible confirmation of button presses and connection status. The panel reaches its control processor over standard Ethernet on one female RJ-45, and draws its power from the same cable via 802.3af Class 3 PoE.
Key Capabilities
- Four backlit, soft-touch buttons, relabelled through Extron's Custom Button Builder
- Program volume plus microphone adjust and mute, each with LED level indication
- Built-in speaker for audible button-press and connection feedback
- PoE 802.3af Class 3 — 2.0 watts at the device, 2.8 watts with a PI 115 injector
- 10/100Base-T on a single RJ-45, half or full duplex with autodetect
- Black and white Flex55 wall plates and mounting bracket supplied
Where It Is Used
A natural fit for European and international rooms standardised on 55 mm wall frames: meeting rooms and boardrooms, higher-education lecture halls, hotel function spaces, training centres and hospital conference suites. Anywhere an integrator needs level control at the wall without running mains power to the plate, the EU form factor drops straight into the existing back box.
Specifications at a Glance
- Power: PoE (802.3af, class 3), 2.0 W device / 2.8 W with PI 115 injector
- Thermal dissipation: 6.9 BTU/hr device, 9.6 BTU/hr with injector
- Faceplate: 3.17 in H x 3.17 in W x 0.42 in D (81 x 81 x 11 mm)
- Device behind wall: 1.84 in H x 1.81 in W x 1.06 in D; weight 0.2 lbs
- 512 MB SDRAM and 512 MB Flash; 3 years parts and labor warranty
Also referenced as Extron NBPVC2EU, NBP-VC2-EU, part number 60205301.
Specifications
Specifications

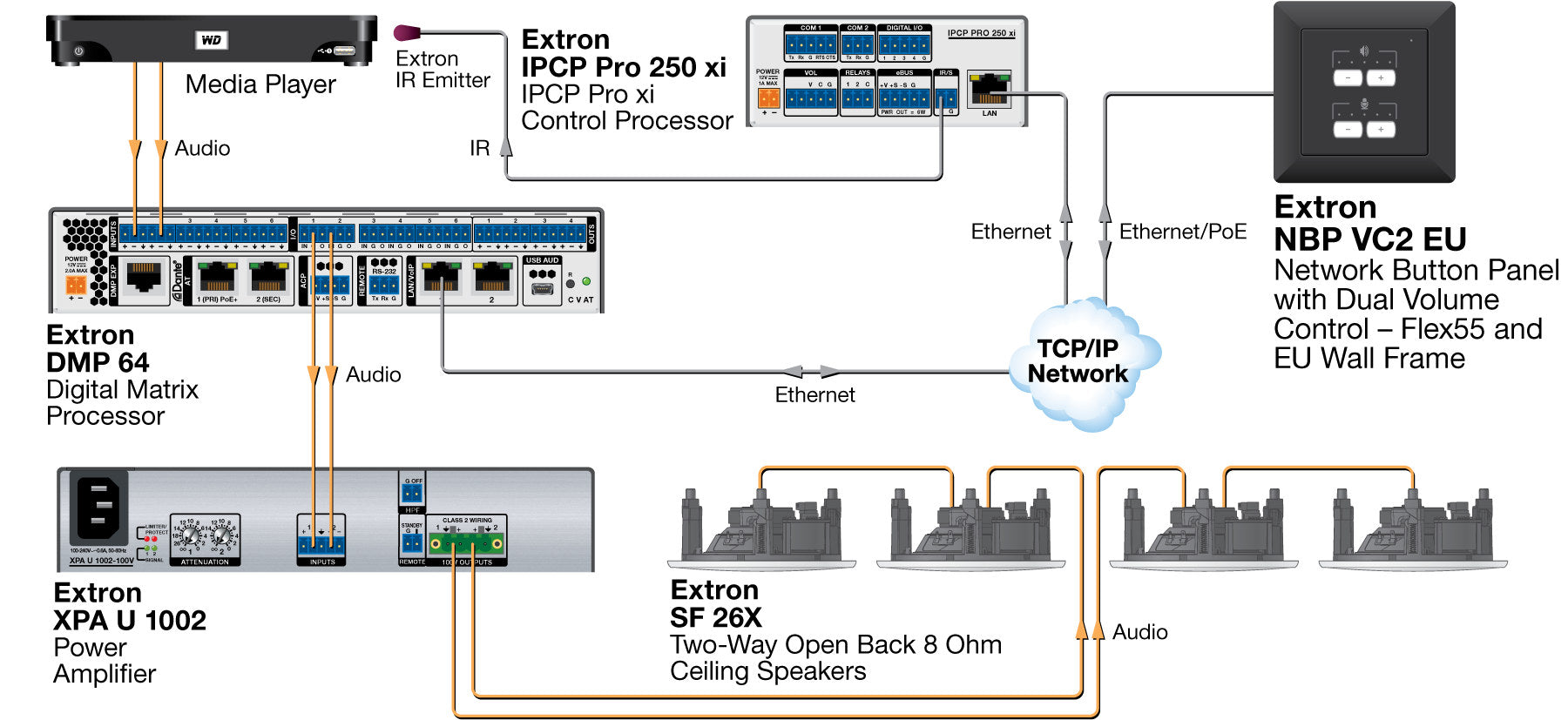

Diagram
