Extron MVX 44 VGA A 4x4 VGA & Audio Matrix Switcher 60-635-21

Details

Extron MVX 44 VGA A (part number 60-635-21) is a four-input, four-output VGA and stereo audio matrix switcher built for rooms where any computer source has to reach any display on demand.

Rather than running separate video and audio distribution paths, the MVX 44 VGA A consolidates both into a single 1U chassis. Any of the four 15-pin HD inputs can be routed to any of the four outputs, and the stereo audio channel can either follow the video switch or break away independently - useful when a presenter needs program audio held on one zone while the projector changes sources. With 350 MHz (-3 dB) of bandwidth under full load, the switcher carries VGA through UXGA resolutions without the softening that shows up on lesser matrices at long cable runs.

Key Capabilities

4 x 4 routing for VGA video and 4 x 4 stereo audio matrix routing in one frame
350 MHz (-3 dB) bandwidth fully loaded, supporting resolutions up to UXGA 1600 x 1200
Triple-Action switching to reduce visible RGB delay as sources change
Per-input audio gain from -18 dB to +10 dB, plus selectable consumer or pro output level
RS-232 control using Extron SIS commands, eight front panel presets, and optional IR 501 remote
Internal 100-240 VAC Everlast power supply carrying a 7-year parts and labor warranty

Where It Is Used

The 4 x 4 configuration suits boardrooms, divisible conference rooms, lecture halls, classrooms, courtrooms and small control positions - anywhere a handful of laptops, document cameras or media PCs feed a matched set of projectors and confidence monitors. The 1U metal enclosure ships with a rack kit, and an optional under-desk kit supports lectern and credenza installs.

Specifications at a Glance

Video: 4 female 15-pin HD in, 4 female 15-pin HD out, 75 ohms, RGBHV / RGBS / RGsB / RsGsBs
Audio in: 4 stereo unbalanced on 3.5 mm mini jacks; Audio out: 4 stereo balanced or unbalanced on 5-pole captive screw
Switching speed: 20 ms max; horizontal scan 15 kHz to 145 kHz, vertical 30 Hz to 170 Hz
Enclosure: 1.75 in H x 17.4 in W x 8.5 in D, 1U full rack width, metal, 7.0 lbs
Power: 100 VAC to 240 VAC, 50-60 Hz internal, 30 watts; 3-year product warranty

Also referenced as Extron MVX44VGAA, MVX-44-VGA-A, part number 6063521.

Frequently asked questions about the Extron MVX 44 VGA A 4x4 VGA & Audio Matrix Switcher

Does Ampronix sell the Extron MVX 44 VGA A 4x4 VGA & Audio Matrix Switcher?

Yes. Ampronix is an authorized Extron distributor and sells the Extron MVX 44 VGA A 4x4 VGA & Audio Matrix Switcher (60-635-21). Call Ampronix for a quote.

Does Ampronix offer replacement and exchange for the Extron MVX 44 VGA A 4x4 VGA & Audio Matrix Switcher?

Yes. Ampronix provides sales, replacement and exchange for the Extron MVX 44 VGA A 4x4 VGA & Audio Matrix Switcher. Call Ampronix for a quote.

What are the key features of the Extron MVX 44 VGA A 4x4 VGA & Audio Matrix Switcher?

Key points: 4 x 4 routing for VGA video and 4 x 4 stereo audio matrix routing in one frame; 350 MHz (-3 dB) bandwidth fully loaded, supporting resolutions up to UXGA 1600 x 1200; Triple-Action switching to reduce visible RGB delay as sources change; Per-input audio gain from -18 dB to +10 dB, plus selectable consumer or pro output level. Call Ampronix to confirm details for your application.

Specifications

Part Number: 60-635-21

Manufacturer: Extron

Model: MVX 44 VGA A

Condition: New

Product Type: 4x4 VGA and Stereo Audio Matrix Switcher

Video Routing: 4 x 4 matrix

Gain: Unity

Bandwidth: 350 MHz (-3 dB), fully loaded

Bandwidth Flatness: No more than +0.14 dB to -0.1 dB (0 to 10 MHz); no more than +0.95 dB to -0.8 dB (0 to 130 MHz)

Video Crosstalk: Less than -60 dB nominal at 10 MHz; less than -39 dB at 100 MHz

Switching Speed: 20 ms (max.)

Switching Type: Triple-Action

Video Inputs: 4

Input Signal Types: VGA-UXGA RGBHV, RGBS, RGsB, RsGsBs, HDTV, component video (bi-level and tri-level sync), S-video, composite video

Video Input Connectors: 4 female 15-pin HD

Input Nominal Level: 1 Vp-p for Y of component and S-video and for composite video; 0.7 Vp-p for RGB and for R-Y and B-Y of component video; 0.3 Vp-p for C of S-video

Input Level Range: Analog 0.3 V to 2.0 Vp-p with no offset at unity gain

Video Input Impedance: 75 ohms

Horizontal Frequency: 15 kHz to 145 kHz

Vertical Frequency: 30 Hz to 170 Hz

Return Loss: Less than -40 dB at 5 MHz

Max Input DC Offset: 1.5 V

Video Outputs: 4

Video Output Connectors: 4 female 15-pin HD

Output Level Range: 0.3 V to 2.0 Vp-p (follows input)

Video Output Impedance: 75 ohms

Max Output DC Offset: Less than 20 mV with input at 0 offset

Max Propagation Delay: Horizontal 90 ns nominal; vertical 160 ns nominal

Max Rise/Fall Time: 4 ns

Sync Input Type: RGBHV, RGBS, RGsB, RsGsBs

Sync Output Type: RGBHV, RGBS, RGsB, RsGsBs (follows input)

Sync Standards: Computer scan rates plus NTSC 3.58, NTSC 4.43, PAL, SECAM

Sync Input Level: 0.5 V to 5.0 Vp-p

Sync Output Level: AGC to TTL, 4.0 V to 5.0 Vp-p, unterminated

Sync Input Impedance: 510 ohms

Sync Polarity: Positive or negative (follows input)

Audio Routing: 4 x 4 stereo matrix

Audio Gain: Adjustable; 12 dB balanced at default settings, range -6 dB to +22 dB balanced with output level set to Pro

Frequency Response: 20 Hz to 20 kHz, plus or minus 0.2 dB

THD plus Noise: 0.05% at 1 kHz; 0.3% at 20 kHz at nominal level

Signal to Noise: Greater than 90 dB, balanced, at maximum output (unweighted)

Audio Crosstalk: Less than -65 dB at 20 kHz; less than -80 dB at 1 kHz, fully loaded

Stereo Channel Separation: Greater than 80 dB at 1 kHz; greater than 55 dB from 20 Hz to 20 kHz

CMRR: Greater than 75 dB, 20 Hz to 20 kHz

Audio Inputs: 4 stereo, unbalanced

Audio Input Connectors: 4 female 3.5 mm stereo mini jacks; tip (L), ring (R), sleeve (GND)

Audio Input Impedance: Greater than 18k ohms unbalanced, DC coupled

Audio Input Nominal Level: -10 dBV (316 mV) default; also compatible with +4 dBu (1.23 V), 0 dBu (0.775 V) and -20 dBV (100 mV)

Audio Input Max Level: Greater than +12 dBV (4 V) unbalanced at 1% THD+N

Audio Input Gain: -18 dB to +10 dB, adjustable per input, default 0 dB

Audio Outputs: 4 stereo, balanced or unbalanced

Audio Output Connectors: 4 captive screw connectors, 3.5 mm, 5 pole

Audio Output Gain: 0 dB unbalanced (consumer) or +12 dB balanced (pro), selectable

Audio Output Impedance: 50 ohms unbalanced; 100 ohms balanced

Gain Error: Plus or minus 0.1 dB channel to channel

Audio Output Nominal Level: +4 dBu (1.23 V) balanced default, or -10 dBV (316 mV) unbalanced

Audio Output Max Level (Hi-Z): Greater than +22 dBu balanced; greater than +14 dBV unbalanced at 1% THD+N

Audio Output Max Level (600 ohm): Greater than +20 dBu balanced; greater than +12 dBV unbalanced at 1% THD+N

Serial Control Port: 1 RS-232, 9-pin female D connector

Baud Rate and Protocol: 9600 baud, 8-bit, 1 stop bit, no parity

Control Pin Configuration: 2 = TX, 3 = RX, 5 = GND, 9 = hardwired IR input

IR Control: IR 501 handheld remote (optional)

Program Control: Extron control and configuration program for Windows; Extron Simple Instruction Set (SIS)

Presets: 8 front panel presets

Power: 100 VAC to 240 VAC, 50-60 Hz, internal, 30 watts

Everlast Power Supply Warranty: 7 years parts and labor

Operating Temperature: +32 to +122 degrees F (0 to +50 degrees C), 10% to 90% humidity, noncondensing

Storage Temperature: -40 to +158 degrees F (-40 to +70 degrees C), 10% to 90% humidity, noncondensing

Cooling: Convection; vents on sides and top

Rack Mount: Yes, with included mounting kit

Furniture Mount: Yes, with optional under-desk mounting kit

Enclosure Type: Metal

Enclosure Dimensions: 1.75 in H x 17.4 in W x 8.5 in D (1U high, full rack wide); 4.4 cm H x 44.2 cm W x 21.6 cm D

Product Weight: 7.0 lbs (3.2 kg)

Shipping Weight: 10 lbs (5 kg)

Vibration: ISTA 1A in carton (International Safe Transit Association)

Maximum Resolution: UXGA (1600 x 1200)

Safety: CE, c-UL, UL

EMI/EMC: CE, C-tick, FCC Class A, ICES, VCCI

Product Warranty: 3 years parts and labor

Diagram

Resources

Brochure | MVX 44 VGA A 60-635-21 | MVX Series

Brochure | MVX 44 VGA A 60-635-21 | Everlast Power Supplies

Brochure | MVX 44 VGA A 60-635-21 | Gamme MVX

Brochure | MVX 44 VGA A 60-635-21 | Serie MVX (MVXSeries_ES.pdf)

Brochure | MVX 44 VGA A 60-635-21 | Serie MVX (MVXseries_IT.pdf)

Brochure | MVX 44 VGA A 60-635-21 | Alimentatori Everlast

Brochure | MVX 44 VGA A 60-635-21 | Everlast 电源

Brochure | MVX 44 VGA A 60-635-21 | Everlast-Netzteile

Brochure | MVX 44 VGA A 60-635-21 | Fuentes de alimentación Everlast

Brochure | MVX 44 VGA A 60-635-21 | MVX 44 VGA A - Bid Sheet

Brochure | MVX 44 VGA A 60-635-21 | Sources d'alimentation Everlast

Manual | MVX 44 VGA A 60-635-21 | Audio Connector Wiring Instruction Card

Manual | MVX 44 VGA A 60-635-21 | BNC to 15-Pin HD Wiring Guide

Manual | MVX 44 VGA A 60-635-21 | Cleaning Instruction Card

Manual | MVX 44 VGA A 60-635-21 | IR 501 User's Guide

Manual | MVX 44 VGA A 60-635-21 | MVX 44 / 48 / 84 / 88 Series Setup Guide

Manual | MVX 44 VGA A 60-635-21 | MVX 44 / 48 / 84 / 88 Series User Guide

Specifications | MVX 44 VGA A 60-635-21 | MVX VGA A Series

Panel Drawing | MVX 44 VGA A 60-635-21 | MVX 44 VGA A

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron MVX 44 VGA A 4x4 VGA & Audio Matrix Switcher 60-635-21

Name: Extron MVX 44 VGA A 4x4 VGA & Audio Matrix Switcher 60-635-21
Brand: Extron
SKU: EXTRON-MVX44VGAA-6063521
Availability: InStock

Manufacturer: Extron

Type: Matrix Switchers

Extron MVX 44 VGA A 4x4 VGA and Stereo Audio Matrix Switcher

• Extron MVX 44 VGA A 4x4 VGA and audio matrix switcher
• 4 VGA inputs and 4 VGA outputs, 75 ohms
• Switching speed 20 ms max, 1U full rack width
• Sales, replacement and exchange
• Part# 60-635-21 / 6063521

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-MVX44VGAA-6063521

Details

Extron MVX 44 VGA A (part number 60-635-21) is a four-input, four-output VGA and stereo audio matrix switcher built for rooms where any computer source has to reach any display on demand.

Key Capabilities

4 x 4 routing for VGA video and 4 x 4 stereo audio matrix routing in one frame
350 MHz (-3 dB) bandwidth fully loaded, supporting resolutions up to UXGA 1600 x 1200
Triple-Action switching to reduce visible RGB delay as sources change
Per-input audio gain from -18 dB to +10 dB, plus selectable consumer or pro output level
RS-232 control using Extron SIS commands, eight front panel presets, and optional IR 501 remote
Internal 100-240 VAC Everlast power supply carrying a 7-year parts and labor warranty

Where It Is Used

Specifications at a Glance

Video: 4 female 15-pin HD in, 4 female 15-pin HD out, 75 ohms, RGBHV / RGBS / RGsB / RsGsBs
Audio in: 4 stereo unbalanced on 3.5 mm mini jacks; Audio out: 4 stereo balanced or unbalanced on 5-pole captive screw
Switching speed: 20 ms max; horizontal scan 15 kHz to 145 kHz, vertical 30 Hz to 170 Hz
Enclosure: 1.75 in H x 17.4 in W x 8.5 in D, 1U full rack width, metal, 7.0 lbs
Power: 100 VAC to 240 VAC, 50-60 Hz internal, 30 watts; 3-year product warranty

Also referenced as Extron MVX44VGAA, MVX-44-VGA-A, part number 6063521.

Frequently asked questions about the Extron MVX 44 VGA A 4x4 VGA & Audio Matrix Switcher

Does Ampronix sell the Extron MVX 44 VGA A 4x4 VGA & Audio Matrix Switcher?

Yes. Ampronix is an authorized Extron distributor and sells the Extron MVX 44 VGA A 4x4 VGA & Audio Matrix Switcher (60-635-21). Call Ampronix for a quote.

Does Ampronix offer replacement and exchange for the Extron MVX 44 VGA A 4x4 VGA & Audio Matrix Switcher?

Yes. Ampronix provides sales, replacement and exchange for the Extron MVX 44 VGA A 4x4 VGA & Audio Matrix Switcher. Call Ampronix for a quote.

What are the key features of the Extron MVX 44 VGA A 4x4 VGA & Audio Matrix Switcher?

Specifications

Part Number: 60-635-21

Manufacturer: Extron

Model: MVX 44 VGA A

Condition: New

Product Type: 4x4 VGA and Stereo Audio Matrix Switcher

Video Routing: 4 x 4 matrix

Gain: Unity

Bandwidth: 350 MHz (-3 dB), fully loaded

Bandwidth Flatness: No more than +0.14 dB to -0.1 dB (0 to 10 MHz); no more than +0.95 dB to -0.8 dB (0 to 130 MHz)

Video Crosstalk: Less than -60 dB nominal at 10 MHz; less than -39 dB at 100 MHz

Switching Speed: 20 ms (max.)

Switching Type: Triple-Action

Video Inputs: 4

Input Signal Types: VGA-UXGA RGBHV, RGBS, RGsB, RsGsBs, HDTV, component video (bi-level and tri-level sync), S-video, composite video

Video Input Connectors: 4 female 15-pin HD

Input Nominal Level: 1 Vp-p for Y of component and S-video and for composite video; 0.7 Vp-p for RGB and for R-Y and B-Y of component video; 0.3 Vp-p for C of S-video

Input Level Range: Analog 0.3 V to 2.0 Vp-p with no offset at unity gain

Video Input Impedance: 75 ohms

Horizontal Frequency: 15 kHz to 145 kHz

Vertical Frequency: 30 Hz to 170 Hz

Return Loss: Less than -40 dB at 5 MHz

Max Input DC Offset: 1.5 V

Video Outputs: 4

Video Output Connectors: 4 female 15-pin HD

Output Level Range: 0.3 V to 2.0 Vp-p (follows input)

Video Output Impedance: 75 ohms

Max Output DC Offset: Less than 20 mV with input at 0 offset

Max Propagation Delay: Horizontal 90 ns nominal; vertical 160 ns nominal

Max Rise/Fall Time: 4 ns

Sync Input Type: RGBHV, RGBS, RGsB, RsGsBs

Sync Output Type: RGBHV, RGBS, RGsB, RsGsBs (follows input)

Sync Standards: Computer scan rates plus NTSC 3.58, NTSC 4.43, PAL, SECAM

Sync Input Level: 0.5 V to 5.0 Vp-p

Sync Output Level: AGC to TTL, 4.0 V to 5.0 Vp-p, unterminated

Sync Input Impedance: 510 ohms

Sync Polarity: Positive or negative (follows input)

Audio Routing: 4 x 4 stereo matrix

Audio Gain: Adjustable; 12 dB balanced at default settings, range -6 dB to +22 dB balanced with output level set to Pro

Frequency Response: 20 Hz to 20 kHz, plus or minus 0.2 dB

THD plus Noise: 0.05% at 1 kHz; 0.3% at 20 kHz at nominal level

Signal to Noise: Greater than 90 dB, balanced, at maximum output (unweighted)

Audio Crosstalk: Less than -65 dB at 20 kHz; less than -80 dB at 1 kHz, fully loaded

Stereo Channel Separation: Greater than 80 dB at 1 kHz; greater than 55 dB from 20 Hz to 20 kHz

CMRR: Greater than 75 dB, 20 Hz to 20 kHz

Audio Inputs: 4 stereo, unbalanced

Audio Input Connectors: 4 female 3.5 mm stereo mini jacks; tip (L), ring (R), sleeve (GND)

Audio Input Impedance: Greater than 18k ohms unbalanced, DC coupled

Audio Input Nominal Level: -10 dBV (316 mV) default; also compatible with +4 dBu (1.23 V), 0 dBu (0.775 V) and -20 dBV (100 mV)

Audio Input Max Level: Greater than +12 dBV (4 V) unbalanced at 1% THD+N

Audio Input Gain: -18 dB to +10 dB, adjustable per input, default 0 dB

Audio Outputs: 4 stereo, balanced or unbalanced

Audio Output Connectors: 4 captive screw connectors, 3.5 mm, 5 pole

Audio Output Gain: 0 dB unbalanced (consumer) or +12 dB balanced (pro), selectable

Audio Output Impedance: 50 ohms unbalanced; 100 ohms balanced

Gain Error: Plus or minus 0.1 dB channel to channel

Audio Output Nominal Level: +4 dBu (1.23 V) balanced default, or -10 dBV (316 mV) unbalanced

Audio Output Max Level (Hi-Z): Greater than +22 dBu balanced; greater than +14 dBV unbalanced at 1% THD+N

Audio Output Max Level (600 ohm): Greater than +20 dBu balanced; greater than +12 dBV unbalanced at 1% THD+N

Serial Control Port: 1 RS-232, 9-pin female D connector

Baud Rate and Protocol: 9600 baud, 8-bit, 1 stop bit, no parity

Control Pin Configuration: 2 = TX, 3 = RX, 5 = GND, 9 = hardwired IR input

IR Control: IR 501 handheld remote (optional)

Program Control: Extron control and configuration program for Windows; Extron Simple Instruction Set (SIS)

Presets: 8 front panel presets

Power: 100 VAC to 240 VAC, 50-60 Hz, internal, 30 watts

Everlast Power Supply Warranty: 7 years parts and labor

Operating Temperature: +32 to +122 degrees F (0 to +50 degrees C), 10% to 90% humidity, noncondensing

Storage Temperature: -40 to +158 degrees F (-40 to +70 degrees C), 10% to 90% humidity, noncondensing

Cooling: Convection; vents on sides and top

Rack Mount: Yes, with included mounting kit

Furniture Mount: Yes, with optional under-desk mounting kit

Enclosure Type: Metal

Enclosure Dimensions: 1.75 in H x 17.4 in W x 8.5 in D (1U high, full rack wide); 4.4 cm H x 44.2 cm W x 21.6 cm D

Product Weight: 7.0 lbs (3.2 kg)

Shipping Weight: 10 lbs (5 kg)

Vibration: ISTA 1A in carton (International Safe Transit Association)

Maximum Resolution: UXGA (1600 x 1200)

Safety: CE, c-UL, UL

EMI/EMC: CE, C-tick, FCC Class A, ICES, VCCI

Product Warranty: 3 years parts and labor

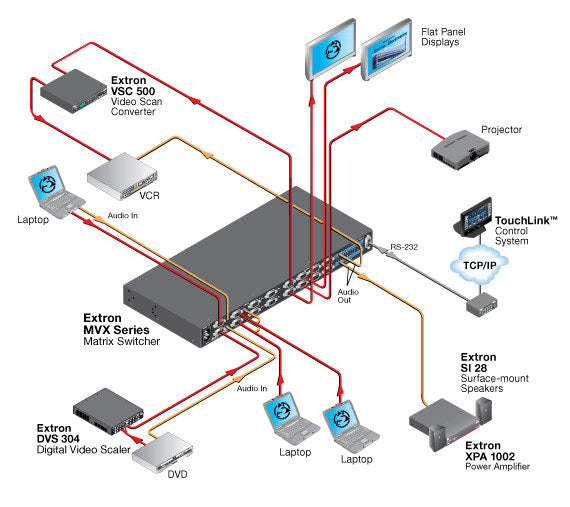

Diagram

Resources

Brochure | MVX 44 VGA A 60-635-21 | MVX Series

Brochure | MVX 44 VGA A 60-635-21 | Everlast Power Supplies

Brochure | MVX 44 VGA A 60-635-21 | Gamme MVX

Brochure | MVX 44 VGA A 60-635-21 | Serie MVX (MVXSeries_ES.pdf)

Brochure | MVX 44 VGA A 60-635-21 | Serie MVX (MVXseries_IT.pdf)

Brochure | MVX 44 VGA A 60-635-21 | Alimentatori Everlast

Brochure | MVX 44 VGA A 60-635-21 | Everlast 电源

Brochure | MVX 44 VGA A 60-635-21 | Everlast-Netzteile

Brochure | MVX 44 VGA A 60-635-21 | Fuentes de alimentación Everlast

Brochure | MVX 44 VGA A 60-635-21 | MVX 44 VGA A - Bid Sheet

Brochure | MVX 44 VGA A 60-635-21 | Sources d'alimentation Everlast

Manual | MVX 44 VGA A 60-635-21 | Audio Connector Wiring Instruction Card

Manual | MVX 44 VGA A 60-635-21 | BNC to 15-Pin HD Wiring Guide

Manual | MVX 44 VGA A 60-635-21 | Cleaning Instruction Card

Manual | MVX 44 VGA A 60-635-21 | IR 501 User's Guide

Manual | MVX 44 VGA A 60-635-21 | MVX 44 / 48 / 84 / 88 Series Setup Guide

Manual | MVX 44 VGA A 60-635-21 | MVX 44 / 48 / 84 / 88 Series User Guide

Specifications | MVX 44 VGA A 60-635-21 | MVX VGA A Series

Panel Drawing | MVX 44 VGA A 60-635-21 | MVX 44 VGA A

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Details

Key Capabilities

Where It Is Used

Specifications at a Glance

Frequently asked questions about the Extron MVX 44 VGA A 4x4 VGA & Audio Matrix Switcher

Does Ampronix sell the Extron MVX 44 VGA A 4x4 VGA & Audio Matrix Switcher?

Does Ampronix offer replacement and exchange for the Extron MVX 44 VGA A 4x4 VGA & Audio Matrix Switcher?

What are the key features of the Extron MVX 44 VGA A 4x4 VGA & Audio Matrix Switcher?

Specifications

Diagram

Resources

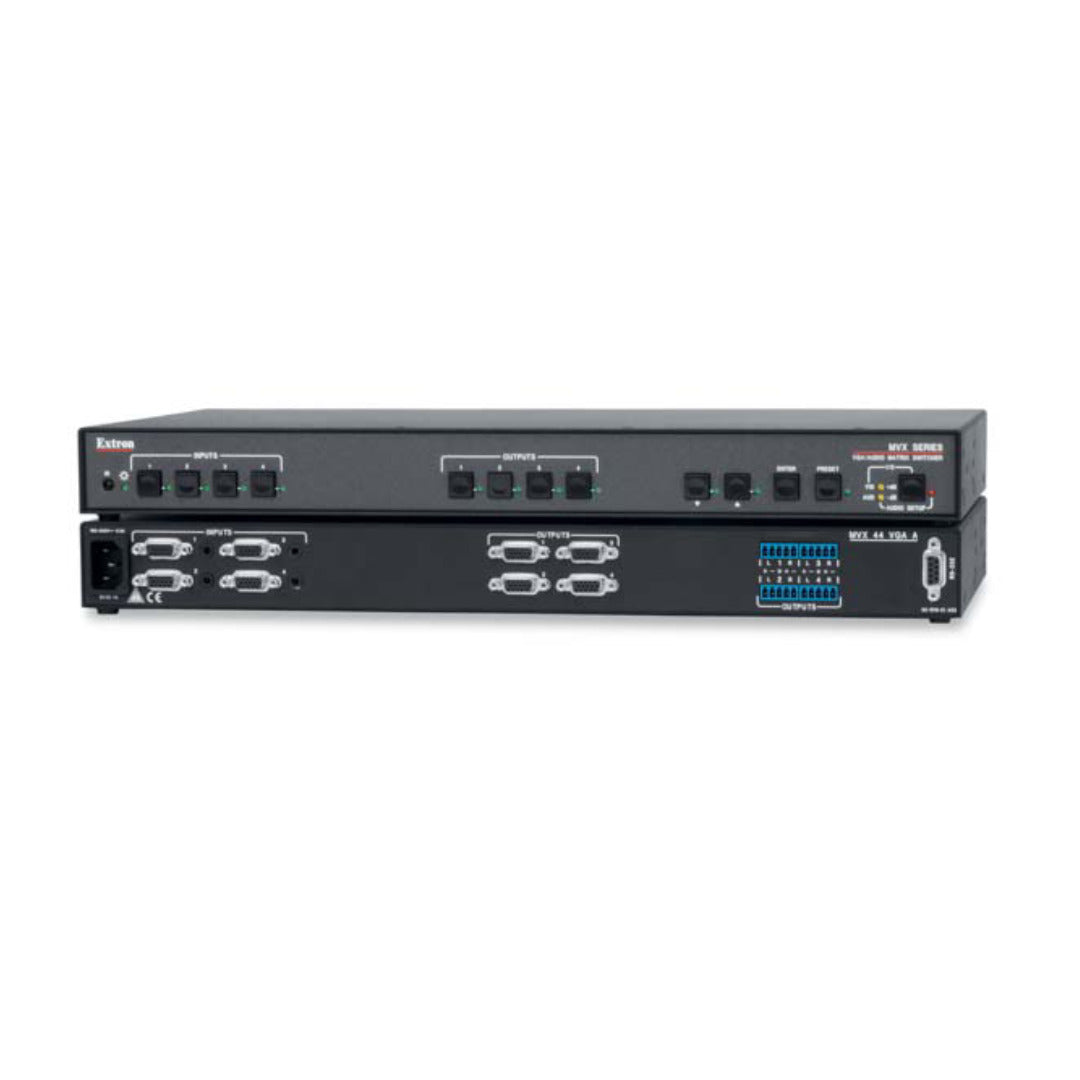

Extron MVX 44 VGA A 4x4 VGA & Audio Matrix Switcher 60-635-21
