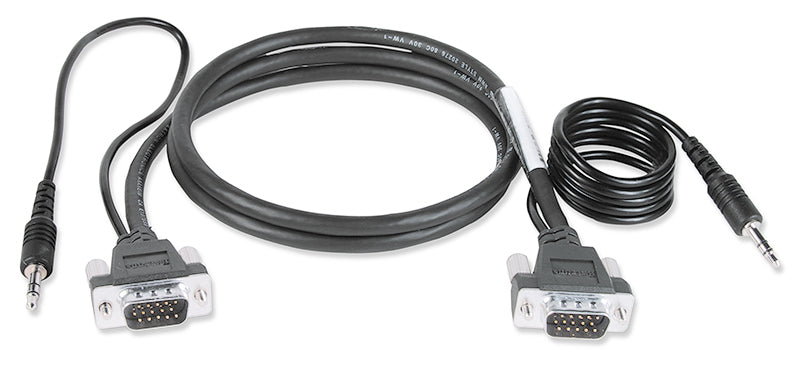

Extron MVGA-A M-M/25 Micro VGA and Audio Cable
- • Extron MVGA-A M-M/25 micro VGA and audio cable 25 ft
- • 3.5 mm audio tails of 24 in and 8 in
- • Pin 9 passed end to end for ID bits and +5 VDC
- • Sales, replacement and exchange
- • Part# 26-566-04 / 2656604
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron MVGA-A M-M/25 (part number 26-566-04) - at 25 ft (7.6 m) this is the longest VGA-plus-audio assembly in the MVGA-A M-M range.
Long analogue runs are where cheap cable shows its limitations: the jacket stiffens, the audio tail is never the right length, and interference finds its way in. Extron addresses each point. The micro VGA construction stays thin and flexible over twenty-five feet, the 3.5 mm audio path is built into the same assembly with a 24 inch tail at one end and an 8 inch tail at the other, and an overall foil shield under the injection moulding plus grounded VGA shells handle EMI and ESD respectively.
Key Capabilities
- 25 ft (7.6 m): the longest VGA and audio length in the range
- 3.5 mm mini plugs on 24 in and 8 in audio tails
- Pin 9 carried across all 25 feet for ID bits and +5 VDC
- Grounded VGA shells for ESD protection
- Overall foil shield for EMI isolation
- AWM 20276 rated; certified for AVEdge, Cable Cubby and HSA enclosures
Where It Is Used
Room-to-equipment-closet links, auditorium lectern feeds, and multi-purpose spaces where the VGA and audio source position is a long way from the switcher, but the installation still has to look tidy inside the furniture.
Specifications at a Glance
- Cable length: 25 ft (7.6 m)
- Connectors: moulded 15-pin HD male plus 3.5 mm audio per end
- Signals: computer video, ID bits and analogue audio
- Rating: AWM 20276
Also referenced as Extron MVGA-AM-M/25, MVGA-A-M-M-25, part number 2656604.
Frequently asked questions about the Extron MVGA-A M-M/25 Micro VGA & Audio Cable 25 ft
Does Ampronix sell the Extron MVGA-A M-M/25 Micro VGA & Audio Cable 25 ft?
Yes. Ampronix is an authorized Extron distributor and sells the Extron MVGA-A M-M/25 Micro VGA & Audio Cable 25 ft (26-566-04). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron MVGA-A M-M/25 Micro VGA & Audio Cable 25 ft?
Yes. Ampronix provides sales, replacement and exchange for the Extron MVGA-A M-M/25 Micro VGA & Audio Cable 25 ft. Call Ampronix for a quote.
What are the key features of the Extron MVGA-A M-M/25 Micro VGA & Audio Cable 25 ft?
Key points: 25 ft (7.6 m): the longest VGA and audio length in the range; 3.5 mm mini plugs on 24 in and 8 in audio tails; Pin 9 carried across all 25 feet for ID bits and +5 VDC; Grounded VGA shells for ESD protection. Call Ampronix to confirm details for your application.
