The Extron MPO MM 100m (part 26-737-100) is a 100-meter multimode fiber optic expansion link cable used to extend the Extron HyperLane bus between Quantum Ultra and Quantum Ultra II videowall processors. It is built with an MPO (multi-fiber push-on) connector for fast, reliable installation in rack and control rooms where processors are separated by longer distances.

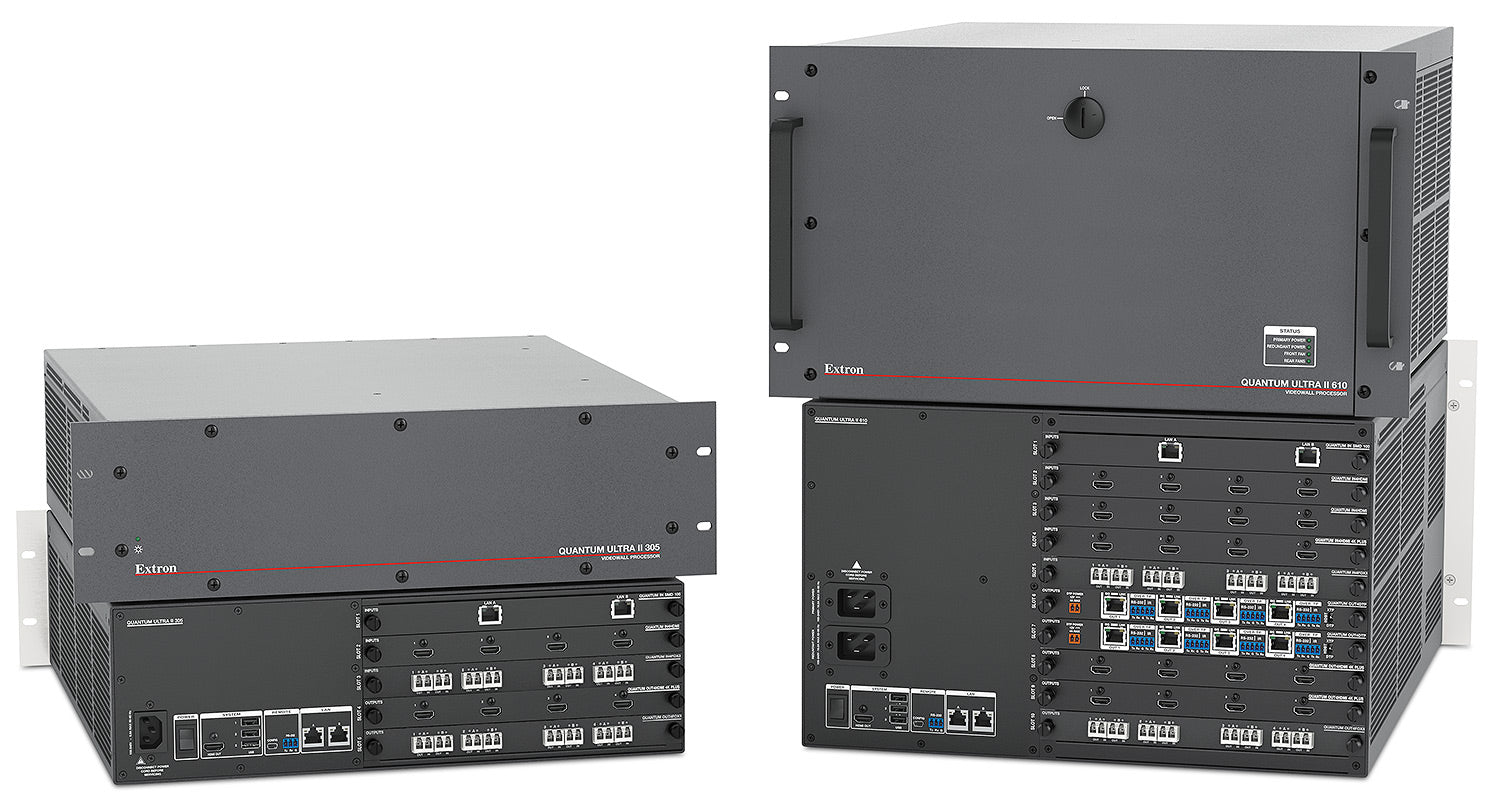

When a single Quantum Ultra chassis cannot support enough card slots for a large videowall or matrix project, integrators link multiple processors together to form one shared, expanded system. Each processor-to-processor link requires a Quantum Expansion OUT card in one chassis, a Quantum Expansion IN card in the paired chassis, and three fiber optic cables running between them. This MPO MM 100m cable is one of the three multimode links used in that connection, and it is sized for equipment rooms or venues where the processors sit up to 100 meters apart.

Key Capabilities

• Extends the HyperLane bus between paired Quantum Ultra or Quantum Ultra II processors over multimode fiber
• MPO connector for a compact, high-density fiber connection
• 100-meter reach, suited to processors separated across a facility or between equipment rooms
• One of three fiber cables required to complete a single Expansion IN/OUT card link
• Supports systems that link up to five processors using four pairs of expansion cards

Where It Is Used

This cable is used in control rooms, broadcast facilities, command and control centers, and large-venue installations where a videowall or routing system has outgrown a single Quantum Ultra chassis. Integrators expanding an existing Quantum Ultra deployment, or designing a multi-processor system from the outset, use the MPO MM 100m alongside matching Quantum Expansion IN and Quantum Expansion OUT cards to combine chassis into one common bus.

Specifications at a Glance

• Connector: MPO (multi-fiber push-on)
• Fiber type: Multimode
• Length: 100 meters (328 feet)
• Application: HyperLane expansion link between Quantum Ultra / Quantum Ultra II processors
• Cables per link: 3 (paired with a matching Expansion OUT and Expansion IN card)

Also referenced as Extron MPO MM 100m, ExtronMPOMM100m, and part number 26737100.
