Extron MPA 601-70V Mono 70V Power Amplifier 60-1449-01
Extron MPA 601-70V Mono 70V Power Amplifier 60-1449-01
Extron MPA 601-70V 60-1449-01 Mono 70V Power Amplifier
- • Extron MPA 601-70V mono 70V power amplifier
- • 60 W rms into a 70 V line, Class D
- • Switchable 80 Hz high-pass filter, 3 mono inputs
- • Sales, replacement and exchange
- • Part# 60-1449-01 / 60144901
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Part number 60-1449-01 - Mono Mini Power Amplifier, 60 W into 70 V

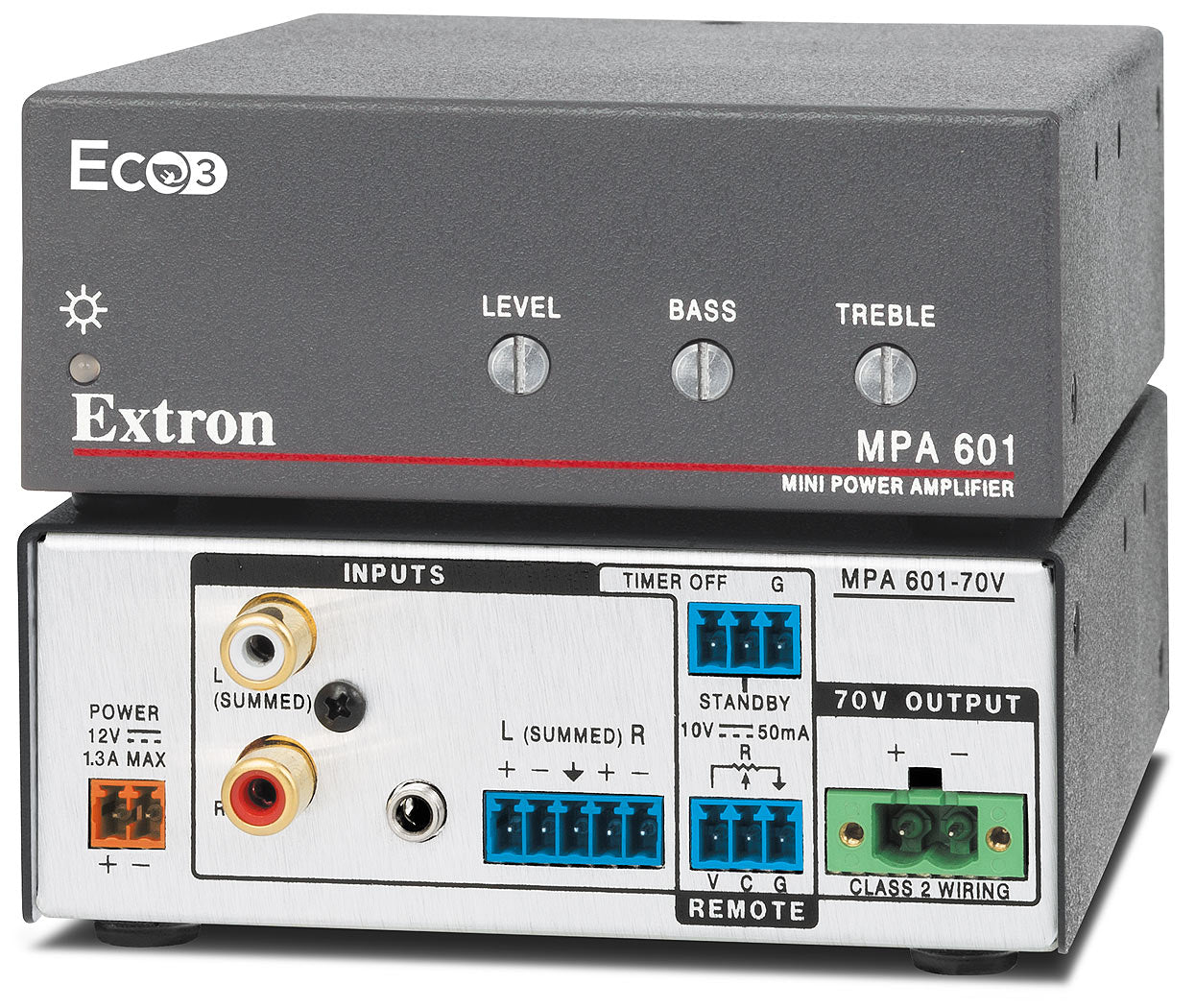

The MPA 601-70V is a single-channel Class D amplifier delivering 60 watts rms into a 70 V constant-voltage line (83 ohms minimum load), built into a quarter-rack 1U metal enclosure 6.0 in deep. Inputs include one balanced/unbalanced 3.5 mm captive screw connector, one 3.5 mm mini jack, and an RCA pair, individually buffered and mixed together with stereo signals summed to mono - well suited to distributed background music and paging over 70 V speaker lines in small to mid-size spaces.
A switchable 80 Hz, 12 dB/octave high-pass filter, bass/treble tone controls, and DC volume/mute control support flexible integration. The amplifier mounts in a rack (optional 1U shelf or back-of-rack kit), under a desk, or on a pole, runs from an external 12 VDC, 4.2 A supply, and carries a 3-year product warranty plus Extron's 7-year Everlast power supply warranty.
Model: 60-1449-01 / 60144901
Frequently asked questions about the Extron MPA 601-70V Mono 70V Power Amplifier
Does Ampronix sell the Extron MPA 601-70V Mono 70V Power Amplifier?
Yes. Ampronix is an authorized Extron distributor and sells the Extron MPA 601-70V Mono 70V Power Amplifier (60-1449-01). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron MPA 601-70V Mono 70V Power Amplifier?
Yes. Ampronix provides sales, replacement and exchange for the Extron MPA 601-70V Mono 70V Power Amplifier. Call Ampronix for a quote.
What does the Extron MPA 601-70V Mono 70V Power Amplifier do?
Key details: The MPA 601-70V is a single-channel Class D amplifier delivering 60 watts rms into a 70 V constant-voltage line (83 ohms minimum load), built into a quarter-rack 1U metal enclosure 6.0 in deep. Call Ampronix to confirm it fits your installation.
What is the part number for the Extron MPA 601-70V Mono 70V Power Amplifier?
The part number is 60-1449-01. Quote 60-1449-01 when you contact Ampronix to order.
Will the Extron MPA 601-70V Mono 70V Power Amplifier work with my existing system?
Compatibility depends on your inputs, outputs and control setup. Send Ampronix your system details and the team will confirm the Extron MPA 601-70V Mono 70V Power Amplifier is the right fit before you order.
How do I get a quote or lead time for the Extron MPA 601-70V Mono 70V Power Amplifier?
Call Ampronix with the model (60-1449-01) and quantity. Ampronix is an authorized Extron distributor and will quote pricing and availability.
Related: Extron products, Video Solutions.
Specifications
Specifications

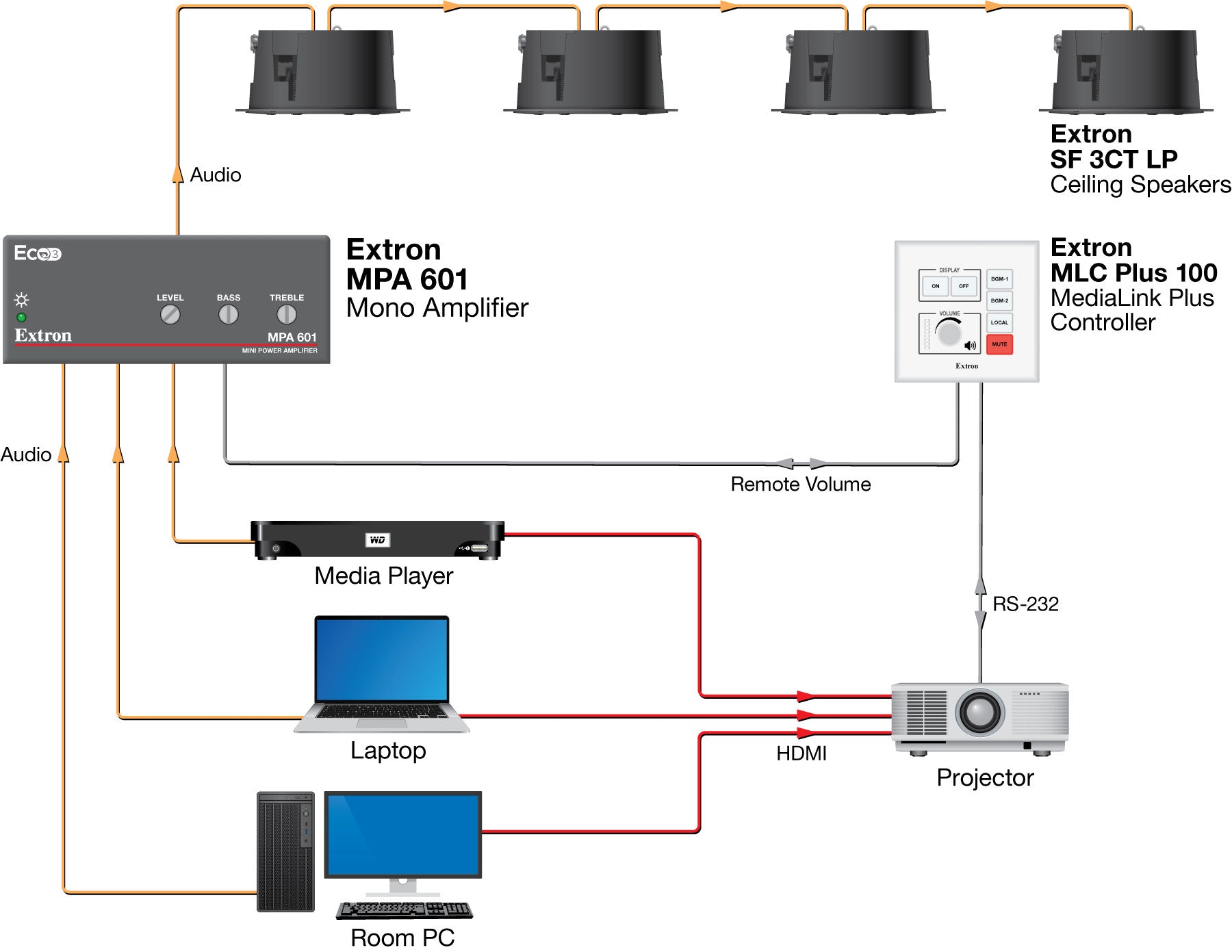

Diagram
Diagram
Resources
Resources
