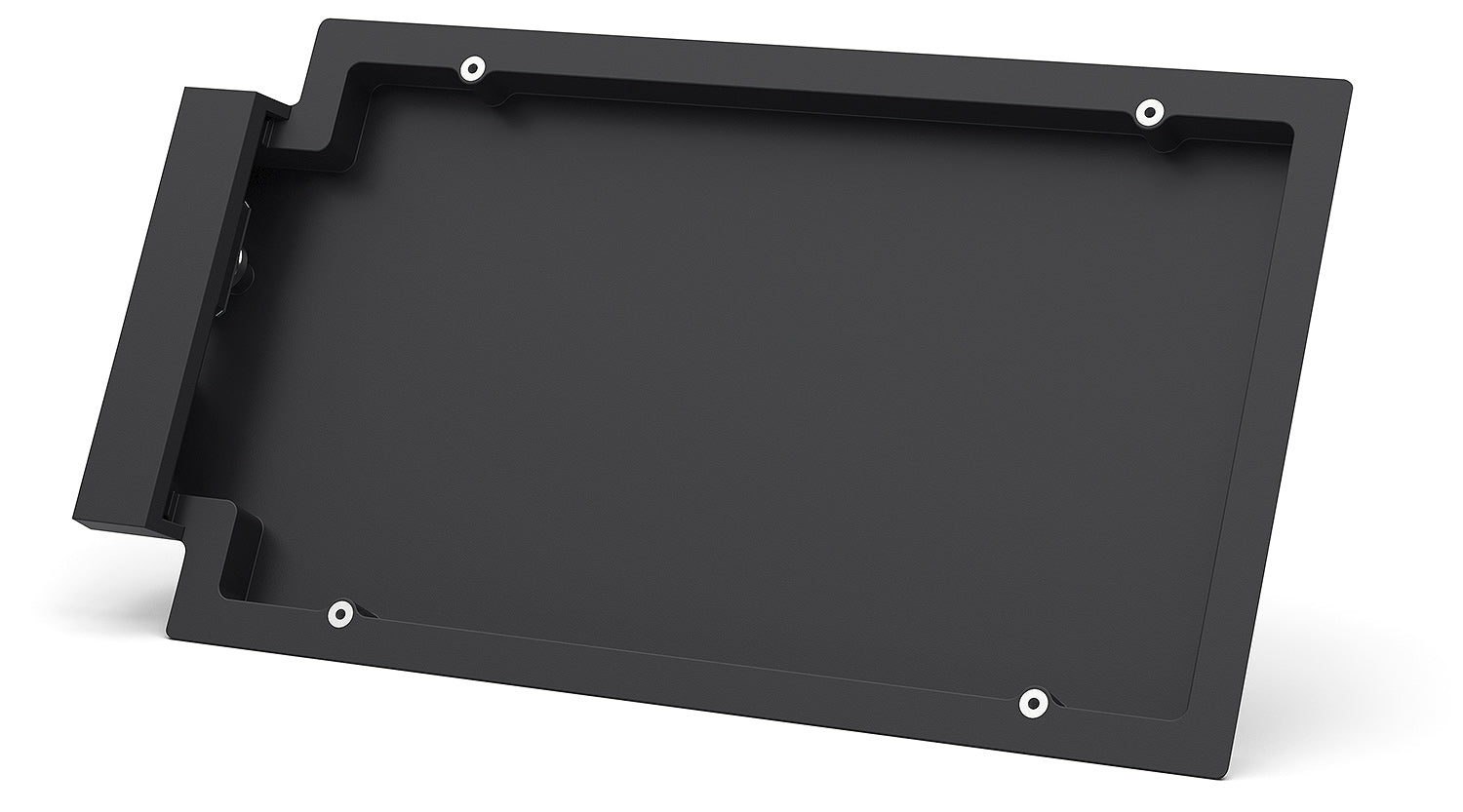

Extron MMK 6 (part number 70-1333-32) — black mullion mount kit for the Extron TLS 1035M 10.1 in wall mount TouchLink scheduling panel.

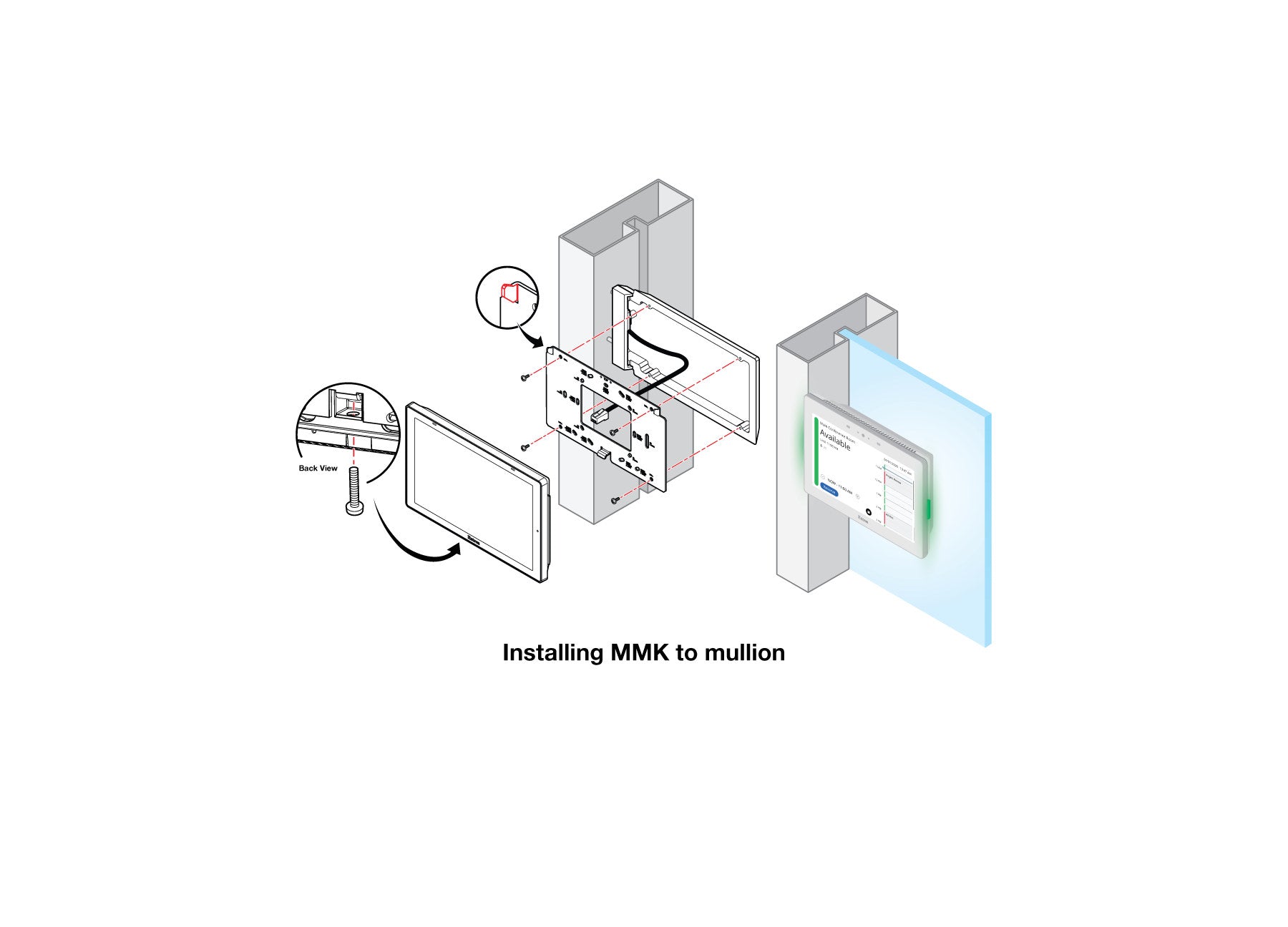

The MMK 6 is the large-panel member of Extron's current mullion mount family. At 9.71 inches wide it carries the TLS 1035M on the vertical frame beside a door, and at 0.83 inches deep it stays flat enough that the finished installation reads as part of the frame. The panel can be lifted off later for servicing without unfastening or dismantling the mount, which matters on estates where panels are swapped rather than repaired in place.

Key Capabilities

• Made for the Extron TLS 1035M 10.1 in wall mount TouchLink scheduling panel.
• Metal enclosure measuring 5.37 in H x 9.71 in W x 0.83 in D (136 x 246 x 21 mm), 0.70 lbs.
• End users can detach the panel for service without removing the mounting accessory.
• Low-profile ADA-compliant design projecting less than 4 inches from the mullion frame.
• Presents a clean, inconspicuous appearance from inside the room.
• Optional MMK 5/6 Angle Brackets (70-1371-22, 70-1371-28) provide an upward display tilt.

Where It Is Used

Corporate campuses and hospital or university estates rolling out large scheduling displays on glazed meeting rooms. The wider panel is easier to read from down a corridor, which is why it tends to appear on high-traffic floors and shared bookable spaces.

Specifications at a Glance

• Compatible panel: TLS 1035M
• Enclosure: metal, 5.37 in H x 9.71 in W x 0.83 in D
• Product weight: 0.70 lbs (0.32 kg)
• Shipping carton: 9.0 in x 12.0 in x 1.0 in, 0.78 lbs
• Compliance: RoHS and WEEE; 3 years parts and labor

Also referenced as Extron MMK6, MMK-6, part number 70133332.
