Details

Manufacturer: Extron | Model: MLS 100 A | Part number: 60-497-01 (also written 6049701)

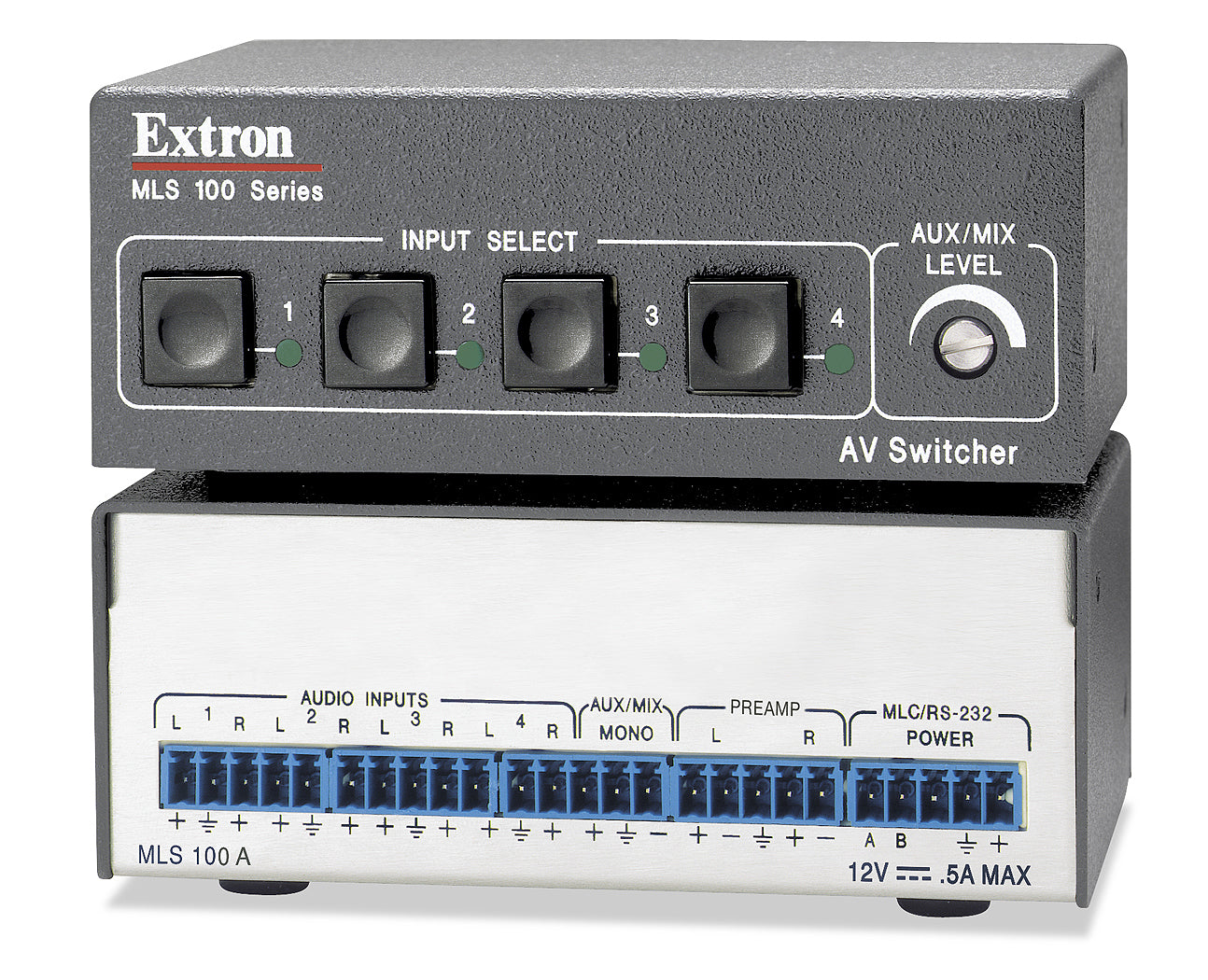

The Extron MLS 100 A (60-497-01) is a compact four-input unbalanced stereo audio switcher with an auxiliary mono mix capability. Integrators select among four unbalanced stereo line inputs via front panel or RS-232 while mixing an additional mono source at a variable level. It mounts in a 1U quarter-rack metal enclosure and is suited to small AV systems that need audio source selection alongside mono insert mixing without a full audio DSP.

Key capabilities

Four unbalanced stereo line inputs with front-panel and RS-232 source selection
Auxiliary mono mix input with adjustable level, front-panel accessible only
Aux mix range: -43 dB to +24 dB relative to the selected stereo input
Compatible with Extron MediaLink and IP Link control systems
Included external Everlast power supply, 7-year warranty

Where it is used

Small conference rooms, classrooms, and AV racks where two to four audio sources need switching and an additional mono signal (such as a mic or program source) needs to be mixed in at variable level without a dedicated DSP.

Specifications at a glance

Enclosure: 1.7 in H x 4.3 in W x 3.0 in D, 1U quarter-rack
Inputs: 4 unbalanced stereo + 1 auxiliary mono
Control: front panel and RS-232
Warranty: 3-year product, 7-year Everlast power supply

Also referenced as Extron MLS100A, MLS-100-A, part number 6049701.

Specifications

Part Number: 60-497-01

Manufacturer: Extron

Condition: New

Height: 3.0" (7.6 cm)

Ambient temperature/humidity: Storage -40° to +158°F (-40° to +70°C) / 10% to 90%, noncondensingOperating +32° to +122°F (0° to +50°C) / 10% to 90%, noncondensing

Aux/Mix level adjustment: -43 dB to +24 dB (adjustable only via front panel)

Baud rate and protocol: 9600 baud, 8 data bits, 1 stop bit, no parity

CMRR: >75 dB @ 20 Hz to 20 kHz

Connectors: (5) 3.5 mm captive screw connectors, 3 pole

Cooling: Convection, no vents

Crosstalk: <-65 dB @ 20 Hz to 20 kHz, <-80 dB @ 1 kHz and below 60 Hz, fully loaded

Enclosure dimensions: 1.7" H x 4.3" W x 3.0" D (1U high, quarter rack wide)(42 mm H x 110 mm W x 76 mm D)(Depth excludes connectors and buttons.)

Enclosure type: Metal

Everlast power supply warranty: 7 years parts and labor

Frequency response: 20 Hz to 20 kHz, ±0.5 dB

Furniture mount: Yes, with optional mini under-desk mounting kit

Gain: Unbalanced output: -6 dB; balanced output: 0 dB (unity)

Gain error: ±0.1 dB channel to channel

Impedance: >10k ohms unbalanced, >20k ohms balanced, DC coupled

Input gain adjustment: –18 dB to +24 dB, adjustable per input (via RS-232/control software)

Maximum level: +14 dBu, (balanced or unbalanced) at stated %THD+N

Maximum level (600 ohm): >+15 dBm, balanced or unbalanced at 1% THD+N

Maximum level (Hi-Z): >+21 dBu, balanced or unbalanced at 1% THD+N

Nominal level: -20 dBV (100 mV), -10 dBV (316 mV), 0dBu (0.775 V), or +4 dBu (1.23 V); (configurable)

Number/signal type: 4 stereo/mono, unbalanced (switchable)1 mono, balanced/unbalanced aux-mix (always active, non-switchable)

Pole mount: Yes, with optional mini pole mounting kit

Power: Supplied by an optional MediaLink Controller (MLC) or an external power supply

Power input requirements: 12 VDC, 0.4 A

Power supply: External, includedInput: 100-240 VAC, 50-60 HzOutput: 12 VDC, 0.5 A, 6 watts

Product warranty: 3 years parts and labor

Product weight: 0.7 lbs (0.3 kg)

Program control: Extron control/configuration program for Windows®Extron Simple Instruction Set (SIS™)

Rack mount: Yes, with optional 1U rack shelf

Regulatory compliance: CE, C-Tick, c-UL, FCC Class A, ICES, UL, VCCI

S/N: >90 dB @ 20 Hz to 20 kHz

Serial control pin configuration: A = Tx, B = Rx, D = Gnd

Serial control port: RS-232, 3.5 mm, 5 pole captive screw connector

Stereo channel separation: >72 dB @ 20 Hz to 20 kHz

THD + Noise: <0.5% @ 1 kHz at nominal level

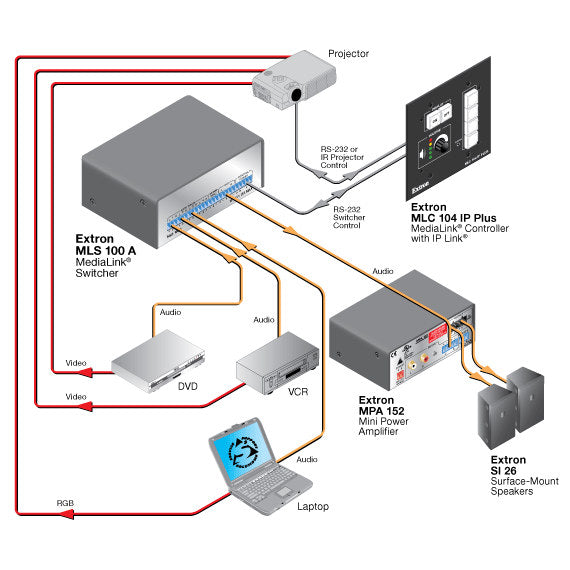

Diagram

Resources

Brochure | MLS 100 A 60-497-01 | MLS 100 A

Brochure | MLS 100 A 60-497-01 | Everlast Power Supplies

Brochure | MLS 100 A 60-497-01 | Alimentatori Everlast

Brochure | MLS 100 A 60-497-01 | Everlast 电源

Brochure | MLS 100 A 60-497-01 | Everlast-Netzteile

Brochure | MLS 100 A 60-497-01 | Fuentes de alimentación Everlast

Brochure | MLS 100 A 60-497-01 | MLS 100 A - Spec Sheet

Brochure | MLS 100 A 60-497-01 | Sources d'alimentation Everlast

Manual | MLS 100 A 60-497-01 | Cleaning Instruction Card

Manual | MLS 100 A 60-497-01 | MLS 100 A User Guide

Specifications | MLS 100 A 60-497-01 | MLS 100 A

Panel Drawing | MLS 100 A 60-497-01 | MLS 100 A
