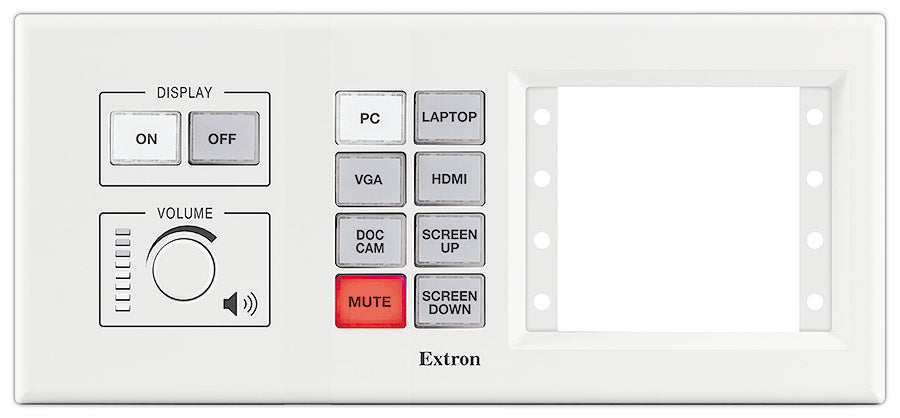

Extron MLM 200 AAP (part number 70-1194-01) — a five-gang wall mounting kit with a four single-space AAP opening for three-gang button panels and controllers.

The wider sibling of the MLM 100 AAP. Five gangs of width leave room for a three-gang class controller or button panel alongside four single-space AAP connectivity modules, all behind one continuous faceplate. Extron supplies the kit in both black and white with matching volume knobs, plus a mud ring, a plastic spacer and the metal AAP bracket. The spacer is not optional if the assembly goes straight into a wall rather than a mud ring — it sets the depth the magnetic faceplate needs to hold.

Key Capabilities

• Five-gang mounting kit with an opening for four single-space AAP modules.
• Designed for the MLC Plus 200 Controller, EBP 200 eBUS Button Panel and NBP 200 Network Button Panel.
• Installs in a wall, an Extron SMB Surface Mount Box or an EWB External Wall Box.

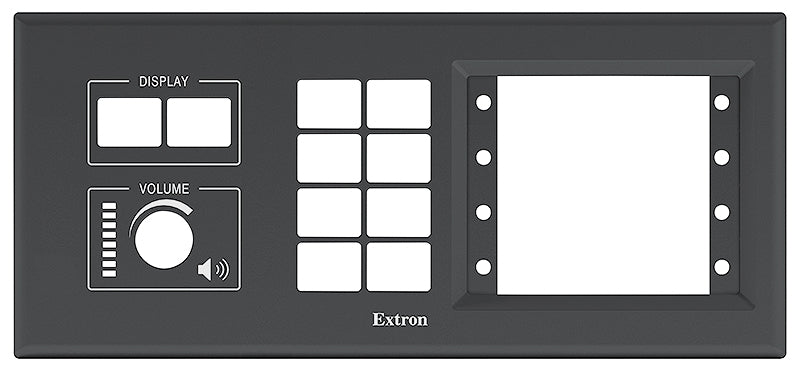

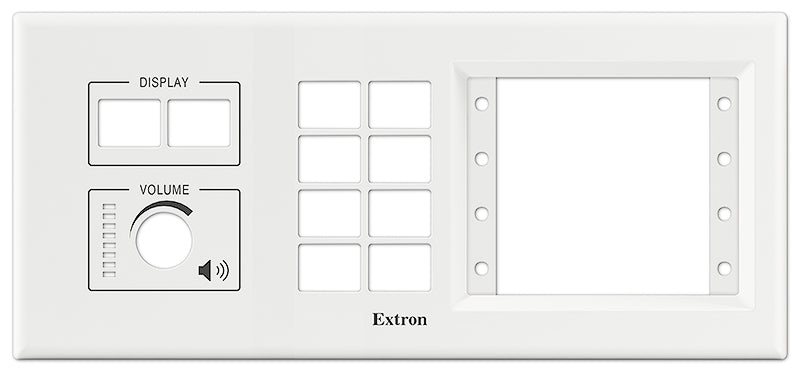

• Black and white faceplates plus matching volume knobs supplied in the box.
• Mud ring, plastic spacer and metal AAP bracket included.
• Mud ring cutout: 9.5 in W x 3.95 in H (241 mm W x 100 mm H).
• Direct mount cutout: 9.1 in W x 2.9 in H (231 mm W x 74 mm H).

Where It Is Used

Used in lecture halls, divisible conference rooms and training suites where the room control panel carries a longer source list and the wall plate must also present HDMI, VGA, audio and USB connectivity in the same finished opening.

Specifications at a Glance

• Gang size: five-gang
• AAP opening: four single-space AAP modules
• Supported devices: MLC Plus 200, EBP 200, NBP 200 (all sold separately)
• Included: black and white faceplates, volume knobs, mud ring, plastic spacer, metal AAP bracket
• Installation note: place AAP plates as close together as possible with no gaps

Also referenced as Extron MLM200AAP, MLM-200-AAP, part number 70119401.
