Extron MLM 100 AAP (part number 70-1193-01) — a four-gang wall mounting kit with an opening for up to four single-space AAP AV Connectivity Modules.

Putting a controller and a connectivity plate in the same wall opening usually means a bracket, a trim ring and a colour-matching exercise. This kit ships all of it: black and white faceplates, matching volume knobs, a mud ring, a plastic spacer and a metal AAP bracket. The faceplate is magnetic, which is why the spacer matters — Extron requires it whenever the unit is not installed in a mud ring so the plate seats correctly. AAP plates should be fitted tight against each other in the bracket with no gaps.

Key Capabilities

• Four-gang mounting kit with an opening for up to four single-space AAP modules.
• Designed for the MLC Plus 100 MediaLink Plus Controller, EBP 100 eBUS Button Panel and NBP 100 Network Button Panel.
• Fits a wall, an Extron four-gang SMB Surface Mount Box or an EWB External Wall Box.

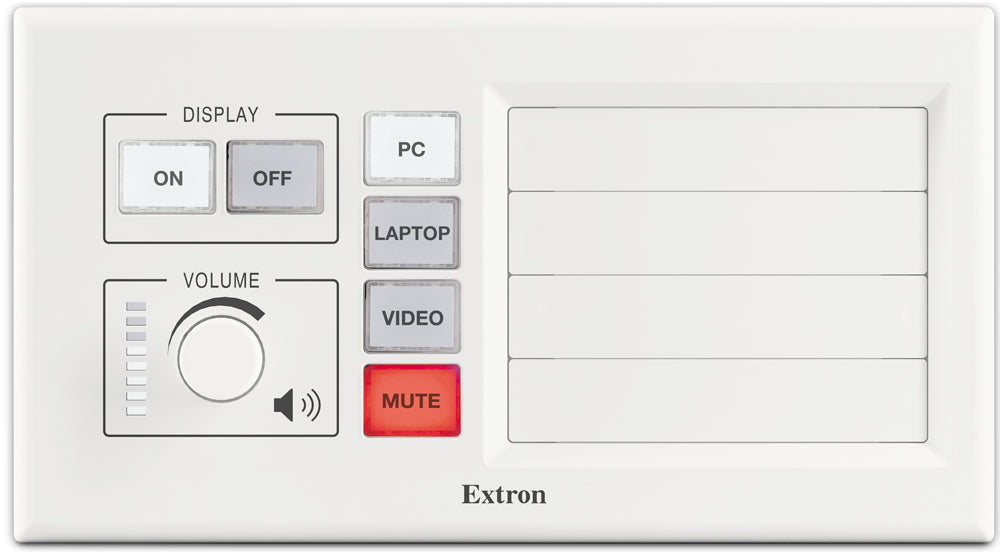

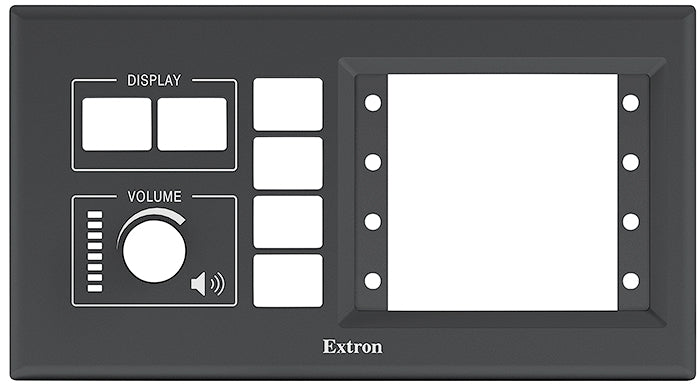

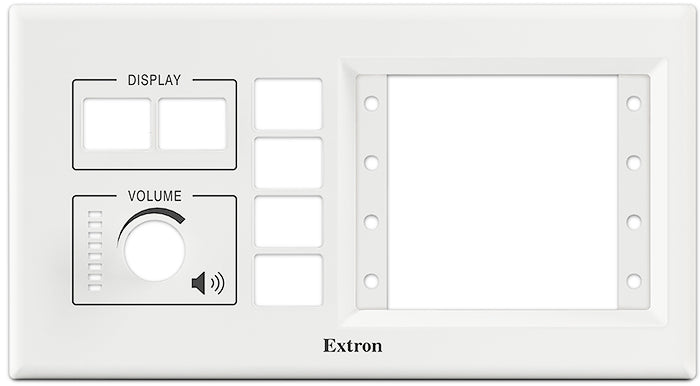

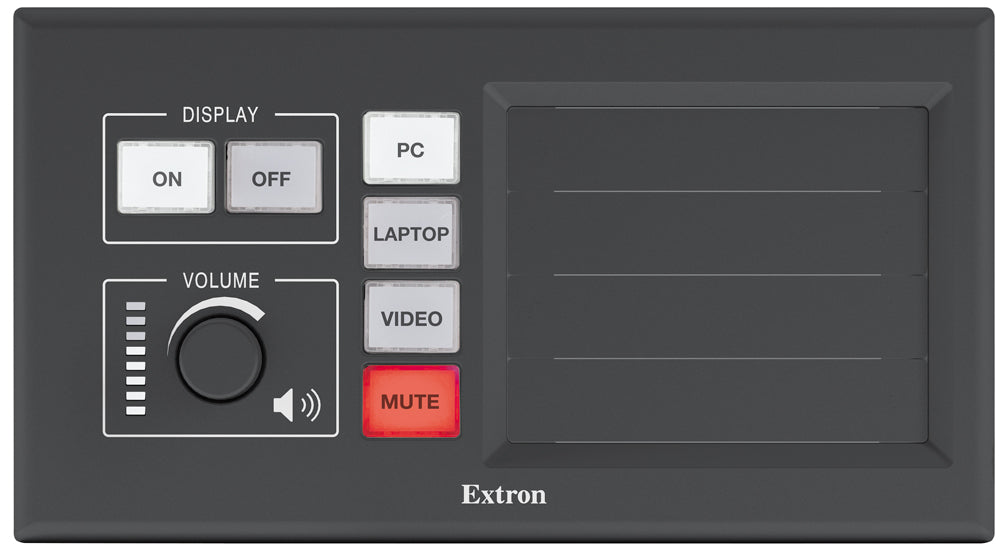

• Ships with both black and white faceplates and matching volume knobs.
• Includes a mud ring, plastic spacer and metal AAP bracket.
• Mud ring cutout: 7.6 in W x 3.75 in H (193 mm W x 95 mm H).
• Direct mount cutout: 7.3 in W x 2.9 in H (185 mm W x 74 mm H).

Where It Is Used

Specified during classroom, boardroom and training-room fit-outs where a wall position needs both a control panel and a run of AAP connectivity plates finished to match the surrounding decor, in either a light or a dark scheme, from a single stocked part.

Specifications at a Glance

• Gang size: four-gang
• AAP opening: four single-space AAP modules
• Supported devices: MLC Plus 100, EBP 100, NBP 100 (all sold separately)
• Included: black and white faceplates, volume knobs, mud ring, plastic spacer, metal AAP bracket
• Manufacturer: Extron

Also referenced as Extron MLM100AAP, MLM-100-AAP, part number 70119301.
