Extron MLC IR/RS-232 P/50 26-708-50
Extron MLC IR/RS-232 P/50 26-708-50
Extron MLC IR/RS-232 P/50 Comm Cable 26-708-50
- • 50 ft Plenum-Rated Projector Control Cable
- • Ready-Made Assembly, No Field Soldering
- • Single Cable for IR and RS-232 Control
- • Works with Extron MediaLink and IP Link Controllers
- • New from an Authorized Extron Distributor
- • Part# 26-708-50 / 2670850 with Sales, Service and Repair
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Manufacturer: Extron | Model: MLC IR/RS-232 P/50 | Part number: 26-708-50 (also written 2670850)

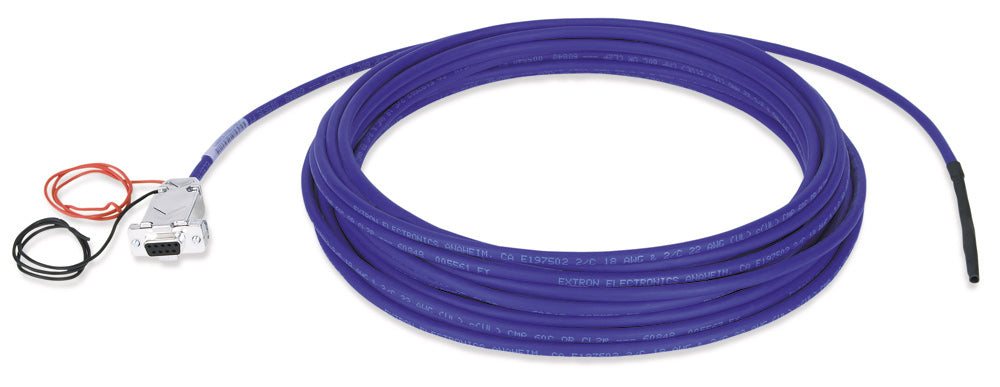

The Extron MLC IR/RS-232 P/50 (part number 26-708-50, also written 2670850) is a 50 ft (15.2 m) plenum-rated communication cable that carries both IR and RS-232 control commands from an Extron control processor to a projector or display. It is a ready-made assembly, so integrators do not have to cut, strip, and terminate multiple conductors in the field. This Extron MLC IR/RS-232 P/50 is available New from Ampronix.
Key capabilities
- 50 ft (15.2 m) communication cable, Extron part number 26-708-50 (2670850)
- Carries RS-232 serial control and IR emitter control in one cable
- 9-pin D female connector on the display end for RS-232, with a separate IR pigtail for an IR emitter
- Unterminated shielded twisted pairs with drain wire on the control end for captive screw terminals
- Plenum-rated jacket for installation in air-handling spaces
Where it is used
The Extron MLC IR/RS-232 P/50 is used in conference rooms, classrooms, lecture halls, boardrooms, and training rooms where an Extron MediaLink or IP Link controller must control a ceiling or table mounted projector or a display over RS-232 or IR from a rack or lectern position up to 50 ft away.
Specifications at a glance
- Manufacturer: Extron | Model: MLC IR/RS-232 P/50 | Part number: 26-708-50 (2670850)
- Cable length: 50 ft (15.2 m)
- Cable type: Communication cable, plenum rated
- Display end: 9-pin D female (RS-232) plus IR emitter pigtail
- Control end: unterminated shielded twisted pairs with drain wire for captive screw connector
Frequently asked questions
- Is the Extron MLC IR/RS-232 P/50 26-708-50 available new? - Yes. Ampronix supplies the Extron MLC IR/RS-232 P/50, part number 26-708-50 (2670850), as a New product. Contact Ampronix to confirm current availability.
- What is the difference between the MLC IR/RS-232 P/50 and a standard non-plenum MLC IR/RS-232 cable? - The P/50 is the 50 ft plenum-rated version, intended for installs that require plenum cabling.
- Does Ampronix support Extron control cables? - Yes. Ampronix offers sales, service, repair, and exchange replacement for Extron products.
Ampronix is an authorized Extron distributor and carries a full range of Extron control cable products and accessories.
Also referenced as: ExtronMLCIRRS232P50, MLC-IR-RS232-P-50, MLC IR/RS232 P/50, part number 2670850, REF 26-708-50.
