Details

Manufacturer: Extron; Model: MLC 62 RS EU (Black); Part number: 60-1005-32 (also written 60100532)

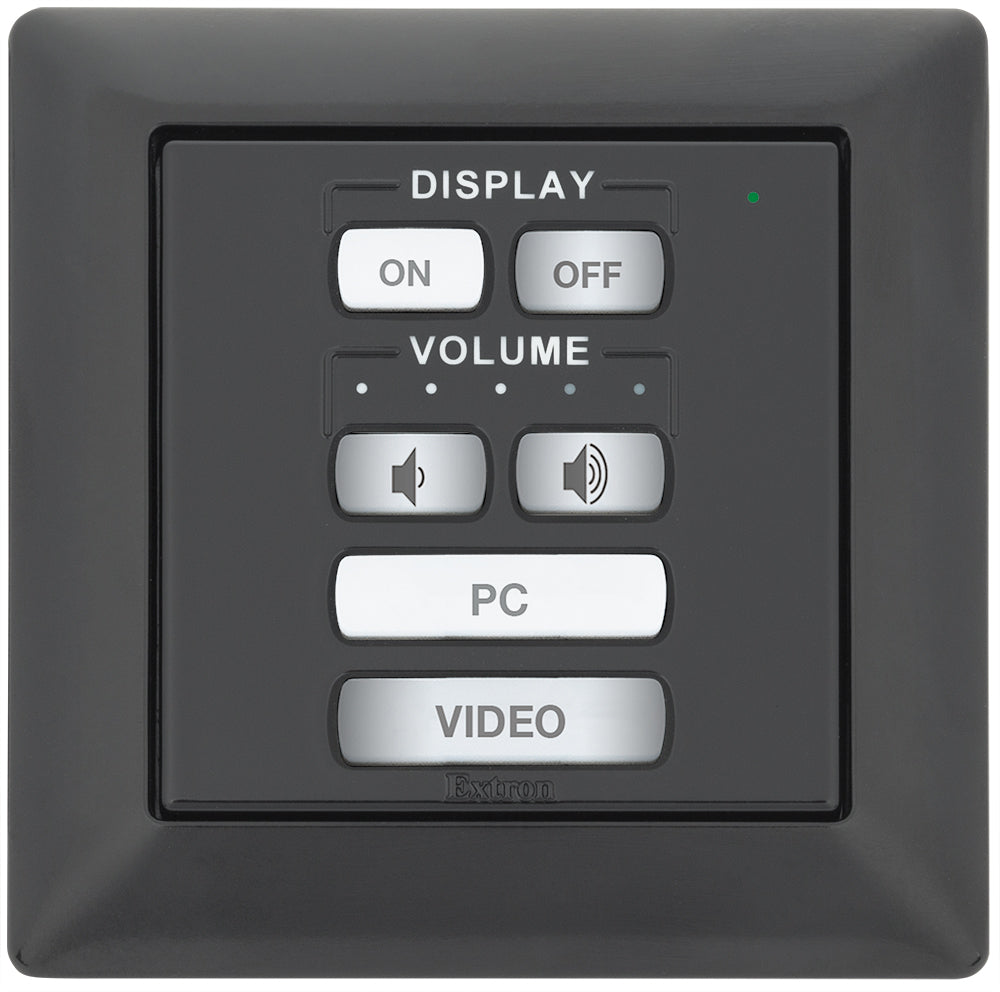

The Extron MLC 62 RS EU Black (60-1005-32) is a new 8-button backlit keypad available through Ampronix for single-display RS-232 and IR control. Two software-configurable relays and one digital input enable room monitoring and lighting or screen triggering without a separate control processor. Mounts in a standard 1-gang EU electrical junction box with 60 mm mounting centers; adapter frame included. Configured over USB with Extron's MLC 62 Series software. Draws 2.1 W, 12 VDC.

Key capabilities

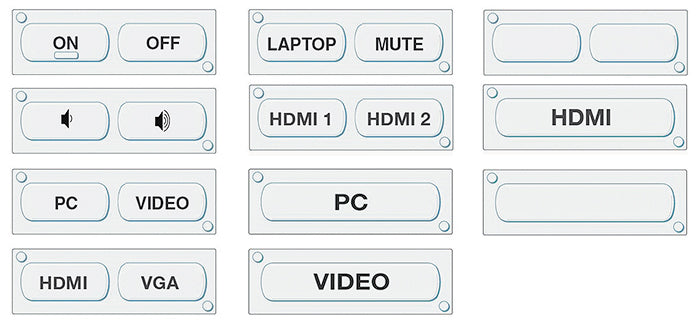

Unidirectional RS-232 and IR display control from eight backlit, relabelable buttons
Two software-configurable relays (24 V, 1 A) plus one digital input for room monitoring
Mounts in standard 1-gang EU junction box with 60 mm mounting centers
Adapter frame included; sized for Jung AS 500 or similar 55 mm x 55 mm frame systems
Draws 2.1 W, 12 VDC; configured via USB with MLC 62 Series software

Where it is used

Single-display classrooms, huddle rooms, and conference rooms needing simple power, source, and volume control without a full control processor.

Specifications at a glance

Buttons: 8 backlit, relabelable; power: 2.1 W, 12 VDC
Wall frame: 3.17 in H x 3.17 in W x 0.40 in D (81 mm H x 81 mm W x 10 mm D); black finish
Warranty: 3-year Extron parts and labor

Frequently asked questions about the Extron MLC 62 RS EU Black RS-232/IR Keypad Controller

Is the Extron MLC 62 RS EU Black 60-1005-32 available new or refurbished?

Ampronix stocks the MLC 62 RS EU Black (60-1005-32) as a new unit through its authorized Extron distribution agreement.

What is the difference between the black 60-1005-32 and the white 60-1005-35?

Both are identical in function; the 60-1005-32 ships with a black finish wall frame and the 60-1005-35 ships with a white finish frame.

Does Ampronix offer replacement and exchange for the Extron MLC 62 RS EU?

Yes. Ampronix provides sales, replacement and exchange for the MLC 62 RS EU and the broader Extron MLC control keypad line.

Ampronix is an authorized Extron distributor. Need a replacement or exchange for your Extron MLC 62 RS EU? Ampronix provides sales, replacement and exchange for this product and the broader Extron control line.

Also referenced as Extron MLC62RSEU, MLC-62-RS-EU, part number 60100532.

Specifications

Part Number: 60-1005-32

Manufacturer: Extron

Model: MLC 62 RS EU (Black)

Condition: New

Serial control port: 1 bidirectional RS-232 on a 3.5 mm captive screw connector, 3 pole

Baud rate and protocol: 9600 baud, 8 data bits, 1 stop bit, no parity

Serial control pin configuration: Pin 1 = Tx, pin 2 = Rx, pin 3 = Gnd

Display control port (RS-232 output): (1) 3.5 mm captive screw connector, 2 pole, unidirectional RS-232 control (±5 V)

Baud rate and protocol (RS-232 output): 9600 (default), 19200, 38400, 57600, or 115,200 baud; 8 (default) or 7 data bits; 1 stop bit; no parity (default), or even or odd parity

IR control port: (1) 3.5 mm captive screw connector, 2 pole, transmit only, TTL level (0 to 5 V) modulated infrared from 30 kHz up to 60 kHz, or ±5 V RS-232 (configurable via software; serial is the default)

IR learning distance: 4" (10 cm) to 14" (36 cm) from the receiver (on side panel)

IR learning frequencies: 30 kHz to 60 kHz

USB control port: 1 side panel female USB mini B

USB standards: USB 2.0, low speed

Relay outputs: 2 momentary or latching (configurable via software), (1) 3.5 mm captive screw connector, 3 pole, 24 V, 1 A contact rating

Digital input: 1 configurable input, (1) 3.5 mm captive screw connector, 2 pole, 0-24 VDC range, 12k ohm impedance, 2k ohm pullup to +5 VDC

Program control: Extron configuration program for Windows; Extron Simple Instruction Set (SIS)

Power supply: External. Input: 100-240 VAC, 50-60 Hz. Output: 12 VDC, 0.5 A, 6 watts

Device power consumption: 2.1 watts, 12 VDC

Device + power supply consumption: 2.5 watts, 100-240 VAC, 50-60 Hz

Thermal dissipation (device): 7.0 BTU/hr

Thermal dissipation (device + PSU): 8.4 BTU/hr

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C), 10-90% noncondensing. Operating: +32 to +122 °F (0 to +50 °C), 10-90% noncondensing

Cooling: Convection, no vents

Mounting: Mounts in a standard 1 gang EU electrical junction box with 60 mm mounting centers; an adapter frame is included

Enclosure type: Plastic

Faceplate: Fits the opening in a 1-gang EU frame, or a Jung AS 500 wallplate or other European frame accepting 55 mm x 55 mm modules

Wall frame: 3.17" H x 3.17" W x 0.40" D (81 mm H x 81 mm W x 10 mm D)

Device dimensions: 2.2" H x 2.2" W x 1.5" D (55 mm H x 55 mm W x 37 mm D)

Product weight: 1.0 lb (0.5 kg)

Regulatory compliance: CE, C-Tick, c-UL, FCC Class A, ICES, UL, VCCI Class A. Complies with the appropriate requirements of RoHS, WEEE, and Section 508 of the Rehabilitation Act (29 U.S.C. 794d).

Product warranty: 3 years parts and labor

Everlast power supply warranty: 7 years parts and labor

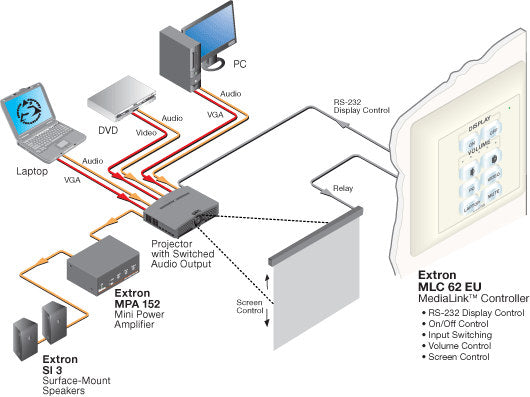

Diagram

Resources

Brochure | MLC 62 RS EU 60-1005-32 | MLC 62 RS EU (mlc62rseu-ebro_revB.pdf)

Brochure | MLC 62 RS EU 60-1005-32 | Everlast Power Supplies

Brochure | MLC 62 RS EU 60-1005-32 | MLC 62 RS EU (mlc62rseu_spRevA.pdf)

Brochure | MLC 62 RS EU 60-1005-32 | MLC 62 RS EU (mlc62rseu_geRevA.pdf)

Brochure | MLC 62 RS EU 60-1005-32 | MLC 62 RS EU (mlc62rseu_frRevA.pdf)

Brochure | MLC 62 RS EU 60-1005-32 | Alimentatori Everlast

Brochure | MLC 62 RS EU 60-1005-32 | Everlast 电源

Brochure | MLC 62 RS EU 60-1005-32 | Everlast-Netzteile

Brochure | MLC 62 RS EU 60-1005-32 | Fuentes de alimentación Everlast

Brochure | MLC 62 RS EU 60-1005-32 | Sources d'alimentation Everlast

Manual | MLC 62 RS EU 60-1005-32 | Cleaning Instruction Card

Manual | MLC 62 RS EU 60-1005-32 | MLC 60 Series User Guide

Manual | MLC 62 RS EU 60-1005-32 | MLC 62 RS EU and RS MK Setup Guide

Manual | MLC 62 RS EU 60-1005-32 | UCM 100 EU AAP Instruction Card

Specifications | MLC 62 RS EU 60-1005-32 | MLC 62 Series

Panel Drawing | MLC 62 RS EU 60-1005-32 | MLC 62 RS EU
