Extron MLC 55 RS EU Single-Display RS-232/IR Wall Controller 60-1390-33
Extron MLC 55 RS EU Single-Display RS-232/IR Wall Controller 60-1390-33
Extron MLC 55 RS EU RS-232/IR Wall Controller
- • Extron MLC 55 RS EU RS-232/IR wall controller
- • RS-232 to 115200 baud plus IR learning port
- • Fits a 2-gang EU junction box; 1.0 W at 12 VDC
- • Sales, replacement and exchange
- • Part# 60-1390-33 / 60139033
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Manufacturer: Extron; Model: MLC 55 RS EU; Part number: 60-1390-33 (also written 60139033)

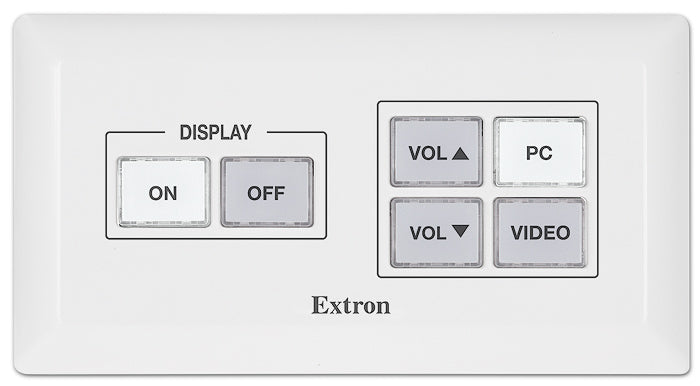

The Extron MLC 55 RS EU (60-1390-33) is a new single-display AV control keypad available through Ampronix with unidirectional RS-232 and IR outputs. Dual-color backlit buttons take custom labels. The unit mounts in a standard 2-gang EU electrical junction box and is configured over USB using Extron's MLC series software. Draws 1.0 W at 12 VDC.
Key capabilities
- Unidirectional RS-232 output at up to 115200 baud plus IR learning port (30 kHz-300 kHz)
- Dual-color backlit, relabelable buttons
- Mounts in standard 2-gang EU electrical junction box
- Configured over USB with MLC 55/62/64 series software and Extron SIS commands
- Draws 1.0 W, 12 VDC; 3.3 BTU/hr
Where it is used
Single-display conference rooms, classrooms, boardrooms, and lecture halls where a wall or lectern keypad needs to fire power, source, and volume commands without a separate control processor.
Specifications at a glance
- Faceplate: 3.17 in H x 6.00 in W x 0.44 in D (81 mm H x 152 mm W x 12 mm D)
- Power: 1.0 W, 12 VDC; weight: 0.38 lbs (0.2 kg)
- Warranty: 3-year Extron parts and labor
Frequently asked questions about the Extron MLC 55 RS EU Single-Display RS-232/IR Wall Controller
Is the Extron MLC 55 RS EU 60-1390-33 available new or refurbished?
Ampronix stocks the MLC 55 RS EU (60-1390-33) as a new unit through its authorized Extron distribution agreement.
How does the MLC 55 RS EU differ from the MLC 62 RS EU?
The MLC 55 RS EU (60-1390-33) is a simplified single-display keypad without relay or digital input; the MLC 62 RS EU (60-1005-32/35) adds two configurable relays and one digital input for room monitoring and third-party device triggering.
Does Ampronix offer replacement and exchange for the Extron MLC 55 RS EU?
Yes. Ampronix provides sales, replacement and exchange for the MLC 55 RS EU and the broader Extron MLC control keypad line.
Ampronix is an authorized Extron distributor. Need a replacement or exchange for your Extron MLC 55 RS EU? Ampronix provides sales, replacement and exchange for this product and the broader Extron control line.
Also referenced as Extron MLC55RSEU, MLC-55-RS-EU, part number 60139033.
Related: Extron products, Video Solutions.
