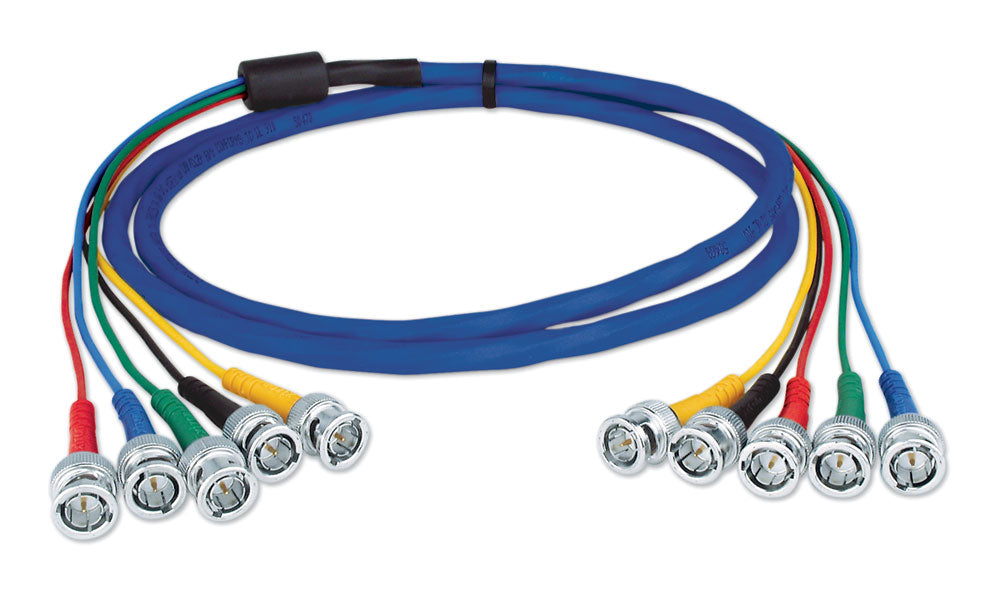

Extron MHR-5P BNC/75 (part number 26-378-06) — a 75 ft (22.8 m) plenum five-conductor BNC assembly for the long analogue video haul.

Seventy-five feet of RGBHV means seventy-five feet of five separate signal paths, and the only practical way to keep them identical is to buy them as one factory assembly. Extron's mini high resolution coax is smaller in diameter than standard 75 ohm cable, which is the difference between a pull that fits the existing conduit and one that does not. Each of the five conductors is colour coded, double shielded and terminated in a 75 ohm BNC, and the jacket carries the NEC CMP plenum rating needed for ceiling voids.

Key Capabilities

• 75 ft (22.8 m) length, measured tip-to-tip including connectors
• Five colour-coded 26 AWG, 75 ohm coaxial conductors
• Double shielded to preserve separation between legs
• NEC CMP plenum rated jacket
• 75 ohm BNC connectors at both ends of every leg
• Smaller diameter than standard coax, easing long conduit pulls

Where It Is Used

Auditorium and house-of-worship projector feeds from a remote equipment room, stadium and arena control positions, and large command centres where the source rack and the display surface are separated by a full building span.

Specifications at a Glance

• Cable length: 75 ft (22.8 m)
• Conductors: five 26 AWG, 75 ohm coaxial, colour coded
• Rating: plenum, NEC CMP
• Connectors: 75 ohm BNC male throughout

Also referenced as Extron MHR-5PBNC/75, MHR-5P-BNC-75, part number 2637806.
