Extron MHR-5P BNC/6 Plenum Five Conductor BNC Cable
- • 6 ft (1.8 m) plenum-rated RGBHV cable assembly
- • Five 26 AWG, 75 ohm coaxial conductors, individually colour coded
- • Double shielded to limit crosstalk between legs
- • NEC CMP plenum rated jacket
- • 75 ohm BNC terminations on both ends
- • Routes and dresses far more easily than five separate coax runs
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

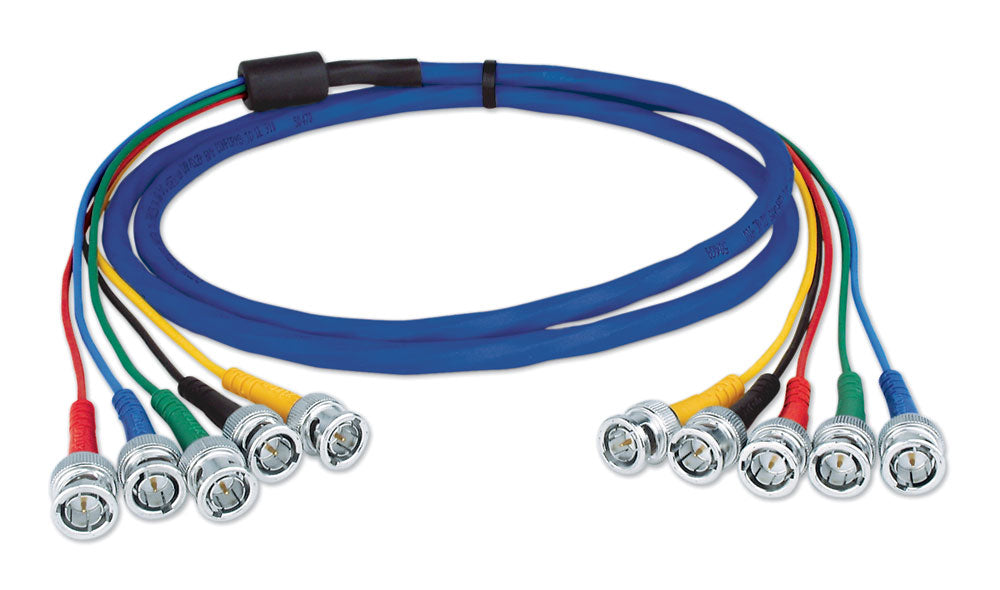

Extron MHR-5P BNC/6 (part number 26-378-02) — a 6 ft (1.8 m) plenum five-conductor BNC cable assembly for analogue RGBHV signal paths.
An RGBHV connection needs five discrete 75 ohm paths, and running five individual coaxial cables is both bulky and easy to get wrong. This assembly puts all five inside one jacket, each conductor colour coded and terminated in a 75 ohm BNC, so the installer matches colours instead of tracing wires. Extron's mini high resolution coax is thinner than standard 75 ohm cable, so the six-foot bundle still turns comfortably behind a rack rail. The jacket carries an NEC CMP plenum rating.
Key Capabilities
- 6 ft (1.8 m) length, measured tip-to-tip including connectors
- Five 26 AWG, 75 ohm coaxial conductors, individually colour coded
- Double-shielded construction to limit crosstalk
- NEC CMP plenum rated cable
- 75 ohm BNC terminations at both ends
- Easier to route and dress than five separate coax runs
Where It Is Used
Legacy RGBHV distribution in command centres, broadcast plant, medical imaging positions and simulation rooms, where an Extron interface, switcher or distribution amplifier drives a projector or high-resolution monitor a few feet away.
Specifications at a Glance
- Cable length: 6 ft (1.8 m)
- Conductors: five 26 AWG, 75 ohm coaxial, colour coded
- Rating: plenum, NEC CMP
- Connectors: 75 ohm BNC male on each leg
Also referenced as Extron MHR-5PBNC/6, MHR-5P-BNC-6, part number 2637802.
