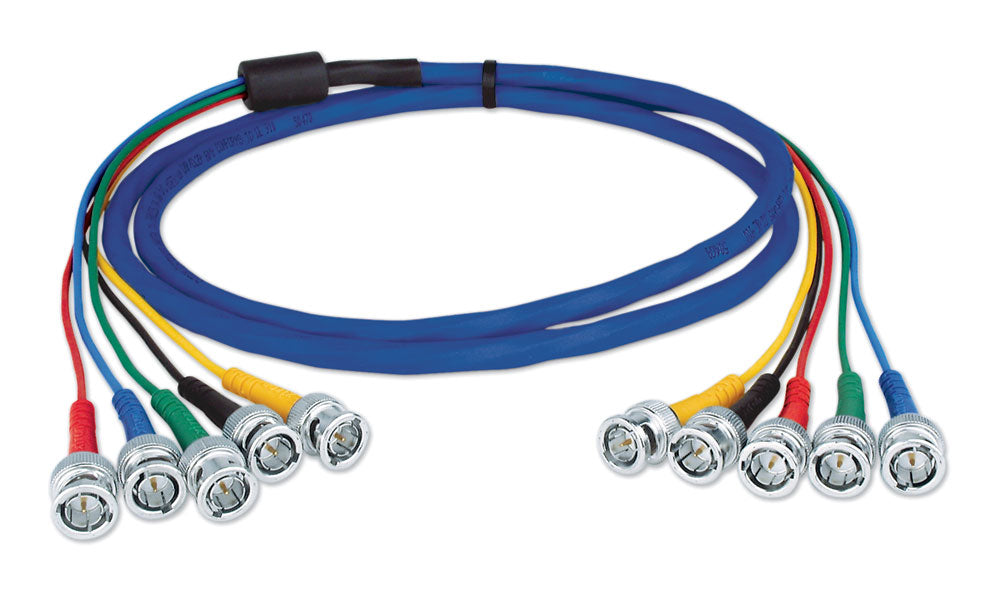

Extron MHR-5P BNC/25 (part number 26-378-04) — a 25 ft (7.6 m) plenum-rated five-conductor BNC assembly for RGBHV runs that leave the rack.

At this distance the argument for a bundled assembly is mostly about time. Five loose coaxial runs have to be pulled, labelled, dressed and terminated individually; one MHR-5P BNC cable arrives finished, colour coded and matched in length, so the five legs stay in step and the install becomes a matter of plugging in five BNCs. Extron's mini high resolution coax is smaller in diameter than ordinary 75 ohm cable, which matters when the run shares a conduit, and the plenum jacket meets NEC CMP.

Key Capabilities

• 25 ft (7.6 m) length, measured tip-to-tip including connectors
• Five 26 AWG, 75 ohm coaxial conductors, colour coded
• Double shielded to hold crosstalk down over distance
• NEC CMP plenum rated jacket
• 75 ohm BNC terminations, five at each end
• Pulls more easily through conduit than five discrete coax runs

Where It Is Used

Projector drops in lecture halls and auditoriums, camera and monitor runs in production control rooms, and equipment-room to display-wall links in command centres that still carry analogue high-resolution video.

Specifications at a Glance

• Cable length: 25 ft (7.6 m)
• Conductors: five 26 AWG, 75 ohm coaxial, colour coded
• Rating: plenum, NEC CMP
• Connectors: 75 ohm BNC male on all legs

Also referenced as Extron MHR-5PBNC/25, MHR-5P-BNC-25, part number 2637804.
