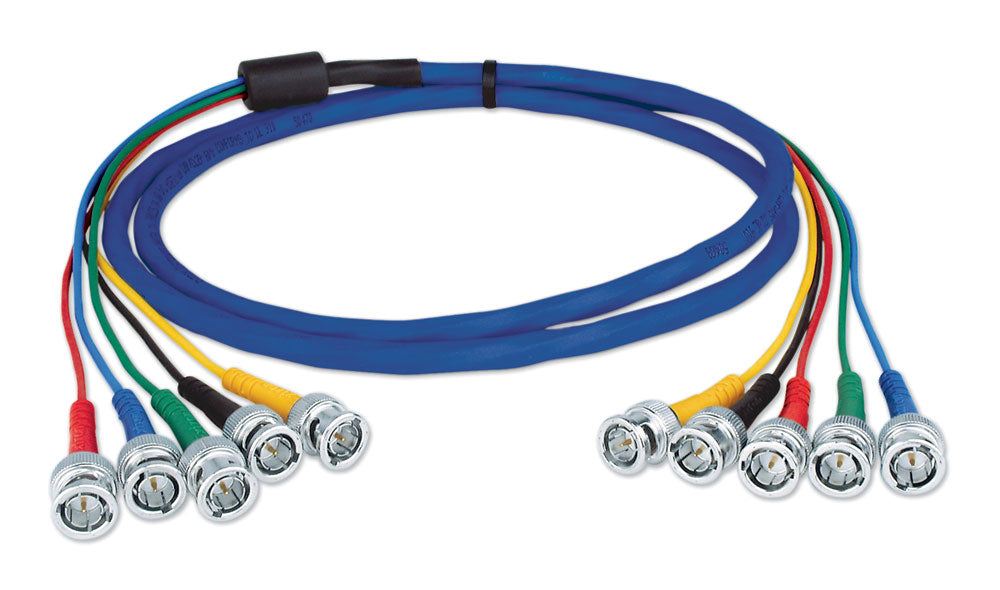

Extron MHR-5P BNC/100 (part number 26-378-07) — at 100 ft (30.4 m) this is the longest assembly Extron lists in the MHR-5P BNC Series.

A hundred-foot RGBHV run is a serious pull, and everything about this assembly is aimed at making it survivable. The five 75 ohm legs are built as one cable so they arrive the same length and stay in step. Each is 26 AWG mini high resolution coax rather than standard 75 ohm cable, which keeps the finished bundle small enough to negotiate real-world conduit and tray. Double shielding limits crosstalk over the distance, and the NEC CMP plenum rating clears the cable for return-air ceiling routes.

Key Capabilities

• 100 ft (30.4 m), the longest length in the MHR-5P BNC Series
• Five 26 AWG, 75 ohm coaxial conductors in a single jacket
• Double shielded to limit crosstalk across the full run
• NEC CMP plenum rated for return-air ceiling routing
• 75 ohm BNC connectors on every leg, both ends
• Factory-matched leg lengths for consistent RGBHV timing

Where It Is Used

Campus and building-wide analogue video distribution: a central equipment room feeding auditorium projectors, stadium and arena video positions, and command centres where the display wall is a floor away from the source rack.

Specifications at a Glance

• Cable length: 100 ft (30.4 m)
• Conductors: five 26 AWG, 75 ohm coaxial, colour coded
• Rating: plenum, NEC CMP
• Connectors: 75 ohm BNC male on all ten ends

Also referenced as Extron MHR-5PBNC/100, MHR-5P-BNC-100, part number 2637807.
