Details

Part number 60-1574-12 - Four Windows, with HDMI and 12G-SDI Inputs

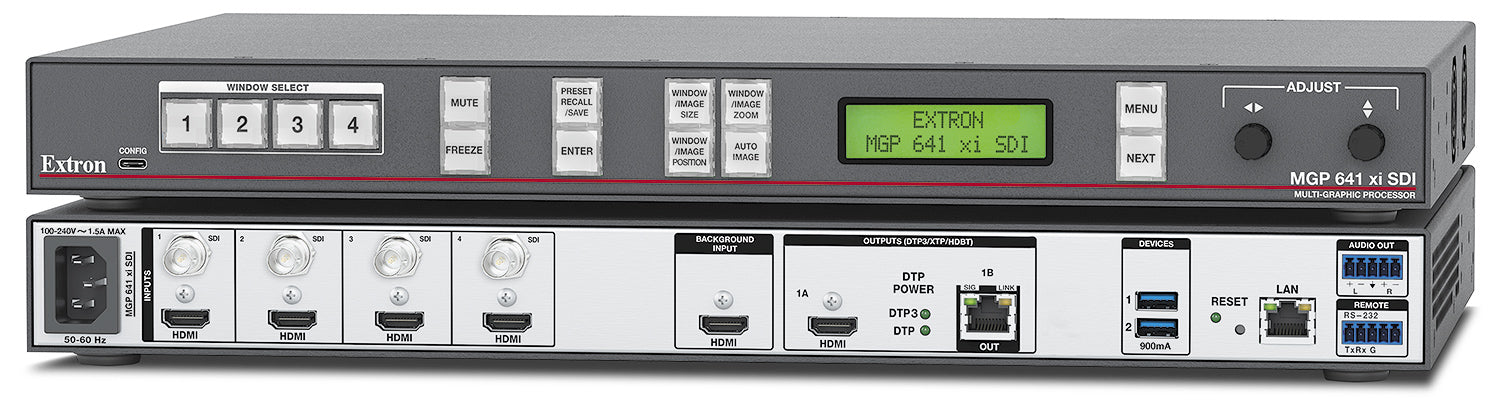

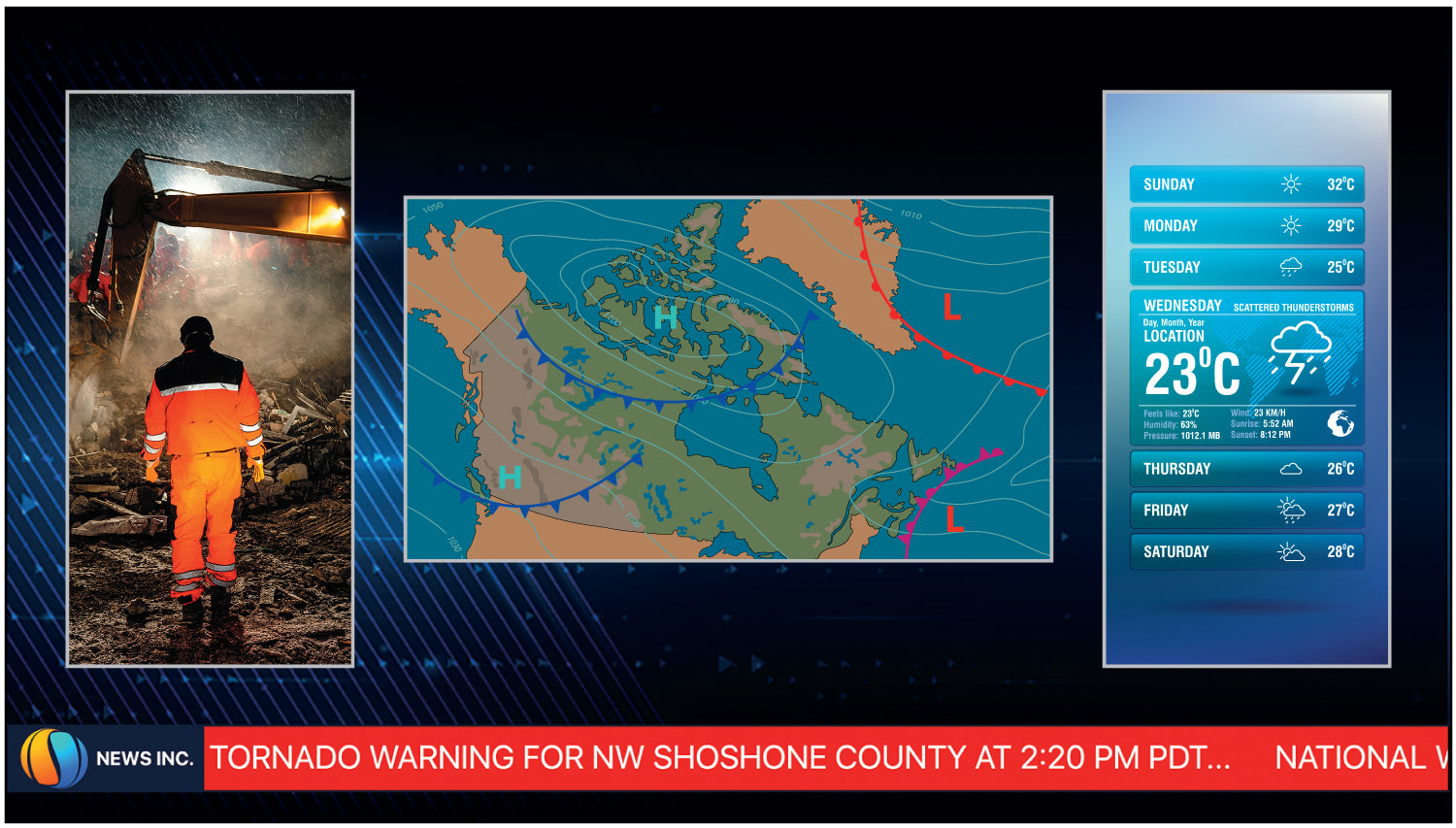

The part number 60-1574-12 equips the MGP 641 xi multi-window processor with four HDMI inputs plus four 12G-SDI inputs. It accepts signals from as many as four sources, arranges them into windows on one canvas that accepts either a live or static background, and allows each window to be placed at any position and rotated for landscape or portrait use. This configuration solves the integrator requirement to merge HDMI and SDI sources onto a shared display without additional converters or separate processors.

The model fits command and control centers along with broadcast and production settings. It delivers duplicate 4K/60 signals through one HDMI output and one DTP3 output that reaches 330 ft over STP cable and works with HDBaseT devices. Annotation functions need a separate LinkLicense. Storage temperature spans -40 to +158 °F at up to 90% humidity noncondensing, while operating range is +32 to +113 °F.

Model: 60-1574-12 / 60157412

Frequently asked questions about the Extron MGP 641 xi SDI

Does Ampronix sell the Extron MGP 641 xi SDI?

Yes. Ampronix is an authorized Extron distributor and sells the Extron MGP 641 xi SDI (60-1574-12). Call Ampronix for a quote.

Does Ampronix offer replacement and exchange for the Extron MGP 641 xi SDI?

Yes. Ampronix provides sales, replacement and exchange for the Extron MGP 641 xi SDI. Call Ampronix for a quote.

What does the Extron MGP 641 xi SDI do?

Key details: The part number 60-1574-12 equips the MGP 641 xi multi-window processor with four HDMI inputs plus four 12G-SDI inputs. Call Ampronix to confirm it fits your installation.

What is the part number for the Extron MGP 641 xi SDI?

The part number is 60-1574-12. Quote 60-1574-12 when you contact Ampronix to order.

Will the Extron MGP 641 xi SDI work with my existing system?

Compatibility depends on your inputs, outputs and control setup. Send Ampronix your system details and the team will confirm the Extron MGP 641 xi SDI is the right fit before you order.

How do I get a quote or lead time for the Extron MGP 641 xi SDI?

Call Ampronix with the model (60-1574-12) and quantity. Ampronix is an authorized Extron distributor and will quote pricing and availability.

Specifications

Part Number: 60-1574-12

Manufacturer: Extron

Condition: New

4096x2160 @ 60 Hz: Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 22 STP cable

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +113 °F (0 to +45 °C) / 10% to 90%, noncondensing

Analog de-embedding: LPCM-2Ch

Baud rate and protocol: 9600, 8-bit, 1 stop bit, no parity (default)

Baud rates: 9600 to 115200

Cable recommendations: 500 MHz bandwidth, STP

Cable requirements: Solid conductor, 22 AWG or better

Chroma sampling1: 4:4:4, 4:2:2, 4:2:0

Color bit depth1: 8 or 10 bits per color

Colors: 1 billion (10 bit processing with full 4:4:4 sampling)

Connectors: 4 female HDMI type A 1 female HDMI type A (Live Background) 4 female BNC (SDI model only)

Cooling: Fans, right to left (as viewed from the front panel)

Crosstalk: ≤-80 dB @ 1 kHz fully loaded

Digital sampling: 30 bit, 10 bits per color, 600 MHz pixel clock maximum

Enclosure dimensions (per unit): 1.75" H x 17.5" W x 12.0" D (1U high, full rack wide) (44 mm H x 445 mm W x 305 mm D) (Depth excludes connectors and knobs. Width excludes rack ears.)

Enclosure type: Metal

Ethernet control port: 1 female RJ-45 connector

Ethernet data rate: 10/100/1000Base-T, half and full duplex with auto detect

Ethernet protocols: ARP, DHCP, DNS, HTTP (redirect), HTTPS, IEEE 802.1X, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, Telnet, UDP/IP

Everlast power supply warranty: 7 years parts and labor

Frame rate1: 24, 25, 30, 50, or 60 fps

Frequency response: 20 Hz to 20 kHz, ± 0.5 dB

Gain error: ±0.5 dB channel to channel

HDMI: 18 Gbps (6 Gbps per color)

HDMI pass-through: LPCM up to 7.2/24-bit/192 kHz, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0, Dolby Atmos 7.2, DTS-HD, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2-channel

Horizontal frequency: 15 kHz to 270 kHz

Image file formats: BMP, JPG, PNG, TIFF (TIFF files using JPEG compression are not supported.)

Impedance: 50 ohms unbalanced, 100 ohms balanced

Logo effects: Transparency, RGB key, level key

MGP 641 xi SDI: 144 watts

Maximum level (Hi-Z): >+21 dBu balanced, >+15 dBV unbalanced

Maximum video data rate: 17.82 Gbps (5.94 Gbps per color)

Memory: 4 GB flash

Mounting: Rack mountable

Number of logos: 32

Number/signal type: 4 HDMI/DVI 1 HDMI/DVI (Live Background) 4 12G/6G/3G/HD/SD SDI (SDI model only)

Power for active cables: 250 mA for the HDMI output

Power supply: Internal Input: 100-240 VAC, 50-60 Hz

Product warranty: 3 years parts and labor

Product weight: 6.9 lbs (3.1 kg)

Program control: Extron Simple Instruction Set™ (SIS™) Extron internal web pages Extron Videowall Configuration Software (VCS) for Windows® Extron Toolbelt™ software

Protocol: 6-8 data bits 1 or 2 stop bits Odd, even, or no parity XON, XOFF, or no flow control

Regulatory compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, KC, VCCI, RoHs, and WEEE

Resolution range: 640x480 to 4096x2160, 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 2K, 3840x2160 (up to 60 Hz), 4096x2160 (up to 60 Hz)

S/N: >90 dB, at maximum output (unweighted)

SDI: 11.88 Gbps per SDI connection

SDI audio: SDI embedded audio, up to 8 channels

Scaled resolution: 640x480, 800x600, 1024x768, 1280x768, 1280x800, 1280x1024, 1360x768, 1366x768, 1440x900, 1600x900, 1400x1050, 1680x1050, 1600x1200, 1920x1200, 2048x1200, 2048x1536, 2560x1080, 2560x1440, 2560x1600 480p, 576p, 720p, 1080i, 1080p, 2048x1080, 3840x2160, 4096x2160

Serial control pin configuration: 1 = Tx, 2 = Rx, 3 = GND

Serial control port: 1 RS-232 on captive screw connector on back panel

Signal Type: DVI 1.0, HDMI 2.0, HDCP 1.4 and 2.3, 6G-SDI, 12G-SDI

Standards: DVI 1.0, HDMI 2.0, HDCP 1.4 and 2.3, SMPTE 259M-C, SMPTE 292M, SMPTE 424M, SMPTE 2081, SMPTE 2082

Stereo channel separation: >80 dB @ 1 kHz

THD + Noise: <0.1% @ 1 kHz, 20 kHz bandwidth at nominal level

Termination standard: TIA/EIA T568B

USB control port: 1 USB, female USB-C on front panel

USB data rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps), SuperSpeed (5 Gbps)

USB protocols: Ethernet over USB (RNDIS), ECM, IPv4, USB Suspend

USB standards: USB 3.0, USB 2.0, USB 1.1, USB 1.0 compatible

USB version: USB 2.0

Vertical frequencies: 23.98 Hz, 24 Hz, 25 Hz, 29.97 Hz, 30 Hz, 50 Hz, 59.94 Hz, 60 Hz, 75 Hz

Vertical frequency: 24 Hz to 240 Hz

Diagram

Resources

Brochure | MGP 641 xi SDI 60-1574-12 | MGP 641 xi (mgp641xi-bro-revA4.pdf)

Brochure | MGP 641 xi SDI 60-1574-12 | MGP 641 xi (MGP-641-xi_BR_A4_SP_RevA2.pdf)

Brochure | MGP 641 xi SDI 60-1574-12 | MGP 641 xi (MGP-641-xi_BR_A4_FR_RevA2.pdf)

Brochure | MGP 641 xi SDI 60-1574-12 | MGP 641 xi (MGP-641-xi_BR_A4_IT_RevA2.pdf)

Brochure | MGP 641 xi SDI 60-1574-12 | MGP 641 xi (MGP-641-xi_BR_A4_GE_RevA2.pdf)

Brochure | MGP 641 xi SDI 60-1574-12 | MGP 641 xi (MGP_641_xi_Rev_A_CN_Online.pdf)

Brochure | MGP 641 xi SDI 60-1574-12 | MGP 641 xi (mgp641xi_RevA2_JP_r.pdf)

Manual | MGP 641 xi SDI 60-1574-12 | MGP 641 Ports and Licenses Guide

Manual | MGP 641 xi SDI 60-1574-12 | MGP 641 xi Compatibility List

Manual | MGP 641 xi SDI 60-1574-12 | MGP 641 xi Series Setup Guide

Manual | MGP 641 xi SDI 60-1574-12 | MGP 641 xi Series User Guide

Specifications | MGP 641 xi SDI 60-1574-12 | MGP 641 xi Series

Panel Drawing | MGP 641 xi SDI 60-1574-12 | MGP 641 xi
