Details

Part number 60-1574-14 - Four Windows, with HDMI and 12G-SDI Inputs

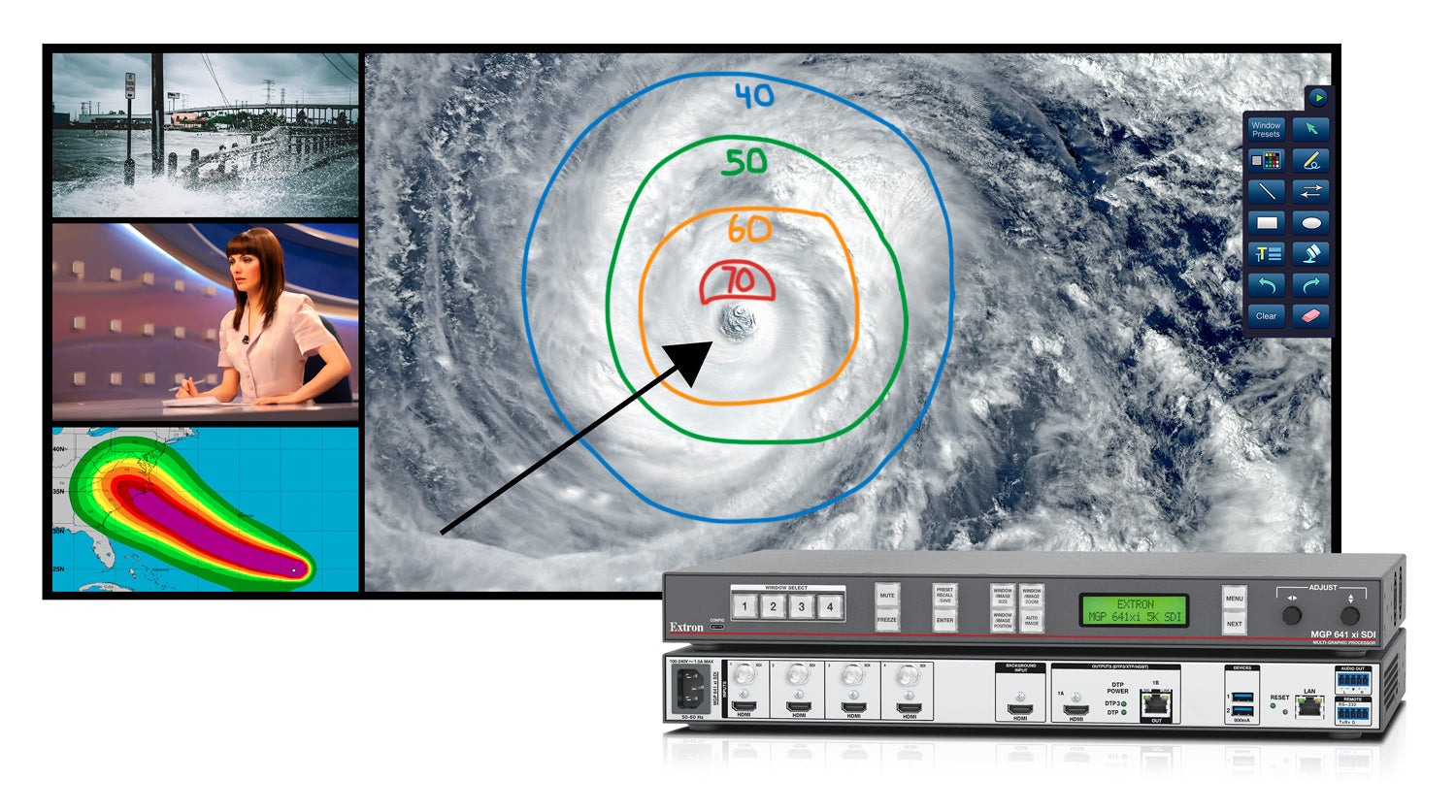

60-1574-14 supplies the four-window MGP 641 xi 5K configuration that accepts both four 12G-SDI inputs and four HDMI inputs. An integrator can therefore combine 5K signals from mixed HDMI and SDI sources, scale each window with the Vector 4K engine, and place the windows anywhere on a single canvas that also carries live or static background content.

This unit fits command and control centers plus broadcast and production environments. Selection requires awareness that the processor supports 4096x2160 at 60 Hz with 4:2:0 chroma sampling and 5120x1440 at 60 Hz with 4:4:4 sampling, routes duplicate output signals via HDMI and DTP3, reaches 4096x2160 at 60 Hz over distances up to 330 ft on STP cable, and needs a separate LinkLicense to enable live annotation. Storage temperature spans -40 to +158 °F at up to 90% noncondensing humidity.

Model: 60-1574-14 / 60157414

Frequently asked questions about the Extron MGP 641 xi 5K SDI

Does Ampronix sell the Extron MGP 641 xi 5K SDI?

Yes. Ampronix is an authorized Extron distributor and sells the Extron MGP 641 xi 5K SDI (60-1574-14). Call Ampronix for a quote.

Does Ampronix offer replacement and exchange for the Extron MGP 641 xi 5K SDI?

Yes. Ampronix provides sales, replacement and exchange for the Extron MGP 641 xi 5K SDI. Call Ampronix for a quote.

What does the Extron MGP 641 xi 5K SDI do?

Key details: 60-1574-14 supplies the four-window MGP 641 xi 5K configuration that accepts both four 12G-SDI inputs and four HDMI inputs. Call Ampronix to confirm it fits your installation.

What is the part number for the Extron MGP 641 xi 5K SDI?

The part number is 60-1574-14. Quote 60-1574-14 when you contact Ampronix to order.

Will the Extron MGP 641 xi 5K SDI work with my existing system?

Compatibility depends on your inputs, outputs and control setup. Send Ampronix your system details and the team will confirm the Extron MGP 641 xi 5K SDI is the right fit before you order.

How do I get a quote or lead time for the Extron MGP 641 xi 5K SDI?

Call Ampronix with the model (60-1574-14) and quantity. Ampronix is an authorized Extron distributor and will quote pricing and availability.

Specifications

Part Number: 60-1574-14

Manufacturer: Extron

Condition: New

4096x2160 @ 60 Hz: Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 22 STP cable

4096x2160 at 30 Hz: 10 bit

4096x2160 at 60 Hz: 4:2:0

5120x1440 at 60 Hz: 4:4:4

Height: 4.5" (11.4 cm)

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +113 °F (0 to +45 °C) / 10% to 90%, noncondensing

Analog de-embedding: LPCM-2Ch

Baud rate and protocol: 9600, 8-bit, 1 stop bit, no parity (default)

Baud rates: 9600 to 115200

Cable recommendations: 500 MHz bandwidth, STP

Cable requirements: Solid conductor, 22 AWG or better

Chroma sampling1: 4:4:4, 4:2:2, 4:2:0

Color bit depth1: 8 or 10 bits per color

Colors: 1 billion (10 bit processing with full 4:4:4 sampling)

Connectors: 4 female HDMI type A 1 female HDMI type A (Live Background) 4 female BNC (SDI model only)

Cooling: Fans, right to left (as viewed from the front panel)

Crosstalk: ≤-80 dB @ 1 kHz fully loaded

Digital sampling: 30 bit, 10 bits per color, 600 MHz pixel clock maximum

Enclosure dimensions (per unit): 1.75" H x 17.5" W x 12.0" D (1U high, full rack wide) (44 mm H x 445 mm W x 305 mm D) (Depth excludes connectors and knobs. Width excludes rack ears.)

Enclosure type: Metal

Ethernet control port: 1 female RJ-45 connector

Ethernet data rate: 10/100/1000Base-T, half and full duplex with auto detect

Ethernet protocols: ARP, DHCP, DNS, HTTP (redirect), HTTPS, IEEE 802.1X, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, Telnet, UDP/IP

Everlast power supply warranty: 7 years parts and labor

Frame rate1: 24, 25, 30, 50, or 60 Hz

Frequency response: 20 Hz to 20 kHz, ± 0.5 dB

Gain error: ±0.5 dB channel to channel

HDMI: 18 Gbps (6 Gbps per color)

HDMI pass-through: LPCM up to 7.2/24-bit/192 kHz, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0, Dolby Atmos 7.2, DTS-HD, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2-channel

Horizontal frequency: 15 kHz to 270 kHz

Image file formats: BMP, JPG, PNG, TIFF (TIFF files using JPEG compression are not supported.)

Impedance: 50 ohms unbalanced, 100 ohms balanced

Logo effects: Transparency, RGB key, level key

MGP 641 xi 5K SDI: 144 watts

Maximum level (Hi-Z): >+21 dBu balanced, >+15 dBu unbalanced

Maximum video data rate: 17.82 Gbps (5.94 Gbps per color)

Memory: 4 GB flash

Mounting: Rack mountable

Number of logos: 32

Number/signal type: 4 HDMI/DVI 1 HDMI/DVI (Live Background) 4 12G/6G/3G/HD/SD SDI (SDI model only)

Power for active cables: 250 mA for the HDMI output

Power supply: Internal Input: 100-240 VAC, 50-60 Hz

Product warranty: 3 years parts and labor

Product weight: 6.9 lbs (3.1 kg)

Program control: Extron Simple Instruction Set™ (SIS™) Extron internal web pages Extron Videowall Configuration Software (VCS) for Windows® Extron Toolbelt™ software

Protocol: 6-8 data bits 1 or 2 stop bits Odd, even, or no parity XON, XOFF, or no flow control

Regulatory compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI, RoHs, and WEEE

Resolution and Refresh Rate: Chroma Sampling

Resolution range: Up to 4096x2160

S/N: >90 dB, at maximum output (unweighted)

SDI: 11.88 Gbps per SDI connection

SDI audio: SDI embedded audio, up to 8 channels

SMPTE: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 2K, 3840x1440, 4096x2160

Serial control pin configuration: 1 = Tx, 2 = Rx, 3 = GND

Serial control port: 1 RS-232 on captive screw connector on back panel

Signal Type: HDMI 2.0, HDCP 2.3, 6G-SDI, 12G-SDI

Standards: DVI 1.0, HDMI 2.0, HDCP 1.4 and 2.3, SMPTE 259M-C, SMPTE 292M, SMPTE 424M, SMPTE 2081, SMPTE 2082

Stereo channel separation: >80 dB @ 1 kHz

THD + Noise: <0.1% @ 1 kHz, 20 kHz bandwidth at nominal level

Termination standard: TIA/EIA T568B

USB control port: 1 USB, female USB-C on front panel

USB data rates: Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps), SuperSpeed (5 Gbps)

USB protocols: Ethernet over USB (RNDIS), ECM, IPv4, USB Suspend

USB standards: USB 3.0, USB 2.0, USB 1.1, USB 1.0 compatible

USB version: USB 2.0

Ultra Wide and 5K: 2560x1080, 3440x1440, 3840x1080, 3840x1440, 3840x16005120x1080, 5120x1440, 5120x2160*, 5120x2560*, 5120x2880**Supported at 30 Hz only

VESA: 640x480 to 4096x2160

Vertical frequencies: 23.98 Hz, 24 Hz, 25 Hz, 29.97 Hz, 30 Hz, 50 Hz, 59.94 Hz, 60 Hz, 75 Hz

Vertical frequency: 24 Hz to 240 Hz

Diagram

Resources

Brochure | MGP 641 xi 5K SDI 60-1574-14 | MGP 641 xi 5K (mgp641xi5k_revA4.pdf)

Brochure | MGP 641 xi 5K SDI 60-1574-14 | MGP 641 xi 5K (MGP_641_xi_5K_Rev_A3_CN_Online.pdf)

Brochure | MGP 641 xi 5K SDI 60-1574-14 | MGP 641 xi 5K (mgp641xi5k_revA4_SP.pdf)

Brochure | MGP 641 xi 5K SDI 60-1574-14 | MGP 641 xi 5K (mgp641xi5k_revA4_IT.pdf)

Brochure | MGP 641 xi 5K SDI 60-1574-14 | MGP 641 xi 5K (mgp641xi5k_revA4_FR.pdf)

Brochure | MGP 641 xi 5K SDI 60-1574-14 | MGP 641 xi 5K (mgp641xi5k_revA4_GE.pdf)

Manual | MGP 641 xi 5K SDI 60-1574-14 | MGP 641 xi 5K Series Setup Guide

Manual | MGP 641 xi 5K SDI 60-1574-14 | MGP 641 xi Series User Guide

Specifications | MGP 641 xi 5K SDI 60-1574-14 | MGP 641 xi 5K and MGP 641 xi 5K SDI

Panel Drawing | MGP 641 xi 5K SDI 60-1574-14 | MGP 641 xi 5K

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

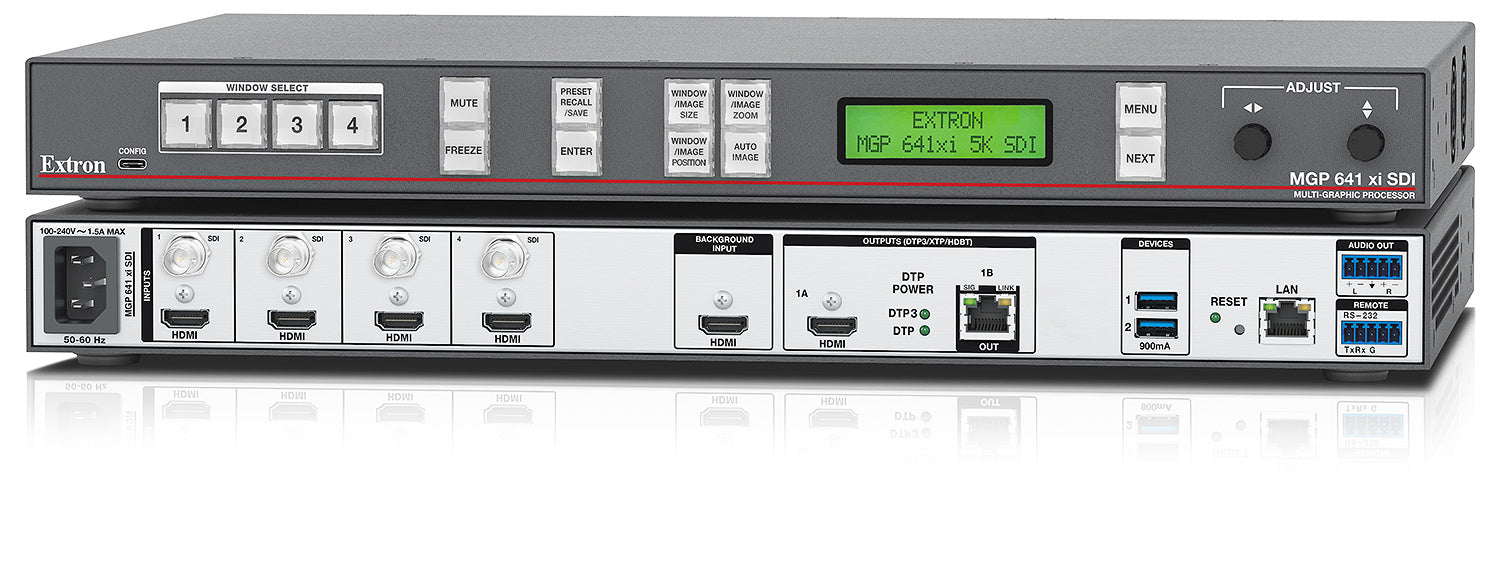

Extron MGP 641 xi 5K SDI 60-1574-14
