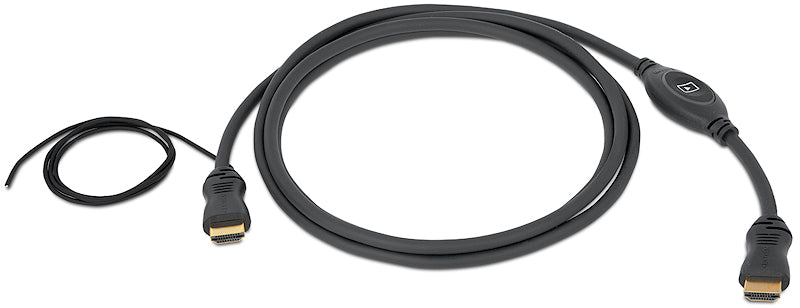

Extron MDP-HDMI SM (part number 26-706-12) — a 12 ft Mini DisplayPort-to-HDMI Show Me cable built for Extron TeamWork collaboration systems.

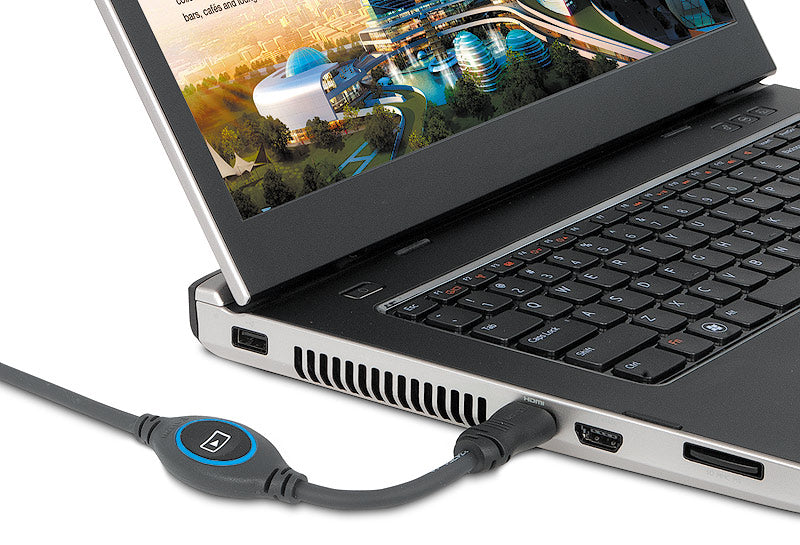

This active, one-way adapter cable lets a Mini DisplayPort laptop plug straight into a TeamWork switcher's HDMI input, converting the signal on the fly. A lit Share button on the cable body doubles as the room's source-select control, and a separate three-conductor pigtail carries contact-closure and tally signals back to the switcher so no extra control wiring is needed at the table.

Key Capabilities

• Active Mini DisplayPort to HDMI conversion, up to 18.0 Gbps (6 Gbps per color)
• Supports 4:4:4, 4:2:2, or 4:2:0 chroma sampling at up to 60 fps

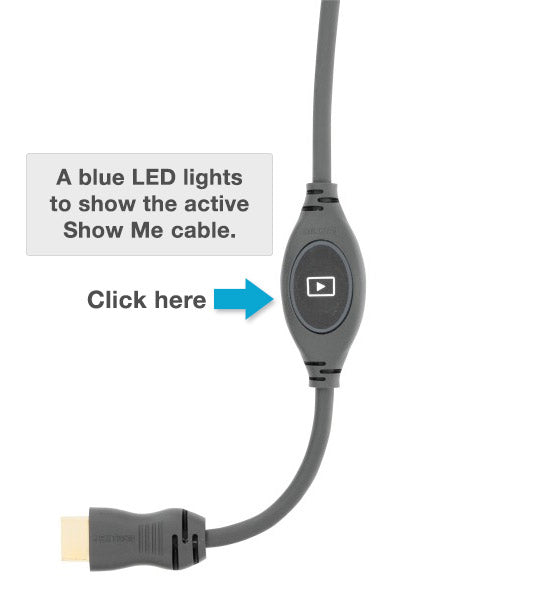

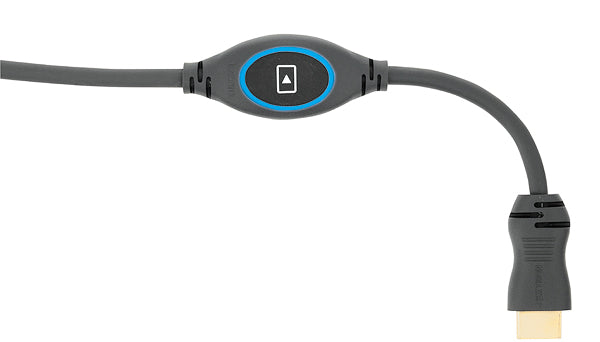

• Illuminated Share button for one-touch source switching at the table
• Built-in 24" control/tally pigtail, no separate control cable needed
• Rated for continuous use at up to 80 °C

Where It Is Used

Larger huddle rooms and conference tables running an Extron TeamWork switcher use the extra reach of this 12 ft cable so Mini DisplayPort laptop users seated further away can still share content alongside HDMI and USB-C users.

Specifications at a Glance

• Length: 12 ft (3.6 m)
• Connector: Mini DisplayPort male to HDMI type A male, active
• Max. video data rate: 18.0 Gbps (6 Gbps per color)
• Voltage: 30 V, UL listed

Also referenced as Extron MDPHDMISM, MDP-HDMI-SM, part number 2670612.
