Extron MDP-HDMI SM Mini DisplayPort to HDMI SM Cable
- • Extron MDP-HDMI SM 6 ft Mini DisplayPort to HDMI cable
- • Active conversion, up to 18.0 Gbps, 4:4:4 at 60 fps
- • Illuminated Share button, 24 in control/tally pigtail
- • Sales, replacement and exchange
- • Part# 26-706-06 / 2670606
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

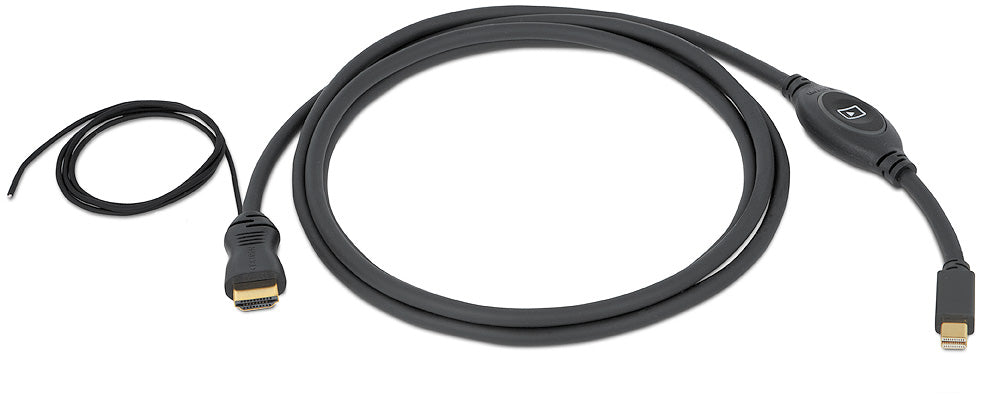

Extron MDP-HDMI SM (part number 26-706-06) - a 6 ft Mini DisplayPort-to-HDMI Show Me cable built for Extron TeamWork collaboration systems.

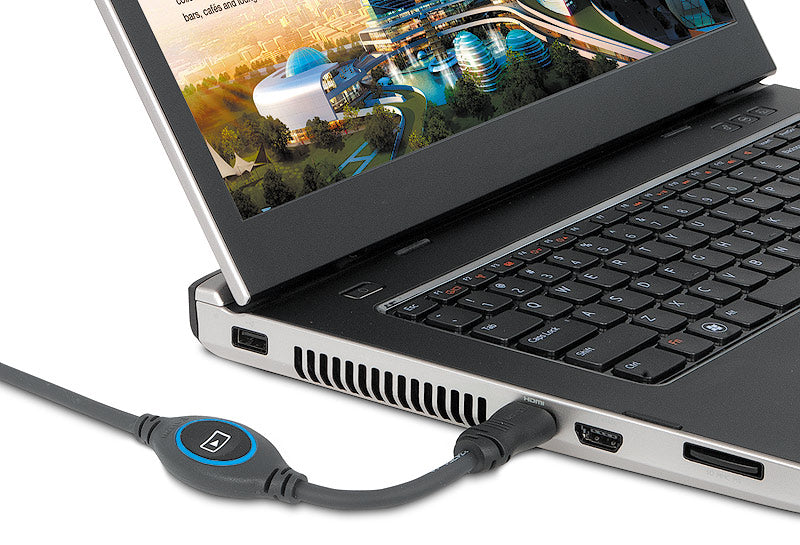

This active, one-way adapter cable lets a Mini DisplayPort laptop plug straight into a TeamWork switcher's HDMI input, converting the signal on the fly. A lit Share button on the cable body doubles as the room's source-select control, and a separate three-conductor pigtail carries contact-closure and tally signals back to the switcher so no extra control wiring is needed at the table.
Key Capabilities
- Active Mini DisplayPort to HDMI conversion, up to 18.0 Gbps (6 Gbps per color)
- Supports 4:4:4, 4:2:2, or 4:2:0 chroma sampling at up to 60 fps

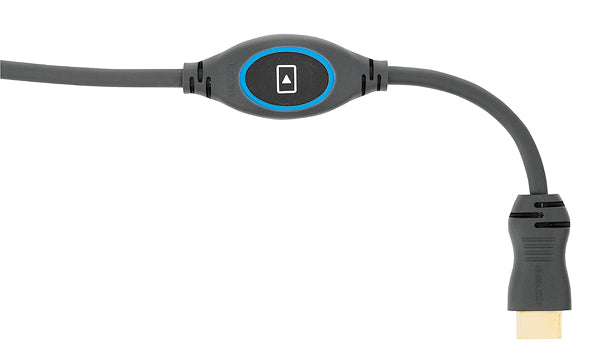

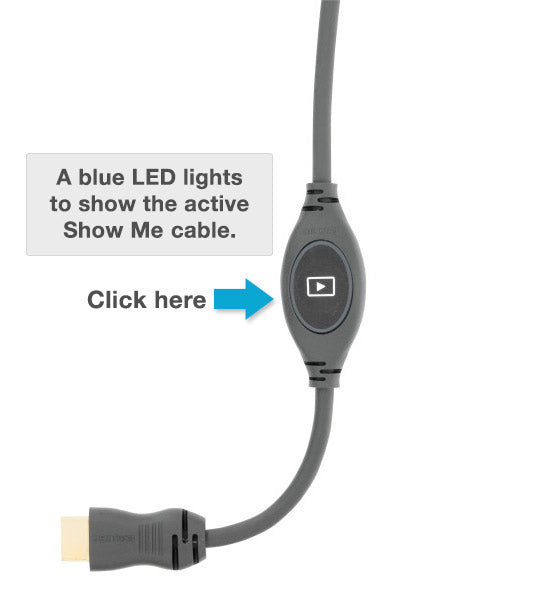

- Illuminated Share button for one-touch source switching at the table
- Built-in 24" control/tally pigtail, no separate control cable needed
- Rated for continuous use at up to 80 °C
Where It Is Used
Huddle rooms and small conference spaces running an Extron TeamWork switcher use this cable at the table surface so Mini DisplayPort laptop users can share content alongside HDMI and USB-C users on the same switcher.
Specifications at a Glance
- Length: 6 ft (1.8 m)
- Connector: Mini DisplayPort male to HDMI type A male, active
- Max. video data rate: 18.0 Gbps (6 Gbps per color)
- Voltage: 30 V, UL listed
Frequently asked questions about the Extron MDP-HDMI SM Mini DisplayPort to HDMI SM Cable
Does Ampronix sell the Extron MDP-HDMI SM Mini DisplayPort to HDMI SM Cable?
Yes. Ampronix is an authorized Extron distributor and sells the Extron MDP-HDMI SM Mini DisplayPort to HDMI SM Cable (26-706-06). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron MDP-HDMI SM Mini DisplayPort to HDMI SM Cable?
Yes. Ampronix provides sales, replacement and exchange for the Extron MDP-HDMI SM Mini DisplayPort to HDMI SM Cable. Call Ampronix for a quote.
Is the Extron MDP-HDMI SM Mini DisplayPort to HDMI SM Cable listed under other names?
Yes. The Extron MDP-HDMI SM Mini DisplayPort to HDMI SM Cable is also referenced as Extron MDPHDMISM, MDP-HDMI-SM, part number 2670606.
What are the key features of the Extron MDP-HDMI SM Mini DisplayPort to HDMI SM Cable?
Key points: Active Mini DisplayPort to HDMI conversion, up to 18.0 Gbps (6 Gbps per color); Supports 4:4:4, 4:2:2, or 4:2:0 chroma sampling at up to 60 fps; Illuminated Share button for one-touch source switching at the table; Built-in 24" control/tally pigtail, no separate control cable needed. Call Ampronix to confirm details for your application.
Also referenced as Extron MDPHDMISM, MDP-HDMI-SM, part number 2670606.
