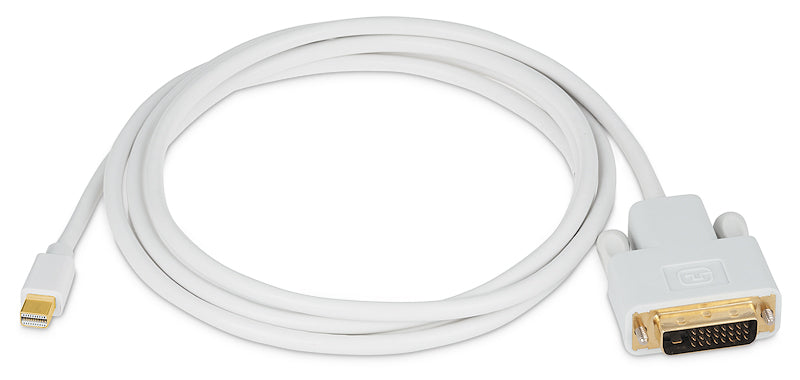

Extron MDP-DVID/6 (part number 26-673-06) - a 6 ft (1.8 m) active adapter cable that takes a dual-mode Mini DisplayPort output and lands it on a single link DVI-D input.

The conversion happens inside the cable. Circuitry at the Mini DisplayPort end reads the source's dual-mode capability and produces a DVI-D signal, so no separate dongle or power supply is needed. Direction matters: this assembly works from source to display only, it must plug straight into the Mini DisplayPort output with nothing in between, and it will not turn a DVI source into a Mini DisplayPort one. EDID from the DVI display travels back to the source, and HDCP is handled, so protected content plays.

Key Capabilities

• Active Mini DisplayPort male to DVI-D male, one direction only
• Resolutions to 1920 x 1200 at 60 Hz
• DisplayPort 1.1 compliant with HDCP support
• Passes EDID from the DVI display back to the source
• 6 ft (1.8 m) white jacket with moulded ends for quick identification
• Gold plating on all contact surfaces

Where It Is Used

Conference rooms and classrooms with an installed DVI display or DVI switcher input that must accept modern laptops and small-form-factor PCs. Also common in medical and industrial imaging positions where the DVI monitor is fixed and the source hardware is refreshed around it.

Specifications at a Glance

• Cable length: 6 ft (1.8 m)
• Connectors: male Mini DisplayPort to male DVI-D single link
• Certified for AVEdge, Cable Cubby and HSA surface access enclosures
• Complies with the VESA Interoperability Guideline

Also referenced as Extron MDP-DVID/6, MDP-DVID-6, part number 2667306.
