Extron MDP-DP SM Mini DisplayPort to DP Show Me Cable
- • Extron MDP-DP SM Mini DisplayPort to DP cable, 6 ft
- • Up to 21.6 Gbps (5.4 Gbps per lane) video data rate
- • Illuminated Share button and 24 in control pigtail
- • Sales, replacement and exchange
- • Part# 26-736-06 / 2673606
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

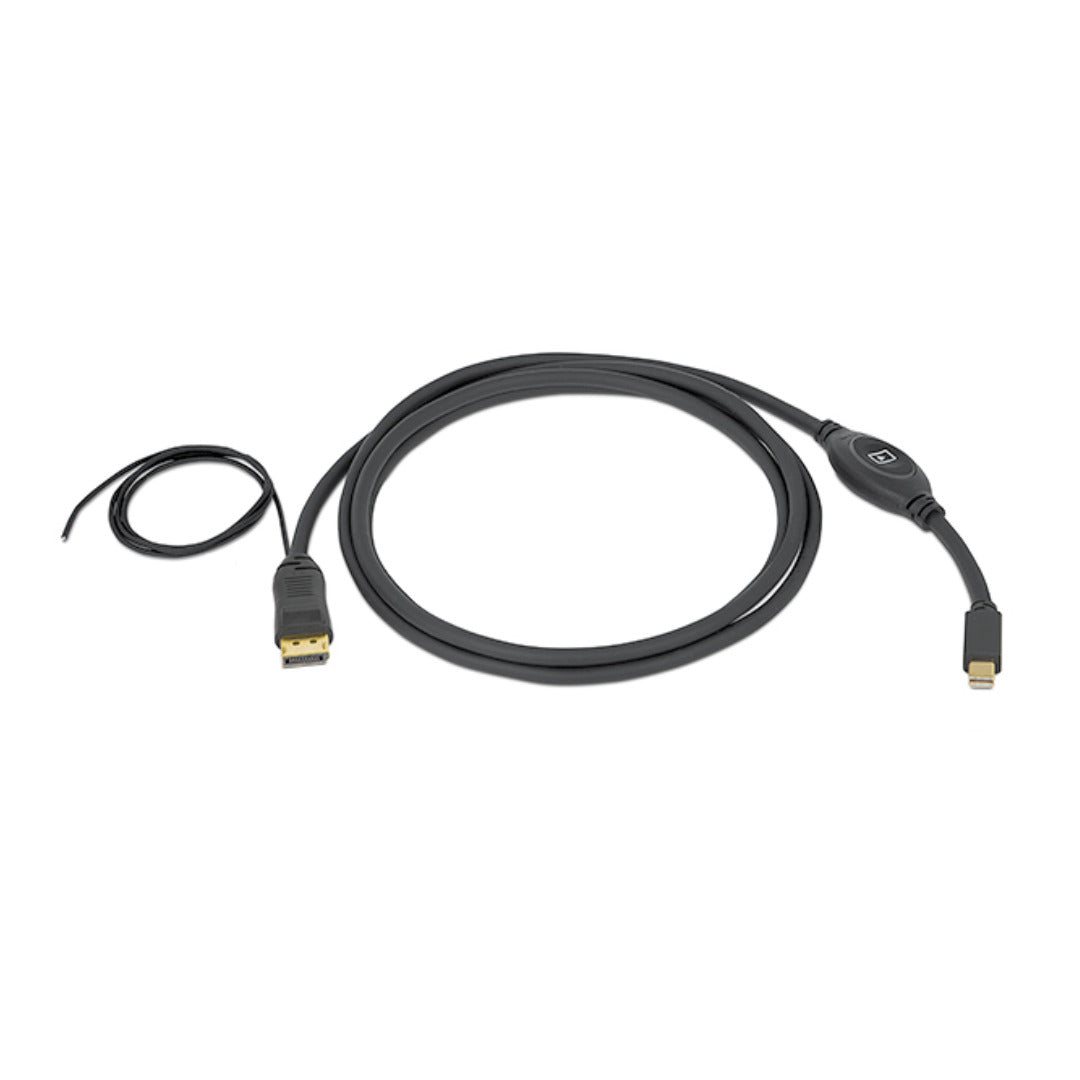

Extron MDP-DP SM (part number 26-736-06) - a 6 ft Mini DisplayPort-to-DisplayPort Show Me cable for Extron TeamWork collaboration systems.
This active Show Me cable lets a Mini DisplayPort laptop plug straight into a TeamWork switcher's DisplayPort input without an external adapter. A lit Share button on the cable body doubles as the room's source-select control, and a built-in three-conductor pigtail carries contact-closure and tally signals back to the switcher so no separate control wiring is needed at the table.
Key Capabilities
- Mini DisplayPort to DisplayPort signal path, up to 21.6 Gbps (5.4 Gbps per lane)
- Supports 4:4:4, 4:2:2, or 4:2:0 chroma sampling at up to 60 fps

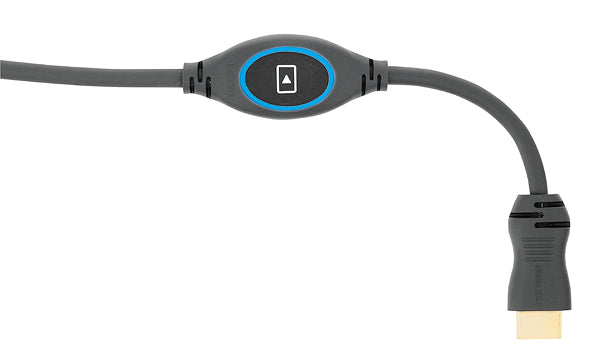

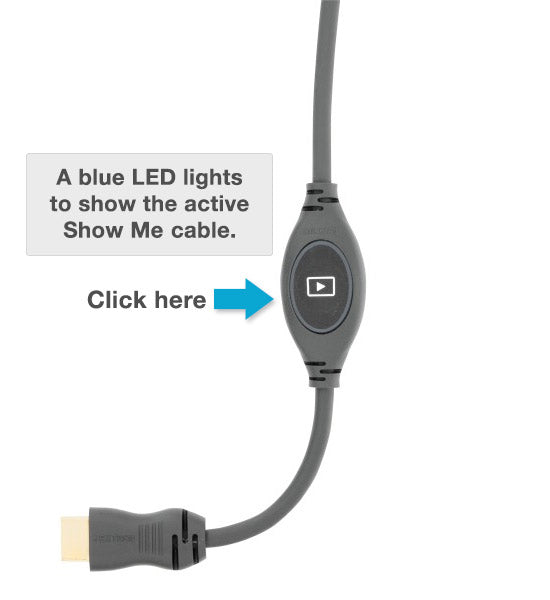

- Illuminated Share button for one-touch source switching at the table
- Built-in 24" control/tally pigtail, no separate control cable needed
- Rated for continuous use at up to 80 °C
Where It Is Used
Huddle rooms and small conference spaces running an Extron TeamWork switcher use this cable at the table surface so Mini DisplayPort laptop users can share content alongside HDMI and USB-C users on the same switcher.
Specifications at a Glance
- Length: 6 ft (1.8 m)
- Connector: Mini DisplayPort male to latching DisplayPort male, active
- Max. video data rate: 21.6 Gbps (5.4 Gbps per lane)
- Voltage: 30 V, UL listed
Frequently asked questions about the Extron MDP-DP SM Mini DisplayPort to DP Show Me Cable
Does Ampronix sell the Extron MDP-DP SM Mini DisplayPort to DP Show Me Cable?
Yes. Ampronix is an authorized Extron distributor and sells the Extron MDP-DP SM Mini DisplayPort to DP Show Me Cable (26-736-06). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron MDP-DP SM Mini DisplayPort to DP Show Me Cable?
Yes. Ampronix provides sales, replacement and exchange for the Extron MDP-DP SM Mini DisplayPort to DP Show Me Cable. Call Ampronix for a quote.
Is the Extron MDP-DP SM Mini DisplayPort to DP Show Me Cable listed under other names?
Yes. The Extron MDP-DP SM Mini DisplayPort to DP Show Me Cable is also referenced as Extron MDPDPSM, MDP-DP-SM, part number 2673606.
What are the key features of the Extron MDP-DP SM Mini DisplayPort to DP Show Me Cable?
Key points: Mini DisplayPort to DisplayPort signal path, up to 21.6 Gbps (5.4 Gbps per lane); Supports 4:4:4, 4:2:2, or 4:2:0 chroma sampling at up to 60 fps; Illuminated Share button for one-touch source switching at the table; Built-in 24" control/tally pigtail, no separate control cable needed. Call Ampronix to confirm details for your application.
Also referenced as Extron MDPDPSM, MDP-DP-SM, part number 2673606.
Related: Extron products, Video Solutions.
