Extron MBD 149 Full Rack Width Mount Kit (Retired) 70-077-03
Extron MBD 149 Full Rack Width Mount Kit (Retired) 70-077-03
Extron MBD 149 Rack Mount Kit (Retired)
- • Rack mount kit for 1U, full-rack width, four-piece Extron enclosures
- • Brackets attach with flat head screws, then mount to rack with pan head screws
- • Compatible with new and legacy four-piece chassis products
- • Superseded by current part number 70-1350-01
- • Retired part number -- confirm current stock before specifying
- • Preserves front-panel airflow paths on compatible chassis
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

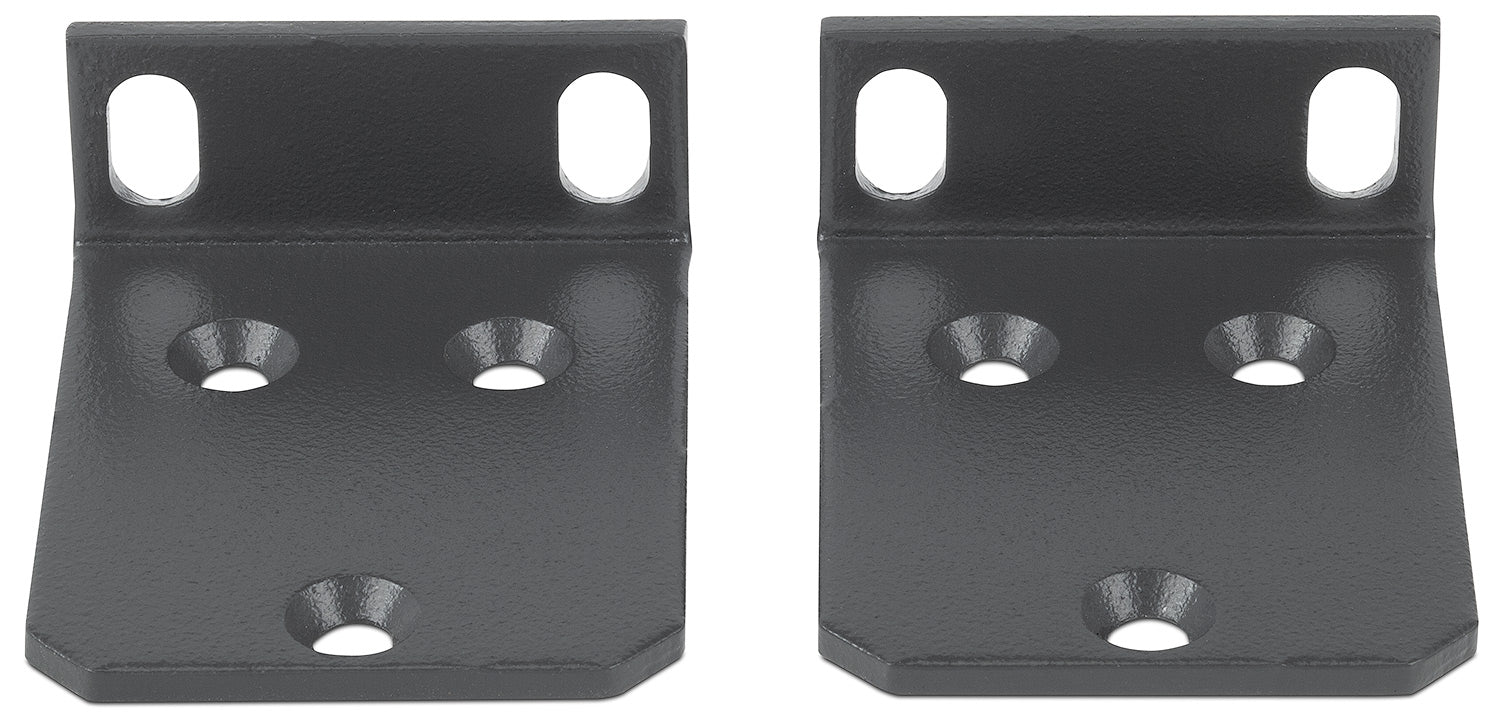

Extron MBD 149 (part number 70-077-03, retired) — the earlier part number for Extron's rack mount kit for 1U, full-rack width, four-piece enclosure products.

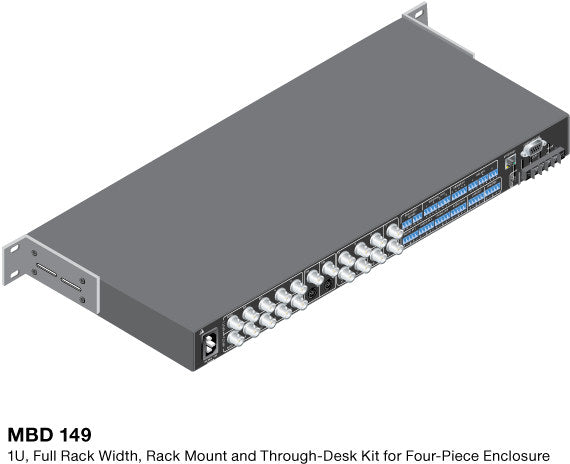

The kit attaches a bracket to each side of a compatible 1U full-rack-width device using the included flat head machine screws, then secures the assembly into a standard equipment rack with pan head machine screws through the front bracket slots. It's built for new and legacy four-piece Extron enclosures and keeps the airflow paths those chassis need for proper ventilation. Part number 70-077-03 has since been superseded by 70-1350-01 for the same MBD 149 kit.
Key Points
- Rack mount kit for 1U, full-rack width, four-piece Extron enclosures
- Brackets attach with flat head screws, then mount to the rack with pan head screws
- Compatible with new and legacy four-piece chassis products
- Superseded by current part number 70-1350-01
Also referenced as Extron MBD149, MBD-149-70-077-03, part number 7007703.
