Details

Manufacturer: Extron; Model: FOX LinkLicense; Part number: 79-2589-01 (also written 79258901)

The Extron FOX LinkLicense 79-2589-01 is a software feature upgrade for compatible Extron FOX3 endpoints. Activating this license enables extension of uncompressed 4K/60 4:4:4 video at up to 4096x2160 over two fibers, expanding the capability of the FOX3 endpoint beyond its base lossless mode. The upgrade is activated in software on a system-by-system basis with no additional hardware required.

Frequently asked questions about the Extron LinkLicense

Does Ampronix sell the Extron LinkLicense?

Yes. Ampronix is an authorized Extron distributor and sells the Extron LinkLicense (79-2589-01). Call Ampronix for a quote.

Does Ampronix offer replacement and exchange for the Extron LinkLicense?

Yes. Ampronix provides sales, replacement and exchange for the Extron LinkLicense. Call Ampronix for a quote.

What does the Extron LinkLicense do?

Key details: Manufacturer: Extron; Model: FOX LinkLicense; Part number: 79-2589-01 (also written 79258901). Call Ampronix to confirm it fits your installation.

What is the part number for the Extron LinkLicense?

The part number is 79-2589-01. Quote 79-2589-01 when you contact Ampronix to order.

Will the Extron LinkLicense work with my existing system?

Compatibility depends on your inputs, outputs and control setup. Send Ampronix your system details and the team will confirm the Extron LinkLicense is the right fit before you order.

How do I get a quote or lead time for the Extron LinkLicense?

Call Ampronix with the model (79-2589-01) and quantity. Ampronix is an authorized Extron distributor and will quote pricing and availability.

Specifications

Part Number: 79-2589-01

Manufacturer: Extron

Condition: New

4096 x 2160 at 30 Hz1: 10 bit

4096 x 2160 at 30 Hz2: 4:4:4

4096 x 2160 at 60 Hz1: 4:4:4

4096 x 2160 at 60 Hz2: 4:2:2

AV LAN: Link speed and duplex level = autodetectedDHCP server = disabledSubnet mask = 255.255.255.0Gateway = 0.0.0.0

Ambient temperature/humidity: Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing Operating: +32 to +122°F (0 to +50°C) / 10% to 90%, noncondensing

Audio format: 24 bit uncompressed at 48 kHz sampling rate

Baud rate and protocol: 300 to 115200 baud (default: 9600), 8 data bits, 1 stop bit, no parity

Bit depth: 16, 20, 24

CMRR: 65 dB @ 20 Hz to 20 kHz

Chroma sampling3: 4:4:4, 4:2:2

Color bit depth2,3: 8, 10, or 12 bits per color

Configuration software: Product Configuration Software (PCS)

Connector: 1 RJ-45

Connectors: 16 LC connectors per I/O board

Control apps: Extron Control

Cooling: Fan, right to left (as viewed from front panel)

Crosstalk: ≤-80 dB @ 1 kHz, fully loaded

DHCP server disabled: IP address = 192.168.254.250DNS = 127.0.0.1

DHCP server enabled: IP address = 192.168.254.1 DNS = 192.168.254.1 Dynamic leased IP address pool = 192.168.254.100 - 192.168.254.149 Maximum lease count = 50 Lease time = 24 hours

Data rate: 10/100/1000Base-T, half/full duplex with autodetect

Default settings: Link speed and duplex level = autodetected IP address = 192.168.254.254 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = off

EXP cable: Shielded CAT6 up to 10 meters

Enclosure dimensions: 38.47" H x 19.0" W x 22.0" D (no EMI) EMI ASSY 8.73"D (21U high, full rack wide) (98 cm H x 48 cm W x 56 cm D [no EMI] EMI ASSY 22 cm D) (Depth excludes connectors and handles. Width excludes rack ears.)

Enclosure type: Metal

Ethernet data rate: 10/100/1000Base-T, half/full duplex with autodetect

Ethernet port: 1 RJ-45 connector, female

Flash: 8 GB

Frame rate3: 24, 25, 30, 50, or 60 fps

Frequency response: 20 Hz to 20 kHz, ±0.5 dB

Gain: Unbalanced output: -6 dB; balanced output 0 dB (default)

Gain error: ± 0.5 dB channel to channel

Gain range: Adjustable, -18 dB to +24 dB, 1 dB steps

Hardware: TouchLink® Pro touchpanels, Network Button Panels, or eBUS® button panels

Impedance: ≥10 k ohms unbalanced, ≥20 k ohms balanced

Inputs: Up to 32 stereo channels

LAN: Link speed and duplex level = autodetectedIP address = 192.168.253.250Subnet mask = 255.255.255.0Gateway = 0.0.0.0DHCP = offDNS = 127.0.0.1

Latency: Deterministic, based on user selections: 0.25 ms, 0.5 ms, 1.0 ms (default), 2.0 ms, 5.0 ms

Max. video data rate: 18.0 Gbps

Maximum built-in USB hubs: 1

Maximum channel data rate: 10 Gbps

Maximum level: +21 dBu balanced, +15 dBu unbalanced

Maximum level (Hi-Z): +21 dBu balanced, +15 dBu unbalanced

Minimum built-in USB hubs: 1

Multimode: 500 m (1640 feet) with 50 µm OM4 4700 MHz bandwidth laser optimized multimode cables

Network interface controllers (NICs): 2: 1 LAN, 1 AV LAN

Nominal level: +4 dBu (1.23 Vrms), -10 dBV (316 mVrms)

Nominal peak wavelength: 850 nm for multimode (MM), 1310 nm for singlemode (SM)

Number/signal type: 4 analog stereo inputs, balanced/unbalanced 4 analog stereo outputs, balanced/unbalanced

Number/type: 8 singlemode or 8 multimode SFPs per board

Output impedance: 50 ohms unbalanced, 100 ohms balanced (analog only)

Outputs: Up to 32 stereo channels

Pin configurations, serial, 3-pole captive screw: Pin 1 = Tx, 2 = Rx, 3 = Gnd

Power consumption: Enclosure without boards: 253.4 watts Enclosure fully loaded with 70 MM boards: 1634.1 watts Enclosure fully loaded with 70 SM boards: 1658.2 watts Each MM board: 20.1 watts Each SM board: 23.1 watt

Power supply: Internal (IEC 60320 C20 inlet) North America: Input: 200-240 VAC, 50-60 Hz, 15A Other regions: Input: 200-240 VAC, 50-60 Hz, minimum 15A A redundant power supply is standard.

Product warranty: 3 years parts and labor

Product weight (fully loaded): 380 lbs (172 kg)

Program control: Extron Product Configuration Software Extron Simple Instruction Set (SIS™)

Programming software: Global Scripter®

Protocols: ARP, ICMP (Ping), DHCP, DNS, HTTPS, SFTP, SSH, TCP/IP, UDP/IP

Quantity/type: 1 bidirectional RS-232

Rack mount: Yes

Regulatory compliance: CE, c-UL, C-tick, FCC Class A, ICES, UL, VCCIComplies with the appropriate requirements of RoHS, WEEE.

Resolution and Refresh Rate: Chroma Sampling

Resource management software: GlobalViewer® Enterprise

Routing: 8 x 8 up to 560 x 560 unidirectional matrix or 4 x 4 up to 280 x 280 bidirectional matrix

S/N: >90 dB at maximum output (unweighted)

SDRAM: 2 GB

Sampling rate: 48 kHz

Serial control pin configuration: Captive screw: 1 = Tx, 2 = Rx, 3 = GND

Serial control port: 1 RS-232, 3.5 mm captive screw connector, 3-pole, female, rear panel

Signal Type: HDMI 2.0, HDCP 2.3

Singlemode: 20 km (12.4 miles) with singlemode (SM) cables

Source formats: 2 channel LPCM

Standard: Ethernet over USB

Stereo channel separation: >80 dB @ 1 kHz

THD + Noise: <0.1% @ 20 Hz to 20 kHz at nominal level

Thermal dissipation, full load: MM: 5577.2 BTU/hr SM: 5659.4 BTU/hr

Transmission type: Dante/AES-67, software selectable

Utilities: Toolbelt, embedded web page

Volume control range: -100 dB to 0 dB (control 0-100 in 1 dB steps)

Web server: Up to 200 simultaneous sessions7.0 MB non-volatile memory

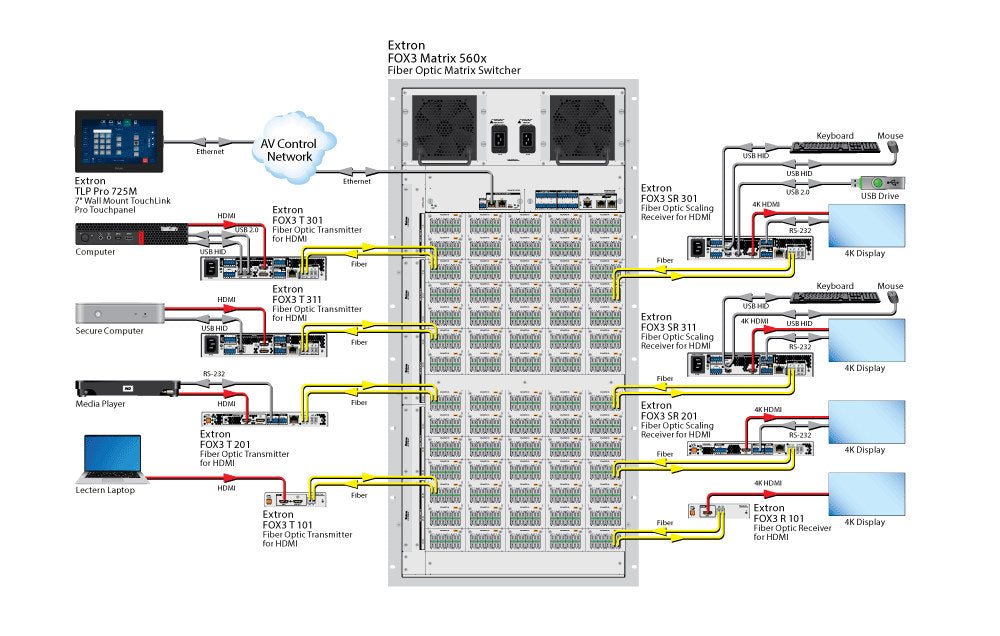

Diagram

Resources

Brochure | LinkLicense 79-2589-01 | FOX3 Matrix 560x (fox3_matrix_560x_vA1.pdf)

Brochure | LinkLicense 79-2589-01 | FOX3 Systems (fox3_matrix_series_vA5.pdf)

Brochure | LinkLicense 79-2589-01 | FOX3 Matrix 560x (FOX3-Matrix-560x_BR_A4_FR_RevA1.pdf)

Brochure | LinkLicense 79-2589-01 | FOX3 Matrix 560x (FOX3-Matrix-560x_BR_A4_GE_RevA1.pdf)

Brochure | LinkLicense 79-2589-01 | FOX3 Matrix 560x (FOX3-Matrix-560x_BR_A4_IT_RevA1.pdf)

Brochure | LinkLicense 79-2589-01 | FOX3 Matrix 560x (FOX3-Matrix-560x_BR_A4_SP_RevA1.pdf)

Brochure | LinkLicense 79-2589-01 | FOX3 Matrix 560x (FOX3_Matrix_560x_Rev_A_CN_Online.pdf)

Brochure | LinkLicense 79-2589-01 | FOX3 Systems (fox3_matrix_series_vA5_IT.pdf)

Brochure | LinkLicense 79-2589-01 | FOX3 Systems (FOX3_Systems_Rev_A5_Chinese.pdf)

Brochure | LinkLicense 79-2589-01 | FOX3 Systems (fox3_matrix_series_vA5_GE.pdf)

Brochure | LinkLicense 79-2589-01 | FOX3 Systems (fox3_matrix_series_vA5_FR.pdf)

Brochure | LinkLicense 79-2589-01 | FOX3 Systems (fox3_matrix_series_vA5_SP.pdf)

Brochure | LinkLicense 79-2589-01 | FOX3 Systems (FOX3-Systems_BR_A4_EN_RevA3_Japanese.pdf)

Manual | LinkLicense 79-2589-01 | Control Systems Network Ports, Protocols, and Licenses

Manual | LinkLicense 79-2589-01 | FOX3 Matrix Security Configuration Setup Guide

Manual | LinkLicense 79-2589-01 | FOX3 Matrix Series EMI Shield Installation Guide

Manual | LinkLicense 79-2589-01 | FOX3 Matrix Series Network Ports, Protocols, and Licenses Guide

Manual | LinkLicense 79-2589-01 | FOX3 Matrix Series Setup Guide

Manual | LinkLicense 79-2589-01 | FOX3 Matrix Series User Guide

Manual | LinkLicense 79-2589-01 | FOX3 Matrix System Map Setup Guide

Manual | LinkLicense 79-2589-01 | IPCP Pro Q xi and xi Series Setup Guide

Manual | LinkLicense 79-2589-01 | IPCP Pro Q xi and xi Series User Guide

Specifications | LinkLicense 79-2589-01 | FOX3 Matrix 560x

Panel Drawing | LinkLicense 79-2589-01 | FOX3 Matrix 560x

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

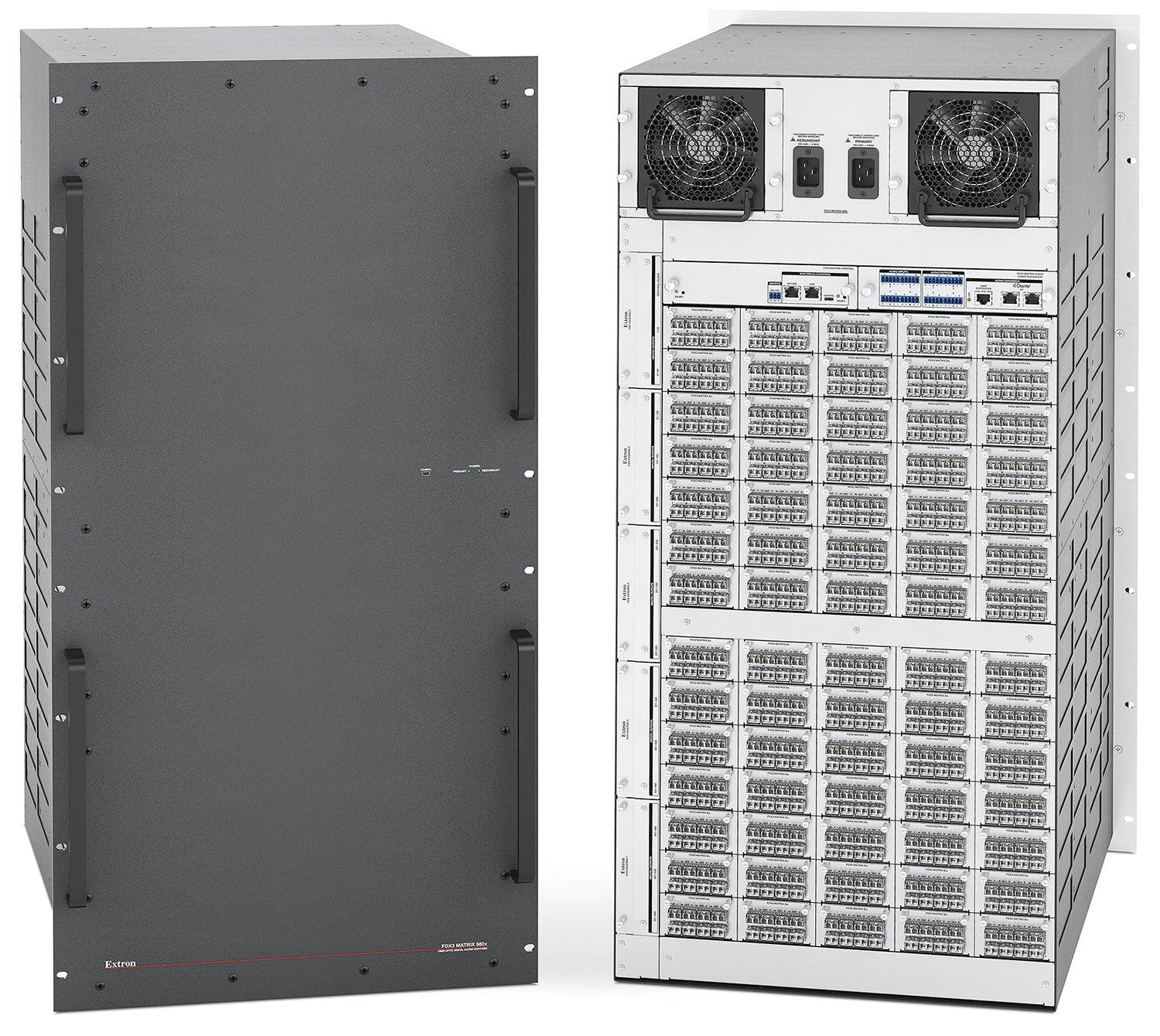

Extron LinkLicense 79-2589-01
