Extron IR Sensor Remote IR Receiver
- • Extron IR sensor remote IR receiver for SMD 101/202
- • Compact sensor head on 6 ft (1.8 m) wire lead
- • Three-wire hookup, cable run to 21 ft max
- • Sales, replacement and exchange
- • Part# 70-223-01 / 7022301
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

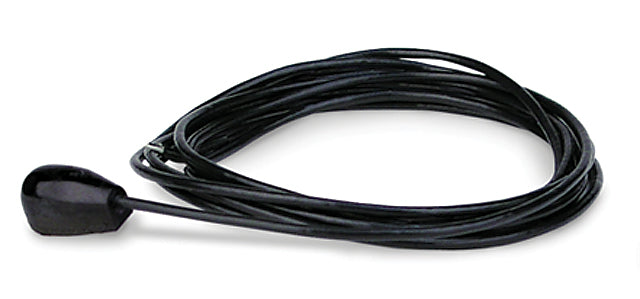

Extron IR Sensor (part number 70-223-01) - a remote infrared receiver on a 6 foot lead for SMD 101 and SMD 202 decoders.

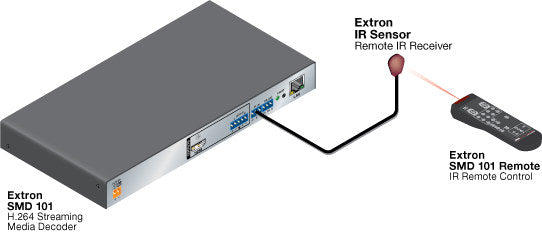

A streaming decoder is usually installed where nobody can see it: behind a display, inside a lectern, on a shelf in a rack. That is fine until someone picks up the handheld remote and nothing happens. The IR Sensor moves the receiving element out to wherever the operator actually stands, on a 6 foot (1.8 m) cord, while the decoder stays put. Extron's installation card gives three conductors to land - red for +5 VDC in, white for the demodulated IR signal, black for ground - and warns against running the sensor cable past 21 feet (6.4 m).
Key Capabilities
- Compact sensor head on a 6 ft (1.8 m) wire lead for flexible placement.
- Pairs with the SMD 101 and SMD 202 H.264 Streaming Media Decoders.
- Accepts commands from the SMD 101 Remote and SMD 202 Remote handhelds.
- Three-wire hookup: +5 VDC in, demodulated IR out, ground.
- Cable run must not be extended beyond 21 ft (6.4 m) per Extron.
- Extron also lists it as an accessory for the IR 102 Universal Remote Control Kit.
Where It Is Used
Digital signage players tucked behind a screen, classroom and auditorium streaming endpoints, hospital and waiting-room displays, and rack-mounted decoder deployments where the IR window would otherwise be buried and the handheld remote would be useless.
Specifications at a Glance
- Extron version description: Remote IR Receiver
- Cord length: 6 ft (1.8 m); do not extend beyond 21 ft (6.4 m)
- Wire assignments: red +5 VDC input, white demodulated IR signal, black ground
- Host devices: SMD 101 and SMD 202 H.264 Streaming Media Decoders
- Remotes supported: SMD 101 Remote, SMD 202 Remote
Frequently asked questions about the Extron IR Sensor Remote IR Receiver for SMD 101/202
Does Ampronix sell the Extron IR Sensor Remote IR Receiver for SMD 101/202?
Yes. Ampronix is an authorized Extron distributor and sells the Extron IR Sensor Remote IR Receiver for SMD 101/202 (70-223-01). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron IR Sensor Remote IR Receiver for SMD 101/202?
Yes. Ampronix provides sales, replacement and exchange for the Extron IR Sensor Remote IR Receiver for SMD 101/202. Call Ampronix for a quote.
Is the Extron IR Sensor Remote IR Receiver for SMD 101/202 listed under other names?
Yes. The Extron IR Sensor Remote IR Receiver for SMD 101/202 is also referenced as Extron IRSensor, IR-Sensor, part number 7022301.
What are the key features of the Extron IR Sensor Remote IR Receiver for SMD 101/202?
Key points: Compact sensor head on a 6 ft (1.8 m) wire lead for flexible placement; Pairs with the SMD 101 and SMD 202 H.264 Streaming Media Decoders; Accepts commands from the SMD 101 Remote and SMD 202 Remote handhelds; Three-wire hookup: +5 VDC in, demodulated IR out, ground. Call Ampronix to confirm details for your application.
Also referenced as Extron IRSensor, IR-Sensor, part number 7022301.
