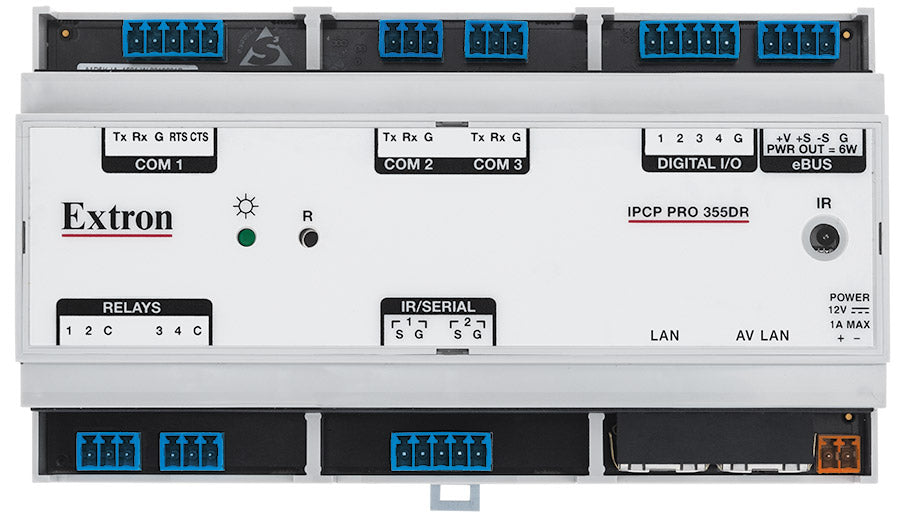

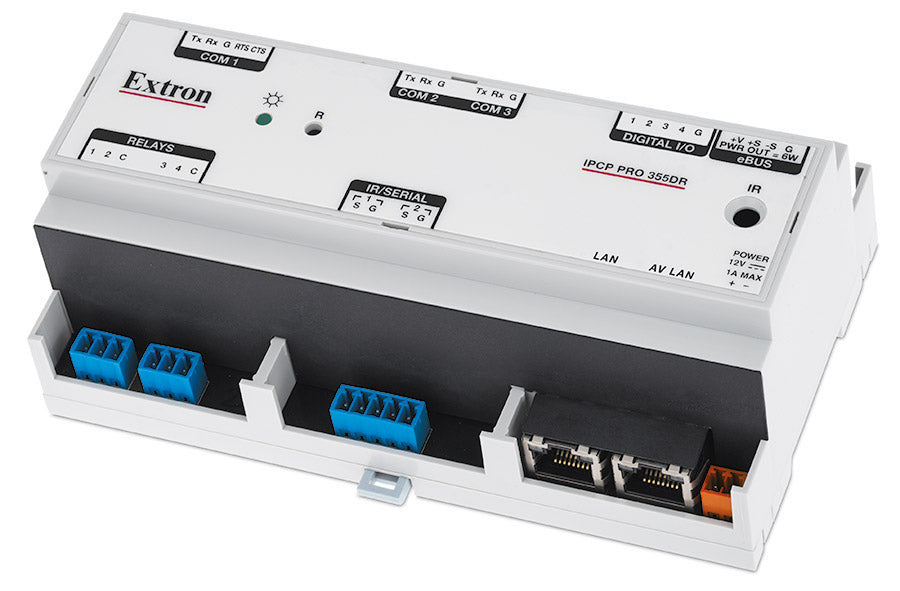

Extron IPCP Pro 355DR (part number 60-1433-01A) - a compact, DIN-rail-mount IP Link control processor built for equipment rooms and enclosures where standard rack space isn't available.

Housed in a plastic DIN-rail enclosure rather than a rack shelf, the 355DR packs dual Gigabit NICs (a general LAN plus a dedicated AV LAN), three serial ports, two programmable IR/serial ports, four relays, and four configurable digital I/O into a footprint that clips directly onto standard 35 mm DIN rail.

Key Capabilities

• Snaps onto standard 35 mm DIN rail - no rack space required
• 2 Gigabit NICs: 1 LAN plus 1 dedicated AV LAN
• 3 serial ports: 1 RS-232/RS-422/RS-485 plus 2 dedicated RS-232
• 4 normally open relays (24 VDC, 1 A) and 4 configurable digital I/O
• 2 programmable IR/serial ports with IR-learning support

Where It Is Used

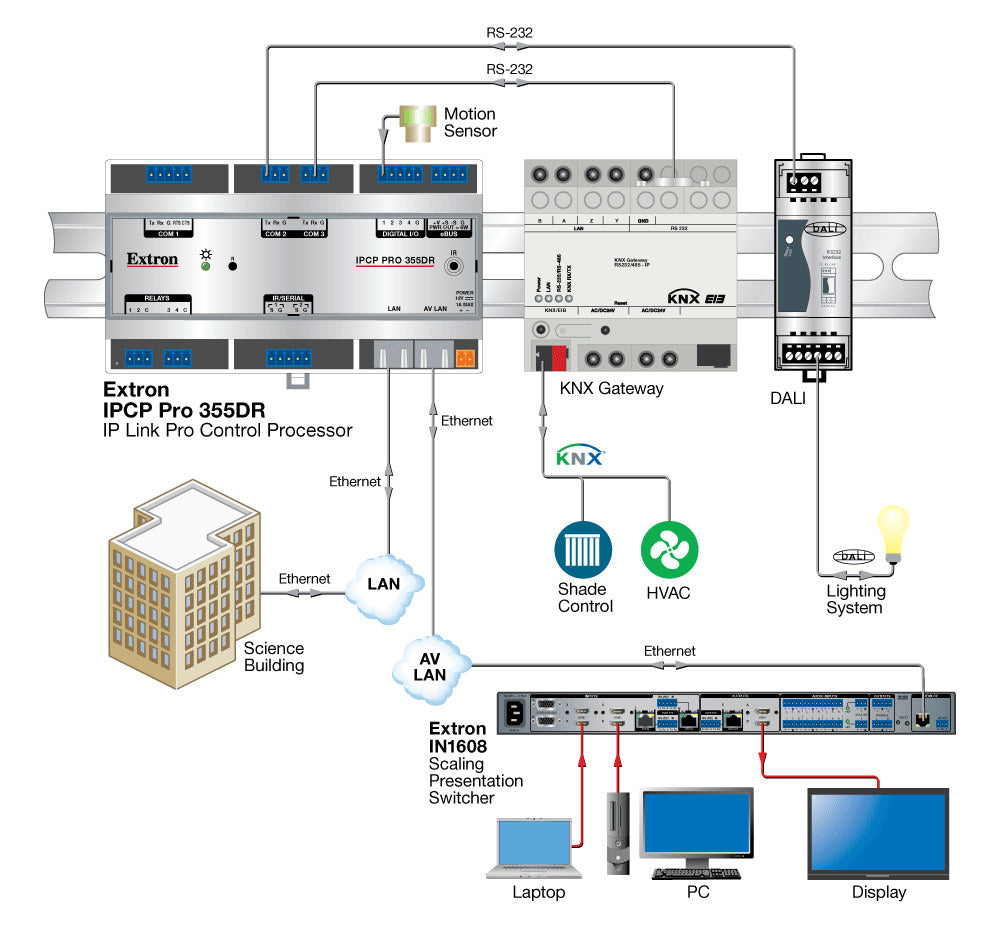

Integrators mounting control electronics inside equipment cabinets or electrical enclosures rely on the 355DR's DIN-rail form factor to keep the processor secured alongside other panel-mounted gear, while still delivering the same serial, relay, IR, and digital I/O control found in rack-mount IPCP Pro models.

Specifications at a Glance

• Network: 2 Gigabit NICs (1 LAN, 1 AV LAN)
• Memory: 512 MB SDRAM / 4.5 GB flash
• Serial: 1 RS-232/422/485 + 2 RS-232; IR/Serial: 2 ports; Relays: 4 normally open
• Mounting: DIN rail only (no rack mount)

Frequently asked questions about the Extron IPCP Pro 355DR DIN-Rail Control Processor

Also referenced as Extron IPCPPro355DR, IPCP-Pro-355DR, part number 60143301A.
