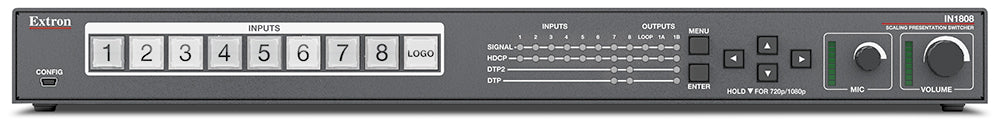

Extron IN1808 4K/60 Seamless Presentation Switcher 60-1615-01

Details

Manufacturer: Extron; Model: IN1808; Part number: 60-1615-01 (also written 60161501)

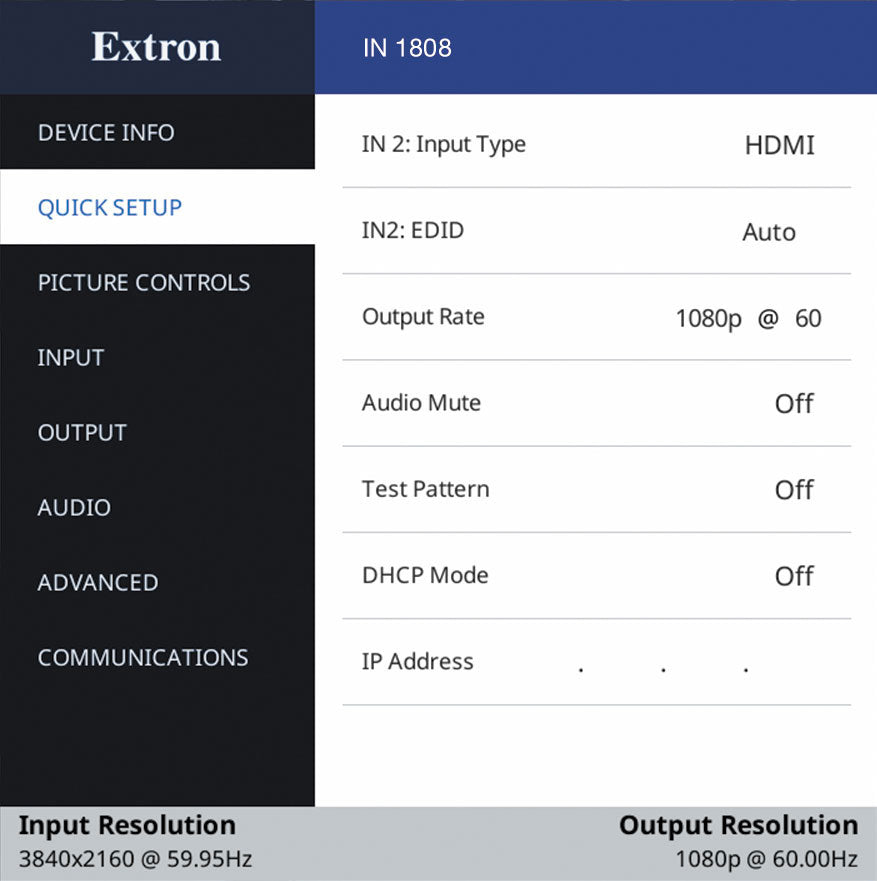

The Extron IN1808 (60-1615-01) is a new 8-input seamless presentation switcher available through Ampronix supporting 4K/60 4:4:4 with Vector 4K scaling. Eight sources - 1 DisplayPort, 5 HDMI, and 2 DTP2/XTP-configurable inputs - feed a mirrored DTP2 output that carries video, audio, and control up to 330 ft over shielded CATx. Built-in ProDSP handles mic/line mixing with phantom power. Standard model without integrated amplifier or control processor.

Key capabilities

Vector 4K scaling up to 4096x2160 at 60 Hz, 4:4:4 chroma
Eight sources: 1 DisplayPort, 5 HDMI, 2 DTP2/XTP-configurable inputs

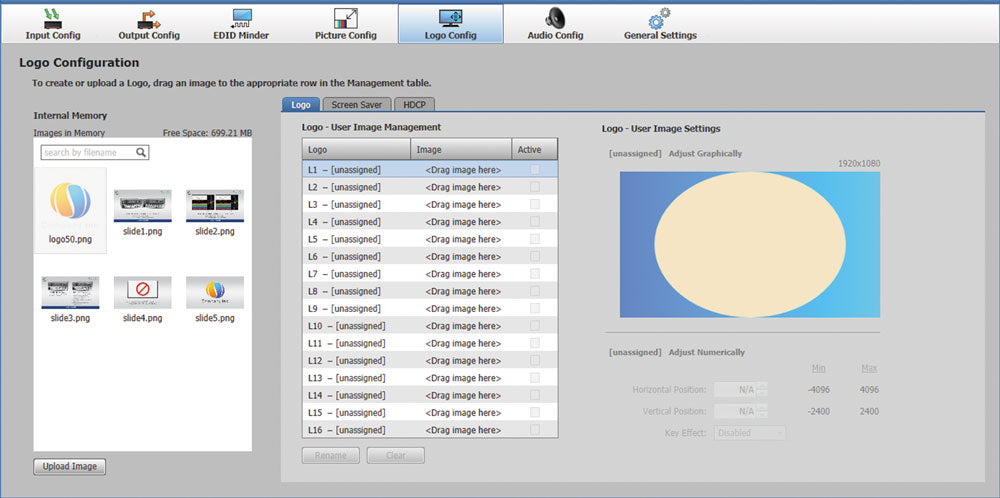

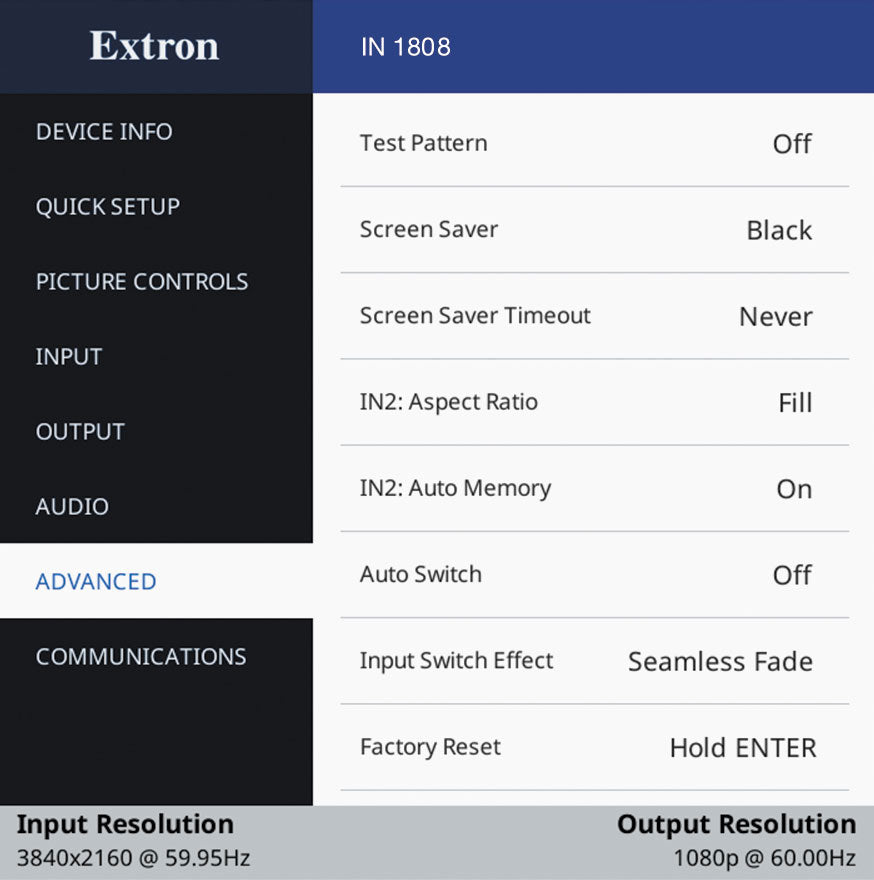

Seamless cut, fade, and logo-keyed switching transitions
ProDSP audio with 2 mic/line and 2 stereo line inputs, +48V phantom power
DTP2 output to 330 ft over shielded CATx

Where it is used

Conference rooms, boardrooms, classrooms, and lecture halls needing centralized 4K switching and scaling without an integrated amplifier or control processor.

Specifications at a glance

Video: DisplayPort/HDMI inputs, 4K/60 4:4:4 scaling; DTP2 to 330 ft
Power: 94 W, internal 100-240 VAC supply
Enclosure: 1U, 5.3 lbs; warranty: 3-year product, 7-year Everlast power supply

Frequently asked questions about the Extron IN1808 4K/60 Seamless Presentation Switcher

Is the Extron IN1808 60-1615-01 available new or refurbished?

Ampronix stocks the IN1808 (60-1615-01) as a new unit through its authorized Extron distribution agreement.

How does the IN1808 differ from the IN1608 xi series?

The IN1808 supports 4K/60 4:4:4 with Vector 4K scaling and accepts DisplayPort inputs; the IN1608 xi series scales up to 1920x1200 and does not include DisplayPort inputs - making the IN1808 the choice for current 4K workflows.

Does Ampronix offer replacement and exchange for the Extron IN1808?

Yes. Ampronix provides sales, replacement and exchange for the IN1808 and the broader Extron IN-series presentation switcher line.

Ampronix is an authorized Extron distributor. Need a replacement or exchange for your Extron IN1808? Ampronix provides sales, replacement and exchange for this product and the broader Extron line.

Also referenced as Extron IN1808, part number 60-1615-01, 60161501.

Specifications

Part Number: 60-1615-01

Manufacturer: Extron

Model: IN1808 (Standard Model)

Condition: New

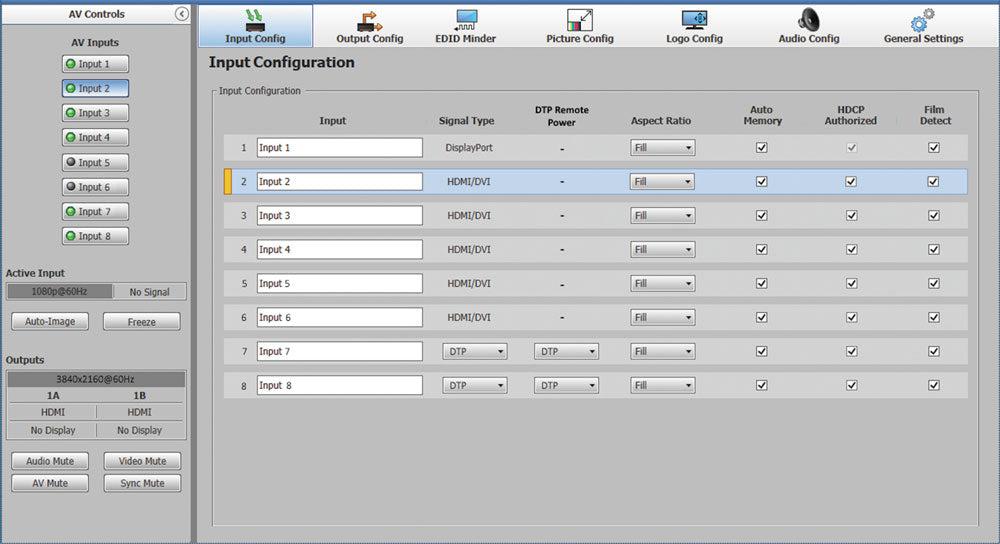

Video input number/signal type: 1 DisplayPort, 5 HDMI/DVI, 1 HDMI/DVI loop-out (non-scaled, with CEC), 2 DTP2/XTP-configurable

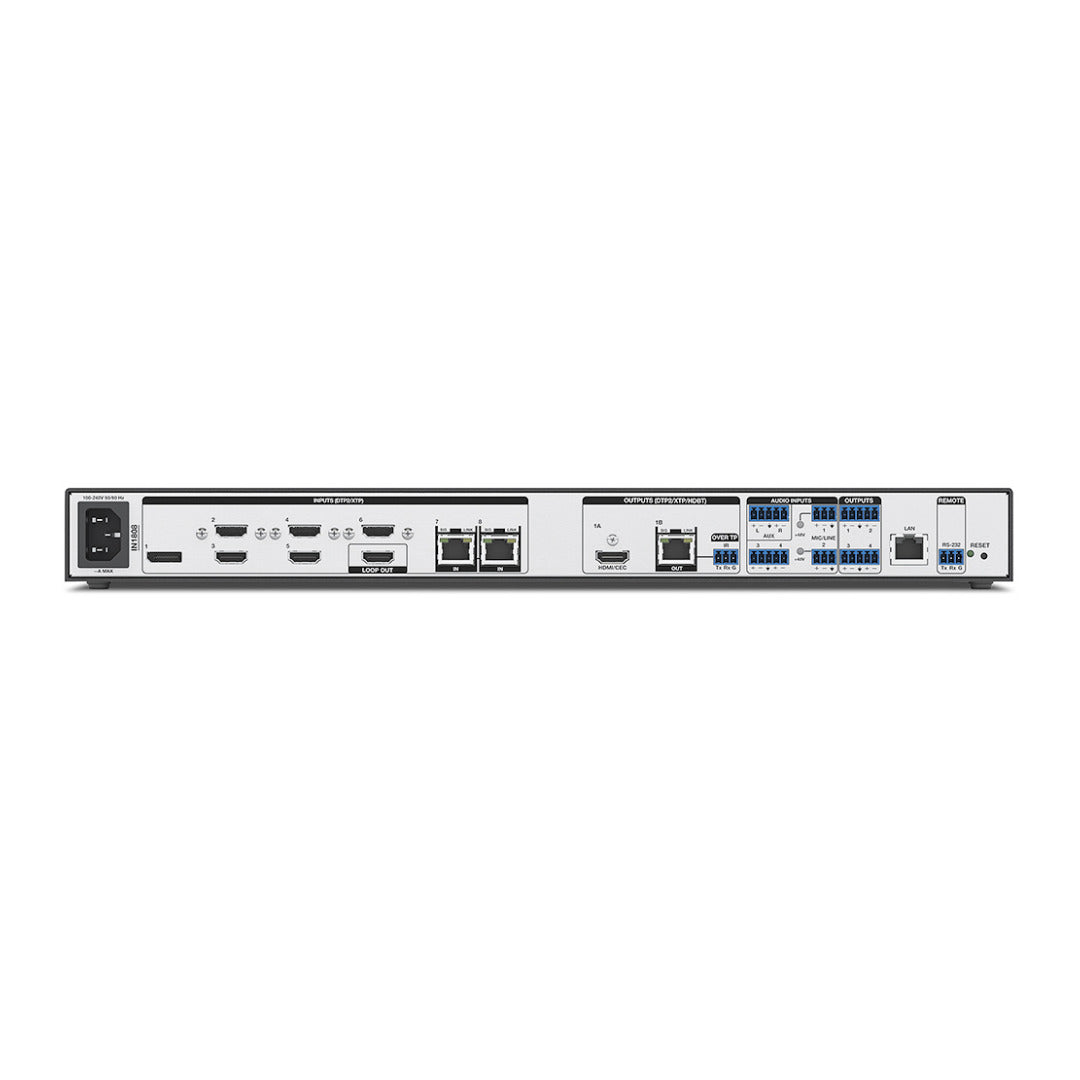

Video input connectors: 1 female DisplayPort, 5 female HDMI type A, 1 female HDMI type A loop-out, 2 female RJ-45

Horizontal frequency: 15 kHz to 270 kHz for resolutions up to 18 Gbps

Vertical frequency: 24 Hz to 240 Hz for resolutions up to 18 Gbps

Resolution range: 640x480 @ 60 Hz through 4096x2160 @ 60 Hz with 4:4:4 chroma sampling; includes 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2K, and 4K

Digital sampling: 8 or 10 bits per color; 600 MHz pixel clock maximum

Colors: 1.07 billion (10-bit 4:4:4 processing)

Video output number/signal type: 1 HDMI/DVI (with CEC), 1 DTP2/XTP/HDBT configurable (with CEC)

Video output connectors: 1 female HDMI type A, 1 female RJ-45

Power for active cables: 1.1 W max. for the HDMI and loop out ports

Peripheral device power: 250 mA per output (HDMI and loop outputs only)

Frame rate: 24, 25, 30, 50, 60, 120, 144, or 240 fps

Chroma sampling: 4:4:4 and 4:2:2; 4:2:0 (at input only)

Color bit depth: 8 or 10 bits per color

Signal type / Standards: DVI 1.0, HDMI 1.4 and 2.0, DisplayPort 1.2, HDCP 1.4 and 2.3

Max. video data rate (HDMI): 18 Gbps (6 Gbps per color)

Max. video data rate (DisplayPort): 21.6 Gbps (5.4 Gbps per lane)

Audio gain: Unbalanced output -6 dB; balanced output 0 dB

Audio frequency response: 20 Hz to 20 kHz, ±0.5 dB

THD + Noise: <0.1%, 20 Hz to 20 kHz at nominal level

S/N: >90 dB at maximum balanced output (unweighted)

Crosstalk: ≤-80 dB @ 1 kHz, fully loaded

Stereo channel separation: >80 dB @ 1 kHz

Analog de-embedding: LPCM up to 2.0/24-bit/96 kHz

HDMI pass-through audio: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, and Dolby legacy formats; DTS:X, DTS-HD Master Audio, DTS 96/24, and DTS legacy formats

Audio input number/signal type: 2 stereo line level; 2 mono mic/line level (available phantom power); 6 stereo de-embedded from HDMI/DisplayPort (PCM only); 2 DTP2/XTP (de-embedded HDMI PCM only, or remote unbalanced analog in DTP mode)

Audio input connectors: (2) 3.5 mm 5-pole captive screw for line; (2) 3.5 mm 3-pole captive screw for mic/line; 5 female HDMI type A; 1 female DisplayPort; 2 female RJ-45

Audio input impedance: >10K ohms unbalanced, >20K ohms balanced

Nominal level: Line inputs +4 dBu (1.23 Vrms) or -10 dBV (316 mVrms), adjustable; mic/line inputs -60 dBV, +4 dBu, or -10 dBV, adjustable

Maximum level (input): Line inputs +21 dBu balanced, +15 dBu unbalanced; mic/line inputs -60 dBV, +4 dBu, -10 dBV, adjustable

CMRR: 70 dB @ 1 kHz

Input gain adjustment: Line inputs -18 dB to +24 dB in 0.1 dB steps; LPCM-2Ch inputs -18 dB to +24 dB in 0.1 dB steps; mic/line inputs -18 dB to +60 dB in 0.1 dB steps

DC phantom power: +48 VDC ±10%, switchable on or off per mic/line input

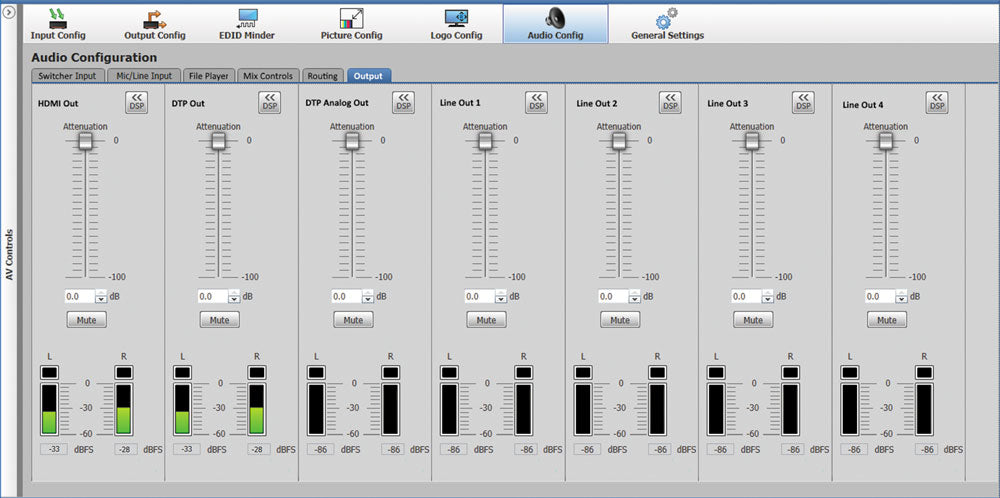

Audio output (line out) number/signal type: 2 stereo or 4 mono, balanced/unbalanced; 2 HDMI embedded (loop out excludes breakaway/audio DSP); 1 DTP2/XTP/HDBT embedded digital plus remote balanced/unbalanced analog in DTP mode

Audio output connectors: (2) 3.5 mm 5-pole captive screw; 2 female HDMI type A; 1 female RJ-45

Audio output impedance: 50 ohms unbalanced, 100 ohms balanced

Gain error: ±0.5 dB channel to channel

Maximum level (Hi-Z output): >+21 dBu balanced; >+15 dBu unbalanced

Output volume range: 0 to -100 dB in 0.1 dB steps (volume control not available on loop output)

Serial control port: 1 bidirectional RS-232, 3.5 mm 3-pole captive screw connector (rear panel)

Baud rate and protocol: 9600 baud, 8 data bits, 1 stop bit, no parity (default)

USB control port: 1 female mini USB B (front panel)

USB standards: USB 2.0, high speed

Ethernet connector: 1 female RJ-45

Ethernet data rate: 10/100/1000Base-T, half/full duplex with autodetect

Ethernet default settings: Autodetected link speed/duplex; IP address 192.168.254.254; subnet mask 255.255.255.0; gateway 0.0.0.0; DHCP off

Ethernet protocol: ARP, DHCP, DNS, HTTP (redirect), HTTPS, IEEE 802.1X, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, Telnet, UDP/IP

Storage: 512 MB user memory

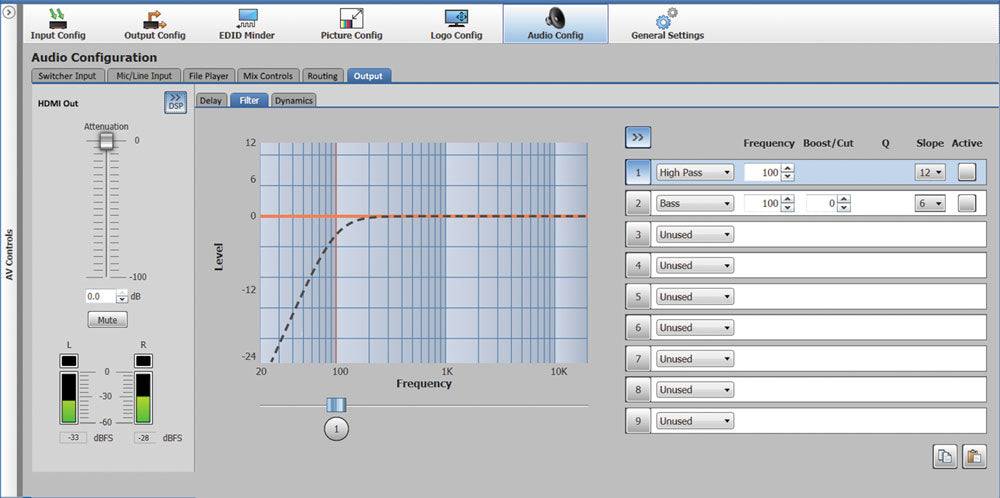

Program control: Extron Product Configuration Software (PCS) for Windows; Extron Simple Instruction Set (SIS); Microsoft Internet Explorer

Serial control pass-through: RS-232 can be inserted to and from a DTP2 Tx/XTP matrix, or from the IN1808 to a DTP2/HDBT Rx/XTP matrix, via Ethernet insertion

Baud rates (pass-through): Up to 115200 baud

Protocol (pass-through): 6 to 8 data bits; 1 or 2 stop bits; even, odd, or no parity; flow control XON, XOFF, or none

IR control pass-through port: IN1808 to TP Rx, (1) 3.5 mm 3-pole captive screw connector, TTL level (0 to 5 V) modulated infrared from 30 kHz to 60 kHz

IR control pin configuration: 1 = Tx, 2 = Rx, 3 = Gnd

Power supply: Internal, 100-240 VAC, 50-60 Hz

Power consumption (full power): 94 watts

Power consumption (power save mode): 34 watts (65 watts for Psav2)

Temperature/humidity: Storage -40 to +158°F (-40 to +70°C), 10% to 90% noncondensing; operating +32 to +122°F (0 to +50°C), 10% to 90% noncondensing

Cooling: 2 fans, air flow right to left when viewed from the front

Fan noise: 42 dB(A) (ISO3746:2010, variable-speed fan measured at max. speed)

Thermal dissipation (full power): 197 BTU/hr

Thermal dissipation (power save mode): 116 BTU/hr (152 BTU/hr for Psav2)

Rack mount: Yes, with included, preinstalled brackets

Enclosure type: Metal

Enclosure dimensions: 1.75" H x 17.5" W x 10.5" D (44 mm x 444 mm x 267 mm), 1U high, full rack wide

Product weight: 5.3 lbs (2.4 kg)

Regulatory compliance: CE, c-UL, UL, PSE, RoHs, and WEEE

Product warranty: 3 years parts and labor

Everlast power supply warranty: 7 years parts and labor

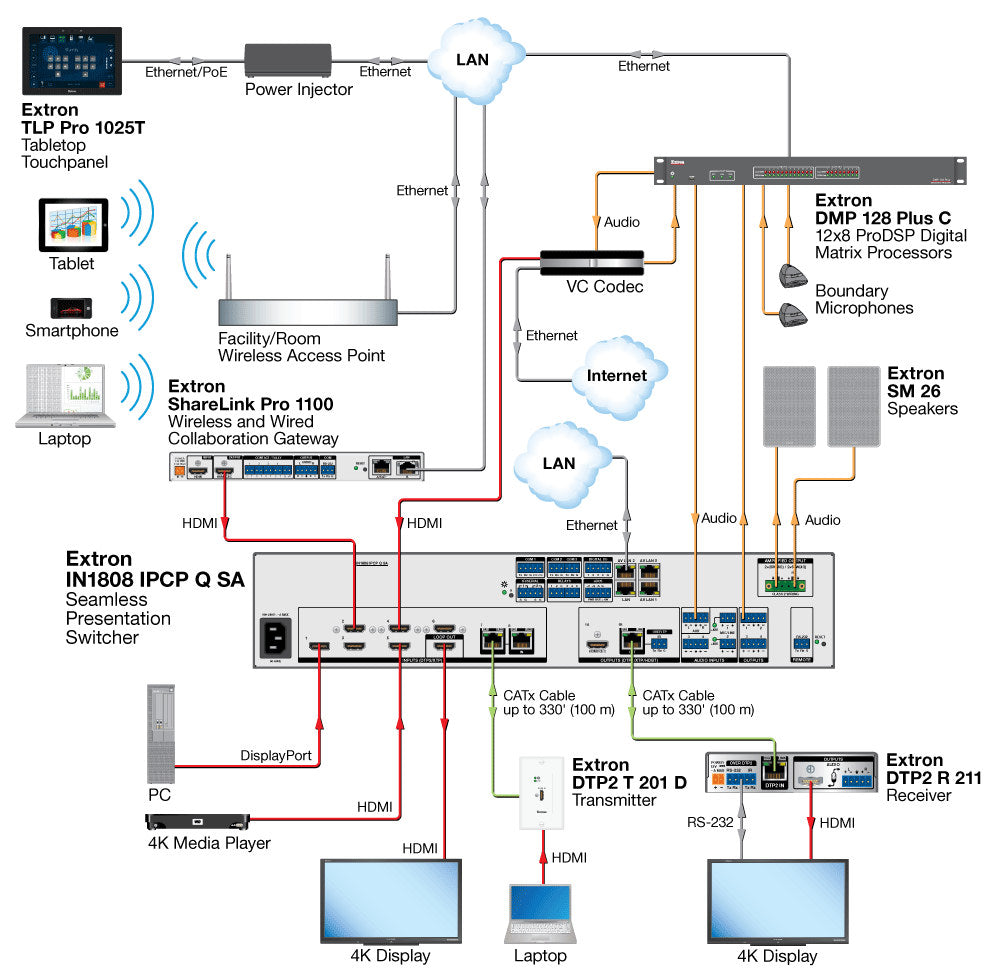

Diagram
