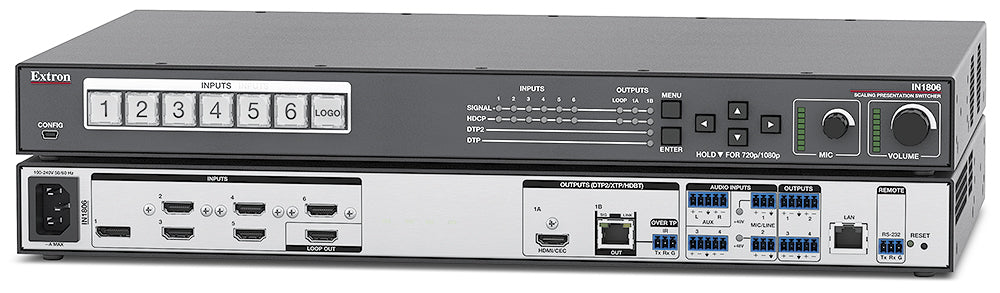

Extron IN1806 (part number 60-1663-01) - a six-input 4K/60 seamless presentation switcher with Vector 4K scaling and a mirrored HDMI/DTP2 output.

The IN1806 accepts one DisplayPort and five HDMI/DVI sources at resolutions up to 4096x2160 with 4:4:4 chroma sampling, and switches between them without a blank or freeze frame using Extron's Vector 4K scaling engine. The processed signal routes to a local HDMI output and a mirrored DTP2 output that carries video, audio, and control up to 330 ft (100 m) over shielded twisted pair cable. A sixth HDMI port serves as a non-scaled loop-out with CEC support.

Key Capabilities

1 DisplayPort + 5 HDMI/DVI inputs, plus 1 configurable HDMI loop-out
Vector 4K scaling for seamless source-to-source transitions
4K/60 4:4:4 processing, resolutions up to 4096x2160
Mirrored HDMI and DTP2 outputs; DTP2 extends to 330 ft (100 m)

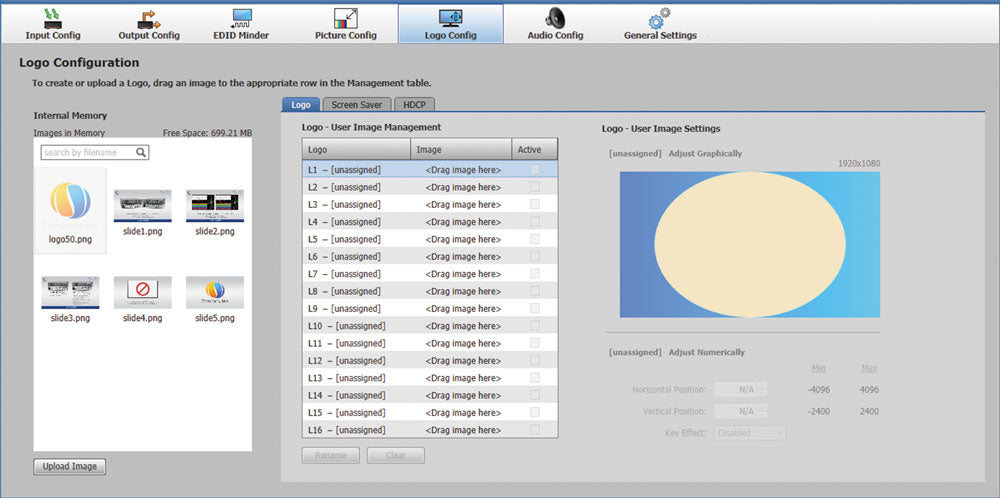

Ethernet, RS-232, and USB control with logo insertion and transition effects

Where It Is Used

Boardrooms, conference rooms, classrooms, and lecture halls that need to blend DisplayPort and HDMI sources into one seamless 4K program feed rely on the IN1806 as a compact single-rack-unit switcher with built-in extension to a remote display.

Specifications at a Glance

6 inputs: 1 DisplayPort, 5 HDMI/DVI; 2 outputs (HDMI + DTP2, mirrored)
Vector 4K scaling, 4:4:4 chroma up to 4096x2160 @ 60 Hz
DTP2 extension up to 330 ft (100 m)
1U rack-mount enclosure, 1.75" H x 17.5" W x 10.5" D
3-year Extron warranty, 7-year Everlast power supply warranty

Frequently asked questions about the Extron IN1806 Six-Input 4K/60 Seamless Switcher

Does Ampronix sell the Extron IN1806 Six-Input 4K/60 Seamless Switcher?

Yes. Ampronix is an authorized Extron distributor and sells the Extron IN1806 Six-Input 4K/60 Seamless Switcher (60-1663-01). Call Ampronix for a quote.

Does Ampronix offer replacement and exchange for the Extron IN1806 Six-Input 4K/60 Seamless Switcher?

Yes. Ampronix provides sales, replacement and exchange for the Extron IN1806 Six-Input 4K/60 Seamless Switcher. Call Ampronix for a quote.

Is the Extron IN1806 Six-Input 4K/60 Seamless Switcher listed under other names?

Yes. The Extron IN1806 Six-Input 4K/60 Seamless Switcher is also referenced as Extron IN1806, IN-1806, part number 60166301.

What are the key features of the Extron IN1806 Six-Input 4K/60 Seamless Switcher?

Key points: 1 DisplayPort + 5 HDMI/DVI inputs, plus 1 configurable HDMI loop-out; Vector 4K scaling for seamless source-to-source transitions; 4K/60 4:4:4 processing, resolutions up to 4096x2160; Mirrored HDMI and DTP2 outputs; DTP2 extends to 330 ft (100 m). Call Ampronix to confirm details for your application.

Also referenced as Extron IN1806, IN-1806, part number 60166301.

Specifications

Part Number: 60-1663-01

Manufacturer: Extron

Model: IN1806

Condition: New

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Analog de-embedding: LPCM up to 2.0/24-bit/96 kHz

Baud rate and protocol: 9600, 8 data bits, 1 stop bit, no parity (default)

Baud rates: Up to 115200 baud

CMRR: 70 dB @ 1 kHz

Chroma sampling: 4:4:4 and 4:2:2, 4:2:0 at input only

Color bit depth: 8 or 10 bits per color

Colors: 1.07 billion (10 bit 4:4:4 processing)

Connector: 1 female RJ-45

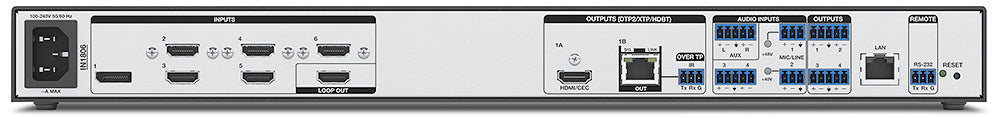

Connectors: 1 female DisplayPort, 5 female HDMI type A, 1 female HDMI type A loop-out

Cooling: 2 fans, air flow right to left (as viewed from front panel)

Crosstalk: ≤-80 dB @ 1 kHz, fully loaded

DC phantom power: +48 VDC ±10% (can be switched on or off per mic/line input)

Digital sampling: 8 or 10 bits per color; 600 MHz pixel clock maximum

DisplayPort: 21.6 Gbps (5.4 Gbps per lane)

Enclosure dimensions: 1.75" H x 17.5" W x 10.5" D (1U high, full rack wide) (44 mm H x 444 mm W x 267 mm D)

Enclosure type: Metal

Ethernet data rate: 10/100/1000Base-T, half/full duplex with autodetect

Ethernet default settings: Link speed and duplex level = autodetected. IP address = 192.168.254.254. Subnet mask = 255.255.255.0. Gateway = 0.0.0.0. DHCP = off

Ethernet protocol: ARP, DHCP, DNS, HTTP (redirect), HTTPS, IEEE 802.1X, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, Telnet, UDP/IP

Everlast power supply warranty: 7 years parts and labor

Frame rate: 24, 25, 30, 50, 60, 120, 144, or 240 fps

Frequency response: 20 Hz to 20 kHz, ±0.5 dB

Full power: 58.8 watts

Gain: Unbalanced output: -6 dB; balanced output: 0 dB

Gain error: ±0.5 dB channel to channel

HDMI: 18 Gbps (6 Gbps per color)

HDMI pass-through: LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos, Dolby TrueHD, and Dolby legacy formats; DTS:X, DTS-HD Master Audio, DTS 96/24, and DTS legacy formats

Horizontal frequency: 15 kHz to 270 kHz for resolutions up to 18 Gbps

IR control pass-through port: IN1806 to TP Rx: (1) 3.5 mm, 3 pole captive screw connector, TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz

IR control pin configuration: 1 = Tx, 2 = Rx, 3 = Gnd

Impedance: >10K ohms unbalanced, >20K ohms balanced

Input gain adjustment: Line inputs: -18 dB to +24 dB in 0.1 dB steps, adjustable per input. LPCM-2Ch inputs: -18 dB to +24 dB in 0.1 dB steps, adjustable per input. Mic/line inputs: -18 dB to +60 dB in 0.1 dB steps, adjustable per input

Maximum level: Line inputs: +21 dBu balanced, +15 dBu unbalanced. Mic/line inputs: -60 dBV, +4 dBu, -10 dBV, adjustable

Maximum level (Hi-Z): >+21 dBu, balanced; >+15 dBu, unbalanced

Nominal level: Line inputs: +4 dBu (1.23 Vrms), -10 dBV (316 mVrms), adjustable. Mic/line inputs: -60 dBV, +4 dBu, -10 dBV, adjustable

Number/signal type: 1 DisplayPort, 5 HDMI/DVI, 1 HDMI/DVI loop-out, configurable (non-scaled, with CEC)

Output volume range: 0 to -100 dB in 0.1 dB steps (volume control not available on loop output)

Peripheral device power: 250 mA per output (HDMI outputs only)

Power for active cables: 1.1 W max. for the HDMI and loop out ports

Power save mode: 30.1 watts (42.1 watts for Psav2)

Power supply: Internal; Input: 100-240 VAC, 50-60 Hz

Product warranty: 3 years parts and labor

Product weight: 5.3 lbs (2.4 kg)

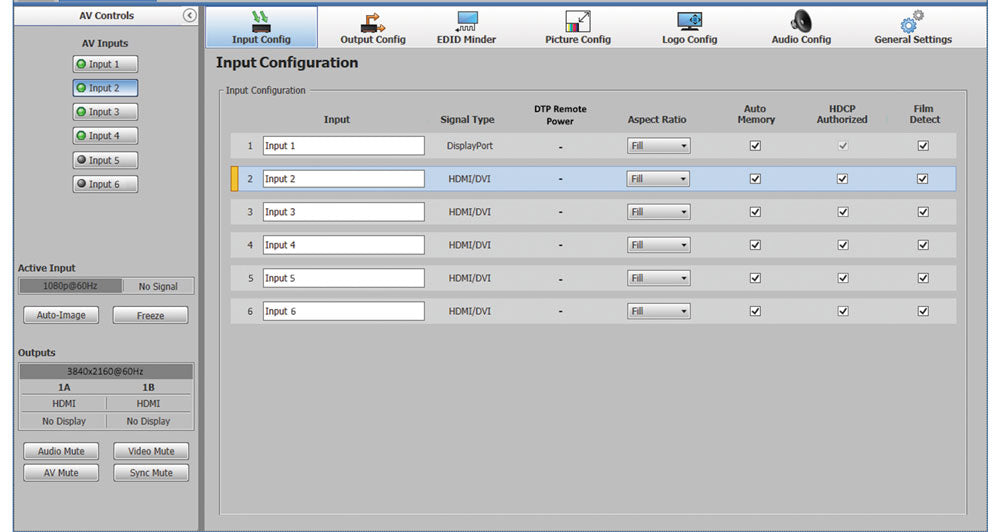

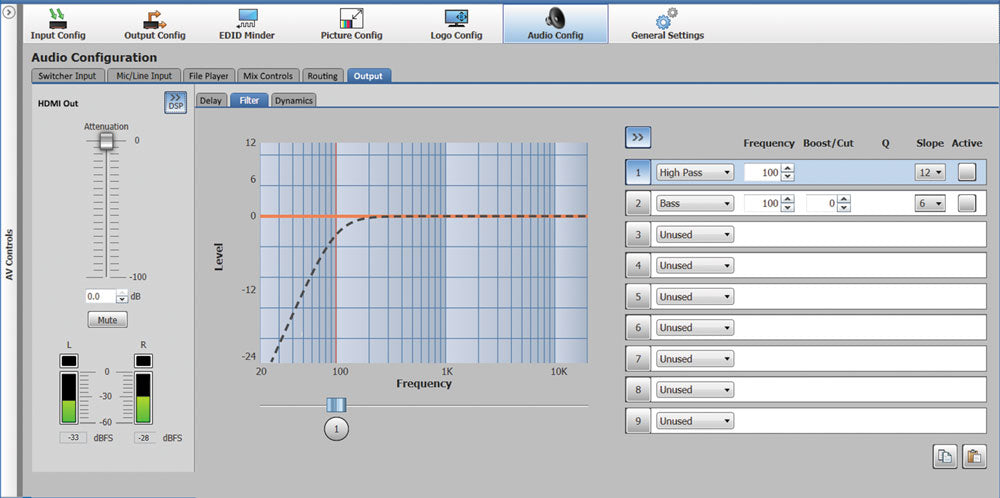

Program control: Extron Product Configuration Software (PCS) program for Windows, Extron Simple Instruction Set (SIS), Microsoft Internet Explorer

Protocol: 6 to 8 data bits, 1 or 2 stop bits, even or odd parity or no parity, flow control = XON, XOFF, none

Rack mount: Yes, with included, preinstalled brackets

Regulatory compliance: CE, c-UL, UL, PSE, RoHS, and WEEE

Resolution range: 640x480 @ 60 Hz through 4096x2160 @ 60 Hz with 4:4:4 chroma sampling. Includes 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2K, and 4K

S/N: >90 dB at maximum balanced output (unweighted)

Scaled resolution: 640x480, 800x600, 1024x768, 1280x768, 1280x800, 1280x1024, 1360x768, 1366x768, 1440x900, 1400x1050, 1600x900, 1680x1050, 1600x1200, 1920x1200, 2048x1200, 2048x1536, 2560x1080, 2560x1440, 2560x1600, 3840x2160, 4096x2160, and Custom 1-8; 480p, 576p, 720p, 1080i, 1080p, 2K at 23.98, 24, 25, 29.97, 30, 50, 59.94, or 60 Hz

Serial control pass-through port: IN1806 to DTP2 Rx/HDBT Rx/XTP matrix: RS-232 can be transmitted to and from DTP2 Rx/HDBT Rx/XTP matrix via Ethernet insertion

Serial control pin configuration: 1 = Tx, 2 = Rx, 3 = Gnd

Serial control port: 1 bidirectional RS-232, 3.5 mm, 3 pole captive screw connector (rear panel)

Signal Type: DVI 1.0, HDMI 1.4 and 2.0, DisplayPort 1.2, HDCP 1.4 and 2.3

Standards: DVI 1.0, HDMI 1.4 and 2.0, DisplayPort 1.2, HDCP 1.4 and 2.3

Stereo channel separation: >80 dB @ 1 kHz

Storage: 512 MB user memory

THD + Noise: <0.1%, 20 Hz to 20 kHz at nominal level

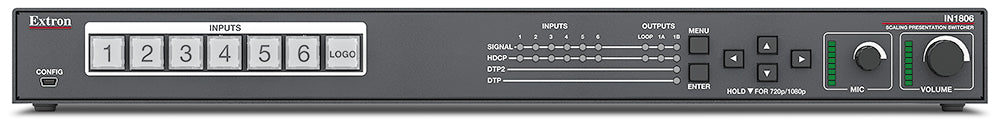

USB control port: 1 female mini USB B (front panel)

USB standards: USB 2.0, high speed

Vertical frequency: 24 Hz to 240 Hz for resolutions up to 18 Gbps

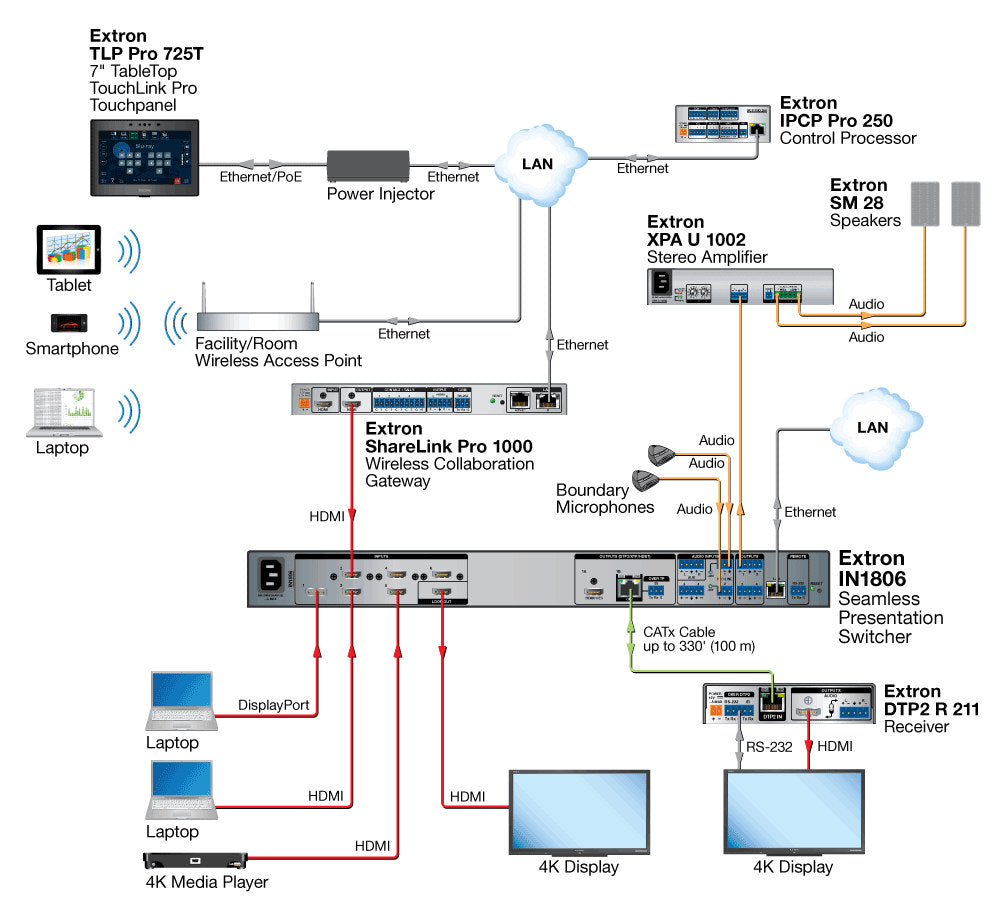

Diagram
