Part Number: 60-1238-82
Manufacturer: Extron

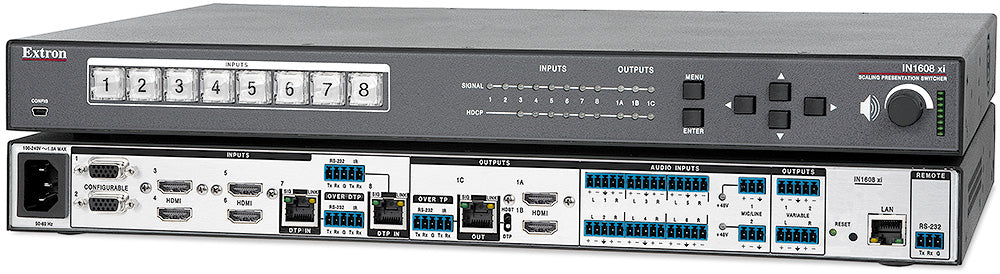

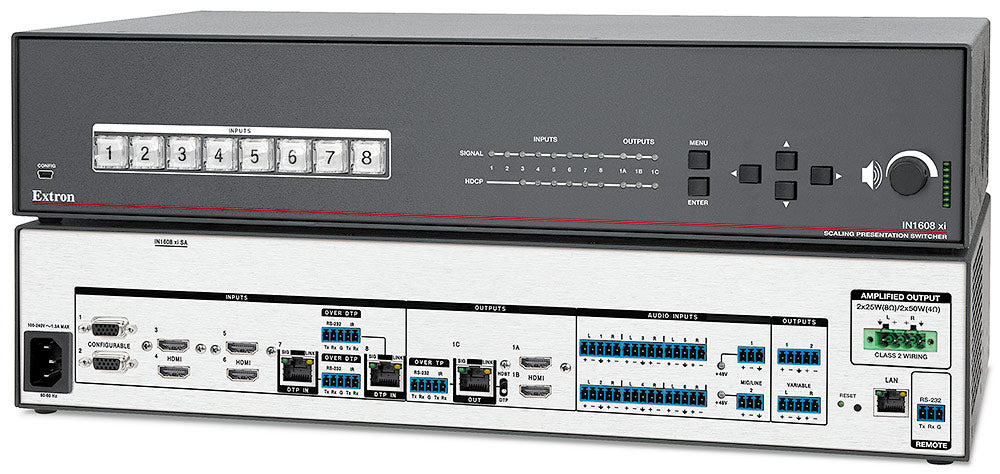

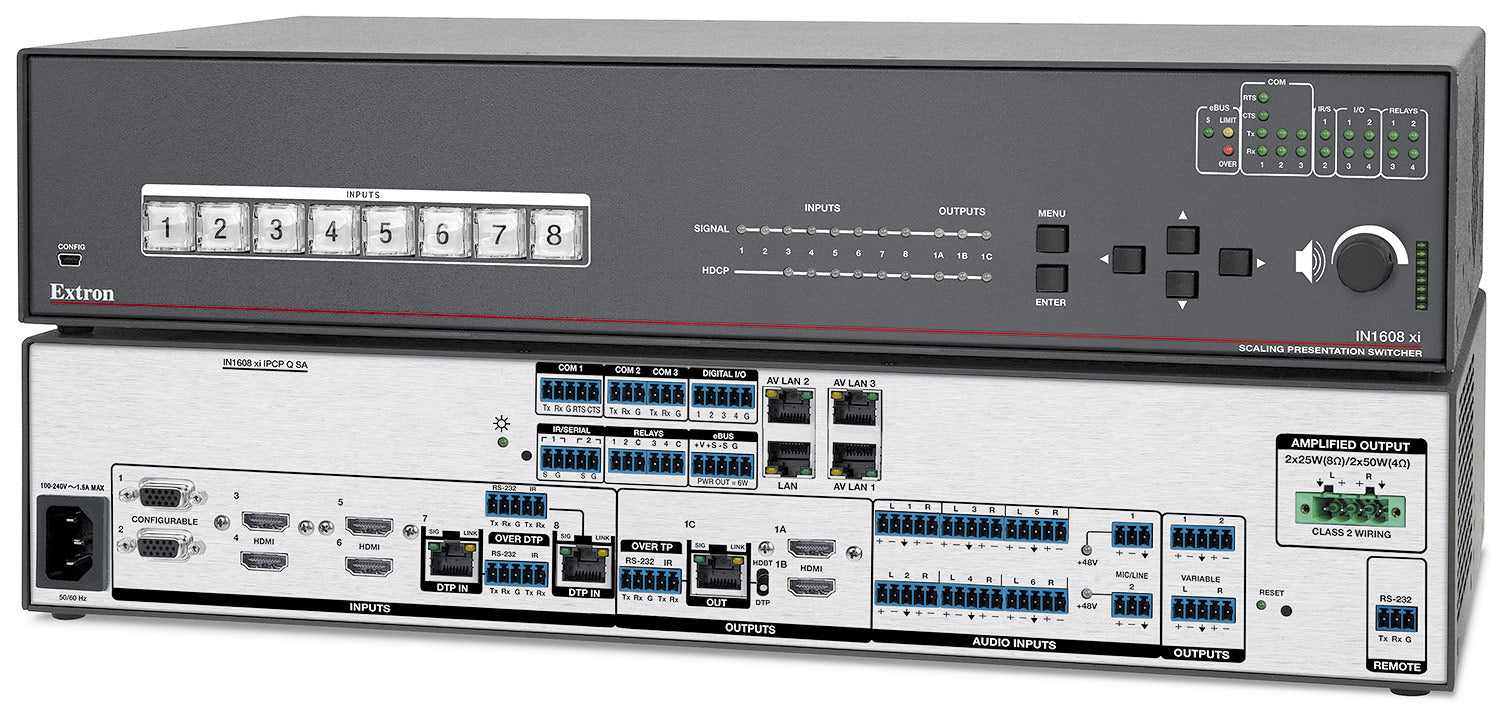

Model: IN1608 xi SA (2 x 50 Watt Stereo Power Amplifier)
Condition: New
Local Video Inputs: 2 RGB, RGBcvS, component video (YUVi/YUVp/HDTV), S-video, composite; 4 HDMI/DVI
Remote Video Inputs: 2 DTP 330
Video Input Connectors: 2 female 15-pin HD, 4 female HDMI type A, 2 female RJ-45
HDMI Equalization: Automatic
HDMI Input Cable Length: Up to 75 ft (22.9 m) for all supported input rates
Video Input Impedance: 75 ohms
Horizontal Frequency: 15 kHz to 100 kHz
Vertical Frequency: 24 Hz to 75 Hz
Input Resolution Range: 640x480 to 1600x1200 and 1920x1200 (reduced blanking); NTSC, PAL, SECAM, 480i, 480p, 576i, 576p, 720p, 1080i, 1080p and 2K
Return Loss: Greater than 30 dB at 5 MHz
Video Input Standards: NTSC 3.58, NTSC 4.43, PAL, SECAM, DVI 1.0, HDMI 1.3, HDCP 1.4
Decoder: 12 bit digital (3D adaptive comb filter)
Analog Sampling: 12 bits per color; 13.5 MHz standard (video), 170 MHz standard (RGB)
Digital Pixel Data Bit Depth: 8, 10 or 12 bits per channel; 165 MHz pixel clock (HDMI)
Colors: 1 billion (10 bit processing)
Local Video Outputs: 2 HDMI/DVI
Remote Video Output: 1 DTP 330 or HDBaseT (configurable)
Video Output Connectors: 2 female HDMI type A, 1 female RJ-45
HDMI Peripheral Device Power: 200 mA per output
Scaled Output Resolutions: 640x480 through 1920x1200, plus HDTV 480p, 576p, 720p, 1080i, 1080p and 2048x1080
Video Output Standards: DVI 1.0, HDMI 1.3, HDCP 1.4
Sync Input Type: RGBHV, RGBS, RGsB, RGBcvS, bi-level or tri-level component video
Sync Input Level: 2.75 V to 5.0 Vp-p for RGBHV or RGBS; 0.6 Vp-p tri-level component; 0.3 Vp-p bi-level component or RGsB
Sync Input Impedance: Horizontal 510 ohms, Vertical 510 ohms
Maximum Sync Input Voltage: 5.0 Vp-p
Twisted Pair Connectors: 3 female RJ-45
Termination Standard: TIA/EIA-T568B
DTP 330 Transmission Distance: Up to 330 ft (100 m) over shielded twisted pair or XTP DTP 24 STP cable
HDBaseT Transmission Distance: Up to 330 ft (100 m) over shielded twisted pair or XTP DTP 24 STP cable
Cable Requirements: Solid conductor, 24 AWG or better; 400 MHz bandwidth shielded twisted pair recommended
Audio Gain: Unbalanced output -6 dB; balanced output 0 dB
Audio Frequency Response: 20 Hz to 20 kHz, plus or minus 0.5 dB
Audio THD + Noise: Less than 0.1%, 20 Hz to 20 kHz at nominal level
Audio S/N: Greater than 90 dB at maximum balanced output (unweighted)
Audio Crosstalk: -80 dB or less at 1 kHz, fully loaded
Stereo Channel Separation: Greater than 80 dB at 1 kHz
Bass: +12 dB to -24 dB at 100 Hz
Treble: +12 dB to -24 dB at 8 kHz
Analog De-embedding: LPCM up to 2.0/24-bit/96 kHz
HDMI Audio Pass-Through: LPCM up to 7.1/24-bit/192 kHz; Dolby Atmos, Dolby TrueHD and legacy Dolby formats; DTS:X, DTS-HD Master Audio, DTS 96/24 and legacy DTS formats
Audio Inputs: 8 stereo line level balanced or unbalanced; 2 mono mic/line level balanced or unbalanced with available phantom power; 4 stereo de-embedded from HDMI (PCM only); 2 DTP
Audio Input Connectors: (6) 3.5 mm captive screw, 5 pole for line; (2) 3.5 mm captive screw, 3 pole for mic/line; 4 female HDMI type A; 2 female RJ-45
Audio Input Impedance: Greater than 10k ohms unbalanced, greater than 20k ohms balanced
Audio Input Nominal Level: Line inputs +4 dBu or -10 dBV, adjustable; mic/line inputs -60 dBV, +4 dBu or -10 dBV, adjustable
Audio Input Maximum Level: +21 dBu at rated THD+N with input gain set to 0 dB
CMRR: Greater than 80 dB at 1 kHz
Input Gain Adjustment: Line inputs -18 dB to +24 dB in 1 dB steps; mic/line inputs -18 dB to +60 dB in 1 dB steps; LPCM-2Ch -18 dB to +24 dB in 0.1 dB steps
DC Phantom Power: +48 VDC plus or minus 10%, switchable on or off per mic/line input
Local Audio Outputs: 1 balanced or unbalanced stereo (variable); 1 balanced or unbalanced stereo configurable as stereo or two independently mixed mono channels; 2 HDMI embedded
Remote Audio Output: 1 DTP (embedded digital plus remote balanced/unbalanced analog) or 1 HDBaseT (embedded digital)
Audio Output Connectors: (2) 3.5 mm captive screw, 5 pole; 2 female HDMI type A; 1 RJ-45
Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced
Gain Error: Plus or minus 0.5 dB channel to channel
Maximum Level (Hi-Z): Greater than +20 dBu balanced; greater than +14 dBu unbalanced
Output Volume Range: 0 to -100 dB in 1 dB steps
Amplifier Type: Class D
Amplifier Channels: 1 stereo (default) or 2 mono (2 channels total)
Amplifier Output Power: 25 watts per channel into 8 ohms and 50 watts per channel into 4 ohms, 1 kHz, 0.1% THD
Amplifier Load Impedance: 4 ohms minimum
Amplifier Connector: (1) 5 mm screw lock captive screw connector, 4 pole; accepts 22 AWG to 12 AWG wire
Amplifier Frequency Response: 20 Hz to 20 kHz, -3 dB to +1 dB at 1 W
Amplifier THD + Noise: Less than 0.1% at 1 kHz, 3 dB below clipping
Amplifier S/N: Greater than 90 dB, 20 Hz to 20 kHz, unweighted
Amplifier Protection: Clip limiting, thermal, short circuit, DC output
Serial Control Port: 1 bidirectional RS-232 on 3.5 mm captive screw connector, 3 pole (rear panel)
Baud Rate and Protocol: 9600 baud, 8 data bits, 1 stop bit, no parity (default)
Serial Control Pin Configuration: 1 = Tx, 2 = Rx, 3 = Gnd
USB Control Port: 1 front panel female mini USB B; USB 2.0, high speed
Ethernet Control Port: 1 female RJ-45 connector
Ethernet Data Rate: 10/100Base-T, half/full duplex with autodetect
Ethernet Protocol: ARP, DHCP, DNS, HTTP (redirect), HTTPS, IEEE 802.1X, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, Telnet, UDP/IP
Ethernet Default Settings: Link speed and duplex autodetected; IP address 192.168.254.254; subnet mask 255.255.0.0; gateway 0.0.0.0; DHCP off
Program Control: Extron control and configuration program for Windows; Extron Simple Instruction Set (SIS); Microsoft Internet Explorer
Serial Pass-Through, Input/DTP Tx: RS-232 via (2) 3.5 mm captive screw connectors, 5 pole, shared with the IR ports
Serial Pass-Through, Output/TP Rx: RS-232 via (1) 3.5 mm captive screw connector, 5 pole, shared with the IR port
Pass-Through Baud Rates: Up to 115200 baud
IR Pass-Through Control Ports: TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz
IR Control Pin Configuration: 3 = Gnd, 4 = IR Tx, 5 = IR Rx
Power Supply: Internal; input 100-240 VAC, 50-60 Hz
Power Consumption: 67 watts at full load (amplifier output at 1/8 power)
Power Save Mode: Less than 42 watts
Thermal Dissipation: 149 BTU/hr at full load
Remote Power Capability, DTP Mode: Supports up to three endpoints (two DTP Tx, one DTP Rx)
Remote Power Capability, HDBaseT Mode: Supports up to two endpoints (two DTP Tx)
Ambient Temperature/Humidity: Storage -40 to +158 degrees F (-40 to +70 degrees C); Operating +32 to +122 degrees F (0 to +50 degrees C); 10% to 90% noncondensing
Cooling: Fans, air flows right to left as viewed from the front panel
Mounting: Rack mount with included, pre-installed brackets
Enclosure Type: Metal
Enclosure Dimensions: 3.47 in H x 17.5 in W x 9.5 in D (2U high, full rack wide); 88 mm H x 444 mm W x 241 mm D. Depth excludes connectors and knobs; width excludes rack ears.
Product Weight: 7.4 lbs (3.4 kg)
Regulatory Compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI, RoHS, WEEE
Product Warranty: 3 years parts and labor
Everlast Power Supply Warranty: 7 years parts and labor
