Manufacturer: Extron; Model: IN1604 HD; Part number: 60-1457-02 (also written 60145702)

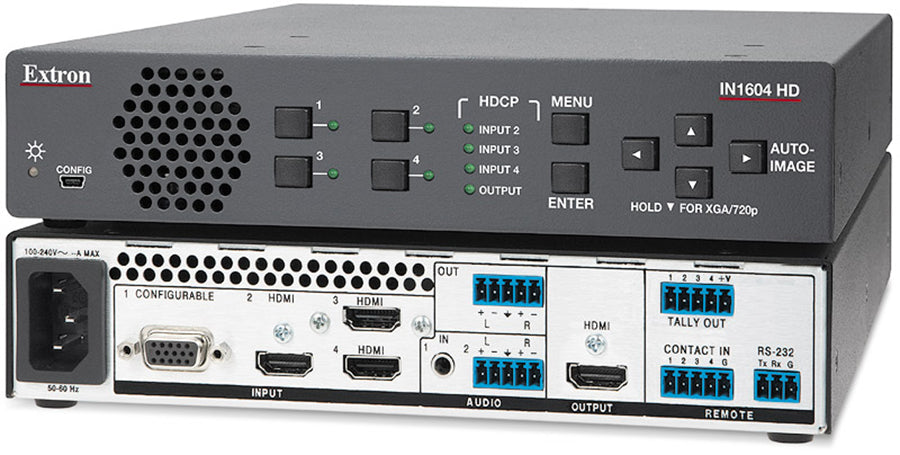

The Extron IN1604 HD (60-1457-02) is a new 4-input scaling presentation switcher available through Ampronix with a direct HDMI output for local displays and matrix connections. Three HDMI/DVI sources plus one analog input scale to a single HDMI output at resolutions up to 1920x1200 and 2K. Balanced/unbalanced analog audio output alongside embedded HDMI audio. Half-rack 1U chassis.

Key capabilities

Scales 3 HDMI/DVI and 1 universal analog video input to a shared HDMI output
Output resolutions up to 1920x1200 and 2K (2048x1080)
12-bit video processing with automatic input equalization
Balanced/unbalanced analog audio output alongside embedded HDMI audio
Half-rack 1U metal chassis with RS-232, tally, and USB configuration ports

Where it is used

Huddle rooms, classrooms, and lecterns where the display or downstream matrix is close enough for a direct HDMI run, giving integrators four-input scaling and switching without twisted-pair extension hardware.

Specifications at a glance

4 inputs: 3 HDMI/DVI, 1 universal analog; 1 HDMI output
Scales up to 1920x1200 and 2K (2048x1080)
Warranty: 3-year product, 7-year Everlast power supply

Frequently asked questions about the Extron IN1604 HD 4-Input Scaling Presentation Switcher

Is the Extron IN1604 HD 60-1457-02 available new or refurbished?

Ampronix stocks the IN1604 HD (60-1457-02) as a new unit through its authorized Extron distribution agreement.

When should I choose the IN1604 HD over the IN1604 DTP?

Choose the IN1604 HD (60-1457-02) when the display is within HDMI cable reach; choose the IN1604 DTP (60-1457-01) when the display is up to 330 ft away and a single CATx cable run is preferred.

Does Ampronix offer replacement and exchange for the Extron IN1604 HD?

Yes. Ampronix provides sales, replacement and exchange for the IN1604 HD and the broader Extron IN-series presentation switcher line.

Ampronix is an authorized Extron distributor. Need a replacement or exchange for your Extron IN1604 HD? Ampronix provides sales, replacement and exchange for this product and the broader Extron line.

Also referenced as Extron IN1604HD, IN1604-HD, part number 60145702.

Specifications

Part Number: 60-1457-02

Manufacturer: Extron

Model: IN1604 HD

Condition: New

Standards: DVI 1.0, HDMI 1.3, HDCP 1.4

Decoder: 12 bit digital (3D-adaptive comb filter)

Analog sampling: 12 bits per color; 13.5 MHz standard (video), 170 MHz standard (RGB)

Digital pixel data bit depth: 8, 10, or 12 bits per channel; 165 MHz pixel clock (HDMI)

Colors: 1 billion (10 bit processing)

Video Input Number/signal type: 1 analog RGBHV, component video (YUVi, YUVp, YUV-HD), S-video, or composite video; 3 HDMI/DVI

Video Input Connectors: 1 female 15-pin HD, 3 female HDMI type A

Video Input Equalization: Automatic

Input cable length: Up to 75' (22.9 m) for all supported input rates

Resolution range: 640x480 to 1920x1200 sampled pixel for pixel, NTSC, PAL, SECAM, 480i-1080p, and 2K (reduced blanking)

Video Input Impedance: 75 ohms

Horizontal frequency: 15 kHz to 100 kHz

Vertical frequency: 24 Hz to 75 Hz

Return loss: greater than 30 dB @ 5 MHz

DC offset (max. allowable): 0.5 V

Video Output Number/signal type: 1 HDMI digital video

Video Output Connectors: 1 female HDMI

HDMI peripheral device power: 200 mA

Digital bit depth: 8 or 10 bit, automatic

Input type: RGBHV, RGBS, RGsB, bi-level or tri-level component video

Input standards: NTSC 3.58, NTSC 4.43, PAL, SECAM, TMDS

Input level: 2.75 V to 5.0 Vp-p for RGBHV or RGBS; 0.6 Vp-p for tri-level sync; 0.3 Vp-p for bi-level sync, RGsB, or composite video

Sync Input impedance: Horizontal and vertical: 510 ohms

Max. input voltage: 5.0 Vp-p

Frequency response: 20 Hz to 20 kHz, ±0.5 dB

THD + Noise: less than 0.1% @ 1 kHz, 20 Hz to 20 kHz bandwidth at nominal level

Audio S/N: greater than 90 dB at maximum output (unweighted)

Crosstalk: -80 dB or better @ 1 kHz, fully loaded

Stereo channel separation: greater than 80 dB @ 1 kHz

Audio Input Number/signal type: 1 analog stereo unbalanced; 1 analog stereo balanced/unbalanced; 3 digital stereo de-embedded from HDMI (PCM only)

Audio Input Connectors: (1) 3.5 mm stereo jack; (1) 3.5 mm captive screw connector, 5 pole; 3 female HDMI type A

Audio Input Impedance: Analog inputs: greater than 10k ohms unbalanced, greater than 20k ohms balanced

Audio Input Nominal level: 3.5 mm stereo jack: +4 dBu; captive screw: +4 dBu or -10 dBV, adjustable

Audio Input Maximum level: Analog inputs: +15 dBu unbalanced, +21 dBu balanced

Audio CMRR: 70 dB @ 1 kHz

Input gain adjustment: -18 dB to +24 dB, adjustable per input, 1 dB steps, analog inputs only

Audio Output Number/signal type: 1 analog stereo or mono, balanced/unbalanced; 1 HDMI embedded

Audio Output Connectors: (1) 3.5 mm captive screw connector, 5 pole; 1 female HDMI

Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced

Gain error: ±0.5 dB channel to channel

Audio Output Maximum level (Hi-Z): greater than +15 dBu unbalanced, greater than +21 dBu balanced

Output volume range: 0 to -100 dB in 1 dB steps

Serial control port: 1 bidirectional RS-232, 3.5 mm captive screw connector, 3 pole (rear panel)

Baud rate and protocol: 9600, 8 data bits, 1 stop bit, no parity

Serial control pin configuration: 1 = Tx, 2 = Rx, 3 = Gnd

Contact closure: 4 contact closure inputs on (1) 3.5 mm captive screw connector, 5 pole

Tally output: 4 tally outputs on (1) 3.5 mm captive screw connector, 5 pole

USB control port: 1 front panel female mini USB B

USB standards: USB 2.0, high speed

Program control: Extron PCS configuration software for Windows; Extron Simple Instruction Set (SIS)

Power supply: Internal; Input: 100-240 VAC, 50-60 Hz

Power consumption (full power): 15.1 watts

Power consumption (power save mode): 6.6 watts

Temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling: Fan, air flows front to rear, vents on front and rear

Thermal dissipation (full power): 50.2 BTU/hr

Thermal dissipation (power save mode): 22.3 BTU/hr

Mounting: Rack mount with optional rack shelf; furniture mount with optional under-desk or through-desk kit

Enclosure type: Metal

Enclosure dimensions: 1.75" H x 8.75" W x 8.5" D (1U high, half rack wide) (depth excludes connectors)

Product weight: 2.1 lbs (1.0 kg)

Regulatory compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI, RoHS, WEEE

Warranty: 3 years parts and labor

Everlast power supply warranty: 7 years parts and labor

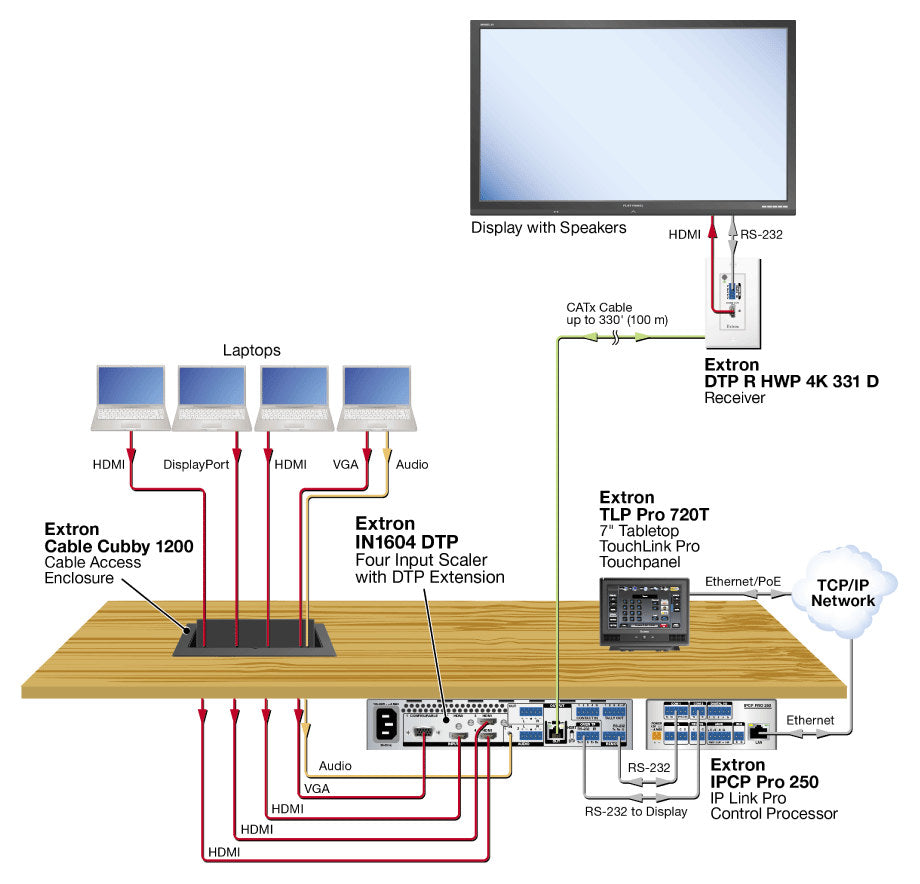

Diagram

Resources

Brochure | IN1604 HD 60-1457-02 | IN1604 (in1604_revC1.pdf)

Brochure | IN1604 HD 60-1457-02 | Everlast Power Supplies

Brochure | IN1604 HD 60-1457-02 | Extron Government Solutions

Brochure | IN1604 HD 60-1457-02 | IN1604 DTP (IN1604-DTP_BR_A4_GE_RevA1.pdf)

Brochure | IN1604 HD 60-1457-02 | IN1604 DTP (IN1604-DTP_BR_A4_SP_RevA1.pdf)

Brochure | IN1604 HD 60-1457-02 | Alimentatori Everlast

Brochure | IN1604 HD 60-1457-02 | Everlast 电源

Brochure | IN1604 HD 60-1457-02 | Everlast-Netzteile

Brochure | IN1604 HD 60-1457-02 | Extron-Lösungen für Behörden

Brochure | IN1604 HD 60-1457-02 | Fuentes de alimentación Everlast

Brochure | IN1604 HD 60-1457-02 | IN1604 (in1604_dtp_bro_revA_cn.pdf)

Brochure | IN1604 HD 60-1457-02 | IN1604 (in1604_REV_C_jp_ONLINE.pdf)

Brochure | IN1604 HD 60-1457-02 | Solutions Extron pour structures gouvernementales

Brochure | IN1604 HD 60-1457-02 | Soluzioni Extron per ambienti governativi

Brochure | IN1604 HD 60-1457-02 | Sources d'alimentation Everlast

Manual | IN1604 HD 60-1457-02 | Cleaning Instruction Card

Manual | IN1604 HD 60-1457-02 | DTP Compatibility Guide

Manual | IN1604 HD 60-1457-02 | IN1604 Series Setup Guide

Manual | IN1604 HD 60-1457-02 | IN1604 Series User Guide

Manual | IN1604 HD 60-1457-02 | DTP互換性ガイド

Specifications | IN1604 HD 60-1457-02 | IN1604 Series

Panel Drawing | IN1604 HD 60-1457-02 | IN1604
