Extron HSA 400 Hideaway Surface Access Enclosure
- • Extron HSA 400 Hideaway Enclosure Israel Brushed Aluminum
- • Holds four single-space or two double-space AAPs
- • Israeli AC outlet plus two CAT 6 RJ-45 jacks
- • Sales, replacement and exchange
- • Part# 60-700-1C / 607001C
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron HSA 400 (part number 60-700-1C) - Israeli AC outlet, brushed aluminum finish, in Extron's compact Hideaway tilt-up enclosure.

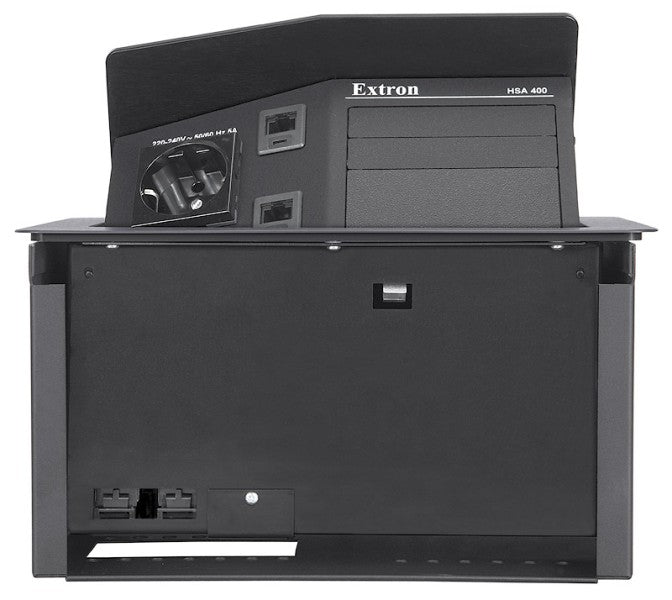

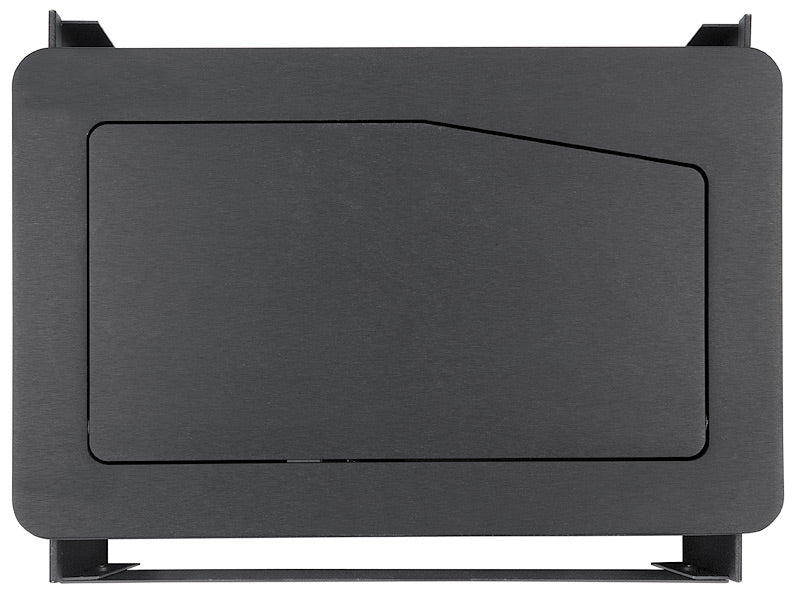

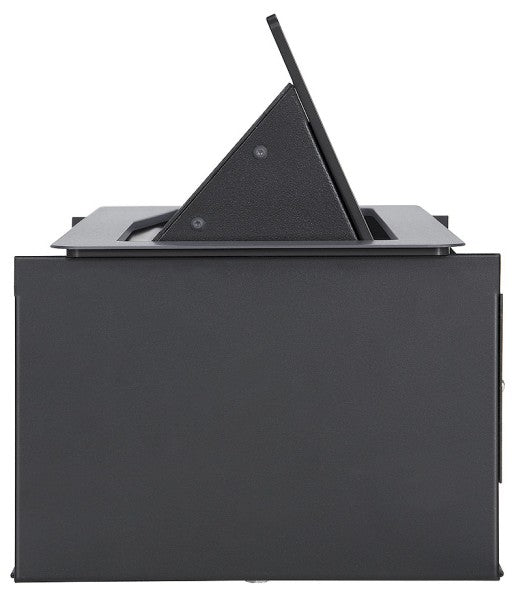

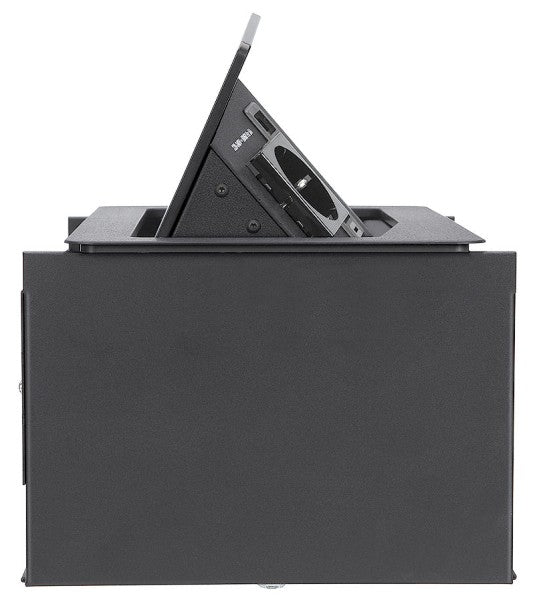

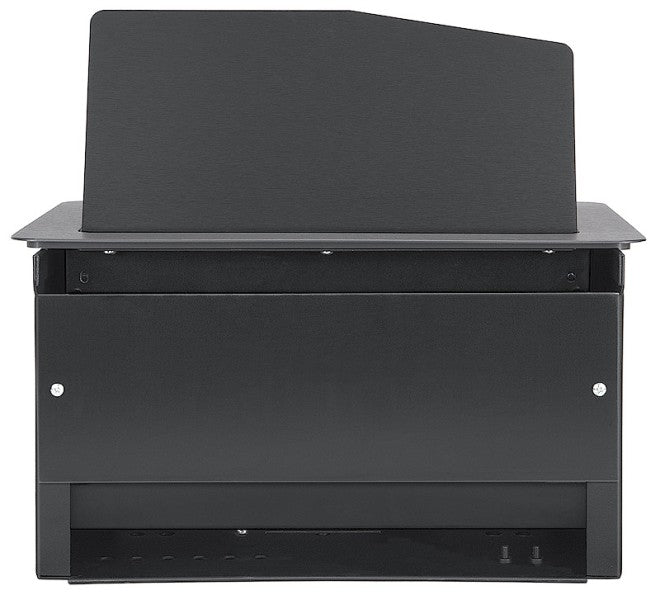

This is the furniture-mounted way to give a meeting table mains power, structured cabling and AV connectors without leaving hardware exposed. The HSA 400 body is metal and sits in a routed opening in the tabletop, bolted to a clamshell underneath. Press the brushed aluminum top plate and a mechanical latch releases; a gas lift then tilts the connector panel to 49 degrees. Order code 60-700-1C carries the Israeli receptacle.
Key Capabilities
- One unswitched AC receptacle in the Israeli outlet configuration
- Two CAT 6 RJ-45 jacks for network, data or phone, wired to TIA/EIA T568B
- Faceplate holds four single-space or two double-space Extron AAP plates
- Gas lift rated by Extron at 100,000 opening and closing cycles
- Fits tables and podiums 0.38 in to 1.75 in thick
- Ships with an RJ-45 kit of colored bezels, icon labels and a blank filler
Where It Is Used
Corporate boardrooms, government and defense briefing rooms, university lecture halls, hospital conference suites and technical training rooms in Israel. The enclosure fits any fixed table where connectivity has to be within reach yet out of sight between sessions.
Specifications at a Glance
- Surface cutout: 9.64 in W x 5.95 in D
- Top plate, outer rim: 10.11 in W x 6.42 in D
- Weight: 8.4 lbs (3.8 kg)
- Compliance: CE, RoHS, WEEE
- Warranty: 3 years parts and labor
Frequently asked questions about the Extron HSA 400 Hideaway Enclosure Israel Brushed Aluminum
Does Ampronix sell the Extron HSA 400 Hideaway Enclosure Israel Brushed Aluminum?
Yes. Ampronix is an authorized Extron distributor and sells the Extron HSA 400 Hideaway Enclosure Israel Brushed Aluminum (60-700-1C). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron HSA 400 Hideaway Enclosure Israel Brushed Aluminum?
Yes. Ampronix provides sales, replacement and exchange for the Extron HSA 400 Hideaway Enclosure Israel Brushed Aluminum. Call Ampronix for a quote.
Is the Extron HSA 400 Hideaway Enclosure Israel Brushed Aluminum listed under other names?
Yes. The Extron HSA 400 Hideaway Enclosure Israel Brushed Aluminum is also referenced as Extron HSA400, HSA-400, part number 607001C.
What are the key features of the Extron HSA 400 Hideaway Enclosure Israel Brushed Aluminum?
Key points: One unswitched AC receptacle in the Israeli outlet configuration; Two CAT 6 RJ-45 jacks for network, data or phone, wired to TIA/EIA T568B; Faceplate holds four single-space or two double-space Extron AAP plates; Gas lift rated by Extron at 100,000 opening and closing cycles. Call Ampronix to confirm details for your application.
Also referenced as Extron HSA400, HSA-400, part number 607001C.
