Extron HSA 400 (part number 60-700-0E) — the French-outlet, black anodized version of Extron's tilt-up Hideaway surface access enclosure.

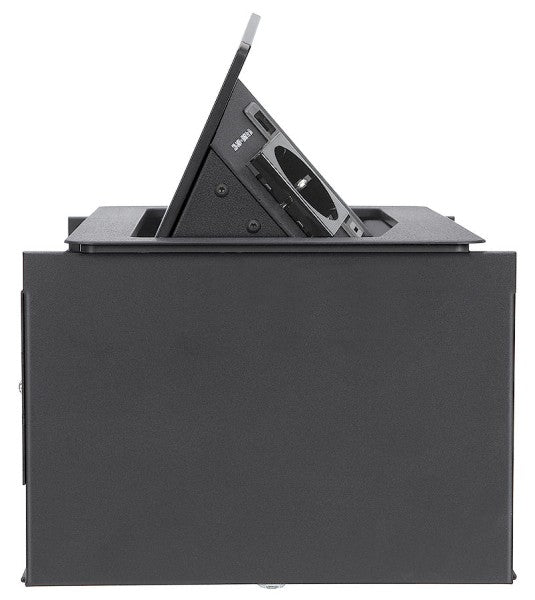

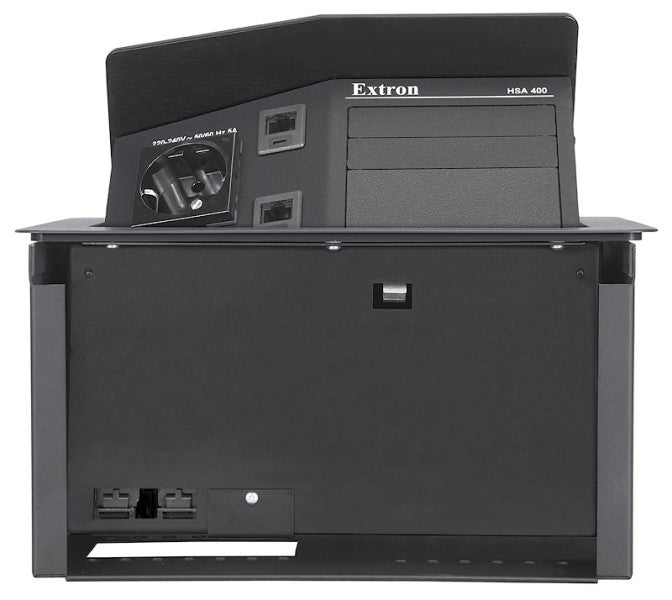

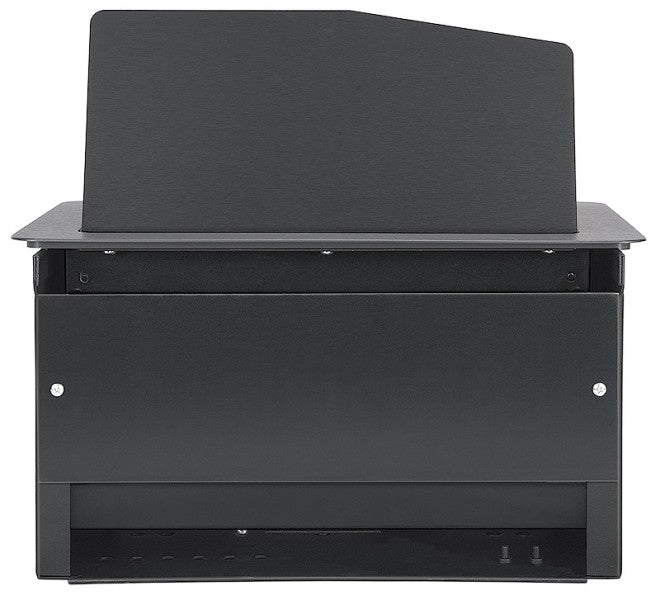

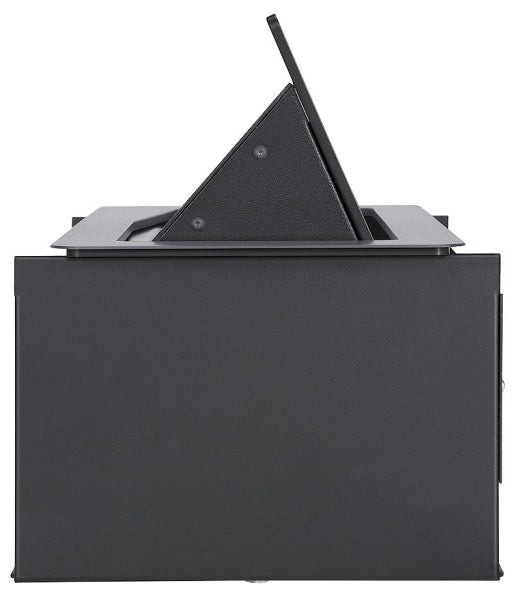

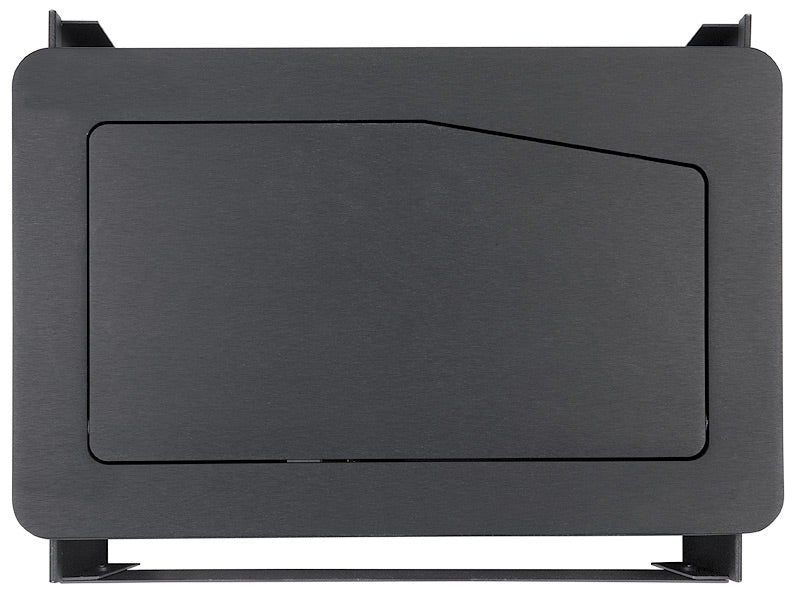

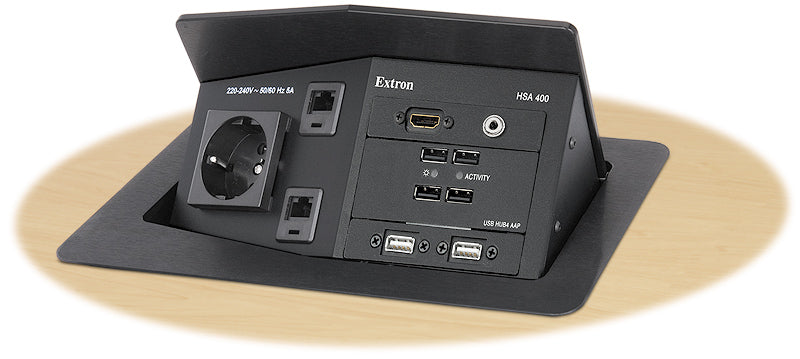

This is a metal enclosure that gets cut into a table, lectern or desk so power, network and AV connections live below the work surface instead of on top of it. The top plate rests almost flush with the tabletop. Push it and a mechanical latch releases; a gas lift then raises the connector panel to a 49-degree angle for comfortable access. Push it back down and the hardware is hidden again. Order code 60-700-0E carries the French AC receptacle and the black anodized top plate.

Key Capabilities

• Opening takes four single-space or two double-space Extron AAP plates
• One unswitched AC receptacle in the French outlet configuration
• Two CAT 6 RJ-45 jacks wired to the TIA/EIA T568B standard for data, network or phone
• Extron rates the gas lift at 100,000 opening and closing cycles
• Clamps from underneath into surfaces measuring 0.38 in to 1.75 in thick
• Ships with an RJ-45 connection kit including colored bezels, icons and a blank filler

Where It Is Used

Conference and boardroom tables, university lecture podiums, training rooms, meeting pods and console furniture in French-standard facilities. Integrators specify it wherever a seated presenter needs mains power, a network drop and AV connectors at the table without leaving cables strewn across the surface.

Specifications at a Glance

• Surface cutout: 9.64 in W x 5.95 in D
• Top plate, outer rim: 10.11 in W x 6.42 in D
• Weight: 8.4 lbs (3.8 kg)
• Compliance: CE, RoHS, WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron HSA400, HSA-400, part number 607000E.
