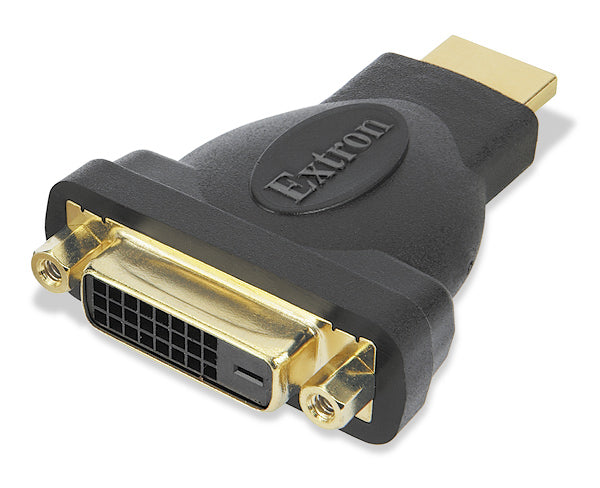

Extron HDMIM-DVIDF (part number 26-617-01) — a compact molded adapter with an HDMI male plug on one end and a DVI-D female socket on the other.

This is the mirror of the HDMIF-DVIDM: it plugs an HDMI port directly and offers a DVI-D socket for an existing DVI cable. The DVI-D side uses threaded inserts so the mating cable's thumb screws can lock it down. Electrically it is a passive pass-through of the full single link set — digital video, digital audio, EDID, hot plug detect, CEC and HDCP — with gold-plated contacts on every pin and pin 13 of the HDMI side wired to pin 8 of the DVI side to carry CEC.

Key Capabilities

• HDMI male to DVI-D female, a single moulded passive part.
• Supports 480i, 480p, 720p, 1080i and 1080p/60 HDTV resolutions.
• Computer-video from VGA (640x480) through WUXGA (1920x1200) at 60 Hz.
• Gold-plated contacts for reliable performance.
• Threaded inserts on the DVI-D side accept the cable's thumb screws.
• Passes EDID (DDC), HPD, CEC and HDCP along with video and audio.
• Black matte moulded shell.

Where It Is Used

Reached for whenever an HDMI output on a laptop, player or camera has to meet a legacy DVI-D cable already run to a projector, videowall controller or clinical display.

Specifications at a Glance

• Connectors: 1 HDMI male to 1 DVI-D female
• Contacts: gold plated
• Shell: durable moulded, black matte finish, threaded inserts for thumb screws
• Signal support: single link digital signals only
• Maximum computer resolution: 1920x1200 at 60 Hz

Also referenced as Extron HDMIMDVIDF, HDMIM-DVIDF, part number 2661701.
