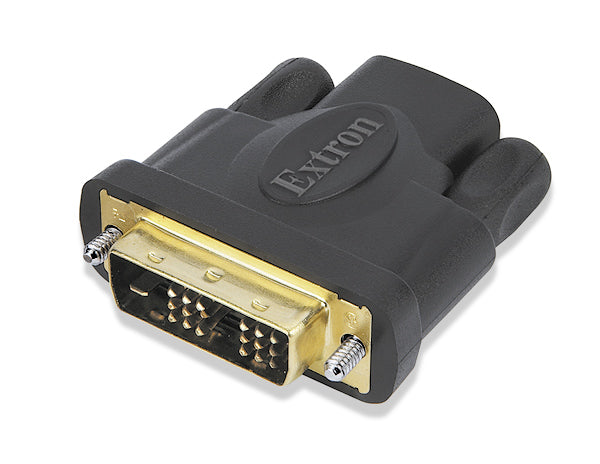

Extron HDMIF-DVIDM (part number 26-616-01) — a compact molded adapter presenting an HDMI female socket at one end and a DVI-D male plug at the other.

Use this one when the cable in hand is HDMI and the port on the equipment is a DVI-D female socket. The male DVI-D end carries its own thumb screws, so it locks directly into a display, projector or capture card rather than relying on friction. Inside, gold-plated contacts carry the full single link payload: digital video, digital audio, EDID, hot plug detect, CEC and HDCP. The shell is moulded with a black matte finish that disappears behind a panel.

Key Capabilities

• HDMI female to DVI-D male in one moulded part, no active electronics.
• Supports 480i, 480p, 720p, 1080i and 1080p/60 HDTV formats.
• Computer-video resolutions from VGA (640x480) through WUXGA (1920x1200) at 60 Hz.
• Gold-plated contacts throughout.
• Thumb screws on the DVI-D male connector secure the joint.
• Carries EDID (DDC), HPD, CEC and HDCP alongside video and audio.
• Compatible with single link digital signals only.

Where It Is Used

Typical in medical imaging suites, broadcast racks, lecture theatres and control rooms where an HDMI source cable must terminate at a DVI-D input on a monitor, scaler or recorder.

Specifications at a Glance

• Connectors: 1 HDMI female to 1 DVI-D male
• Contacts: gold plated
• Shell: durable moulded, black matte finish, with thumb screws
• Signal support: single link digital signals only
• Maximum computer resolution: 1920x1200 at 60 Hz

Also referenced as Extron HDMIFDVIDM, HDMIF-DVIDM, part number 2661601.
