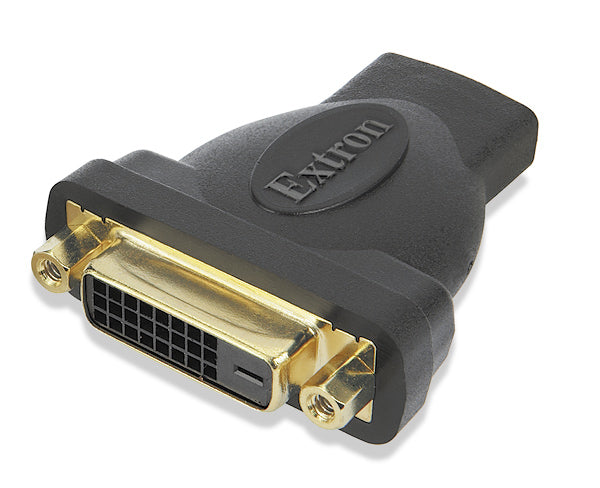

Extron HDMIF-DVIDF (part number 26-618-01) — a compact molded adapter with an HDMI female connector on one end and a DVI-D female connector on the other.

Two cables, two different connectors, one job. This adapter joins an HDMI cable to a DVI-D cable so a set-top box, graphics card or other source can drive a flat panel display or data projector without an active converter in between. Both ends are female, which makes it the right part when the existing cables both terminate in male plugs. The DVI-D side carries threaded inserts that accept thumb screws, so the joint stays put once it is dressed into a rack or behind a display.

Key Capabilities

• Supports 480i, 480p, 720p, 1080i and 1080p/60 HDTV resolutions.
• Handles computer-video resolutions from VGA (640x480) through WUXGA (1920x1200) at 60 Hz.
• Gold-plated contacts for reliable long-term performance.
• Passes digital video, digital audio, EDID (DDC), HPD, CEC and HDCP.
• Pin 13 of the HDMI connector ties to pin 8 of the DVI connector for CEC.
• Durable molded shell in a black matte finish.
• Threaded inserts on the DVI-D side accept thumb screws.

Where It Is Used

Common on service carts and in equipment racks where an HDMI cable run has to meet a DVI-D cable run: signage players, teaching stations, imaging workstations, and any refit where the display cabling predates the source.

Specifications at a Glance

• Connectors: 1 HDMI female to 1 DVI-D female
• Contacts: gold plated
• Shell: molded, black matte finish, threaded inserts for thumb screws
• Signal support: single link digital signals only
• Maximum computer resolution: 1920x1200 at 60 Hz

Also referenced as Extron HDMIFDVIDF, HDMIF-DVIDF, part number 2661801.
