Details

Manufacturer: Extron; Model: HDMI Pro/25; Part number: 26-650-25 (also written 2665025)

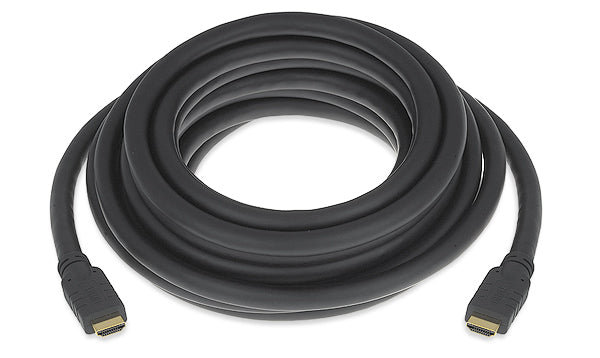

The Extron HDMI Pro/25 (26-650-25) is a new 25 ft (7.6 m) Premium High Speed HDMI cable available through Ampronix, verified for 4K at 60 Hz. 22 AWG tinned copper conductors under foil and tinned copper braid shielding. 18.0 Gbps ceiling; supports 4096x2160 and 3840x2160 at 60 Hz with 4:4:4 chroma. ARC and CEC pass-through; cable UL Listed as type CM. Limited Lifetime Performance warranty.

Key capabilities

25 ft (7.6 m) Premium High Speed HDMI, verified for 4K/60 by Extron
22 AWG tinned copper conductors with aluminum/Mylar foil and tinned copper braid shielding
18.0 Gbps maximum data rate; supports 4096x2160 and 3840x2160 at 60 Hz 4:4:4
ARC and CEC pass-through; cable UL Listed as type CM, CSA FT-1
0.47 in (12.0 mm) OD, 4.50 in (114.3 mm) bend radius

Where it is used

A closet rack feeding a boardroom display, a control room console to an overhead monitor, and mid-size classroom projector drops where a single factory-terminated 4K HDMI pull is needed.

Specifications at a glance

Length: 25 ft (7.6 m); max data rate: 18.0 Gbps
Warranty: Limited Lifetime Performance

Frequently asked questions about the Extron HDMI Pro/25 25ft 4K Premium HDMI Cable Male to Male

Is the Extron HDMI Pro/25 26-650-25 available new or refurbished?

Ampronix stocks the HDMI Pro/25 (26-650-25) as a new cable through its authorized Extron distribution agreement.

Is 25 ft the longest 4K-verified length in the HDMI Pro series?

Yes. Extron verifies 4K/60 operation up to the 25 ft length; the 200 ft HDMI Pro/200 (26-650-200) is available for longer runs but carries no 4K resolution rating at that distance.

Does Ampronix stock other lengths in the Extron HDMI Pro series?

Ampronix carries the full range of Extron HDMI Pro cable lengths; contact Ampronix for current stock and lead times on specific lengths.

Ampronix is an authorized Extron distributor and carries a full range of Extron HDMI and AV cables.

Also referenced as Extron HDMIPro/25, HDMI-Pro-25, part number 2665025.

Specifications

Part Number: 26-650-25

Manufacturer: Extron

Model: HDMI Pro/25

Condition: New

Cable Length: 25 ft (7.6 m)

Signal Type: HDMI 2.0

Resolution Range: Premium High Speed HDMI cable, up to 25 ft (7.6 m): up to 4K at 60 Hz (4096x2160) or UHD at 60 Hz (3840x2160), 8 bit color depth, max 18.0 Gbps data rate

Max Video Data Rate: 18.0 Gbps (6.0 Gbps per color)

Frame Rate: 24, 25, 30, 50, or 60 fps

Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0

Color Bit Depth: 8 bits per color

Attenuation: At 0.3 to 0.825 GHz: 5 dB or less per 6 m; at 0.825 to 2.475 GHz: 12 dB or less per 6 m; at 2.475 to 4.125 GHz: 20 dB or less per 6 m; at 4.125 to 5.100 GHz: 25 dB or less per 6 m

FEXT: 20 dB or more per 6 m

Pair Impedance: 100 ohms plus or minus 10 ohms

Intrapair Skew: 112 ps or less per 8 m

Interpair Skew: 1.78 ns or less per 8 m

Connector Type: 1 male type A HDMI to 1 male type A HDMI

Contacts: Gold plated

Connector Dimensions: 2.46 in L x 0.80 in W x 0.60 in thick (62.5 mm x 20.3 mm x 15.0 mm); length includes plug

Cable Outer Diameter: 0.47 in (12.0 mm)

Bend Radius: 4.50 in (114.3 mm)

Conductor Gauge: Conductors and drain wire: 22 AWG

Materials: Conductors: tinned copper; Drain wire: tinned copper; Shielding: aluminum/Mylar and tinned copper braid; Jacket: PVC

Voltage: 30 V

Temperature Rating: Minimum -25 C; Maximum 75 C

Regulatory Compliance: Cable: UL Listed as type CM, CSA FT-1

Warranty: Limited Lifetime Performance

Diagram

Resources

Manual | HDMI Pro/25 26-650-25 | HDMI and DVI cables and adapters

Specifications | HDMI Pro/25 26-650-25 | HDMI M-M Pro Cables

Panel Drawing | HDMI Pro/25 26-650-25 | HDMI Pro Series
