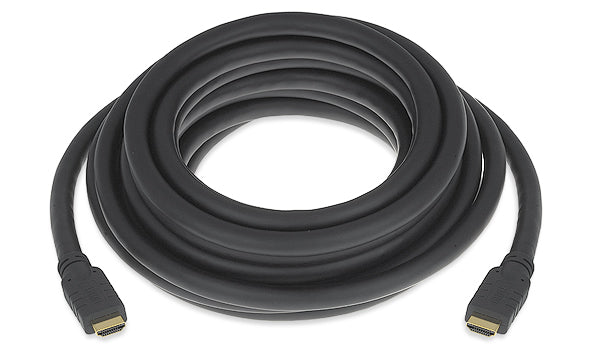

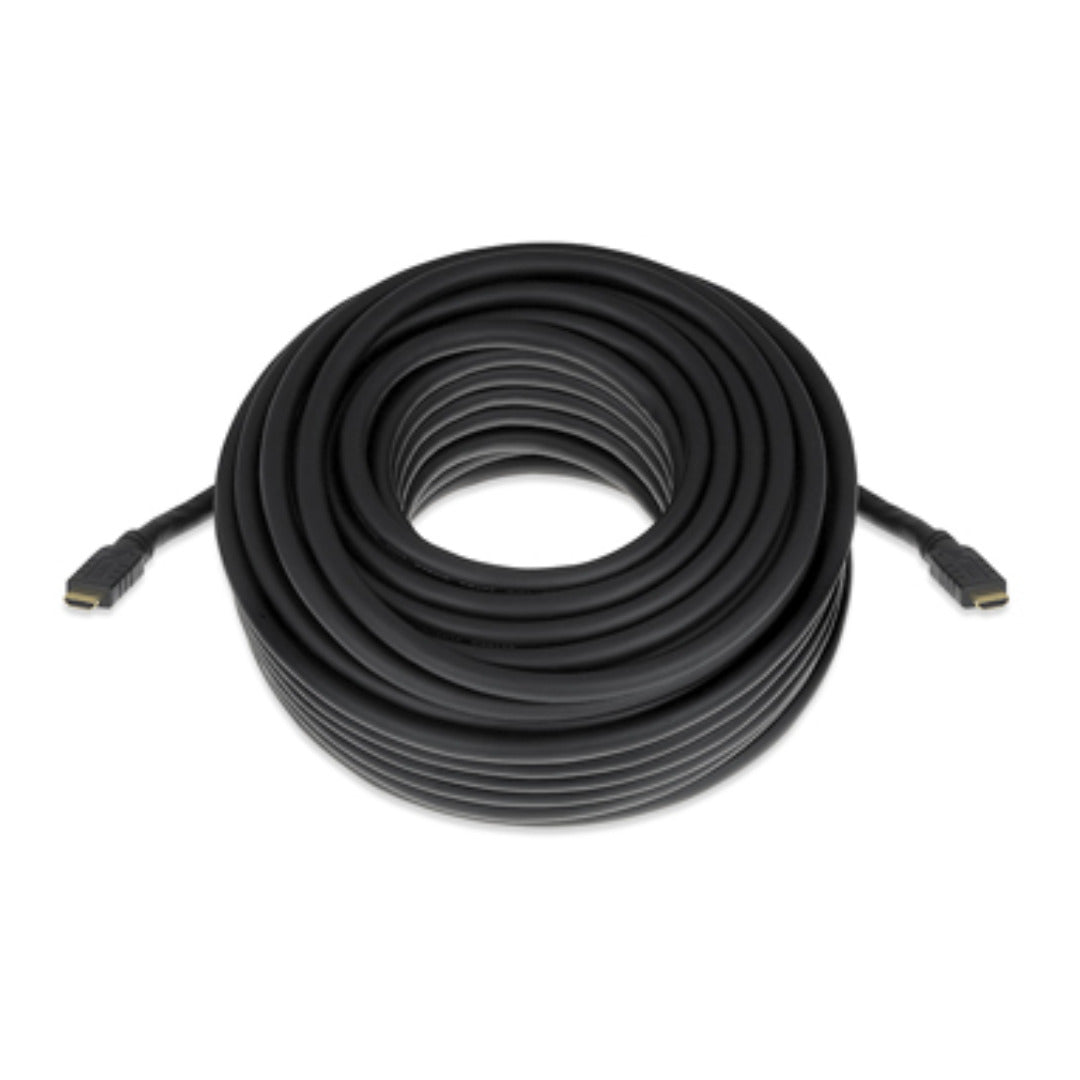

Extron HDMI Pro/100 100ft Standard HDMI Cable Male to Male 26-650-100
Extron HDMI Pro/100 100ft Standard HDMI Cable Male to Male 26-650-100
Extron HDMI Pro/100 HDMI Male-to-Male Cable
- • Extron HDMI Pro/100 100 ft Standard HDMI cable
- • 22 AWG tinned copper, foil and braid shield
- • UL type CM, CSA FT-1, -25 C to 75 C
- • Sales, replacement and exchange
- • Part# 26-650-100 / 26650100
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron HDMI Pro/100 (part number 26-650-100) is a 100 ft (30.4 m) HDMI cable that Extron places in its Standard HDMI class.
At 30.4 m the run sits well past every resolution figure Extron publishes for the series, and the company labelling reflects that: this is a Standard HDMI part, not a 4K one. The guidance Extron does give is to add a cable equalizer for 1080p at 60 Hz on runs longer than 75 ft. Ampronix carries 26-650-100 for like-for-like replacement of an existing long pull and for signage and monitoring links where distance matters more than pixel count.
Key Capabilities
- Extron labels 26-650-100 a Standard HDMI part rather than a 4K part.
- 22 AWG tinned copper conductors and drain wire.
- Aluminum/Mylar foil with a tinned copper braid under a PVC jacket.
- Cable outer diameter of 0.47 in (12.0 mm), bend radius 4.50 in (114.3 mm).
- Pair impedance of 100 ohms plus or minus 10 ohms.
- Jacket UL Listed as type CM with a CSA FT-1 flame rating.
Where It Is Used
A hundred feet is riser and long-conduit territory: an equipment room on one floor feeding a display on another, a stadium camera position reaching a production rack, a corporate lobby wall driven from a distant closet, or a plant control room monitoring a remote operations screen.
Specifications at a Glance
- Cable length: 100 ft (30.4 m)
- Signal type: HDMI 2.0
- Contacts: gold plated
- Temperature rating: -25 C minimum, 75 C maximum
- Regulatory: UL Listed as type CM, CSA FT-1
Frequently asked questions about the Extron HDMI Pro/100 100ft Standard HDMI Cable Male to Male
Does Ampronix sell the Extron HDMI Pro/100 100ft Standard HDMI Cable Male to Male?
Yes. Ampronix is an authorized Extron distributor and sells the Extron HDMI Pro/100 100ft Standard HDMI Cable Male to Male (26-650-100). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron HDMI Pro/100 100ft Standard HDMI Cable Male to Male?
Yes. Ampronix provides sales, replacement and exchange for the Extron HDMI Pro/100 100ft Standard HDMI Cable Male to Male. Call Ampronix for a quote.
Is the Extron HDMI Pro/100 100ft Standard HDMI Cable Male to Male listed under other names?
Yes. The Extron HDMI Pro/100 100ft Standard HDMI Cable Male to Male is also referenced as Extron HDMIPro/100, HDMI-Pro-100, part number 26650100. Extron lists 26-650-100 as a retired part number.
What are the key features of the Extron HDMI Pro/100 100ft Standard HDMI Cable Male to Male?
Key points: Extron labels 26-650-100 a Standard HDMI part rather than a 4K part; 22 AWG tinned copper conductors and drain wire; Aluminum/Mylar foil with a tinned copper braid under a PVC jacket; Cable outer diameter of 0.47 in (12.0 mm), bend radius 4.50 in (114.3 mm). Call Ampronix to confirm details for your application.
Also referenced as Extron HDMIPro/100, HDMI-Pro-100, part number 26650100. Extron lists 26-650-100 as a retired part number.
