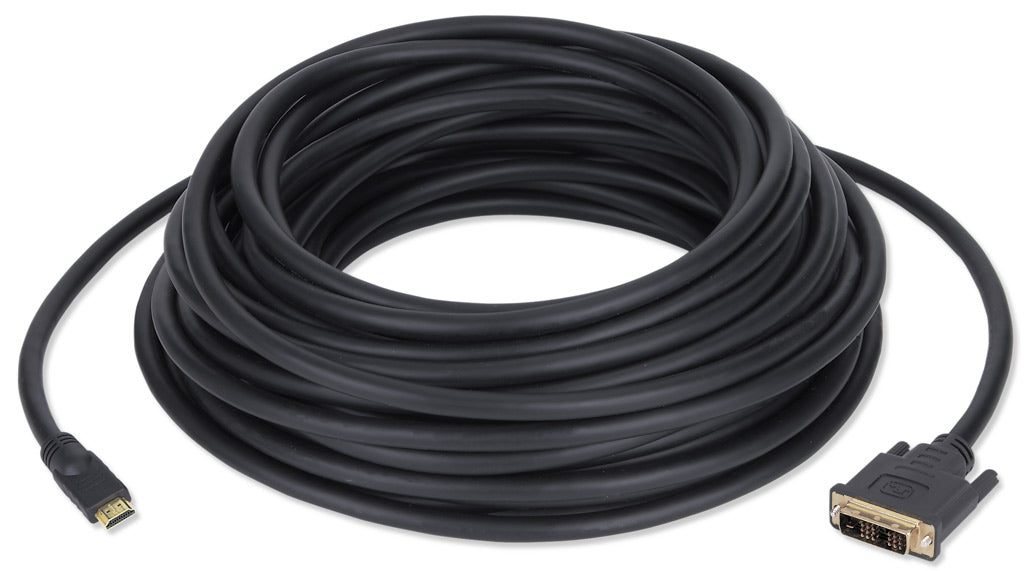

Extron HDMI DVI-D/6 (part number 26-614-02) — a 6 ft (1.8 m) HDMI male to single link DVI-D male cable built to HDMI Standard Speed specifications.

Six feet is the length that reaches from a rack shelf to the display above it, or from a desk-mounted source to a monitor arm. Extron builds it with 28 AWG tinned copper conductors, a tinned copper drain wire, an aluminium/Mylar foil wrap and a tinned copper braid, all under a PVC jacket. Gold-plated contacts on both plugs resist the oxidation that shows up as intermittent dropout years into an install. Pair impedance is held to 100 ohms within 10 ohms, and attenuation stays under 10 dB per 10 m at 0.825 GHz.

Key Capabilities

• Single link only: HDMI male to DVI-D male, DVI 1.0 compliant.
• Data rate support up to 4.95 Gbps for 1080p/60 and 1920x1200 at 60 Hz.
• 28 AWG conductors and drain wire on lengths of 12 ft and shorter.
• Foil plus braid shielding rejects interference in dense racks.
• Intrapair skew under 151 ps per 5 m; interpair under 2.42 ns per 5 m.
• Rated from -25 to 75 degrees C.
• Limited Lifetime Performance warranty.

Where It Is Used

A standard patch length for AV racks, imaging workstations, edit suites and control desks that mix HDMI sources with DVI-D displays, and a common spare to keep on hand for service calls.

Specifications at a Glance

• Length: 6 ft (1.8 m)
• Cable outer diameter: 0.22 in (5.7 mm); bend radius 0.80 in (20 mm)
• Pair impedance: 100 ohms plus or minus 10 ohms; voltage 30 V
• Maximum resolution: 1920x1200 at 60 Hz, vertical frequency to 60 Hz
• Regulatory: cable UL Listed as type CM, CSA FT-1, UL CL2

Also referenced as Extron HDMIDVID6, HDMI-DVI-D-6, part number 2661402.
